C-20T Professional Head Tracker
C-20T Professional Head Tracker
SKU:Head tracker
Impossibile caricare la disponibilità di ritiro
No Worry Purchase
No Worry Purchase
- Missing/Wrong Items Guarantee
- Quality Guarantee
- Secure Payment
- Life time Service
if you have any Technical Support, just contact us and we will be here with you!
Free Shipping
Free Shipping
Free shipping almost places ,please add to cart have a check.And if your place are not showing free shipping ,Please contact us freely .Also we have FREESHIPPING promo
Fast Shipping
Fast Shipping
Most Items will be shipped within a week. In-stock items will be dispatched the same day. If your order is urgent, please contact us before placing it.
Head Tracking: Move your head, and the camera follows. It’s immersive, intuitive, and just plain cool.
🎯 Perfect For:
FPV Flying: Capture buttery-smooth aerial footage that’ll make your viewers feel like they’re in the cockpit.
Action Shots: From mountain biking to surfing, keep your footage steady even in the most intense moments.
Creative Filmmaking: Use head tracking to add dynamic, first-person perspectives to your videos.
Travel Vlogging: Lightweight and easy to carry, it’s your go-to for stable, cinematic travel footage.
Headtracker
Dimensions 45 x 28.2 x 14.2mm
Weight 16g
Built-in Battery 1.11Wh (3.7V，300mAh)
Operating Time Approx. 3 hours (Measured with an ambient temperature of 25° C, when installed a Headtracker Datalink module）
Charging Type 5VDC 1A

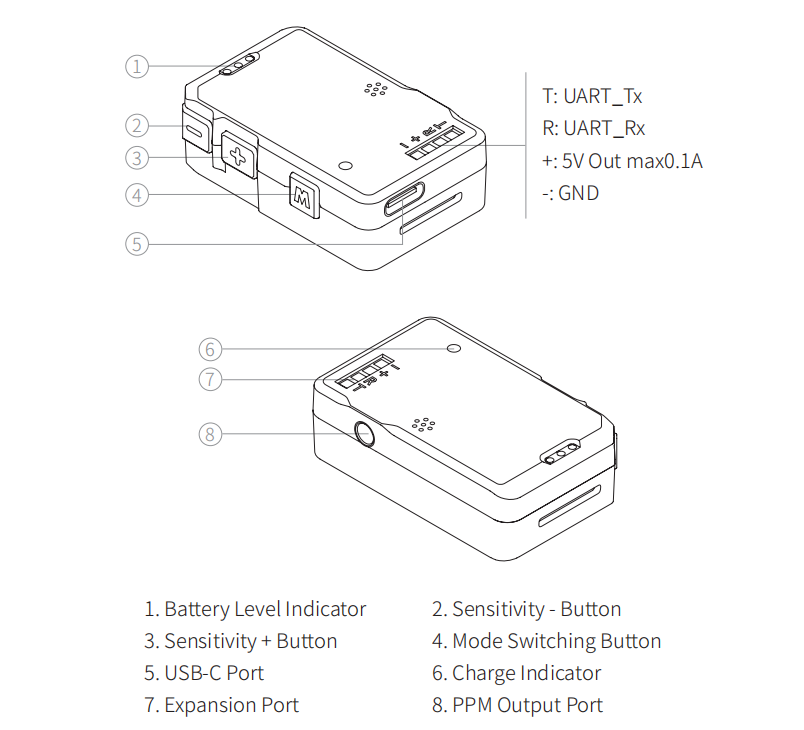

The Headtracker lets you control motion with your head. When installed on FPV goggles, you can move your head to control the gimbal and aircraft, giving you an immersive first-person experience.
It supports PPM and UART output, so you can control the gimbal and aircraft remotely through an RC link or data link
The C-20T Specifications:
Product Name: C-20T
Dimensions: 50 x 46.5 x 53mm
Weight: 46g
Operating Voltage: 7 ~ 26 VDC
Power Consumption: 1.5W (Static) / 14W (Peak)
Mounting Options: Downward / Upward
Camera Compatibility: 19mm FPV cameras
Control Port: PWM / UART
Head Tracking Control: Supported
Angular Accuracy: ±0.005°
Controllable Range: Pitch: -105° to +145°, Yaw: ±165°
Max Controllable Speed: Pitch: ±1500°/s, Yaw: ±1500°/s
Headtracker install&use
