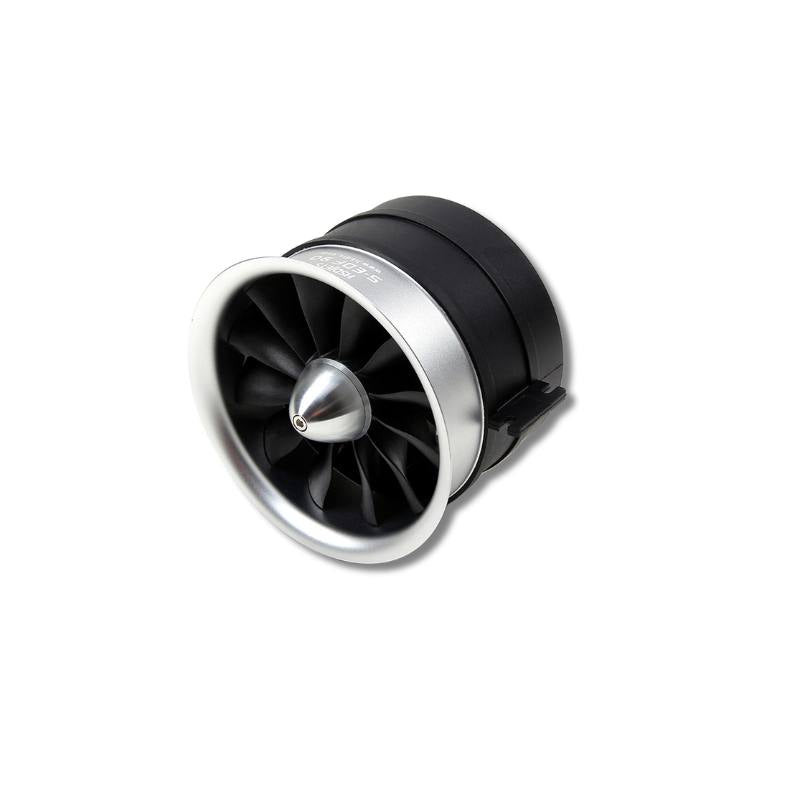

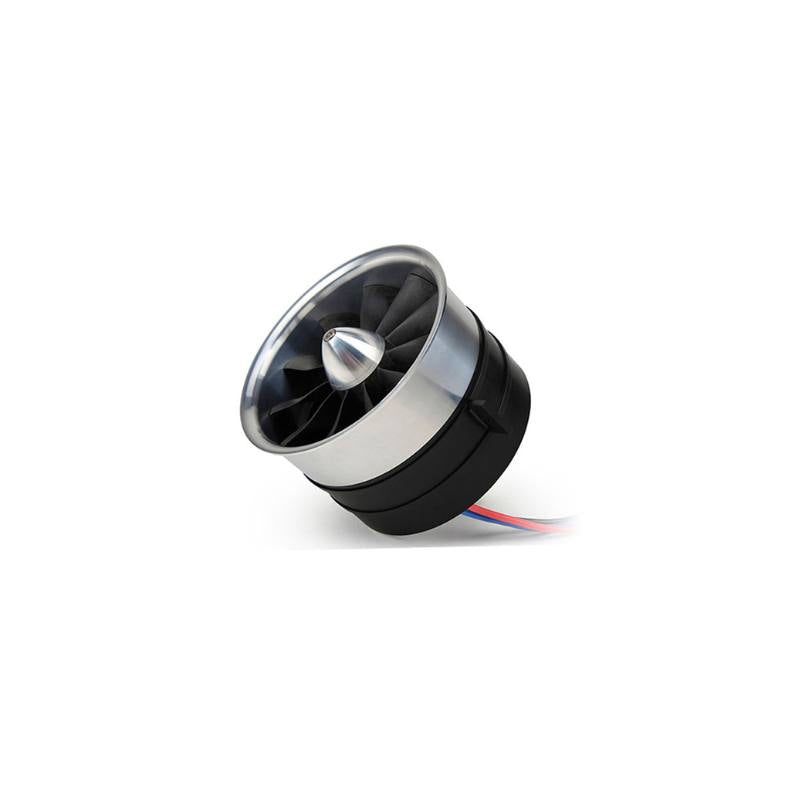

HSDJETS EDF 90mm Semimetallic-Electric Ducted Fan 6S 1550KV 3.7kg thrust for RC Airplane
HSDJETS EDF 90mm Semimetallic-Electric Ducted Fan 6S 1550KV 3.7kg thrust for RC Airplane
Prezzo di listino
$163.20
Prezzo di listino
Prezzo scontato
$163.20
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
1、S-EDF Semimetallic-Electric Ducted Fan series products,taking into account the toughness of plastic materials and the steeliness of metal materials,overcome many shortcomings of the above two materials.

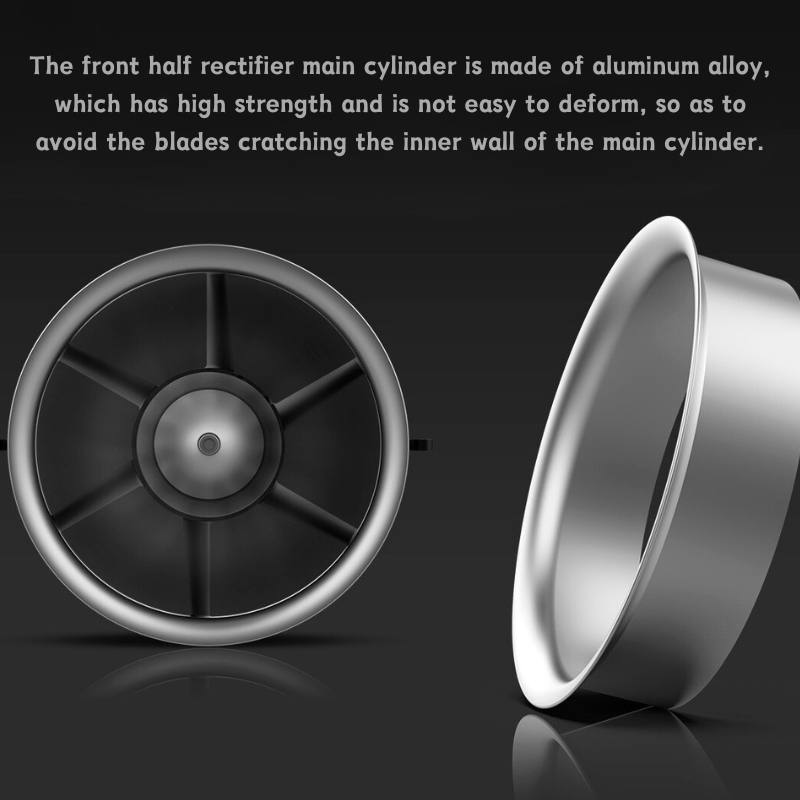

2、The front half rectifier main cylinder is made of aluminum alloy,which has high strength and is not easy to deform,so as to avoid the blade scratching the inner wall of the main cylinder.It can de changed later to upgrade the rectifier port with larger horn diameter to meet the needs of FRP model aircraft products.

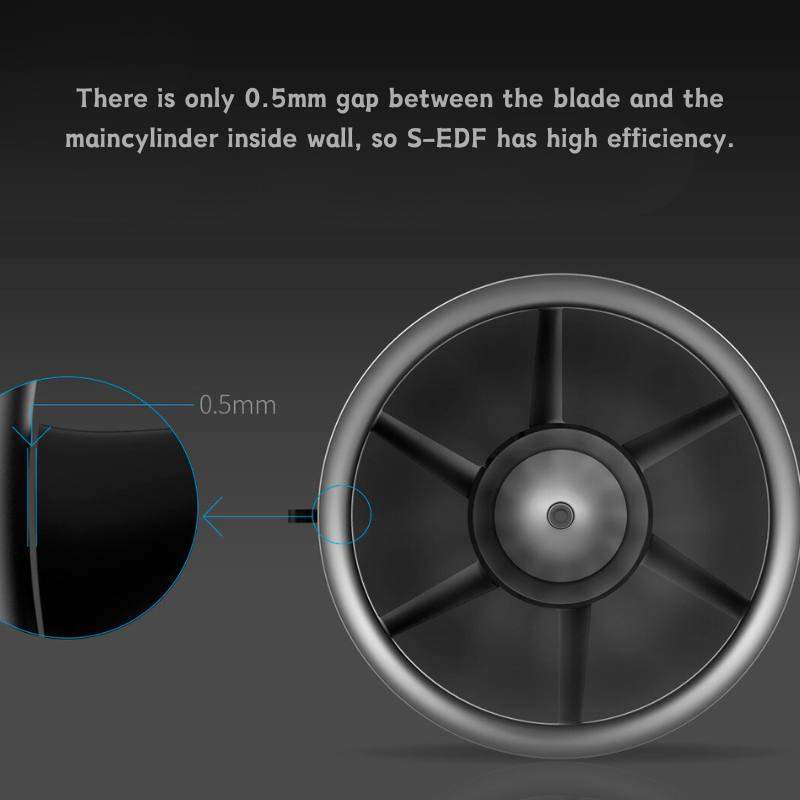

3、There is only 0.5mm gap between the blade and the main cylinder inside wall, so S-EDF has high efficiency.The blade adopts the imported carbon fiber mixed raw material developed by special technology,which is high strength and high toughness,not easy to deform,not easy to break under the pressure of certain strength,and the sound is clear and pure when rotating at high speed.

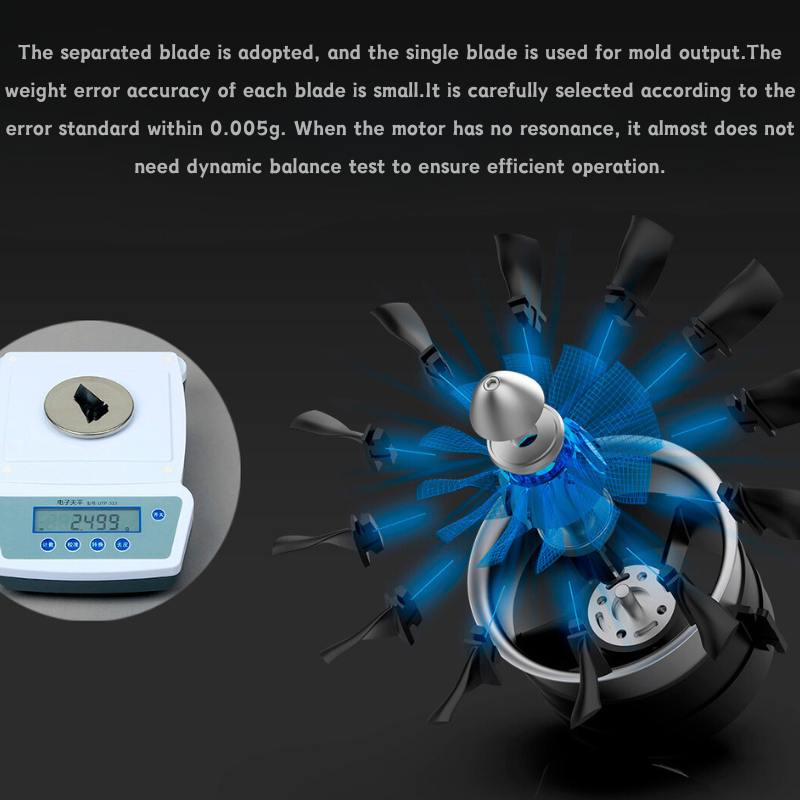

4、The separated blade is adopted,and the single blade is used for mold output.The weight error accuracy of each blade is small.It is carefully selected according to the error standard with in 0.005g.When the motor has no resonance,it almost does not need dynamic balance test to ensure efficient operation.
Another advantage of using the separated blade is that it is highly accurate,free and symmetrical assembly,convenient and flexible for dynamic balance test of the blade,fast pairing,and high test passing efficiency.
5、The second half of the main cylinder is made of mixed materials with special technology,which has high hardness and certain toughness.It is fixed with the metal motor,which can eliminate resonance to a certain extent and avoid adverse effects on the normal flight of the moder aircraft.

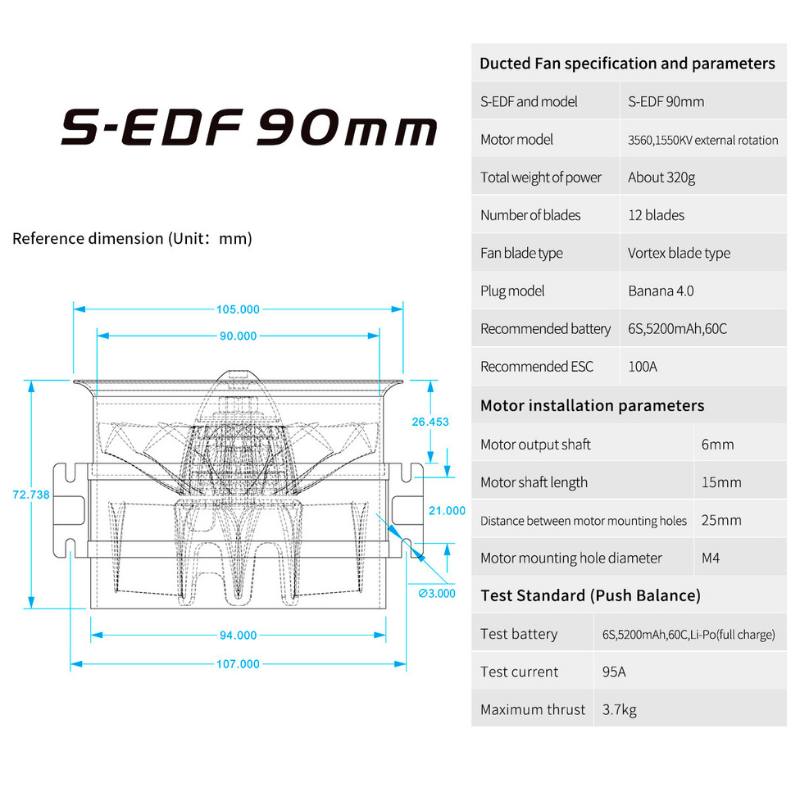

<b>Ducted Fan specification and parameters
S-EDF and model: S-EDF 90mm
Motor model: 3560,1550KV external rotation
Total weight of power: About 320g
Number of blades: 12 blades
Fan blade type: Vortex blade type
Plug model: Banana 4.0
Recommended battery: 6S,5200mAh,60C

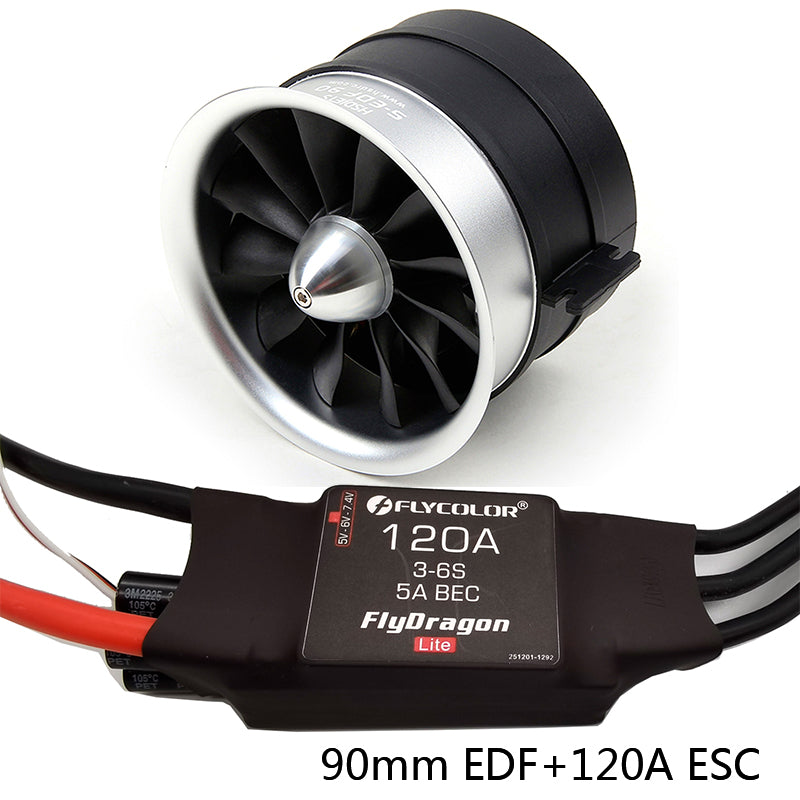

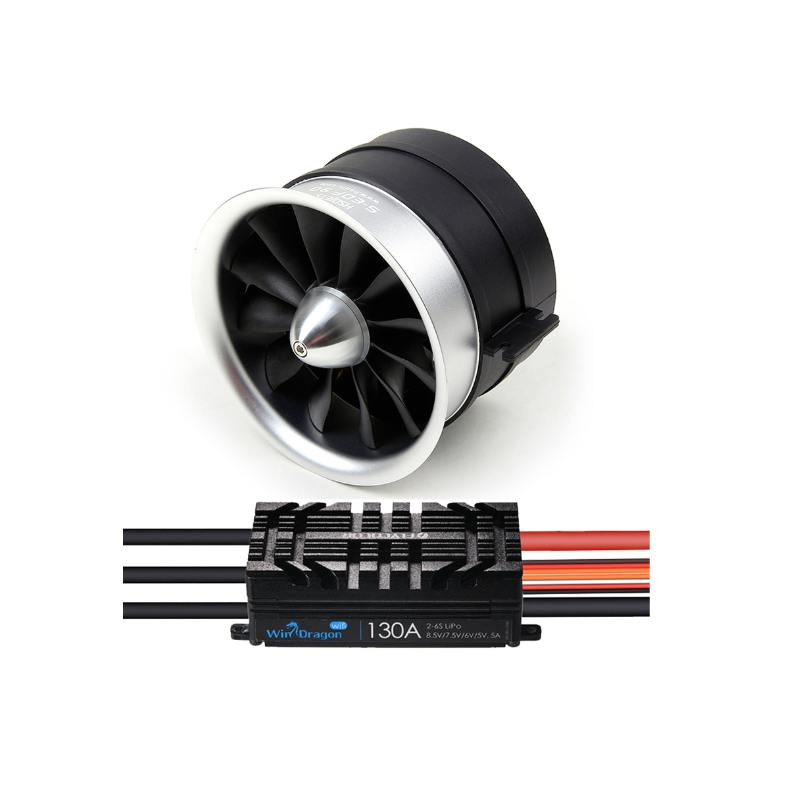

Recommended ESC: 100A

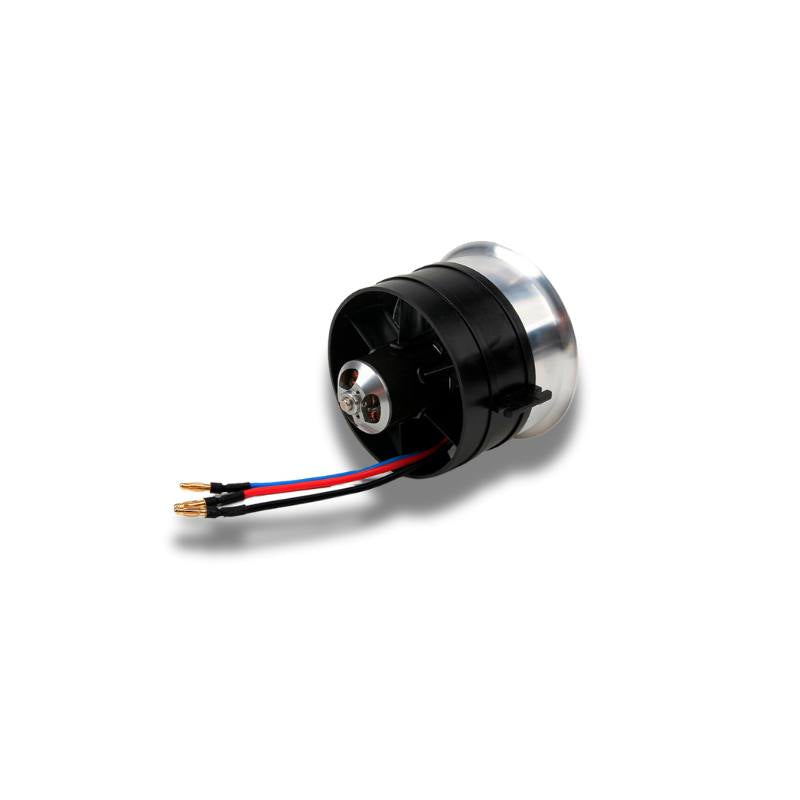

<b>Motor installation parameters
Motor output shaft: 6mm
Motor shaft length:15mm
Distance between motor mounting holes:25mm
Motor mounting hole diameter: M4

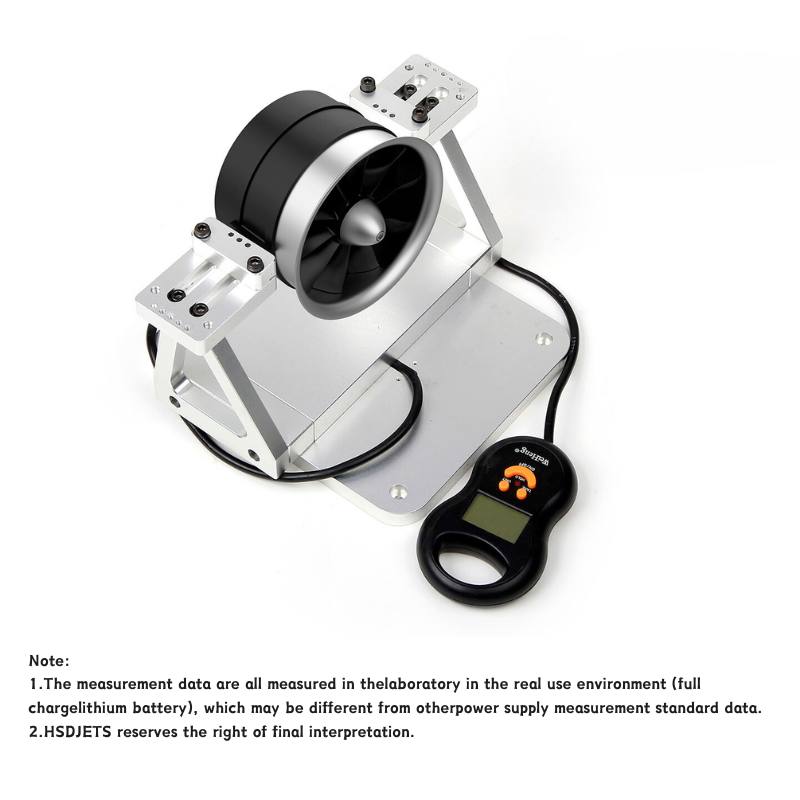

<b>Test Standard(Push Balance)
Test battery: 6S,5200mAh,60C,Li-Po(full charge)
Test current: 95A
Maximum thrust:3.7kg
2、The front half rectifier main cylinder is made of aluminum alloy,which has high strength and is not easy to deform,so as to avoid the blade scratching the inner wall of the main cylinder.It can de changed later to upgrade the rectifier port with larger horn diameter to meet the needs of FRP model aircraft products.
3、There is only 0.5mm gap between the blade and the main cylinder inside wall, so S-EDF has high efficiency.The blade adopts the imported carbon fiber mixed raw material developed by special technology,which is high strength and high toughness,not easy to deform,not easy to break under the pressure of certain strength,and the sound is clear and pure when rotating at high speed.
4、The separated blade is adopted,and the single blade is used for mold output.The weight error accuracy of each blade is small.It is carefully selected according to the error standard with in 0.005g.When the motor has no resonance,it almost does not need dynamic balance test to ensure efficient operation.
Another advantage of using the separated blade is that it is highly accurate,free and symmetrical assembly,convenient and flexible for dynamic balance test of the blade,fast pairing,and high test passing efficiency.
5、The second half of the main cylinder is made of mixed materials with special technology,which has high hardness and certain toughness.It is fixed with the metal motor,which can eliminate resonance to a certain extent and avoid adverse effects on the normal flight of the moder aircraft.
<b>Ducted Fan specification and parameters
S-EDF and model: S-EDF 90mm
Motor model: 3560,1550KV external rotation
Total weight of power: About 320g
Number of blades: 12 blades
Fan blade type: Vortex blade type
Plug model: Banana 4.0
Recommended battery: 6S,5200mAh,60C
Recommended ESC: 100A
<b>Motor installation parameters
Motor output shaft: 6mm
Motor shaft length:15mm
Distance between motor mounting holes:25mm
Motor mounting hole diameter: M4
<b>Test Standard(Push Balance)
Test battery: 6S,5200mAh,60C,Li-Po(full charge)
Test current: 95A
Maximum thrust:3.7kg
