FlyDragon Lite Series ESC
Key Features:
High Performance: Equipped with the C8051F850 MCU and an 8-bit C8051 core, ensuring efficient processing and strong anti-interference capabilities. The built-in BEC provides high output power with minimal power loss.
Compact & Lightweight: Designed with a unique circuit for a small and lightweight build, perfect for demanding applications.
Advanced Safety & Protection: Includes multiple protection features such as abnormal startup, over-heat, throttle signal loss, and customizable low-voltage cut-off. Safe and reliable performance is guaranteed.
User-Friendly Customization: Easily set up functions with a straightforward cycle programming menu. The ESC offers rapid throttle response and smooth, linear speed control, enhancing overall safety and handling.
Specifications:

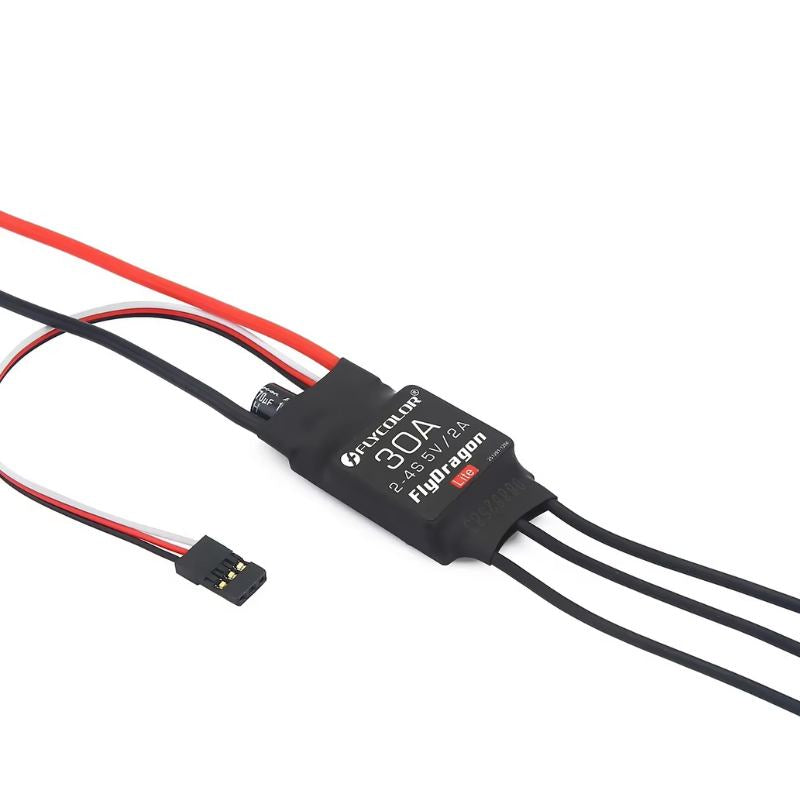

Flycolor 30A ESC
-
Continuous Output: 30A
-
Burst Output: 40A for 15 seconds
-
UBEC: 5V/2A
-
Lipo Battery: 2 - 4S (7.4V - 16.8V)
-
NiCd/NiMH: 5 - 12 cells
-
Size: 49mm x 25.5mm x 10.5mm
-
Weight: 25g
-
Motor Type: Brushless

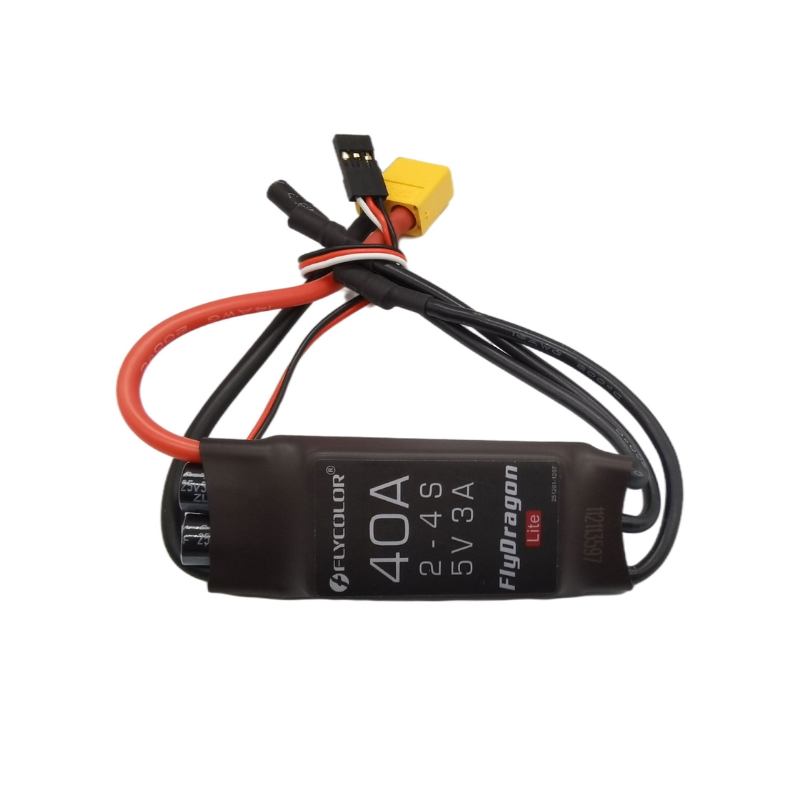

Flycolor 40A ESC
-
Continuous Output: 40A
-
Burst Output: 50A for 15 seconds
-
UBEC: 5V/3A
-
Lipo Battery: 2 - 4S (7.4V - 16.8V)
-
NiCd/NiMH: 5 - 12 cells
-
Size: 65mm x 26mm x 15.5mm
-
Weight: 51g
-
Motor Type: Brushless

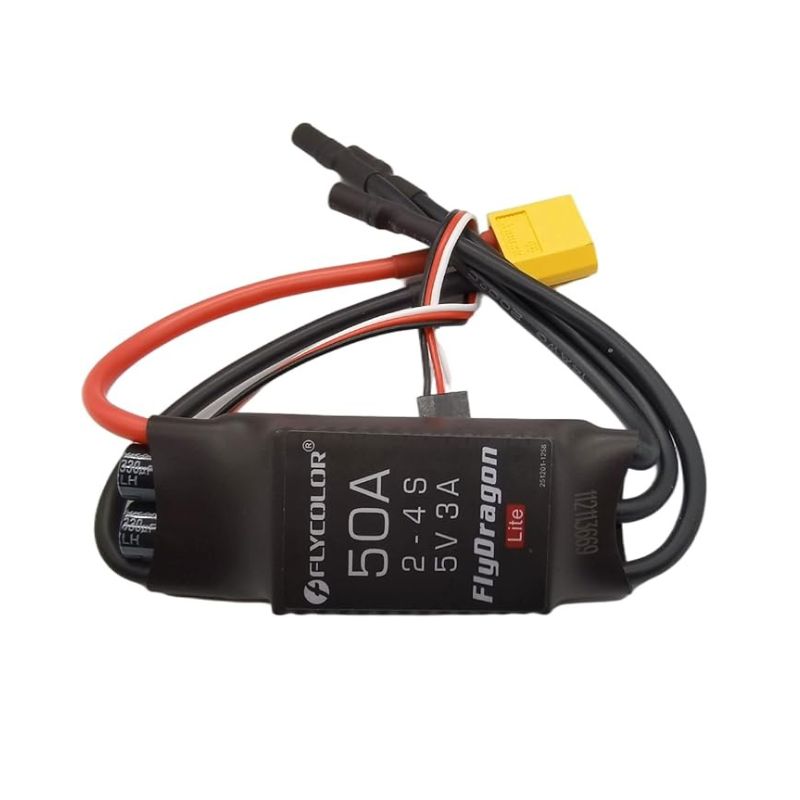

Flycolor 50A ESC
-
Continuous Output: 50A
-
Burst Output: 60A for 15 seconds
-
UBEC: 5V/3A
-
Lipo Battery: 2 - 4S (7.4V - 14.8V)
-
NiCd/NiMH: 5 - 12 cells
-
Size: 65mm x 26mm x 15.5mm
-
Weight: 55g
-
Motor Type: Brushless

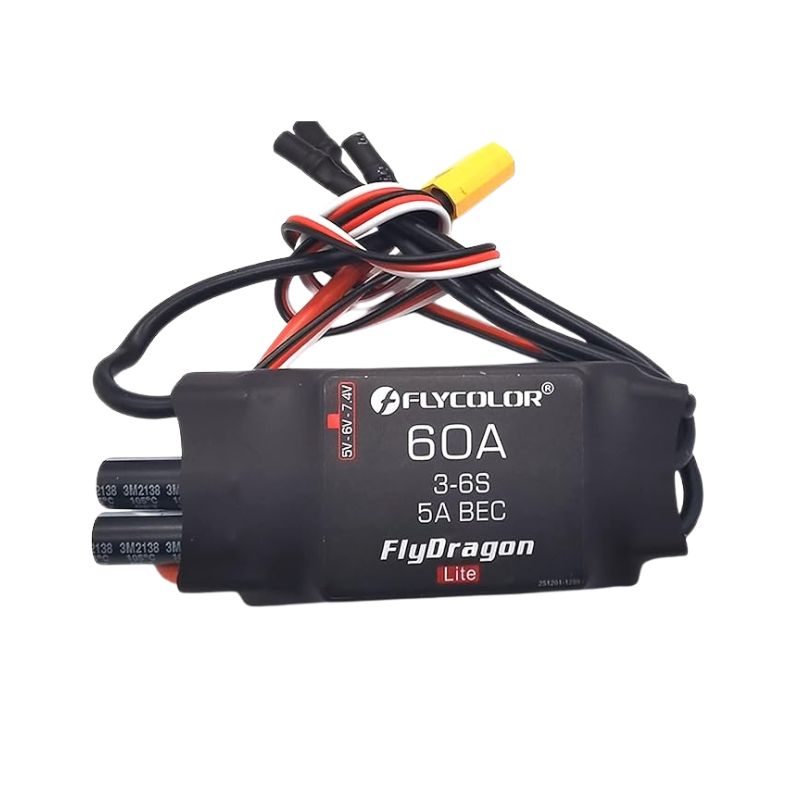

Flycolor 60A ESC
-
Continuous Output: 60A
-
Burst Output: 80A for 15 seconds
-
UBEC: 5V/6V/7.4V, 5A
-
Lipo Battery: 3 - 6S (11.1V - 22.2V)
-
NiCd/NiMH: 5 - 18 cells
-
Size: 82mm x 36mm x 18mm
-
Weight: 87.5g
-
Motor Type: Brushless

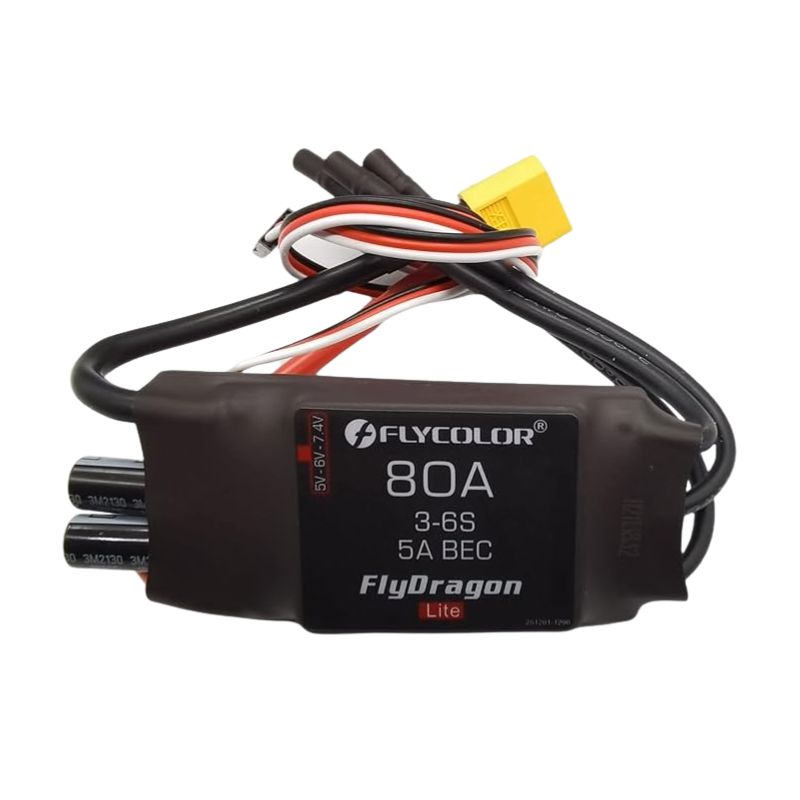

Flycolor 80A ESC
-
Continuous Output: 80A
-
Burst Output: 100A for 15 seconds
-
UBEC: 5V/6V/7.4V, 5A
-
Lipo Battery: 3 - 6S (11.1V - 22.2V)
-
NiCd/NiMH: 5 - 18 cells
-
Size: 82mm x 36mm x 18mm
-
Weight: 93.4g
-
Motor Type: Brushless

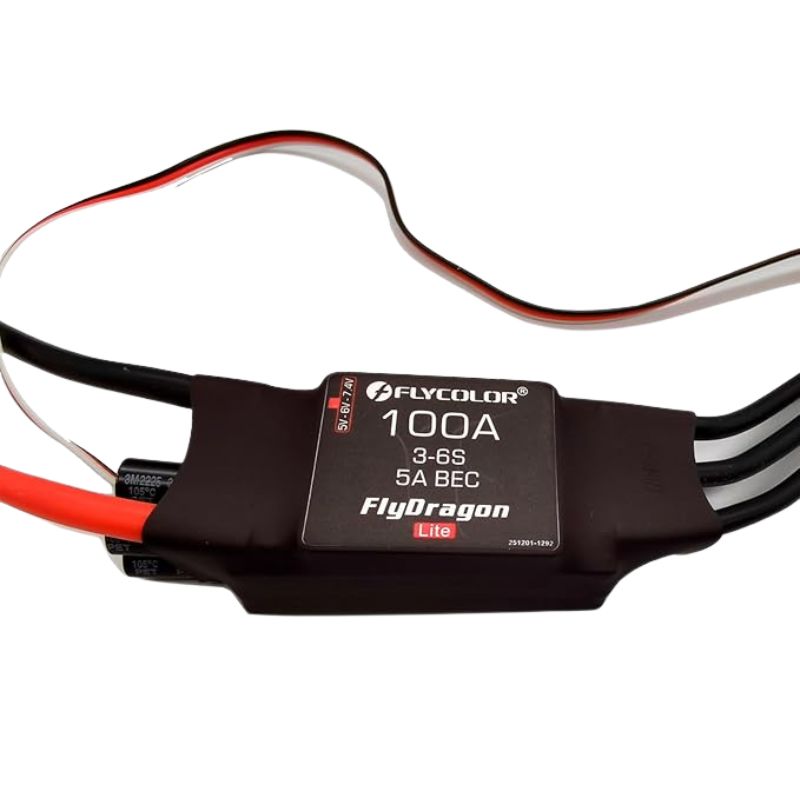

Flycolor 100A ESC
-
Continuous Output: 100A
-
Burst Output: 120A for 15 seconds
-
UBEC: 5V/6V/7.4V, 5A
-
Lipo Battery: 3 - 6S (11.1V - 22.2V)
-
NiCd/NiMH: 5 - 18 cells
-
Size: 82mm x 36mm x 18mm
-
Weight: 137g
-
Motor Type: Brushless
Flycolor 120A ESC
-
Continuous Output: 120A
-
Burst Output: 120A for 15 seconds
-
UBEC: 5V/6V/7.4V, 5A
-
Lipo Battery: 3 - 6S (11.1V - 22.2V)
-
NiCd/NiMH: 5 - 18 cells
-
Size: 82mm x 36mm x 25mm
-
Weight: 143g
-
Motor Type: Brushless
