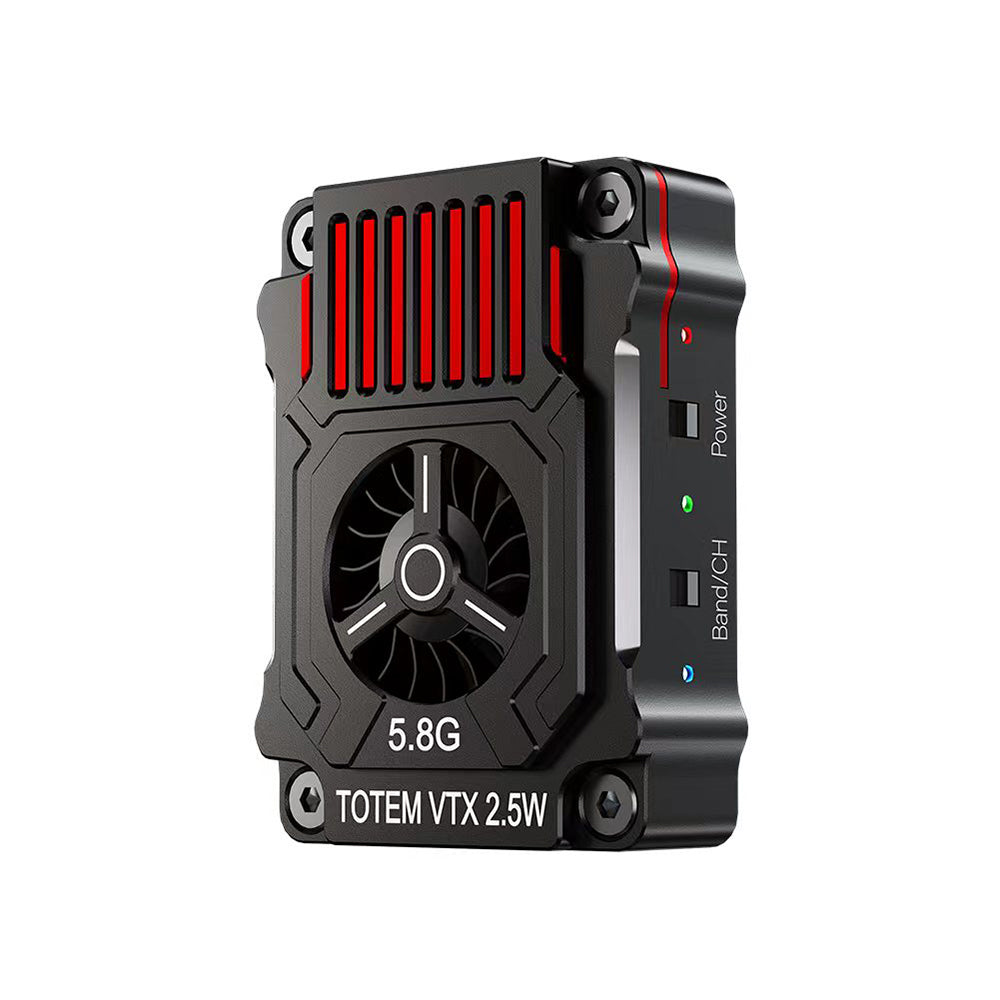

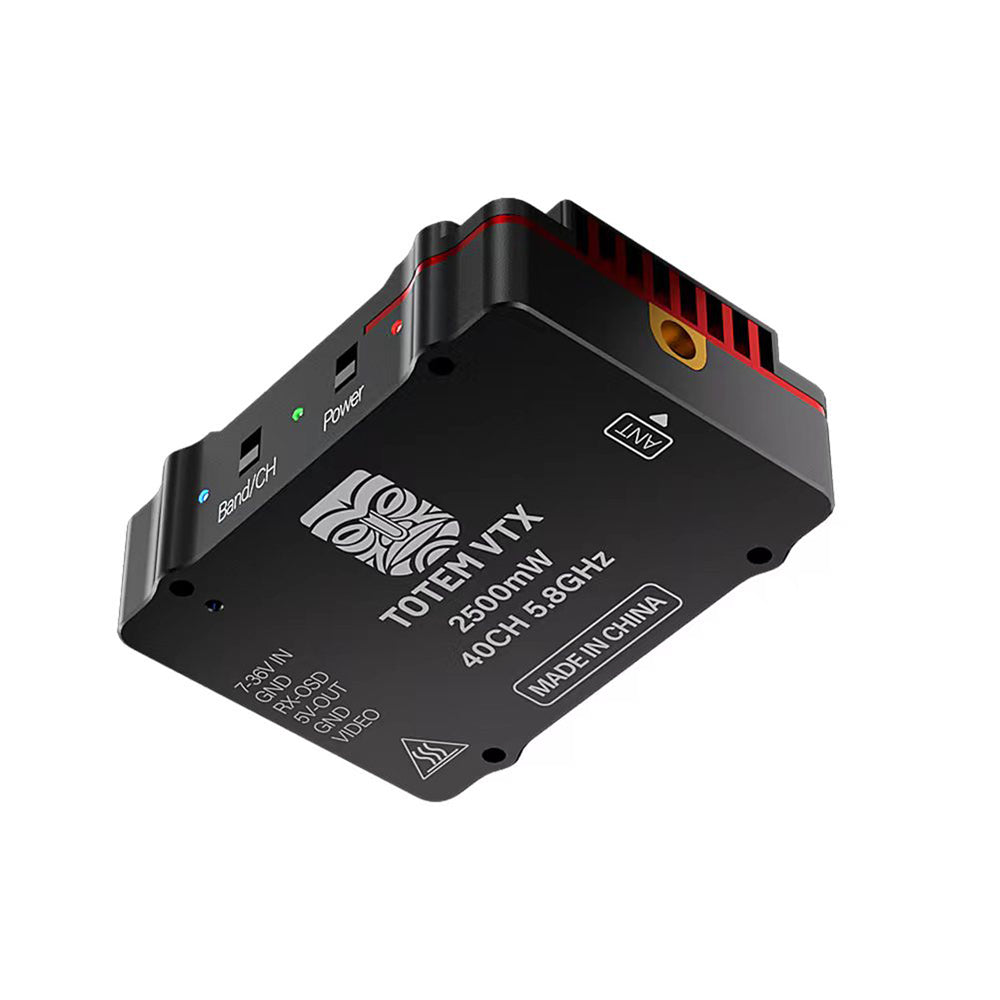

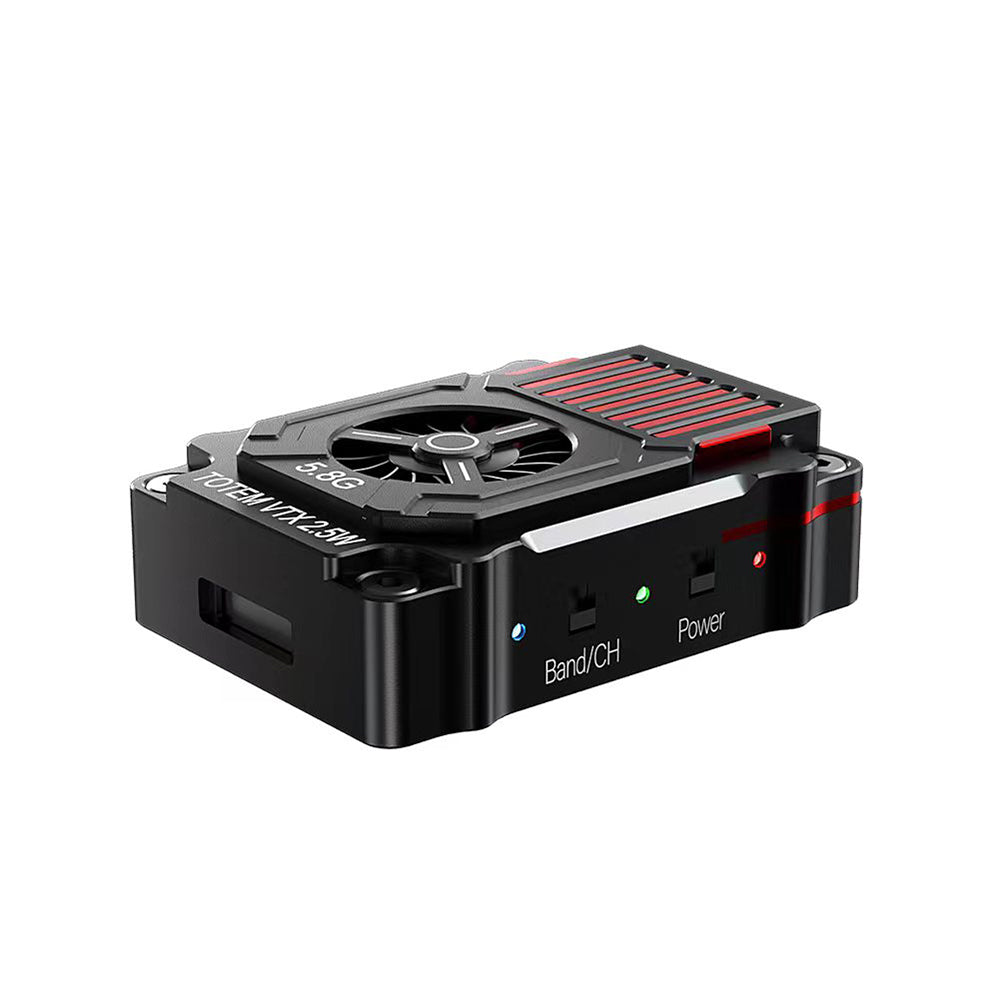

Spot Sales TOTEM 5.8G 2.5W 25mW 2500mW VTX Video Transmitter for FPV Traverser, Fixed Wing

Spot Sales TOTEM 5.8G 2.5W 25mW 2500mW VTX Video Transmitter for FPV Traverser, Fixed Wing

Normaler Preis $74.99 USD
Normaler Preis Verkaufspreis $74.99 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Specifications
1:Input Voltage:DC 7-36V(2-8S)
2:Power Consumption:120-860mA(12V/25mw-2500mW)
3:Operating temperature:-10~60℃
4:Impedance:75Ω

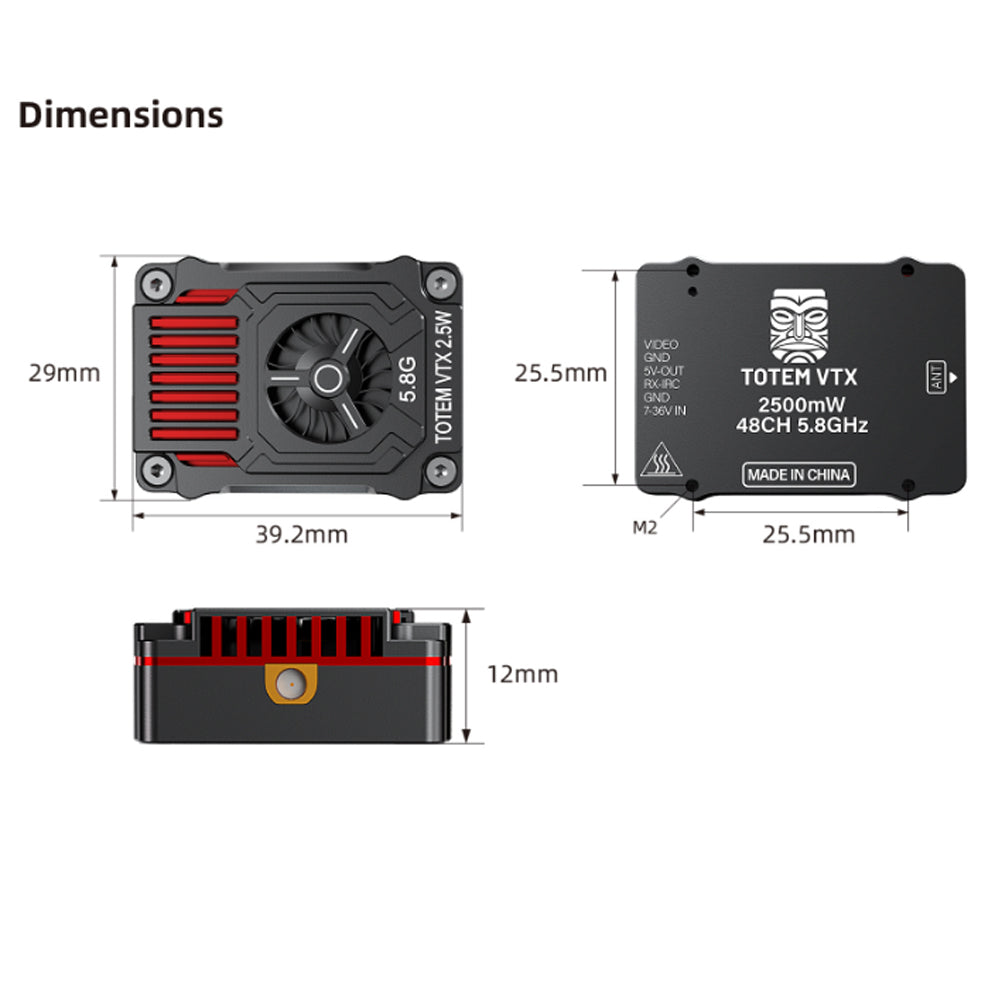

5:Dimensions:39.2×29×12mm
6:Connector:MMCX
7:Format:NTSC/PAL
8:Protocol:IRC Tramp
9:Weight:16.5g
10:Mounting:25.5*25.5mm/M2

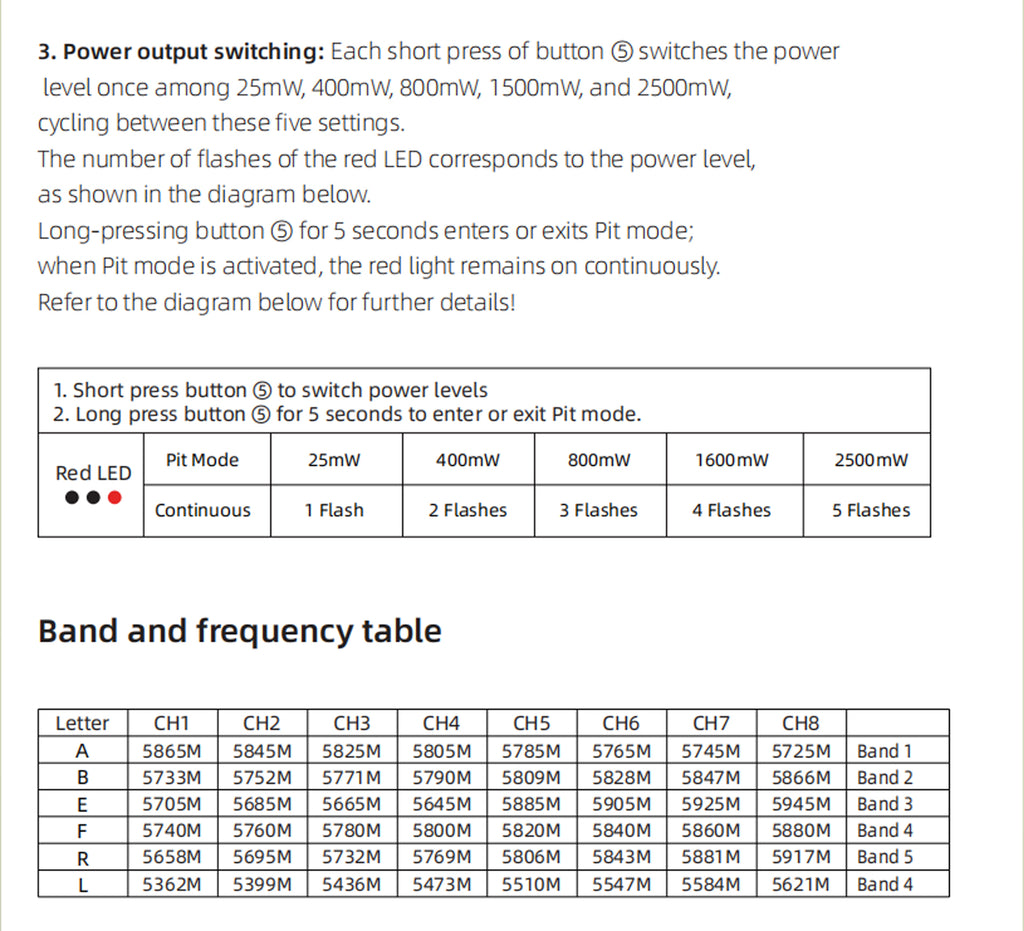

11:Power Output:25mW/400mW/800mW/1600mW/2500mW/Pit
12:Built-in microphone


Precautions:

1. Before turning on the power, you must make sure that an antenna has been plugged in,
otherwise the components will be damaged!
2. While in operation, VTX may generate high temperatures.
Please do not touch it directly with your hands to avoid burns.
3. There should be space at the image transmission installation
location to ensure air convection around the module and ensure proper heat dissipation of the module.
4. When using this product, please comply with local radio laws and
regulations and use locally allowed channel frequencies.
5. Before turning on the power, make sure the voltage range is 7-36V
and the positive and negative poles are correct to avoid damaging the components.
6. Use high-quality antennas to ensure effective output of image transmission performance.
7. If the image transmitter is in a static state for a long time after being powered on,
set the power to the minimum to avoid overheating
