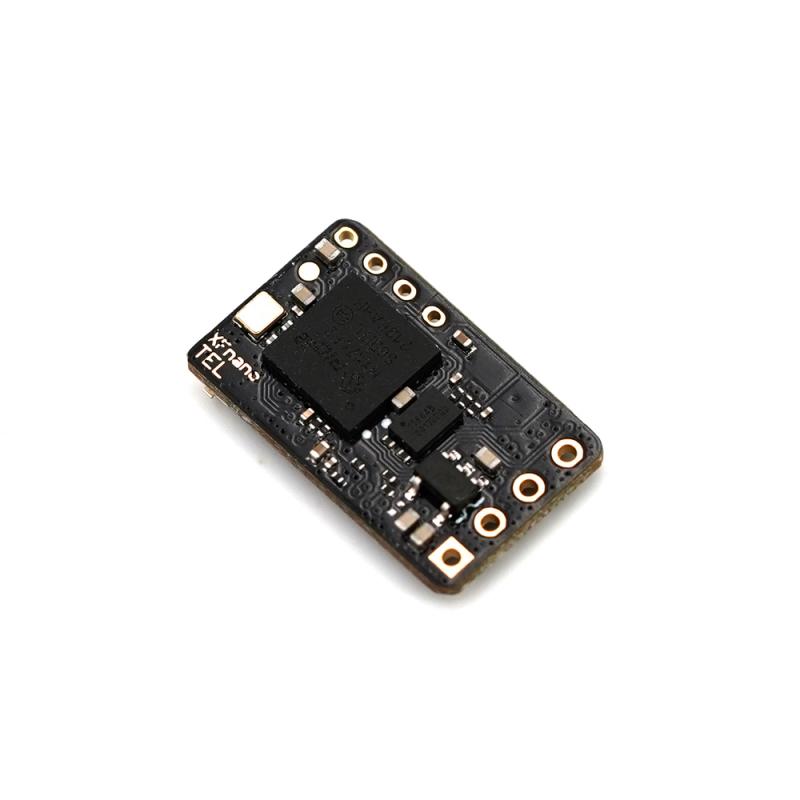

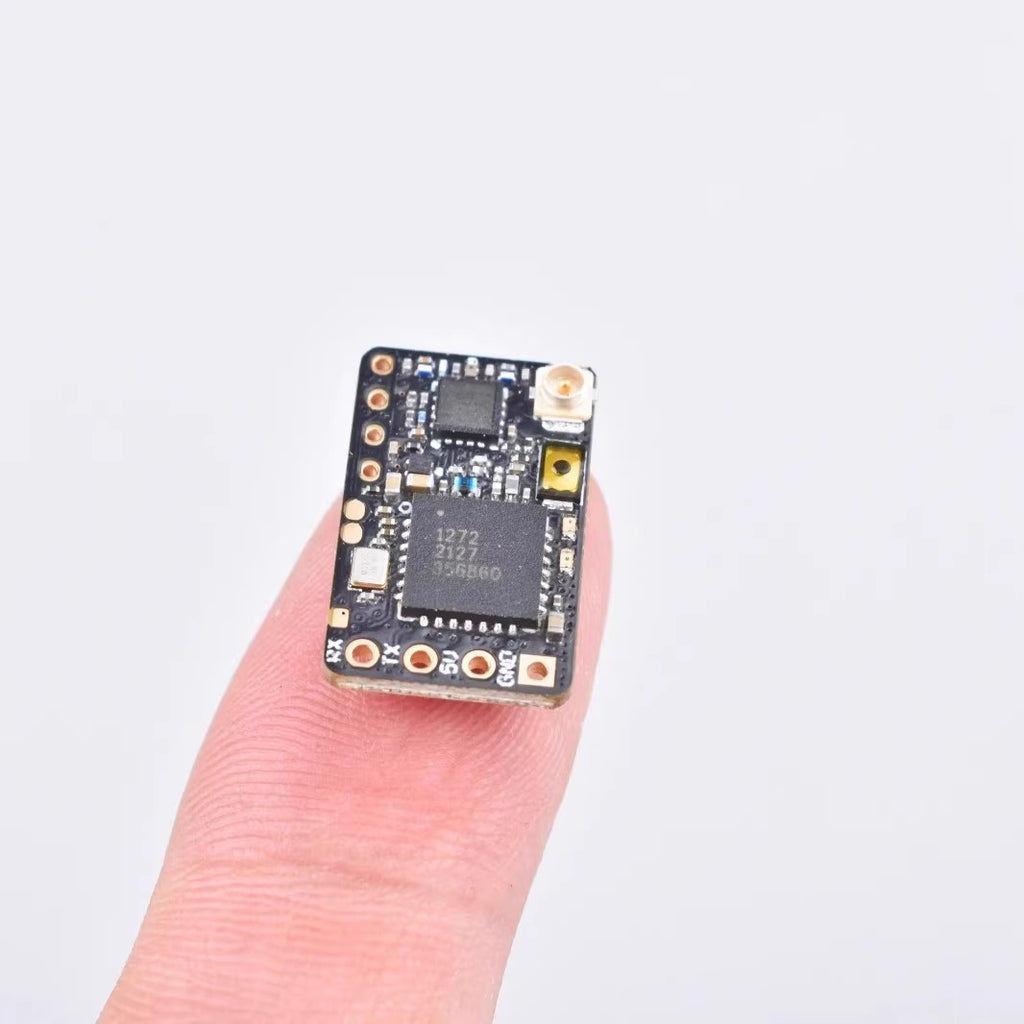

Original TBS CROSSFIRE NANO RX PRO /SE RECEIVER 500mW Power 915/868Mhz 50KM Long Range Radio system For RC Drone

Original TBS CROSSFIRE NANO RX PRO /SE RECEIVER 500mW Power 915/868Mhz 50KM Long Range Radio system For RC Drone

SKU:NANO RX PRO

样式
通常価格 $44.99
通常価格 セール価格 $44.99
セール 売り切れ
配送料はチェックアウト時に計算されます。

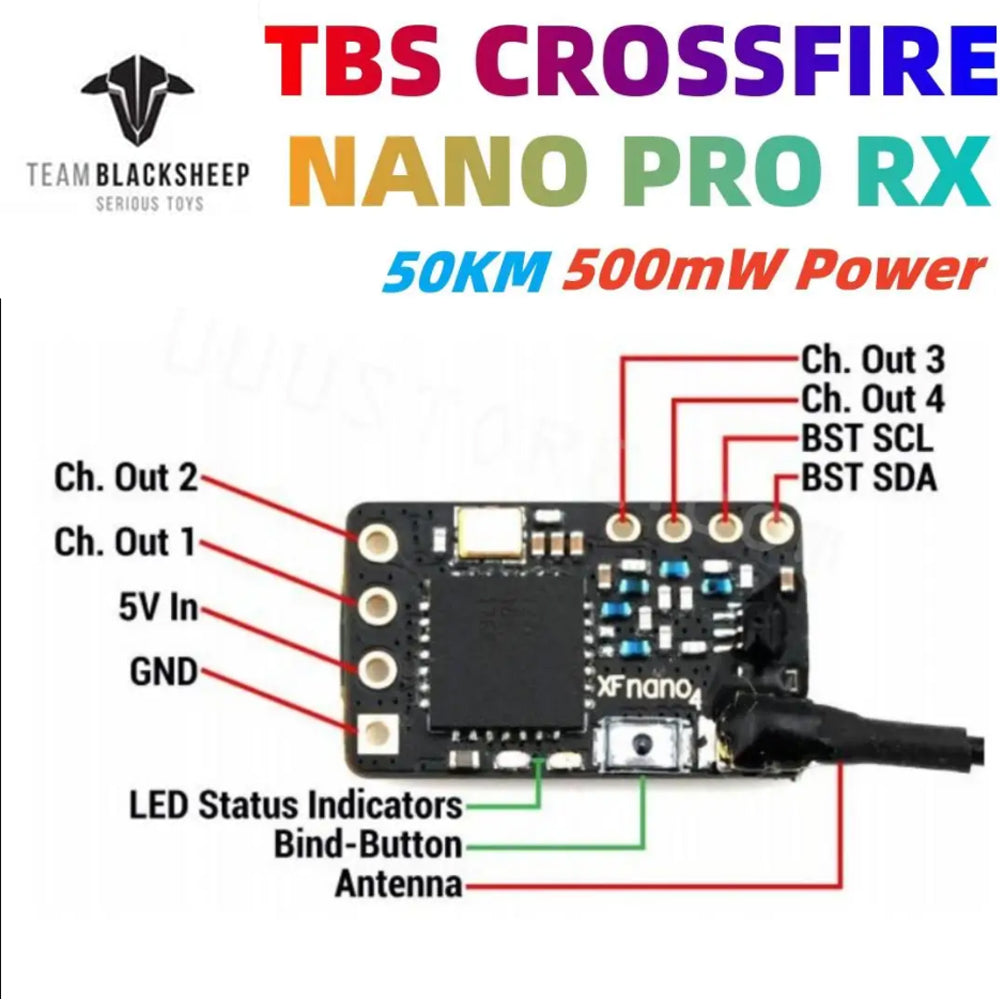

Team Blacksheep is stepping up the Long Range / UHF game once again, with no competition in sight! The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry. With the Pro version, TBS boosts the telemetry output power (downlink), without sacrificing compactness. Same form factor, same pinout, with 20x the power! The end result is a full range receiver, at the smallest size of any receiver in the industry with an incredibly increased output!

Features

  • 20x Power of standard Nano Rx

  • Higher Telemetry Output

  • 500mW Output Power (downlink)

  • Full Range Receiver


Specifications

  • Output Power: Up to 500mW

  • Weight: 0.5g (receiver only)

  • Input Power: +3.3V to 8.4V

  • Requires: Firmware V6.14

  • Size: 11mm x 18mm

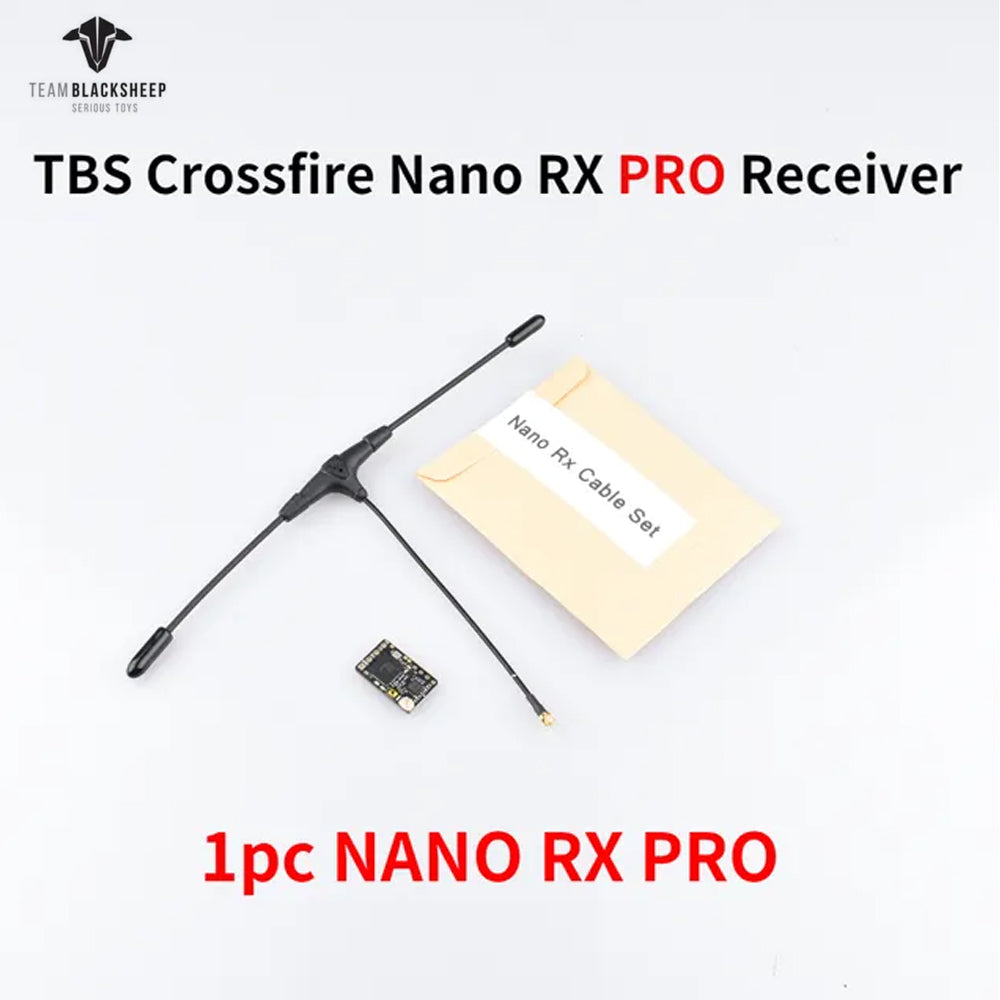

Includes (1 set:)

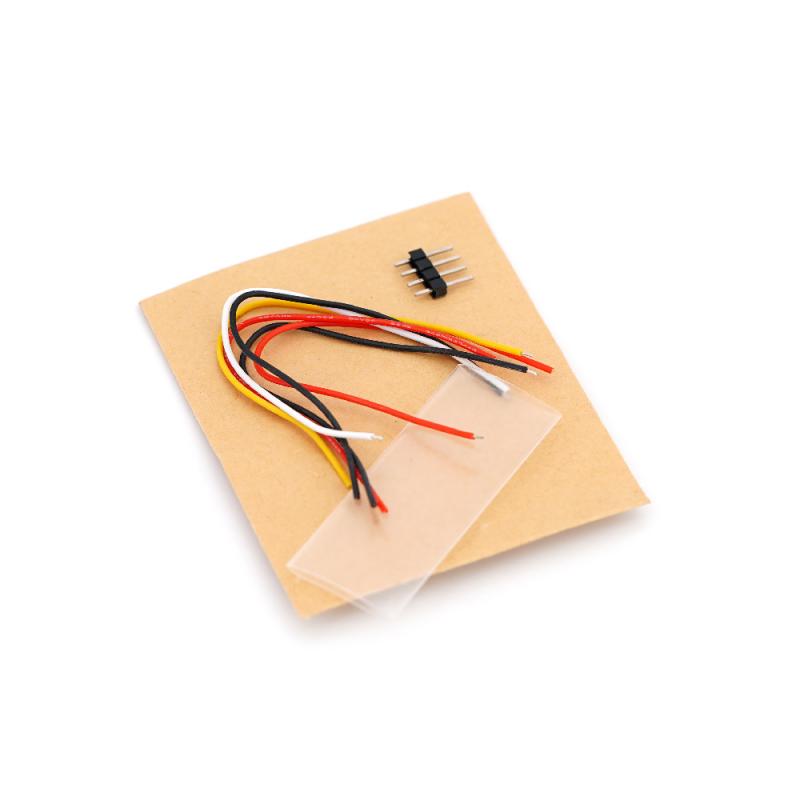

  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

  • 1x TBS Crossfire Immortal T Antenna

  • 1x TBS Crossfire Nano Receiver Pro

  • 1x Spare Shrink Tube

  • 1x Pin header (1x4)

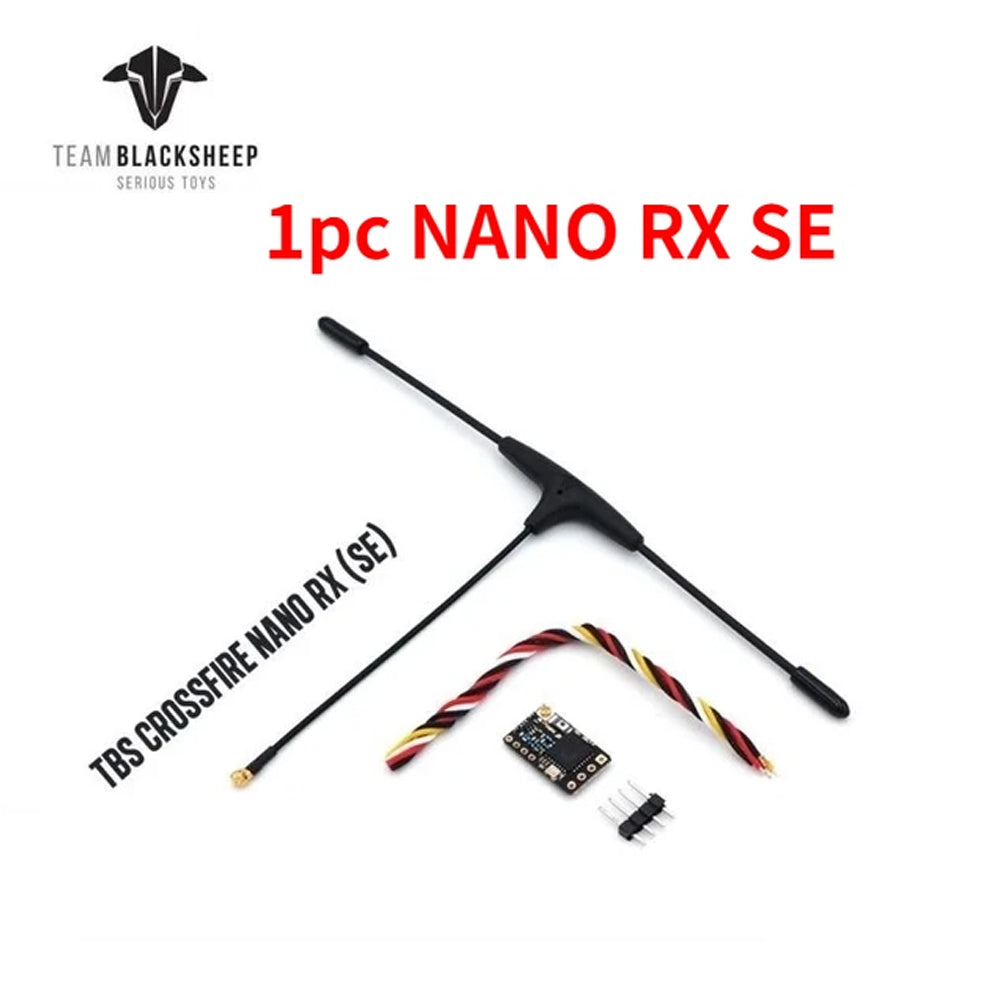

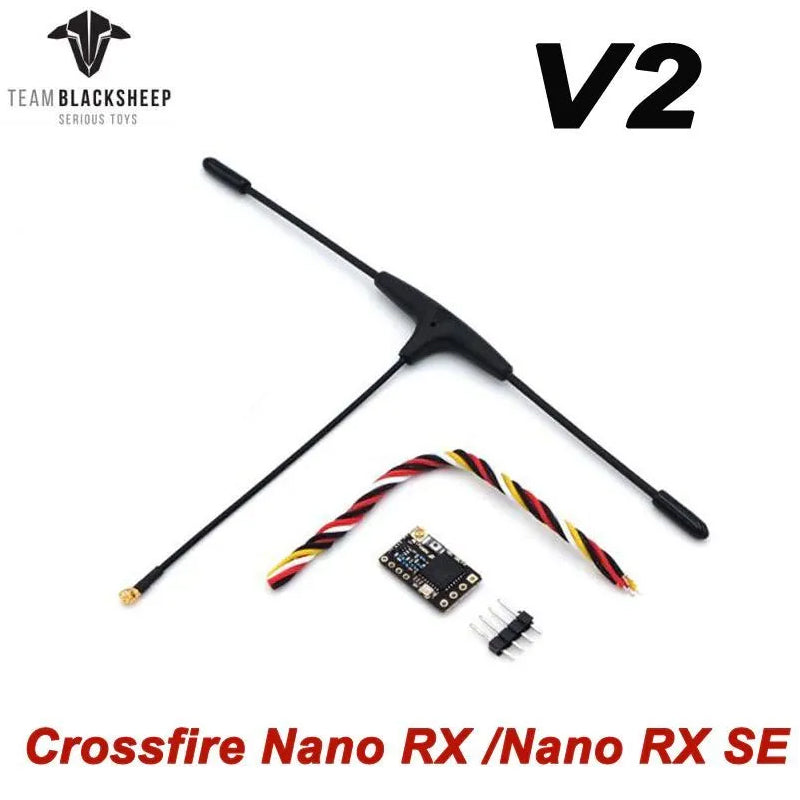

TBS Crossfire Nano RX SE

TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX we condense 2 years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver, at the smallest size of any receiver in the industry (yes, it's smaller than the XM+).

Specifications

Weight: 0.5g (receiver only)

Size: 11mm x 18mm

Requires: Firmware V2.25

Includes (1 set:)

1x TBS Crossfire Nano Receiver

1x TBS Crossfire Immortal T V2 Antenna

1x Spare shrink tube

6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

1 x pin header 1x4
