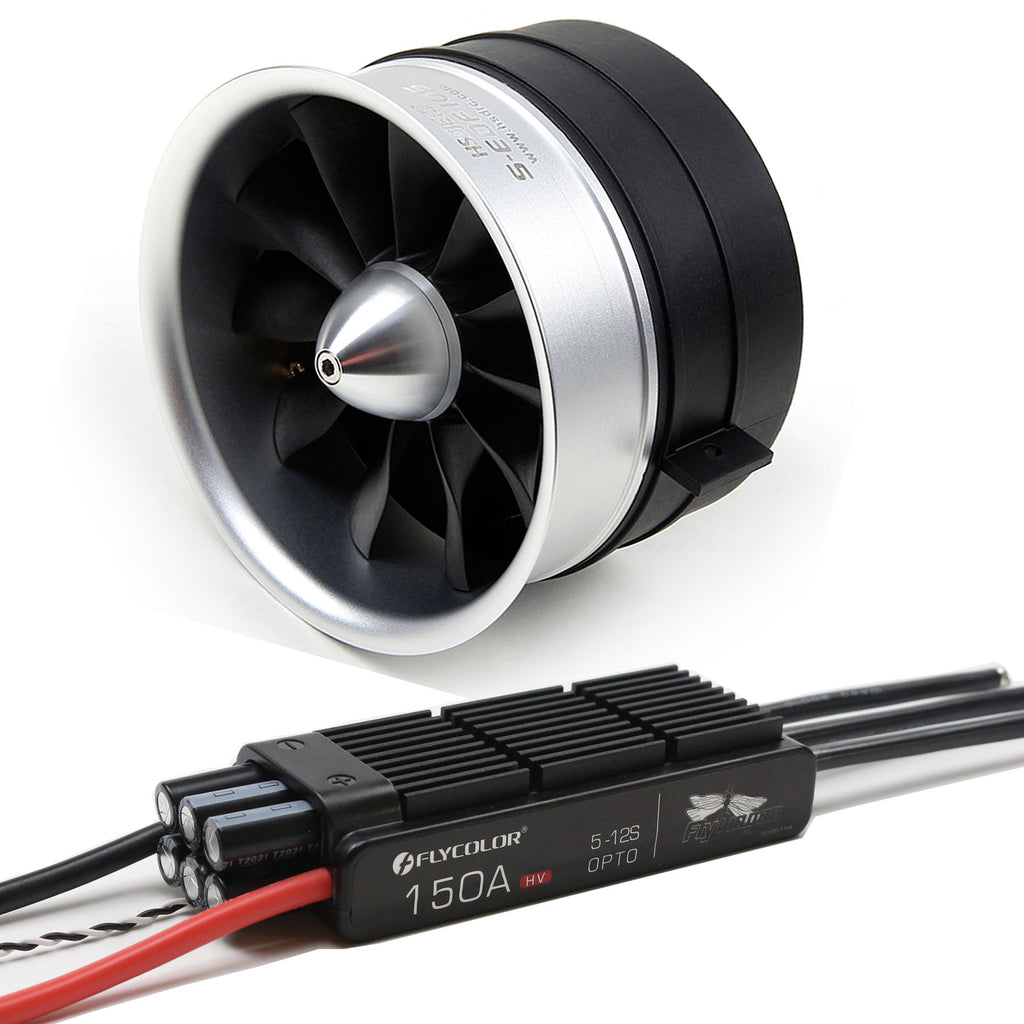

HSDJETS 105mm EDF With 150A ESC Semimetallic-Electric Ducted Fan
HSDJETS 105mm EDF With 150A ESC Semimetallic-Electric Ducted Fan
SKU(재고 관리 코드):EDF105mm+150A ESC
정가
$298.00
정가
할인가
$298.00
단가
/
단위
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
HSDJETS 105mm Ducted Fan with 150A ESC – Power Up Your RC Aircraft!
Boost your RC plane’s performance with the HSDJETS S-EDF 105mm ducted fan and Flycolor FlyDragon 150A ESC. This combo delivers strong thrust, smooth speed control, and long-lasting durability, perfect for both fixed-wing planes and helicopters.
Main Features:

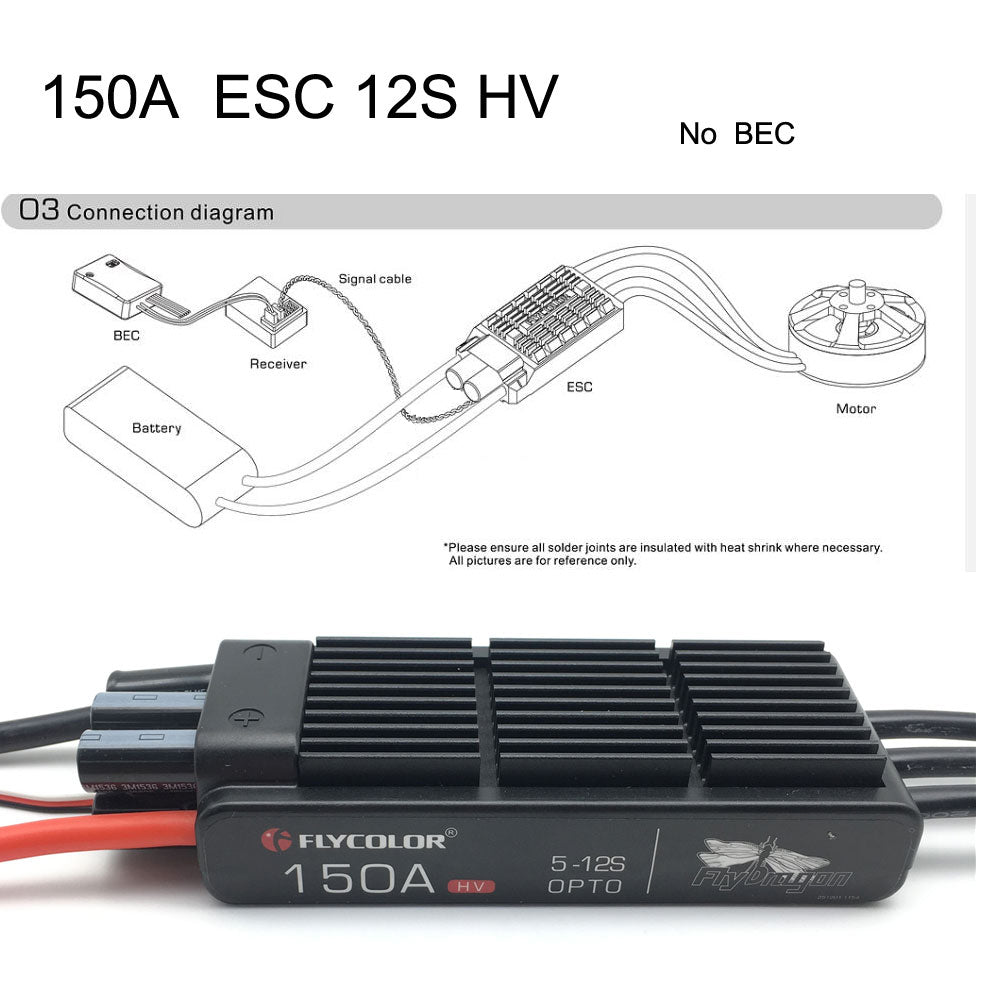

- 150A ESC: The Flycolor FlyDragon 150A ESC (5-12S HV OPTO) provides quick throttle response and smooth speed control, compatible with both planes and helicopters.

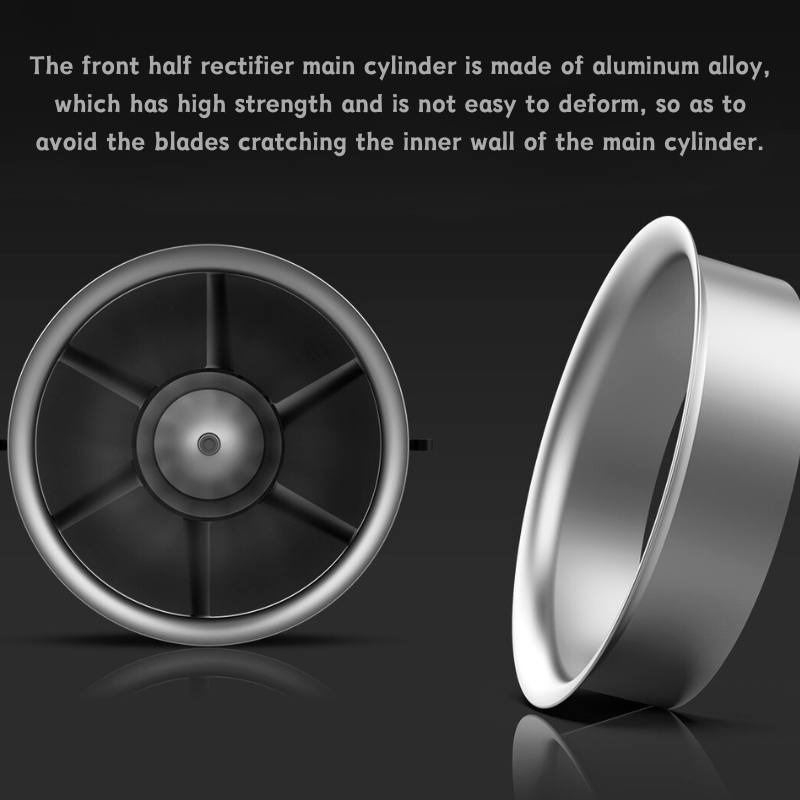

- Strong Aluminum Cylinder: The front part of the fan is made from durable aluminum, preventing damage and keeping the fan blades safe. It can be upgraded for larger model aircraft.

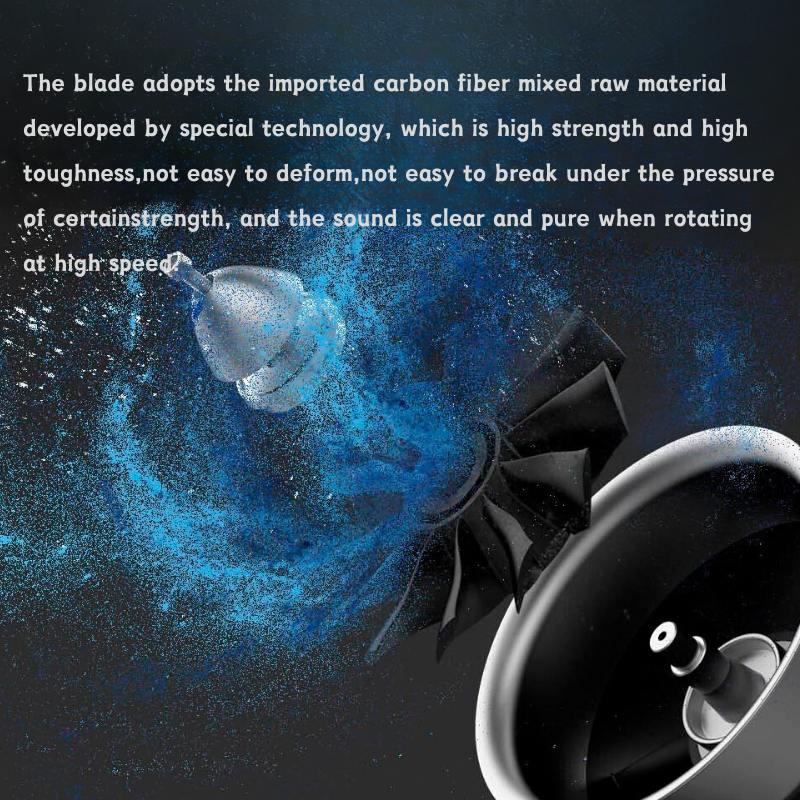

- Efficient Blades: The fan blades are made from tough carbon fiber material, ensuring high efficiency and a clean sound during high-speed spins.

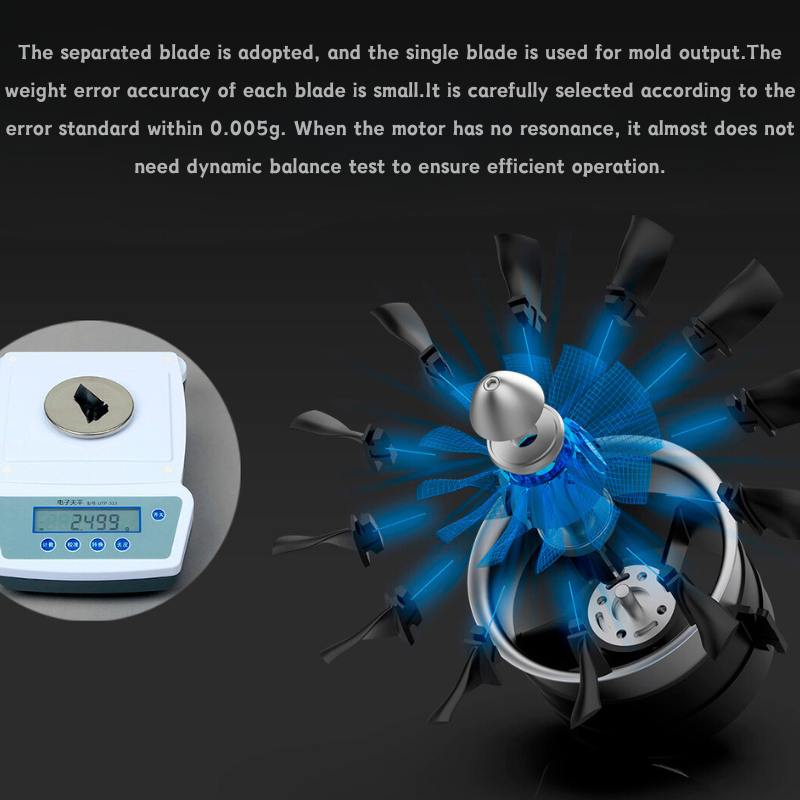

- Precise Blades: Each blade is carefully balanced, making sure the fan runs smoothly and efficiently. The design allows for easy assembly and quick testing.
- Mixed Material Construction: The back part of the fan uses a special mixed material for toughness and strength, reducing vibrations and ensuring stable flight.

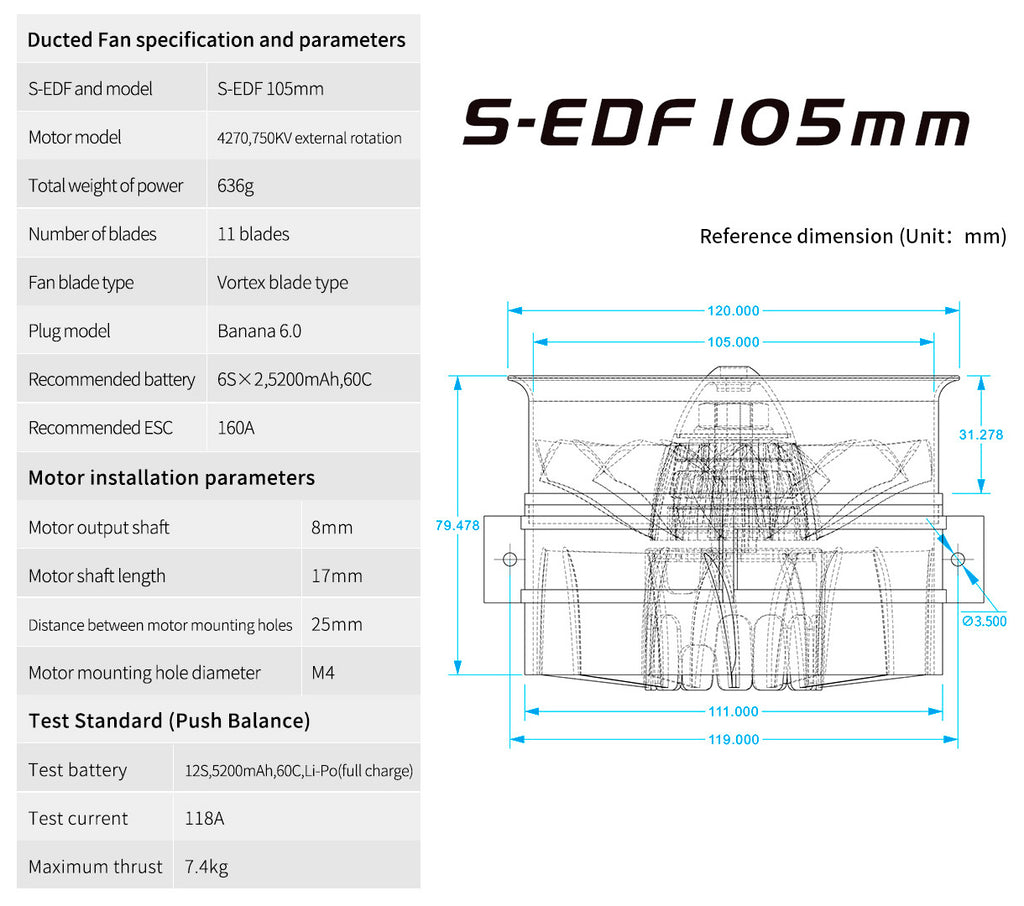

Specifications:
Fan Size: 105mm
Motor Model: 4270, 750KV
Total Weight: 636g
Blade Count: 11
Connector: Banana 6.0
Recommended Battery: 6Sx2, 5200mAh, 60C
ESC Specifications:
- Voltage: 5-12S
- Continuous Current: 150A
- Burst Current (10s): 170A
- BEC: No
- Weight: 203g
- Size: 133*49*27 mm
Motor Installation:
- Shaft Diameter: 8mm
- Shaft Length: 17mm
- Mounting Hole Distance: 25mm
- Mounting Hole Diameter: M4

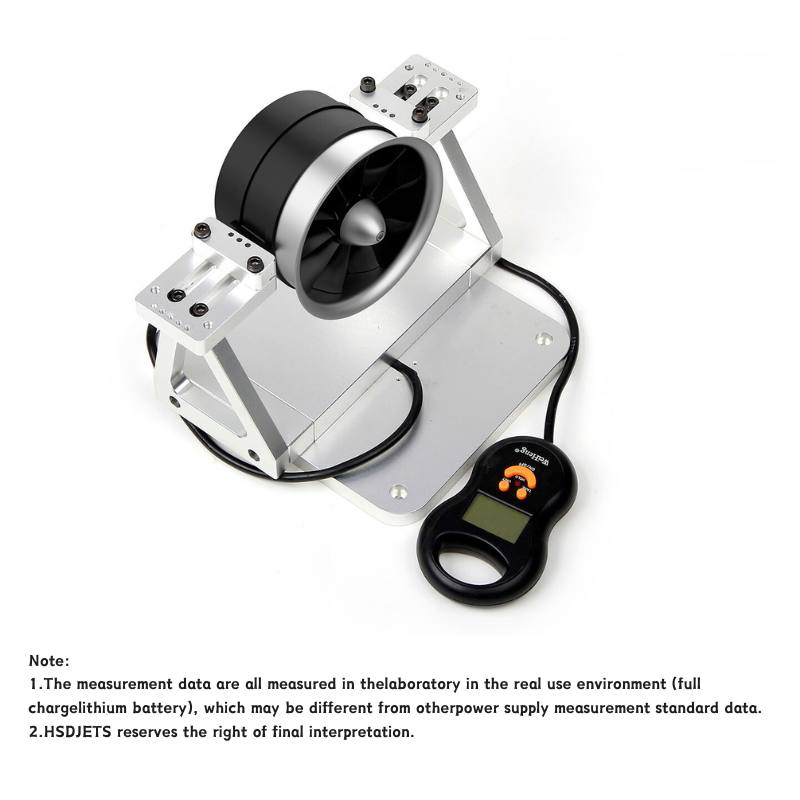

Performance:
- Test Battery: 12S, 5200mAh, 60C Li-Po (fully charged)
- Test Current: 118A
- Maximum Thrust: 7.4kg
Package Includes:
- 1 x 105mm EDF
- 1 x 150A ESC
Get ready for powerful and smooth flights with the HSDJETS 105mm Ducted Fan and 150A ESC. Perfect for your next RC adventure!
