Flycolor 30A -120A Lite ESC

Flycolor 30A -120A Lite ESC

SKU:FC-Lite-30A

Style
Preço normal $22.00
Preço normal Preço de saldo $22.00
Em promoção Esgotado
Envio calculado na finalização da compra.

Best price ever

Best price of the year!

10$ off 127$ (enjoy10)

7% RC items 2 pcs+(auto)

5% OFF all FPV gear (auto)

💥 $200 OFF $2000+(auto)

✨5% OFF 3+ pcs  &10% OFF 15+pcs

Free Shipping

Freeshipping almost places ,please add to cart have a check.

No worry purchase

  • Missing/Wrong Items Guarantee
  • Quality Guarantee
  • Secure Payment

if you have any Technical Support, just contact us and we will be here with you!

FlyDragon Lite Series ESC

Key Features:

High Performance: Equipped with the C8051F850 MCU and an 8-bit C8051 core, ensuring efficient processing and strong anti-interference capabilities. The built-in BEC provides high output power with minimal power loss.

Compact & Lightweight: Designed with a unique circuit for a small and lightweight build, perfect for demanding applications.

Advanced Safety & Protection: Includes multiple protection features such as abnormal startup, over-heat, throttle signal loss, and customizable low-voltage cut-off. Safe and reliable performance is guaranteed.

User-Friendly Customization: Easily set up functions with a straightforward cycle programming menu. The ESC offers rapid throttle response and smooth, linear speed control, enhancing overall safety and handling.

Specifications:

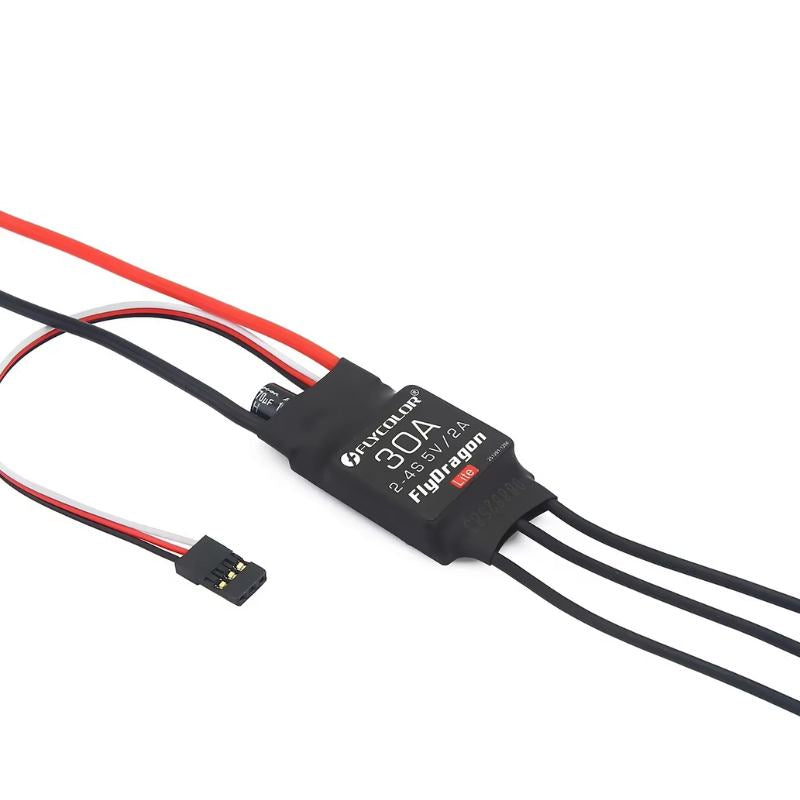

Flycolor 30A ESC

  • Continuous Output: 30A
  • Burst Output: 40A for 15 seconds
  • UBEC: 5V/2A
  • Lipo Battery: 2 - 4S (7.4V - 16.8V)
  • NiCd/NiMH: 5 - 12 cells
  • Size: 49mm x 25.5mm x 10.5mm
  • Weight: 25g
  • Motor Type: Brushless

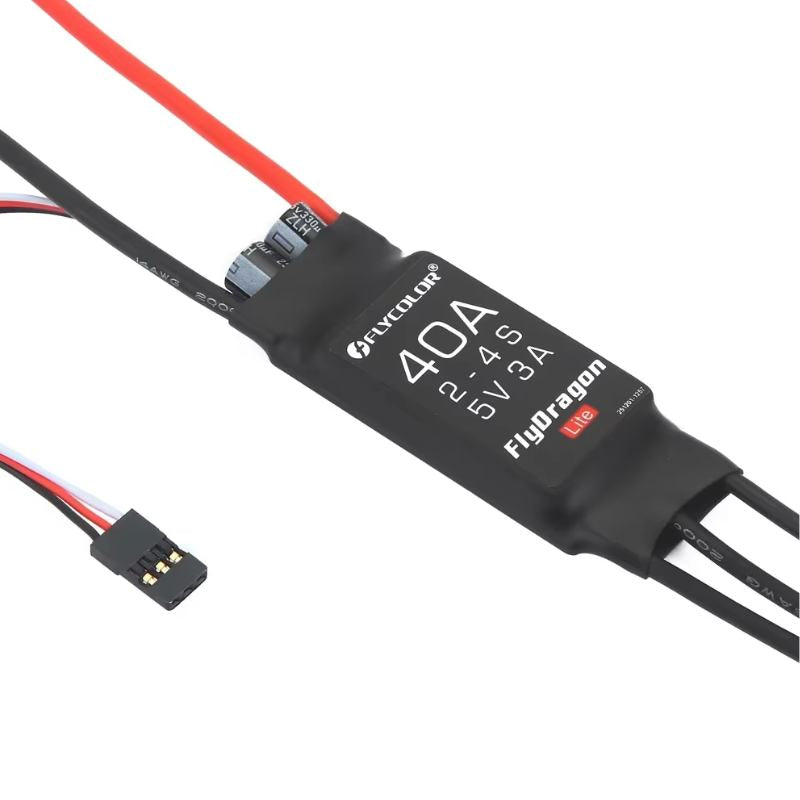

Flycolor 40A ESC

  • Continuous Output: 40A
  • Burst Output: 50A for 15 seconds
  • UBEC: 5V/3A
  • Lipo Battery: 2 - 4S (7.4V - 16.8V)
  • NiCd/NiMH: 5 - 12 cells
  • Size: 65mm x 26mm x 15.5mm
  • Weight: 51g
  • Motor Type: Brushless

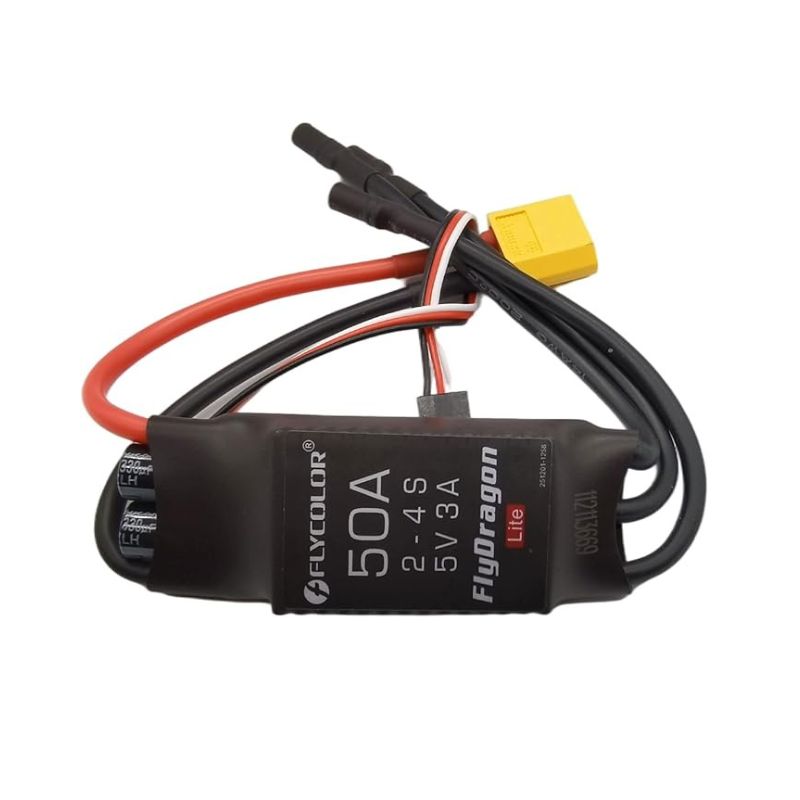

Flycolor 50A ESC

  • Continuous Output: 50A
  • Burst Output: 60A for 15 seconds
  • UBEC: 5V/3A
  • Lipo Battery: 2 - 4S (7.4V - 14.8V)
  • NiCd/NiMH: 5 - 12 cells
  • Size: 65mm x 26mm x 15.5mm
  • Weight: 55g
  • Motor Type: Brushless

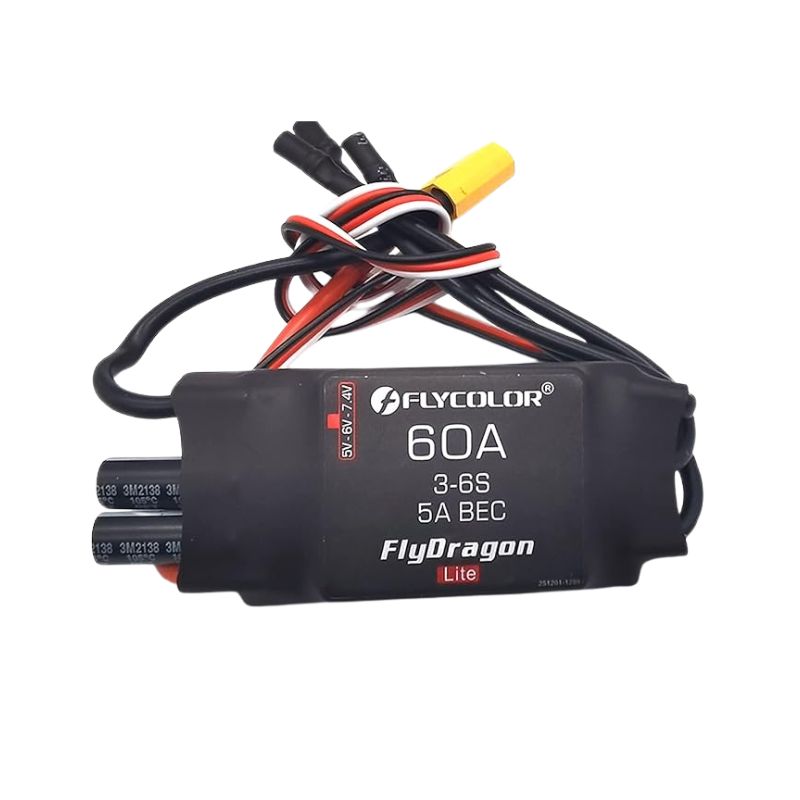

Flycolor 60A ESC

  • Continuous Output: 60A
  • Burst Output: 80A for 15 seconds
  • UBEC: 5V/6V/7.4V, 5A
  • Lipo Battery: 3 - 6S (11.1V - 22.2V)
  • NiCd/NiMH: 5 - 18 cells
  • Size: 82mm x 36mm x 18mm
  • Weight: 87.5g
  • Motor Type: Brushless

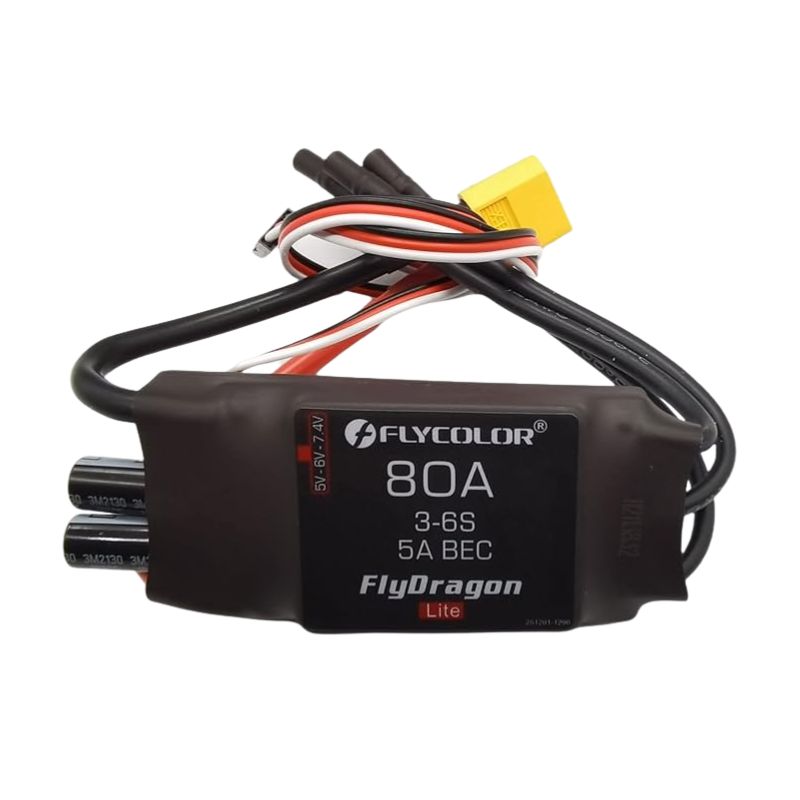

Flycolor 80A ESC

  • Continuous Output: 80A
  • Burst Output: 100A for 15 seconds
  • UBEC: 5V/6V/7.4V, 5A
  • Lipo Battery: 3 - 6S (11.1V - 22.2V)
  • NiCd/NiMH: 5 - 18 cells
  • Size: 82mm x 36mm x 18mm
  • Weight: 93.4g
  • Motor Type: Brushless

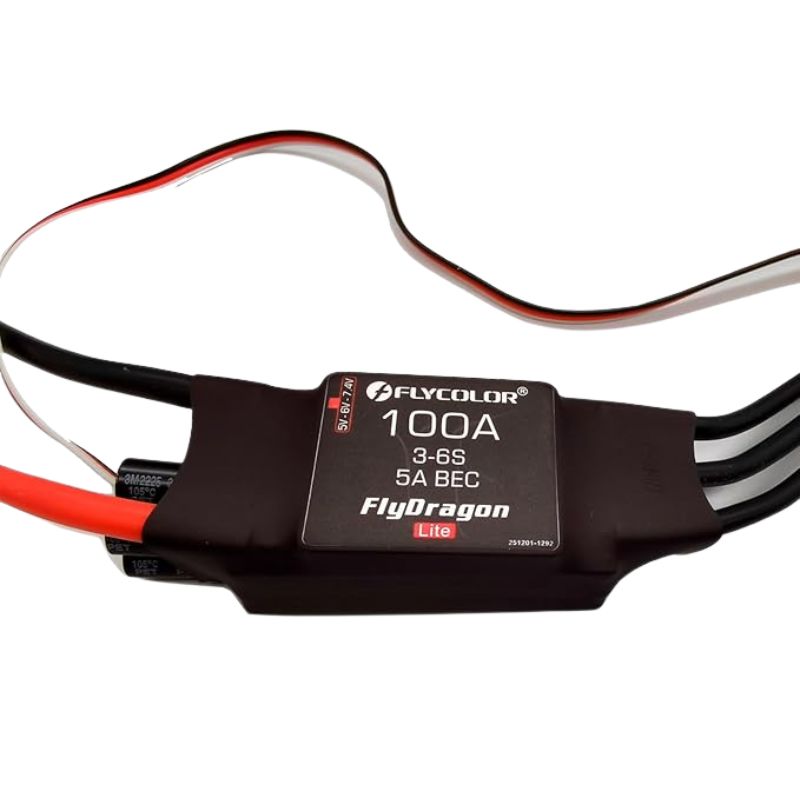

Flycolor 100A ESC

  • Continuous Output: 100A
  • Burst Output: 120A for 15 seconds
  • UBEC: 5V/6V/7.4V, 5A
  • Lipo Battery: 3 - 6S (11.1V - 22.2V)
  • NiCd/NiMH: 5 - 18 cells
  • Size: 82mm x 36mm x 18mm
  • Weight: 137g
  • Motor Type: Brushless

Flycolor 120A ESC

  • Continuous Output: 120A
  • Burst Output: 120A for 15 seconds
  • UBEC: 5V/6V/7.4V, 5A
  • Lipo Battery: 3 - 6S (11.1V - 22.2V)
  • NiCd/NiMH: 5 - 18 cells
  • Size: 82mm x 36mm x 25mm
  • Weight: 143g
  • Motor Type: Brushless
Ver detalhes completos
