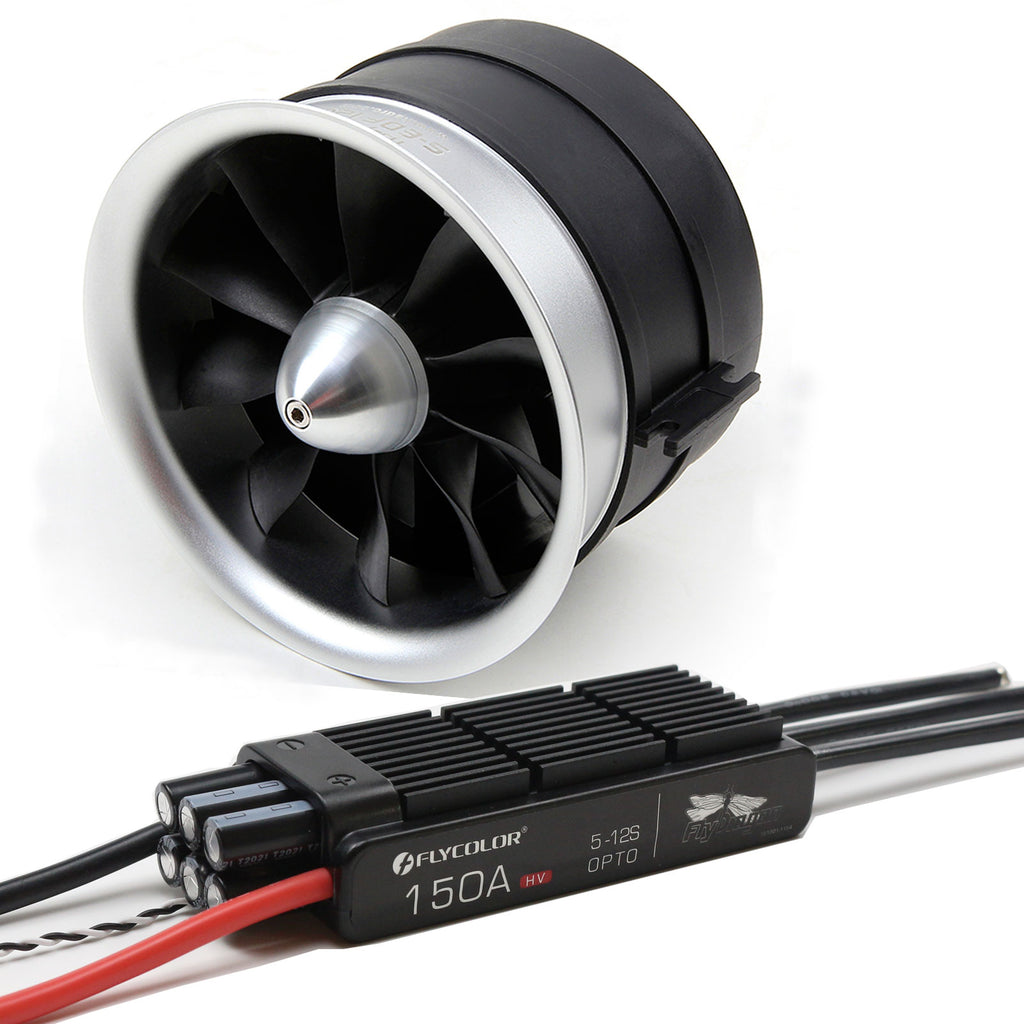

HSDJETS 120mm EDF With 150A ESC Semimetallic-Electric Ducted Fan
$399.00 USD

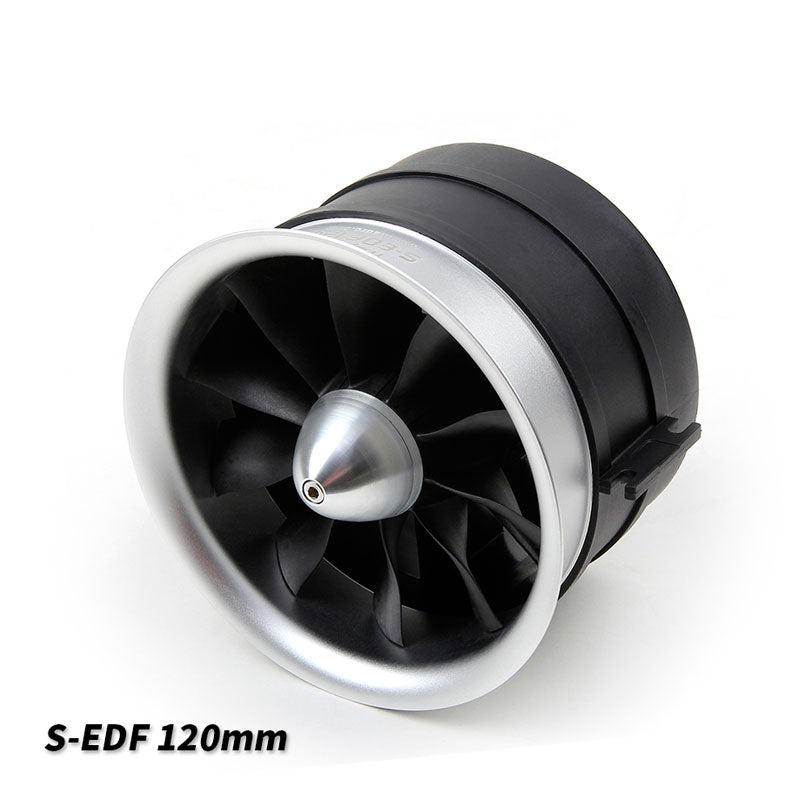

HSDJETS 120mm Ducted Fan with 150A ESC – Boost Your RC Aircraft Performance!
Upgrade your RC aircraft with the HSDJETS S-EDF 120mm ducted fan and Flycolor FlyDragon 150A ESC. This combo offers powerful thrust, smooth control, and durable design, ideal for fixed-wing planes and helicopters.
Key Features:
-

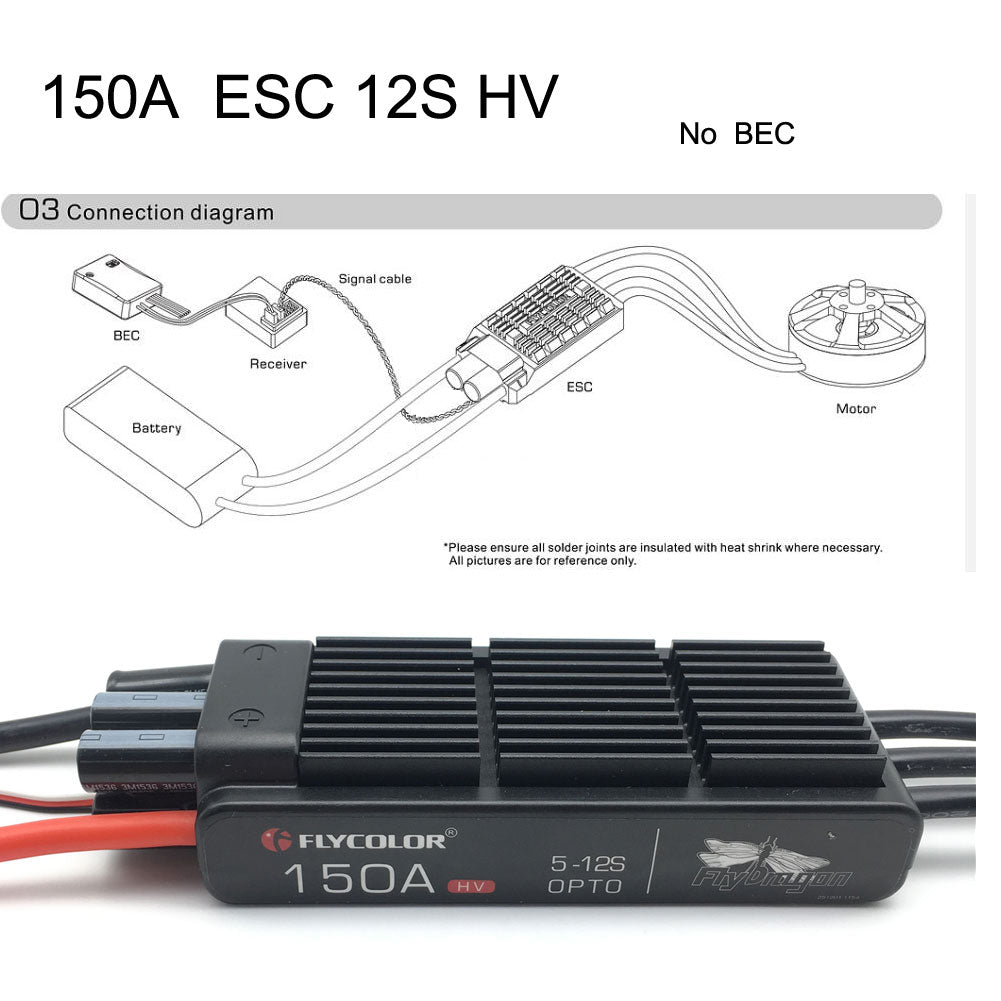

150A ESC: The Flycolor FlyDragon 150A ESC (5-12S HV OPTO) provides fast throttle response and smooth speed control. It’s perfect for both planes and helicopters.
-

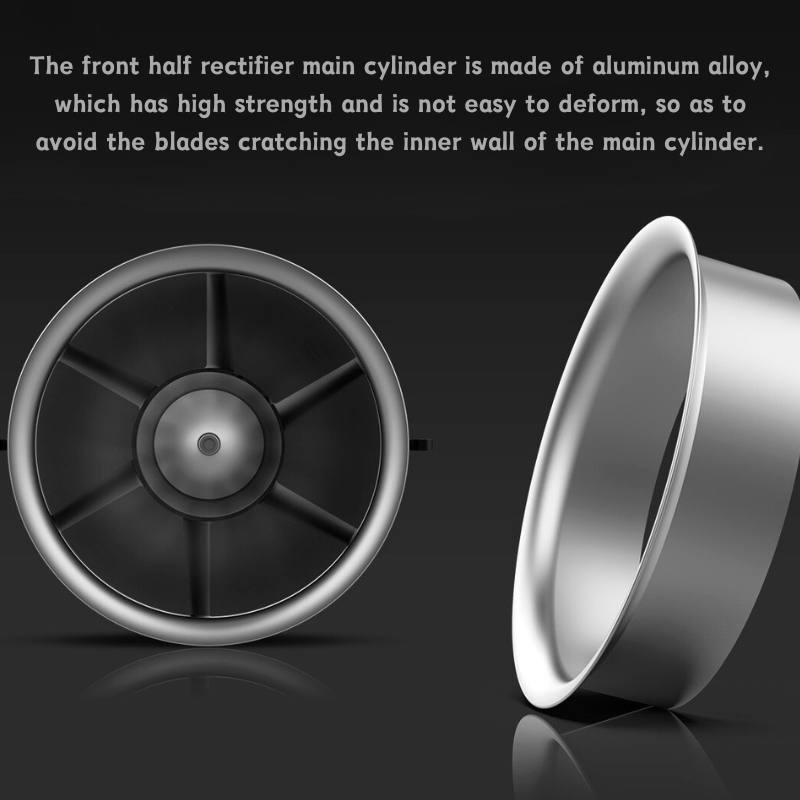

Durable Aluminum Cylinder: The front part of the fan is made from strong aluminum, preventing damage and keeping the blades from scratching. It can be upgraded for larger model aircraft if needed.
-

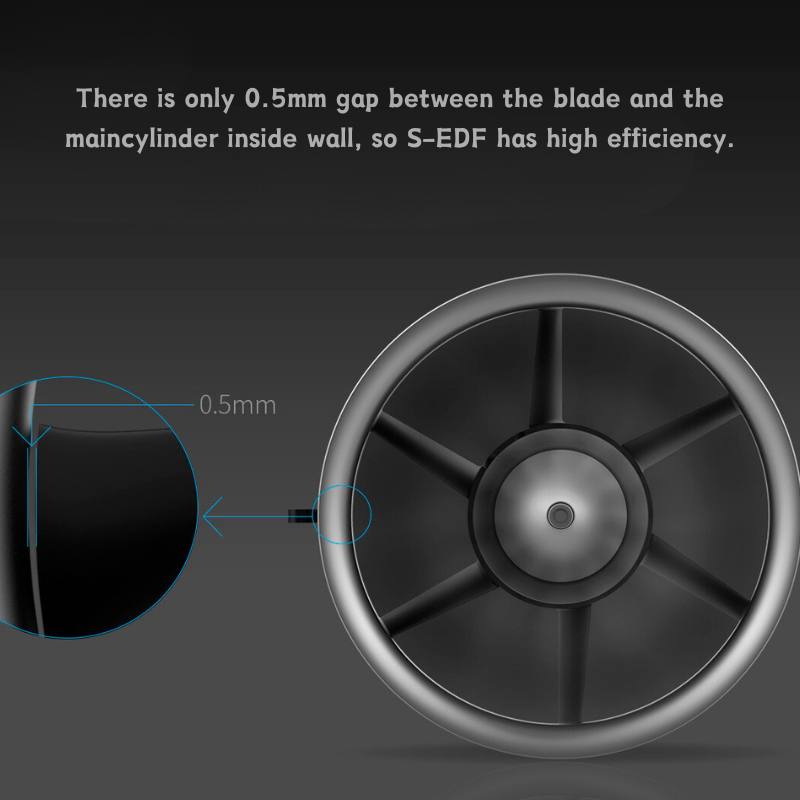

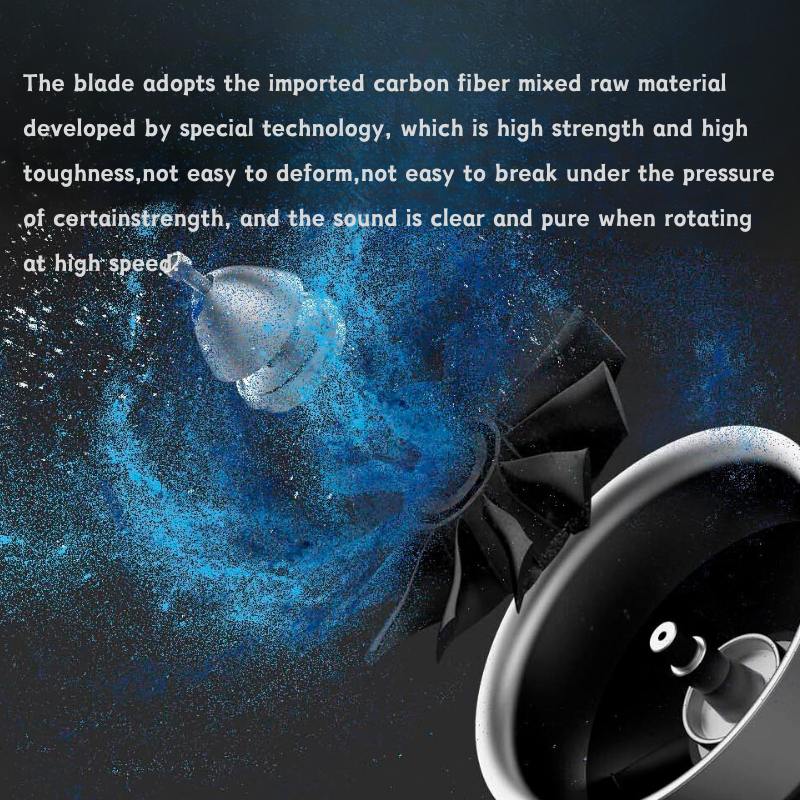

Efficient Blades: The fan blades have a 0.5mm gap from the cylinder wall, maximizing efficiency. Made from tough carbon fiber, they are strong and produce a clear sound at high speeds.
-

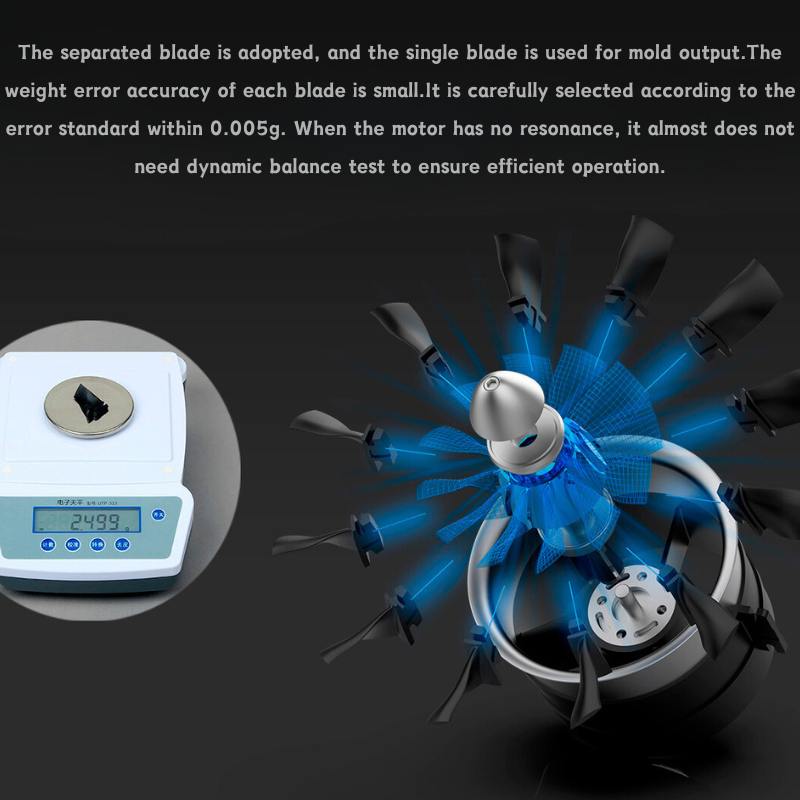

Precise Blade Design: Each blade is carefully balanced, ensuring smooth and efficient operation. The separated blade design makes assembly easy and quick.
-

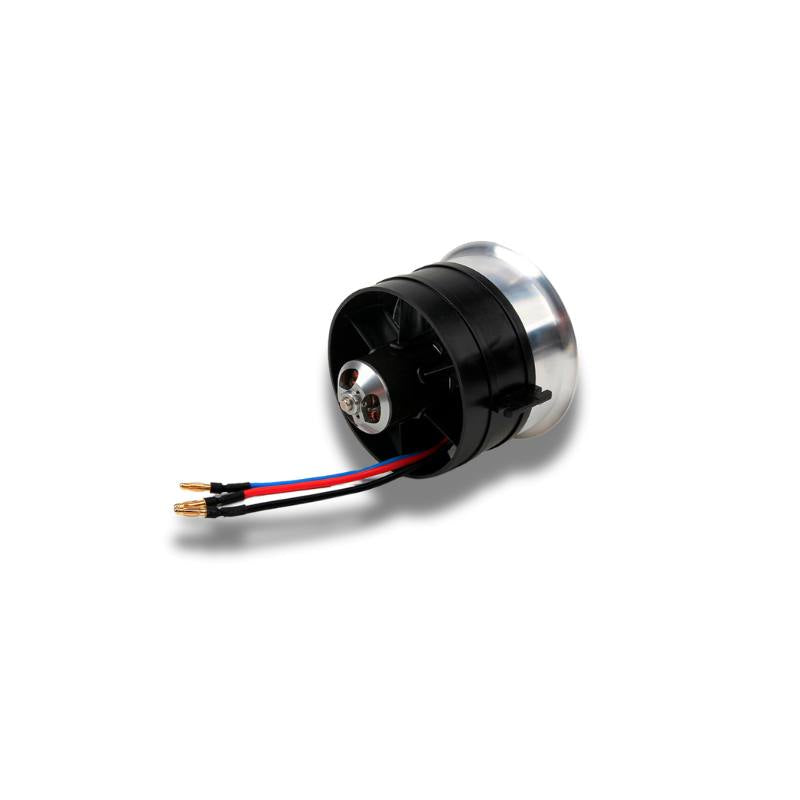

Sturdy Construction: The back part of the fan is made from tough, mixed materials. It is securely attached to reduce vibrations and ensure stable flight.

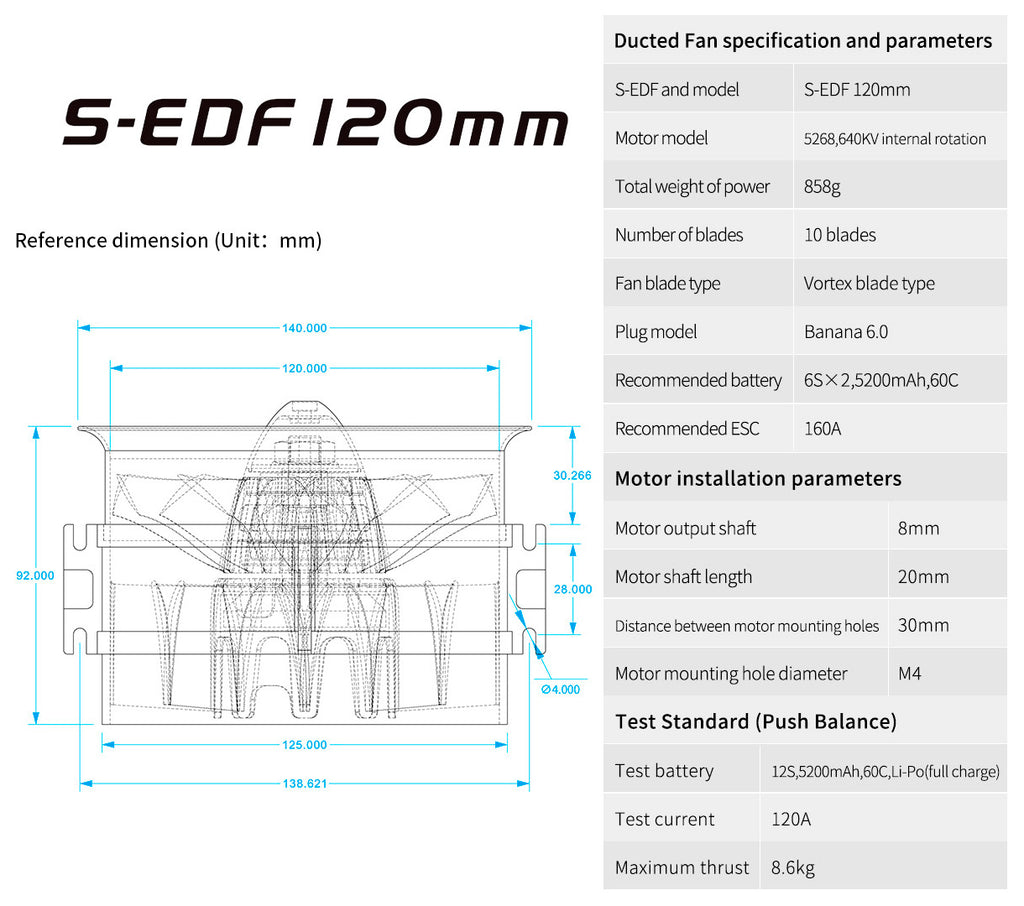

Specifications:
-
Fan Size: 120mm
-
Motor Model: 5268, 640KV
-
Total Weight: 858g
-
Blade Count: 10
-
Blade Type: Vortex
-
Connector: Banana 6.0
-
Recommended Battery: 6Sx2, 5200mAh, 60C
-
Recommended ESC: 150A
ESC Specifications:
-
Voltage: 5-12S
-
Continuous Current: 150A
-
Burst Current (10s): 170A
-
BEC: No
-
Weight: 203g
-
Size: 133 x 49 x 27 mm
Motor Installation:
-
Shaft Diameter: 8mm
-
Shaft Length: 20mm
-
Mounting Hole Distance: 30mm
-
Mounting Hole Diameter: M4

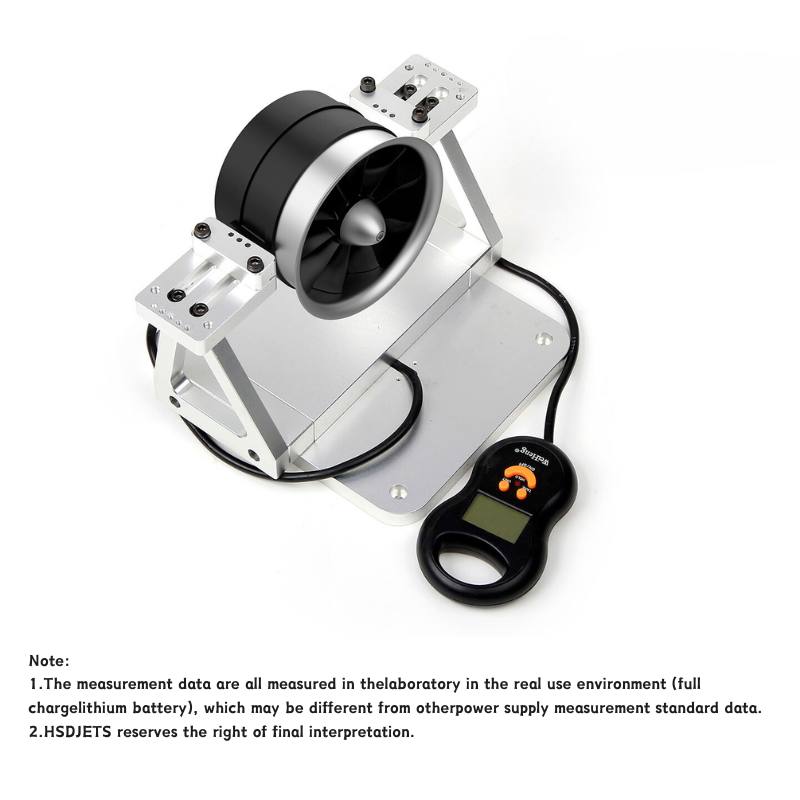

Performance:
-
Test Battery: 12S, 5200mAh, 60C Li-Po (fully charged)
-
Test Current: 120A
-
Maximum Thrust: 8.6kg
Package Includes:
- 1 x 120mm EDF
- 1 x 150A ESC
Get ready for powerful and precise flights with the HSDJETS 120mm Ducted Fan and 150A ESC! Perfect for your next RC adventure.
