Powerful & High-Performance 1404 Brushless Motor for Racing Drones & Quadcopters
Upgrade your drone’s performance with our 1404 brushless motor, engineered for enhanced speed, efficiency, and durability in racing drones, FPV quadcopters, and custom builds. With high KV options (2800KV, 3800KV, 4300KV, 6000KV), this motor delivers stable power, rapid throttle response, and superior thrust-to-weight ratio, making it ideal for acrobatic flying, freestyle, and competitive racing.
Key Features:
✔ High-Speed Performance – Optimized for racing drones & FPV quadcopters with customizable KV ratings for tailored power.
✔ Lightweight & Efficient – Weighing only 9.8g (with cables), it maximizes thrust while reducing drag, improving flight control and agility.
✔ Robust & Durable – Built with high-quality materials to withstand intense racing, crashes, and demanding conditions.
✔ Wide Compatibility – Works seamlessly with various drone models, including 5-inch quads, micro drones, and DIY builds.
✔ Easy Installation – Features a simplified mounting process, making it beginner-friendly while meeting expert standards.
✔ Responsive & Precise – Delivers instant throttle response for sharp maneuvers, tight turns, and high-speed racing.
✔ 12N14P （3800kv）Configuration – Ensures smooth power delivery, reduced vibration, and improved efficiency.

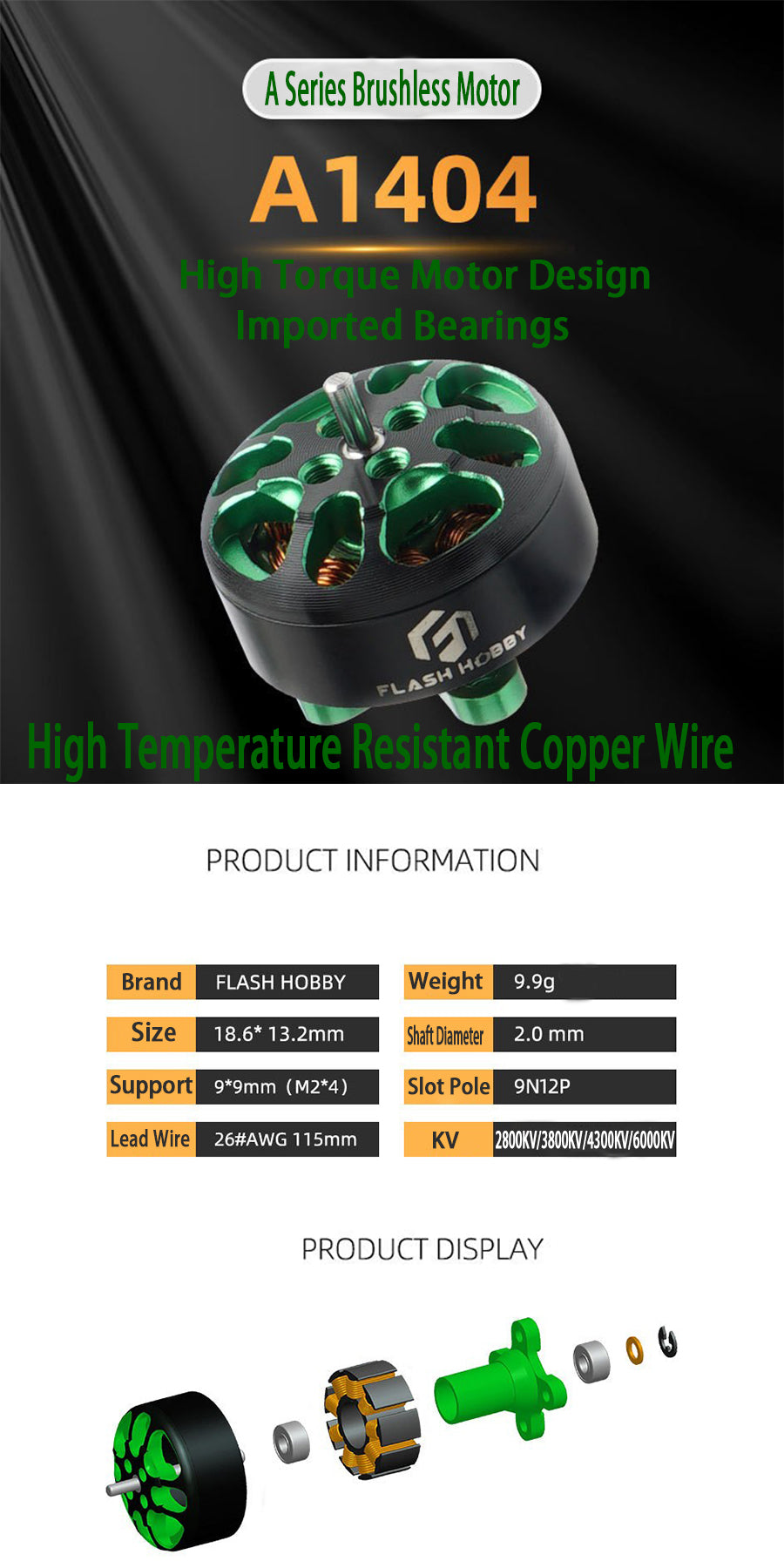

Technical Specifications:
-
Motor Size: ф18.6 x 13.2mm
-

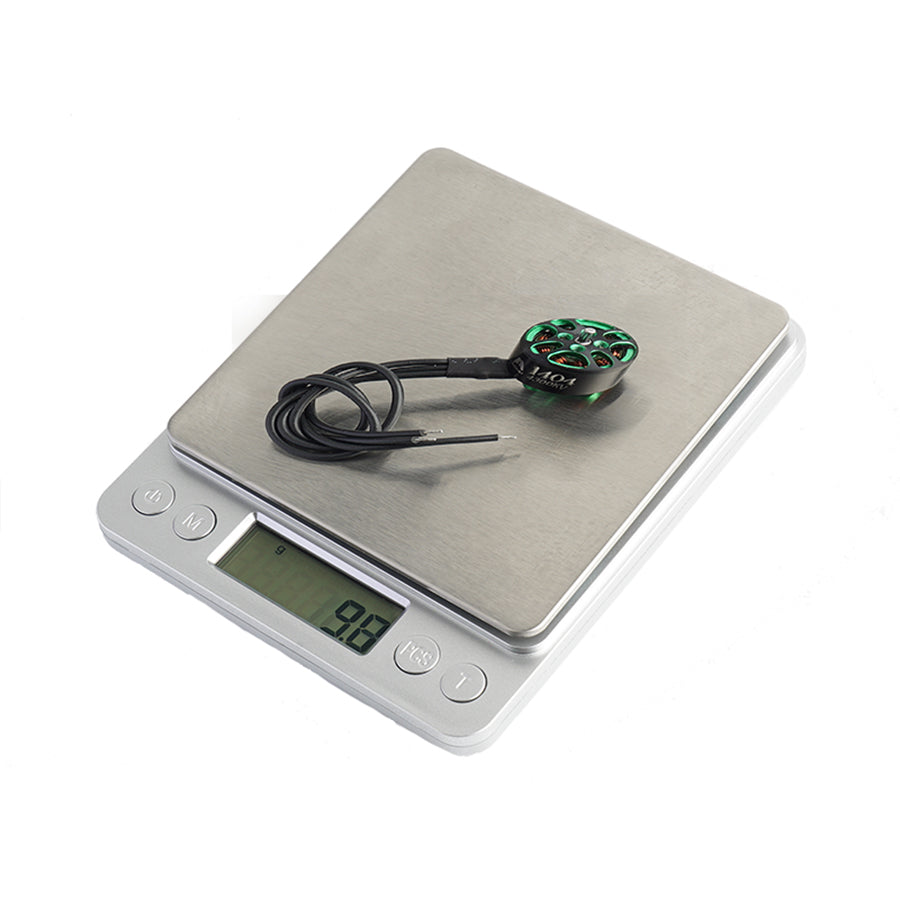

Weight: 9.8g (including cables)
-
Install Shaft Diameter: 1.5mm
-
Motor Cable: 26#AWG, 113mm
-
KV Options: 2800KV, 3800KV, 4300KV, 6000KV (customizable)
Ideal Applications:
-
Racing Drones & FPV Quadcopters
-
Freestyle & Acrobatic Flying
-
DIY Drone Builds & Custom RC Projects
-
Aircraft Model Motors
-
Crossing Motors & Scooter Motors
-
Industrial & Automation Uses
-
Science & Education Projects
-
Household & Agricultural Applications
Why Choose Our 1404 Brushless Motor?
Whether you're a drone racing enthusiast, FPV pilot, or DIY builder, this motor provides unmatched power, reliability, and customization. Its lightweight design, high thrust efficiency, and durable construction make it a top choice for competitive racing, freestyle tricks, and long-range flights.
A1404-2800KV Motor Specification
Max pull：343g
Volts：24V(6S)
Suggested ESC: 10A~20A
Maximum Power：173W
Suggested Prop: 3 inch prop
A1404-3800KV Motor Specification
Max pull：339g
Volts：16V(4S)
Suggested ESC: 10A~20A
Maximum Power：146W
Suggested Prop: 3 inch prop
A1404-4300KV Motor Specification
Max pull：351g
Volts：15V(4S)
Suggested ESC: 10A~20A
Maximum Power：225W
Suggested Prop: 3 inch prop
A1404-6000KV Motor Specification
Max pull：379g
Volts：15V(4S)
Suggested ESC: 10A~20A
Maximum Power：220W
Suggested Prop: 3 inch prop
