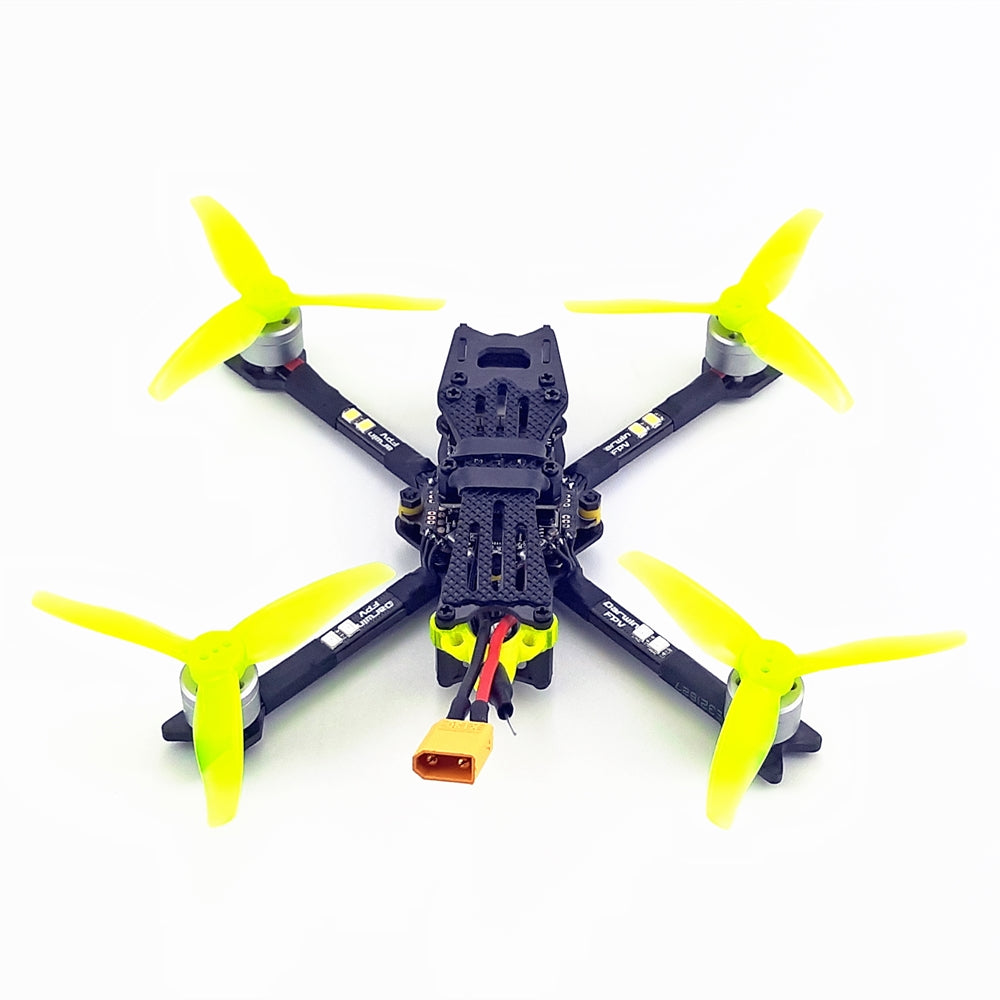

142mm FPV Racing Drone Kit – 4300KV Motors, 15A AIO ESC, 700TVL Camera
$127.99 USD
|
142mm Racing Frame Kit
|
Wheel base: 142mm
Frame arm thickness: 3.0mm（V2）
Other thickness:1.5mm
Frame kit material: 3K carbon fiber
|
|
11044300KV 2-3S Brushless Motor
|
KV: 4300KV
Lipo cell: 2-3S
Weight: 6.0g
|
|
AIO 4 IN 1 15A BLHeli_S ESC
|
Input voltage: 1-3SLiPo
Continuous current: 15A
Pe ak current:17A (10S)
BEC output: no
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600/Oneshot125
MOS: 3*3
|
|
F411 AIOFlight Controller
|
Main control chip: STM32F411
Sensor: MPU6500
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 25.5*25.5mm
Supports Betaflight firmware
|
|
Baby APE

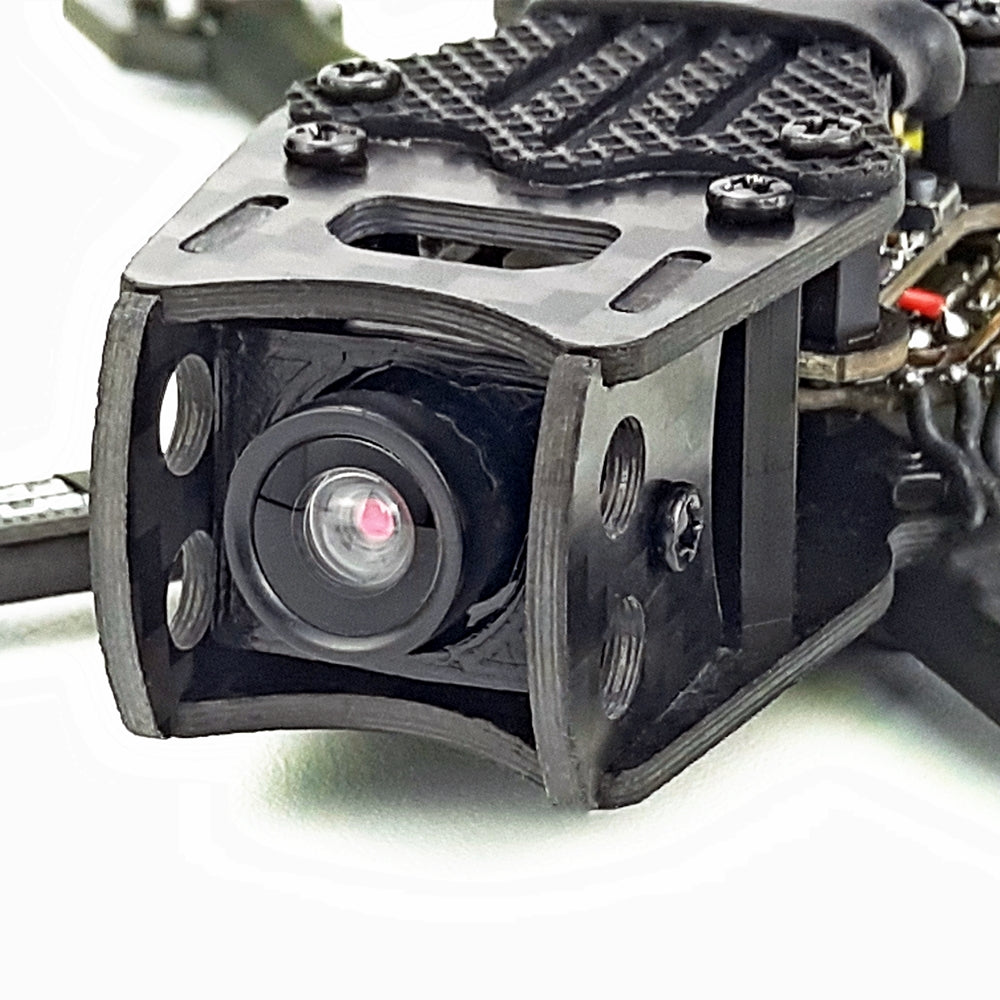

Darwin700TVL Camer
|
Resolution:700TVL
Lens: 1.8mm
Input: 3.5-5V
TV System: PAL/NTSC
|
|
Baby APE Pro
CADDX ANT
|
Resolution:1200TVL
mage Sensor: 1/3" CMos Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
|
|
5.8G 40CH 0mW/25mw/200mw switchable VTX
|
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ≤3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
|
|
30163-blade propeller
|
Material: PC
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair
|
|
Lipo Battery
|
Recommend 2-3S 300-450mah
|
