We have various models of motors available. For bulk purchases or other models of motors, please leave a message for us. Thank you

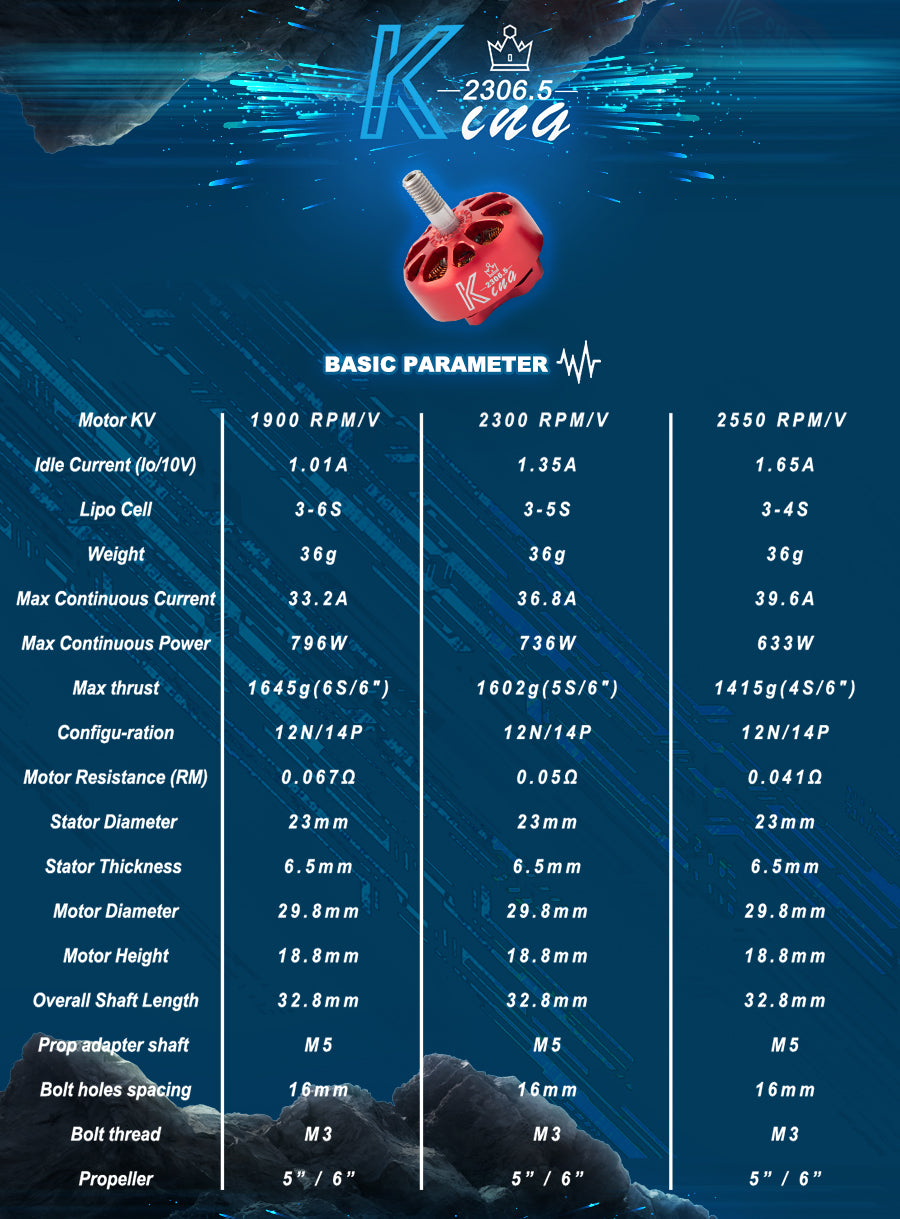

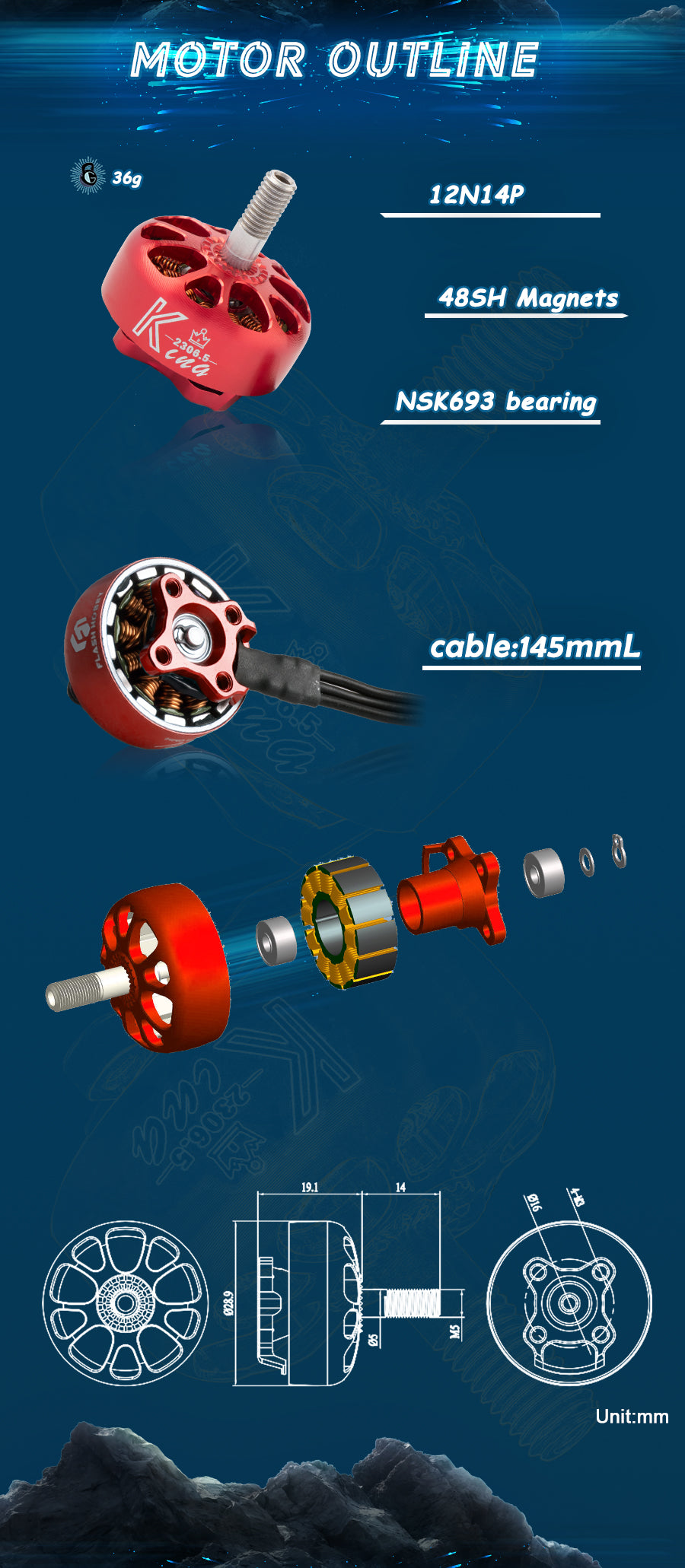

K2306.5-1900KV Brushless Motor Parameters

KV measurement: KV1900

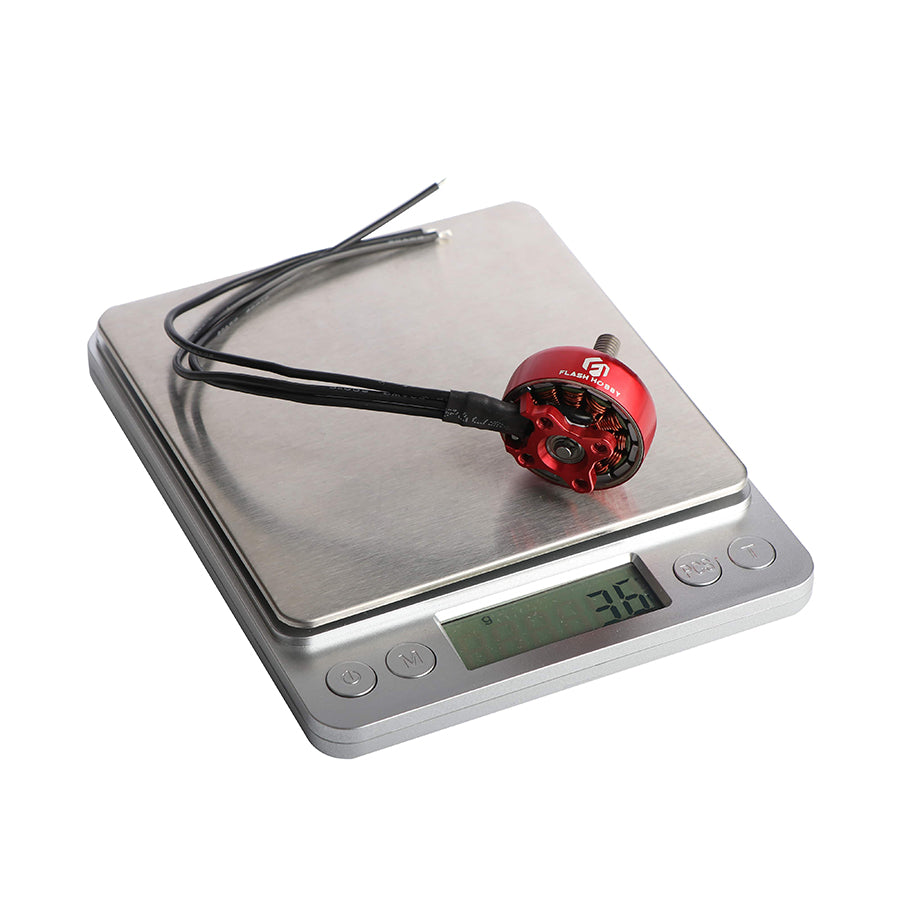

Weight (including line): 36g

Machine size: 29.8 x 18.8mm

Interphase internal resistance: 0.067

Specification: 20 # AWG 145mm

Slot pole: 12N14P

Axis diameter: 3mm

Rated operating voltage (Lipo): 3-6S

Empty current: 1.01A

Maximum current (60S): 23.89A

Maximum power: 705.9W

Installation pillar: M5

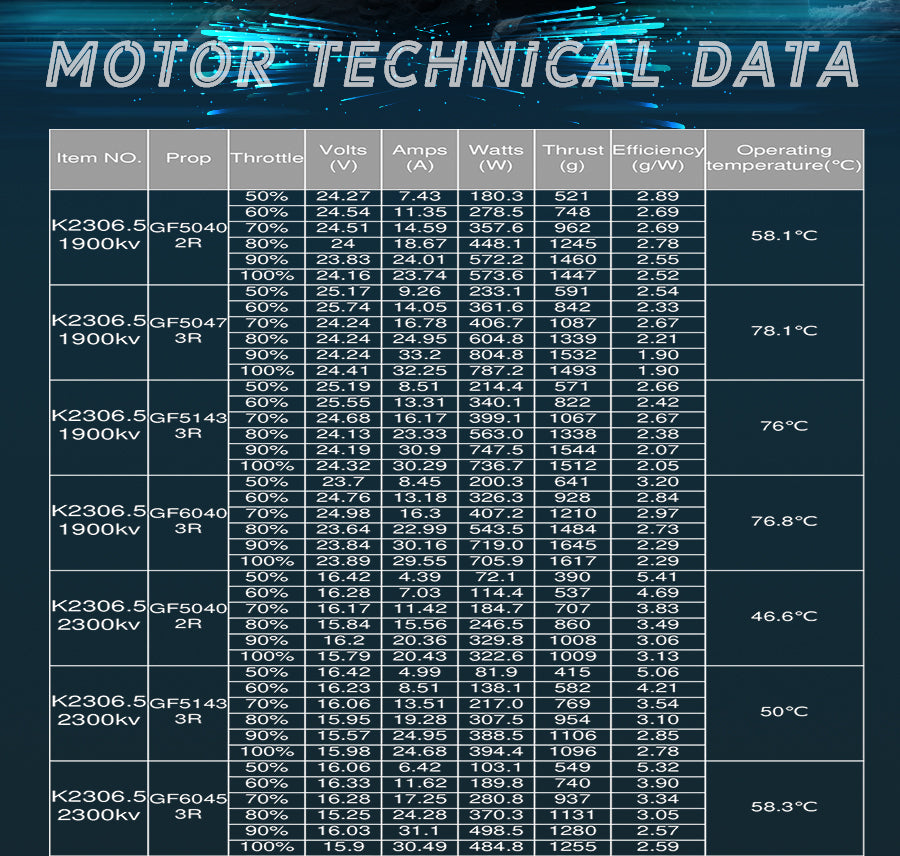

Maximum tensile force: 1617g (4S/GF6040 3R)

K2306.5-2300KV Brushless Motor Parameters

KV measurement: KV2300

Weight (including line): 36.7g

Machine size: 29.8 x 18.8mm

Interphase internal resistance: 0.05

Specification: 20 # AWG 145mm

Slot pole: 12N14P

Axis diameter: 3mm

Rated operating voltage (Lipo): 2-4S

Empty current: 1.79A

Maximum current (60S): 34.21A

Maximum power: 695.5W

Installation pillar: M5

Maximum tensile force: 1577g (4S/GF6040 3R)

K2306.5-2550KV Brushless Motor Parameters

KV measurement: KV2550

Weight (including line): 37g

Machine size: 29.8 x 18.8mm

Interphase internal resistance: 0.04

Specification: 20 # AWG 145mm

Slot pole: 12N14P

Axis diameter: 3mm

Rated operating voltage (Lipo): 2-4S

Empty current: 1.65A

Maximum current (60S): 32.86A

Maximum power: 531.3W

Installation pillar: M5

Maximum tensile force: 1406g (4S/GF6040 3R)
