BG-8S Battery Meter, LCD Display Digital Battery Capacity Balance Checker for LiPo Batteries

ISDT BG-8S BattGO Smart Battery Tester & Balancer

All-in-One Battery Management Solution!

Key Features

• 📊 BattGO Technology: Full battery diagnostics via XT60i (voltage, cycles, history)

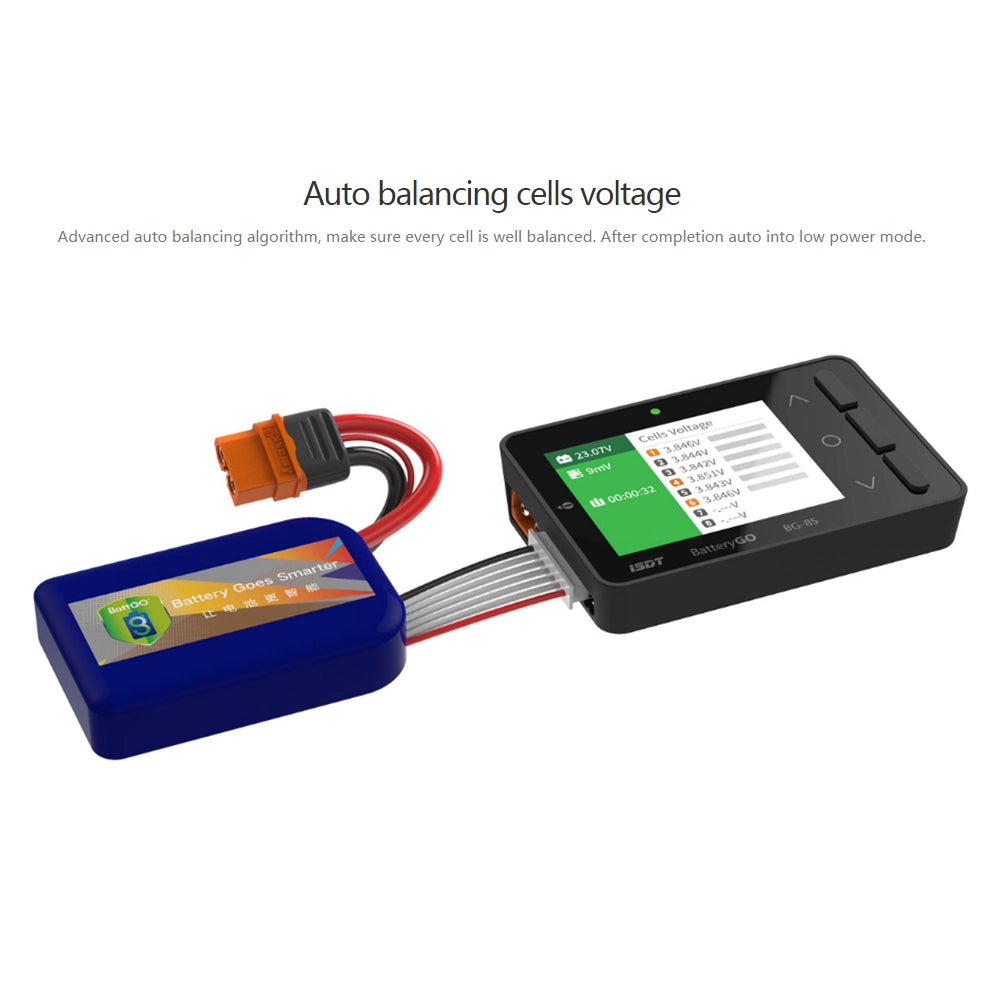

• ⚖️ Auto-Balancing: Advanced algorithm for perfect cell balance (1-8S)

• 🔌 Multi-Connection: XT60/XT60i, XH2.54, JST connectors

• 🔋 QC 3.0 Power Bank: 12V/2A output for mobile devices

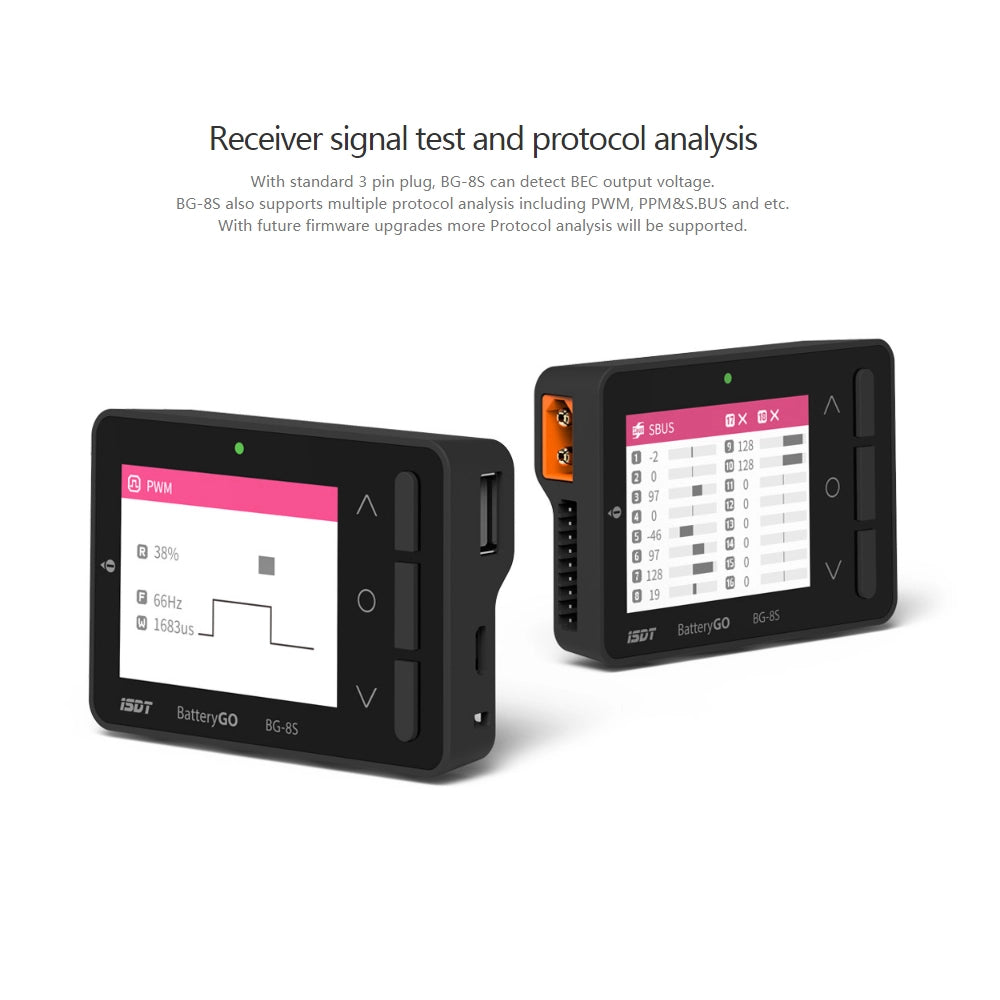

• 📡 Receiver Analysis: PWM/PPM/S.BUS protocol detection

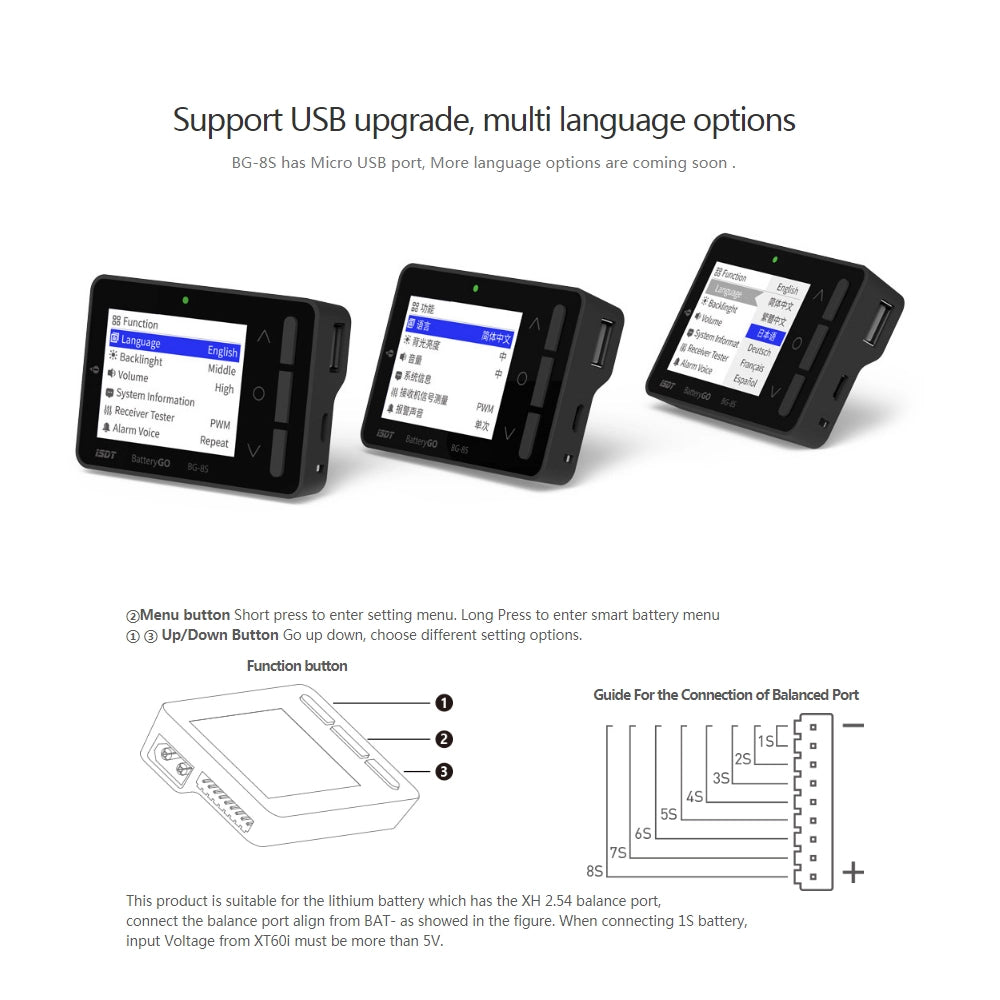

• 🔄 Firmware Upgradable: Future protocol support via updates

Compatible Battery Types

• LiHV / LiPo / Li-ion / LiFe (1-8S)

• NiMH / NiCd (1-10S)

• BEC voltage measurement

Technical Specifications

• Voltage Range: 5V-36V input | 0.8V-15V (1S) | 0.8V-4.8V (2-8S)

• Accuracy: ±0.005V @ 4.2V

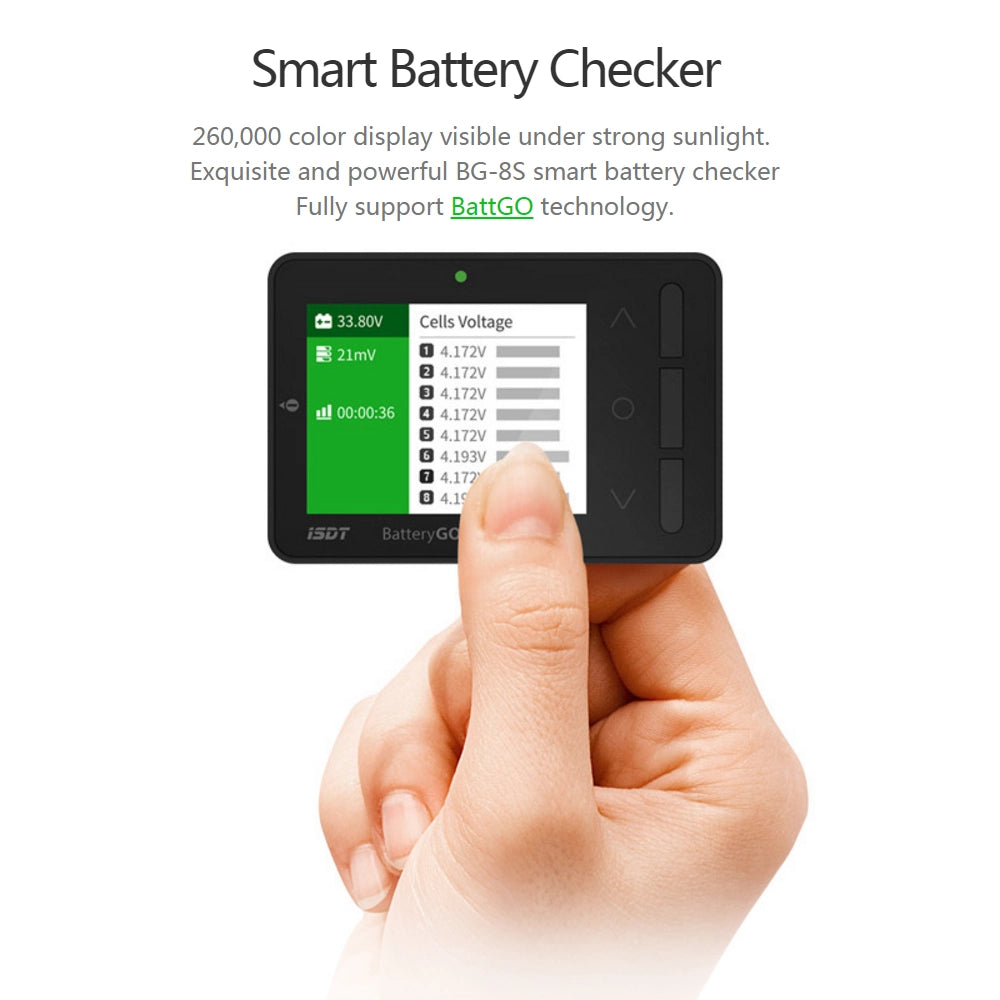

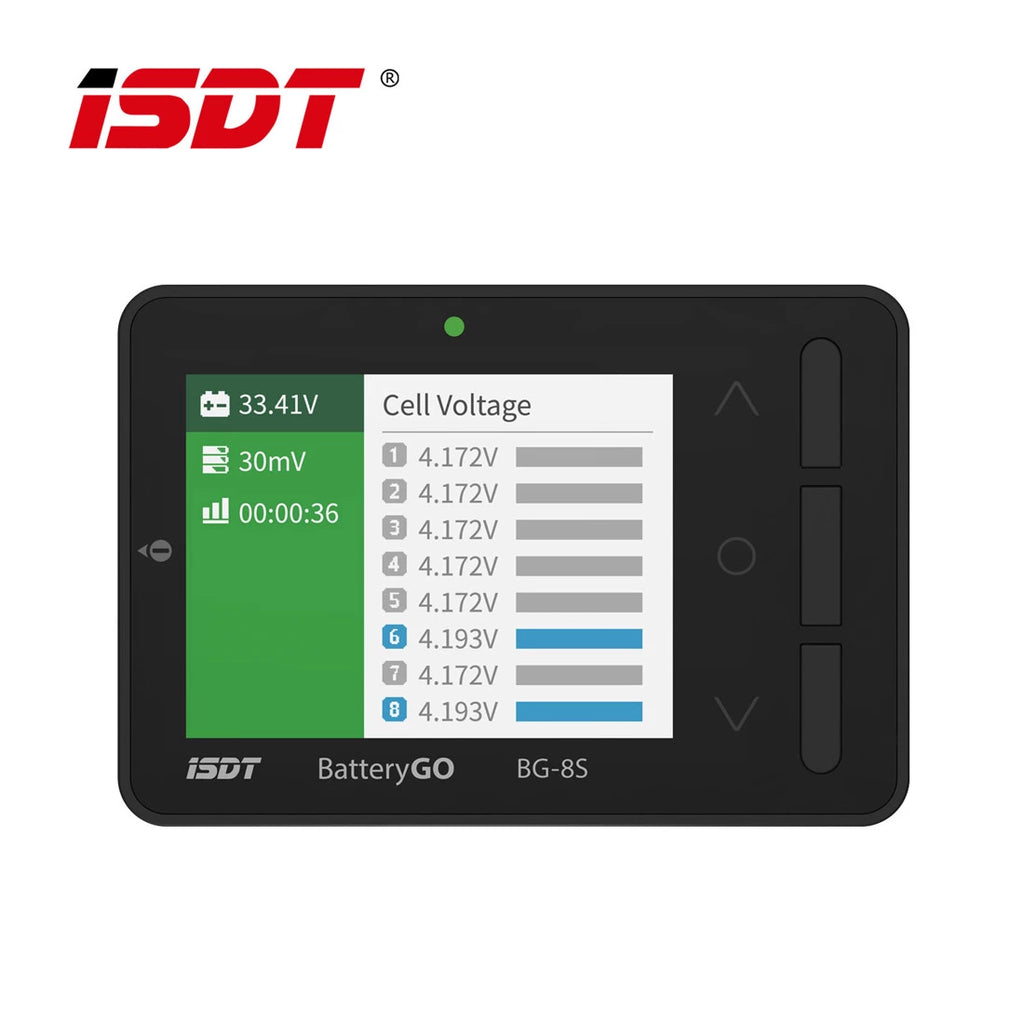

• Display: 2.4" 260K-color IPS LCD

• Charging Output: QC 2.0/3.0, BC1.2, Apple compatible

• Size: 80×55×19mm

• Weight: 59g (ultra-portable)

• Operating Temp: 0°C–40°C

Package Includes

• 1 × ISDT BG-8S Tester
