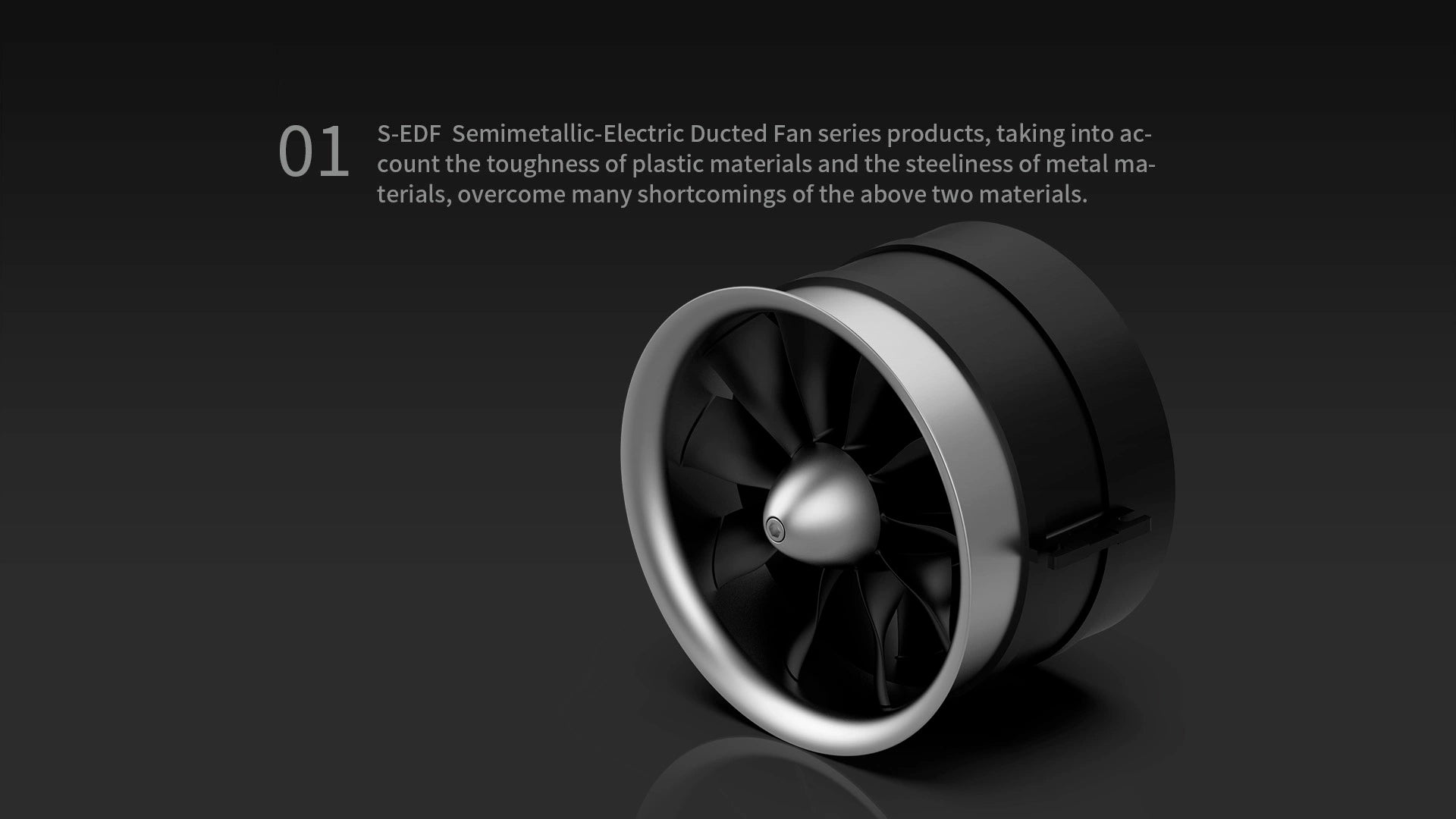

Captainrc 105mm Ducted Fan with 150A ESC – Power Up Your RC Aircraft!
Specifications:
Fan Size: 105mm
Motor Model: 4270, 750KV
Total Weight: 636g
Blade Count: 11
Connector: Banana 6.0(updated)
Recommended Battery: 6Sx2, 5200mAh, 60C
ESC Specifications:
- Voltage: 5-12S
- Continuous Current: 150A
- Burst Current (10s): 170A
- BEC: No
- Weight: 203g
- Size: 133*49*27 mm

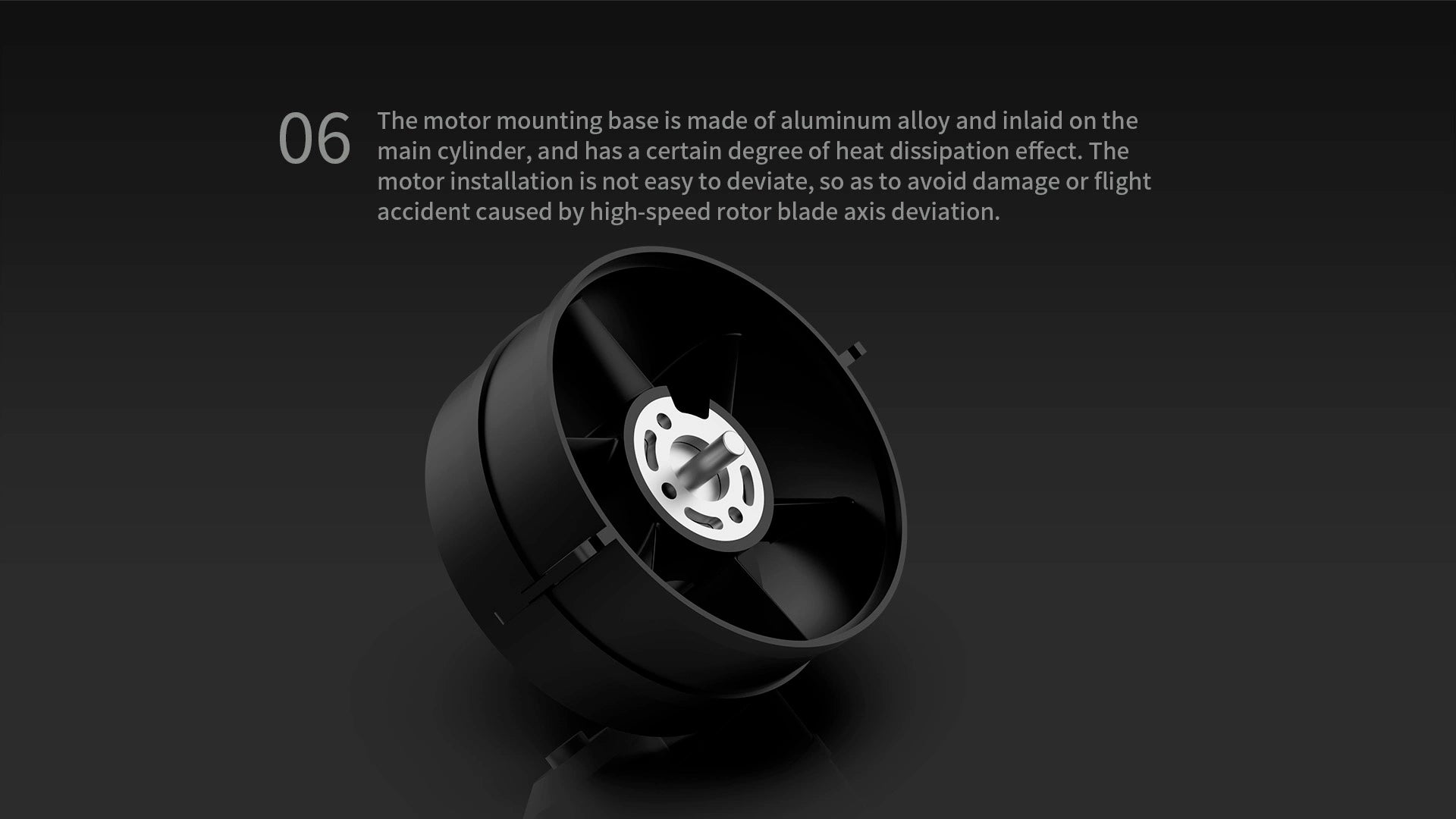

Motor Installation:
- Shaft Diameter: 8mm
- Shaft Length: 17mm
- Mounting Hole Distance: 25mm
- Mounting Hole Diameter: M4
Performance:

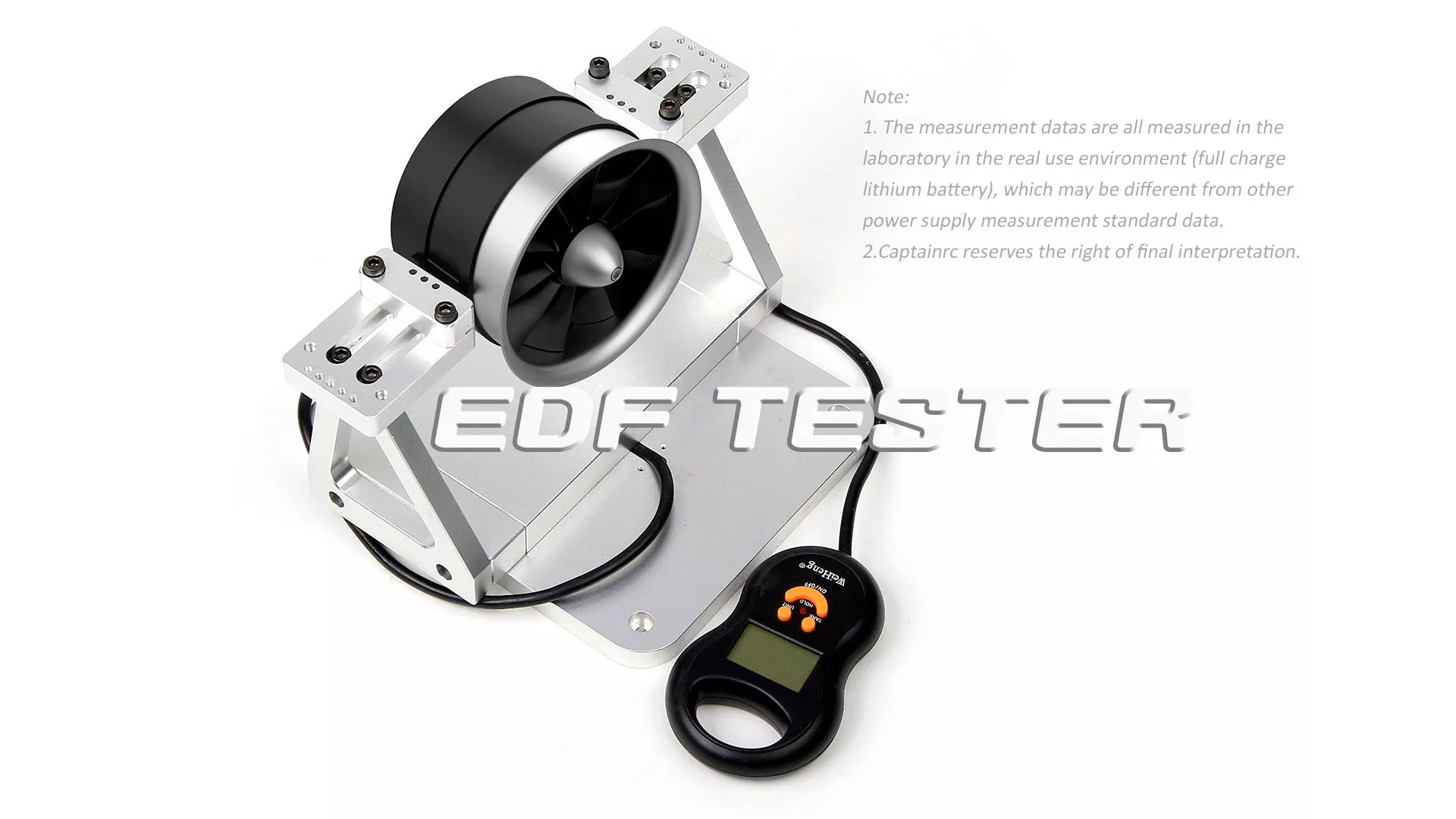

- Test Battery: 12S, 5200mAh, 60C Li-Po (fully charged)
- Test Current: 118A
- Maximum Thrust: 7.4kg
Package Includes:
- 1 x 105mm EDF
- 1 x 150A ESC
Note: the connectors have been updated.all the items now come with this new connector type. you can always solder another connector to the ESC.
Get ready for powerful and smooth flights with the Captainrc 105mm Ducted Fan and 150A ESC. Perfect for your next RC adventure!
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
Всего предметов
Итого за товары
90mm EDF 12S Thrust Test Data
* For reference only
| Model | Voltage (V) | Throttle (%) | Current (A) | Thrust (kg) |
|---|---|---|---|---|
| 90mm EDF 12S | 44.4 | 25 | 1.9 | 0.28 |
| 90mm EDF 12S | 44.4 | 50 | 10.2 | 1.1 |
| 90mm EDF 12S | 44.4 | 75 | 32.3 | 2.5 |
| 90mm EDF 12S | 44.4 | 100 | 66.3 | 4.0 |
| 90mm EDF 12S | 50 | 25 | 2.2 | 0.4 |
| 90mm EDF 12S | 50 | 50 | 11.8 | 1.3 |
| 90mm EDF 12S | 50 | 68 | 28.3 | 2.5 |
| 90mm EDF 12S | 50 | 75 | 39.2 | 3.1 |
| 90mm EDF 12S | 50 | 100 | 81.2 | 4.8 |
| 90mm EDF 12S | 44 | -- | 20 | 1.85 |
| 90mm EDF 12S | 44 | -- | 25 | 2.2 |

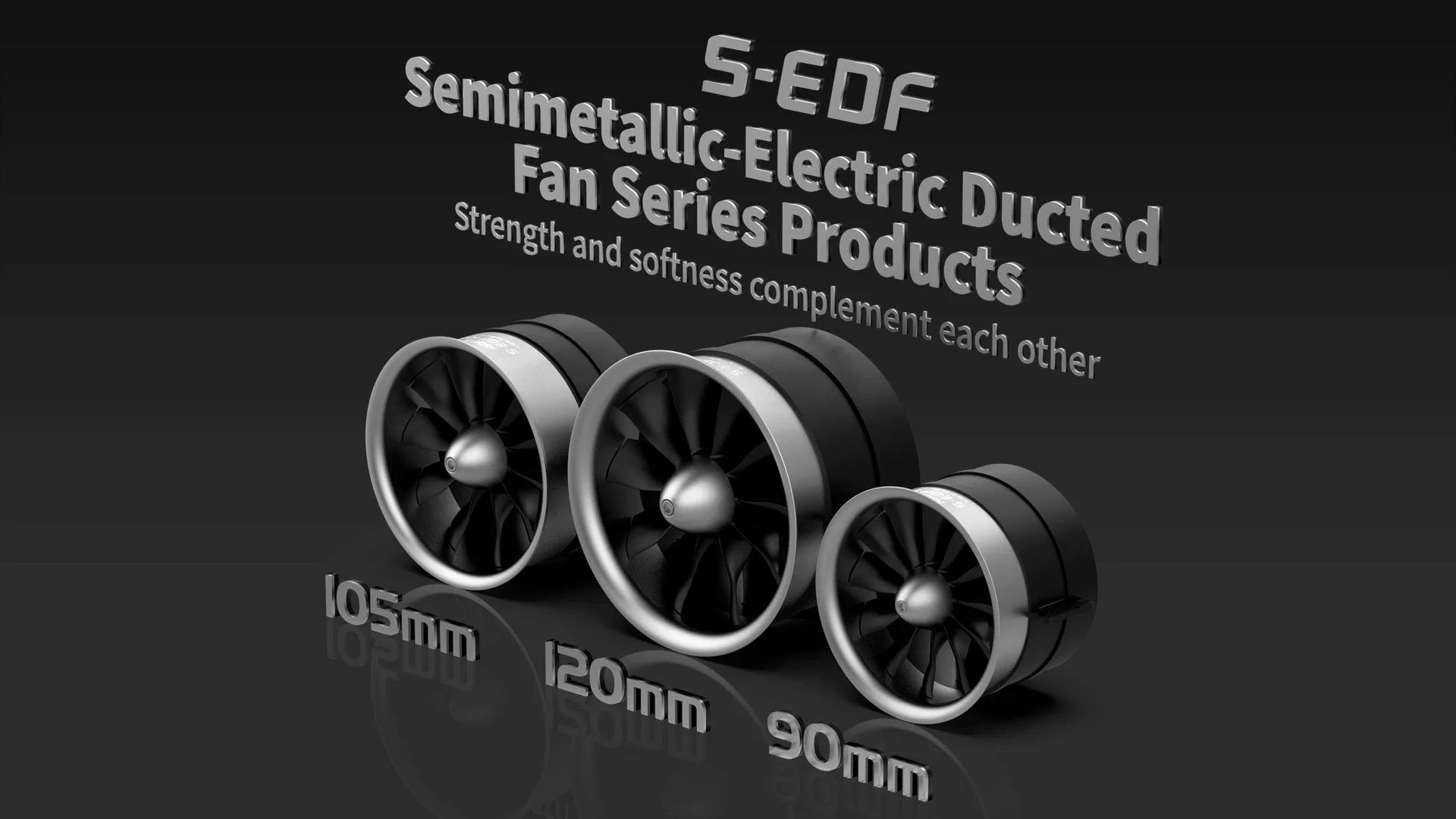

90mm EDF 6S / 105mm EDF 12S / 120mm EDF 12S Thrust Test Data
* For reference only
| Model | Voltage (V) | Throttle (%) | Current (A) | Thrust (kg) |
|---|---|---|---|---|
| 90mm EDF 6S | 25 | 25 | 18.2 | 1.1 |
| 90mm EDF 6S | 25 | 50 | 43.0 | 2.1 |
| 90mm EDF 6S | 25 | 75 | 68.1 | 2.9 |
| 90mm EDF 6S | 25 | 100 | 108.6 | 3.9 |
| 105mm EDF 12S | 50 | 25 | 4.0 | 0.5 |
| 105mm EDF 12S | 50 | 50 | 19.8 | 2.1 |
| 105mm EDF 12S | 50 | 75 | 56.1 | 4.8 |
| 105mm EDF 12S | 50 | 100 | 115.2 | 7.6 |
| 120mm EDF 12S | 50 | 25 | 4.7 | 0.7 |
| 120mm EDF 12S | 50 | 50 | 26.2 | 3.1 |
| 120mm EDF 12S | 50 | 75 | 72.3 | 6.4 |
| 120mm EDF 12S | 50 | 100 | 147 | 10.1 |
