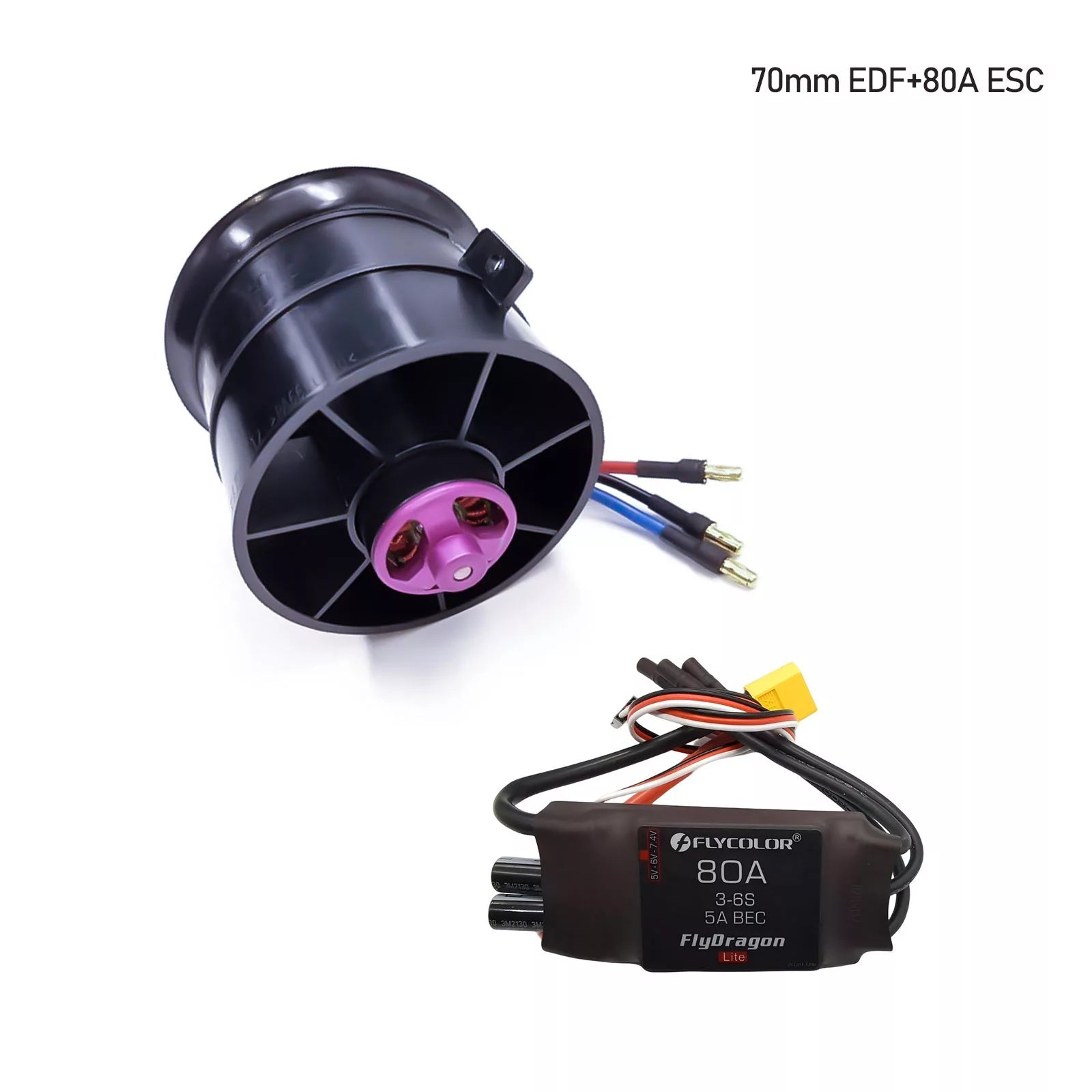

Hobbyhh 70mm 12 Blade EDF Flat Duct Fan Brushless Motor With 80A ESC For RC Jet Aircraft Model Spare Parts

Hobbyhh 70mm 12 Blade EDF Flat Duct Fan Brushless Motor With 80A ESC For RC Jet Aircraft Model Spare Parts

Артикул:EDF2300kv

样式
Обычная цена $36.49
Обычная цена Цена со скидкой $36.49
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

Advantages:All the EDF with motor have already dynamic balance tested.Running smoothly,Easy cooling,Stable structure,Safe and durable,excellent realistic sound.Make your plane more Efficient and stable.All the motor has been soldered the banana plug.

Main Parameter: 70mm EDF with 3300KV/4S motor: max continuous current is 75A,max thrust is 1810g.Motor weight 108g.Thus we recommend 80A ESC and 4s battery.

motor:motor Continuous operation, high temperature resistance,wear resistance and stable,it’s more anti-aging and durable.Premium motor provides stable and balanced operation when in continuous working.

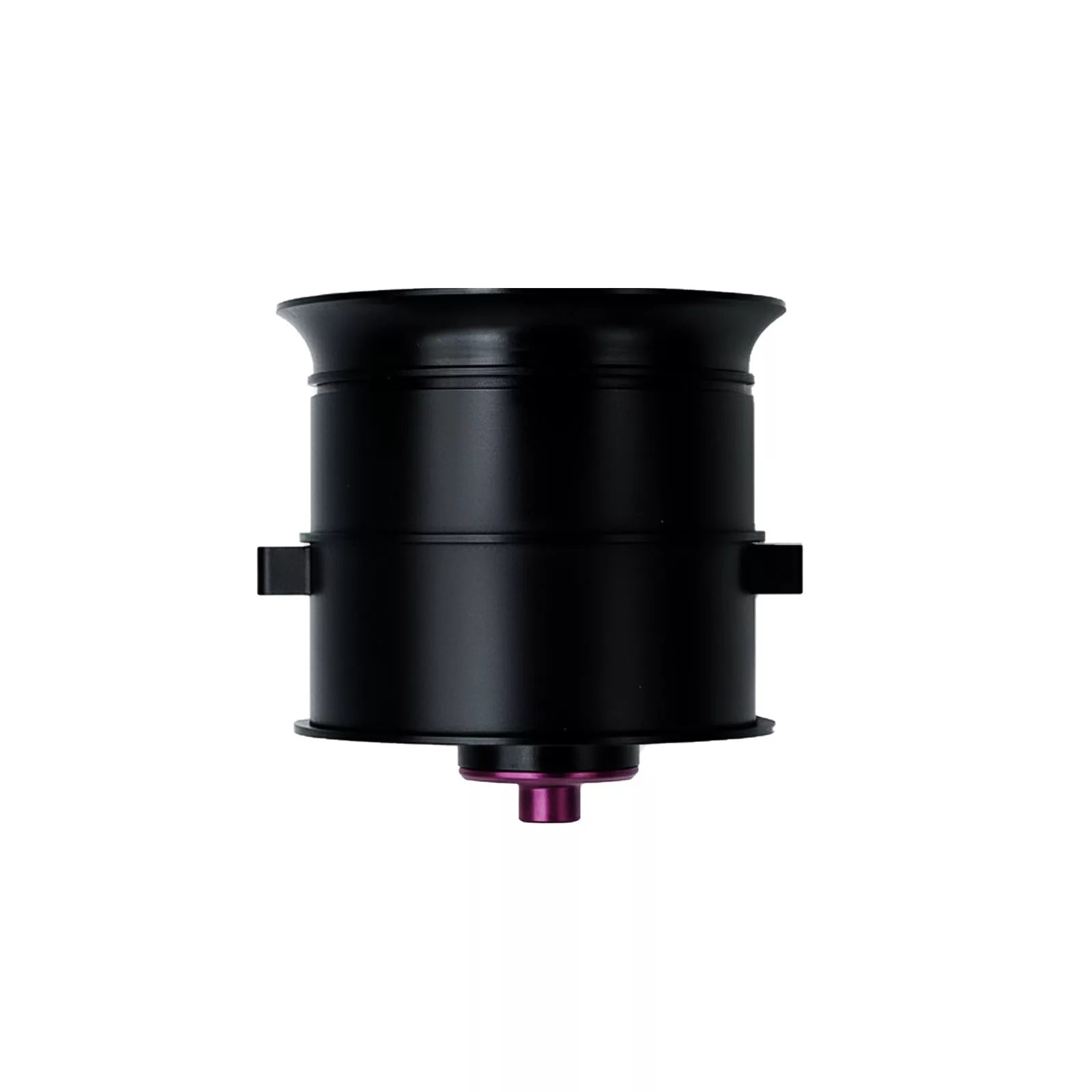

High-Quality ducted fan: fan make of high-quality engineering materials,Sturdy body,stable structure.Removable guide ring design,Adapt to a variety of models.

Pure copper wire: strong conductive, fast heat dissipation, high temperature resistant silicone wire.

70mm Motor 3300KV Specifications:

- KV: KV3400(4S Lipo)

- Number of Batteries (Lipo) : 4S

- Maximum Voltage: 16.8 V

- Maximum Continuous Current (A)/60 s: 75A

- Total Power Load: 1260W

- Max thrust: 1810g

- Recommended ESC: 80A

- Recommended Battery: 35C 4S 3500mAh (NOT included)


70mm Motor 2300KV Specifications:

- KV: 2300KV (6S Lipo) Optional

- Number of Batteries (Lipo) : 6S

- Maximum Voltage: 25.2 V

- Maximum Continuous Current (A)/60 s: 65A

- Total Power Load: 1638W

- Max thrust: 2240g

- Recommended ESC: 80A
