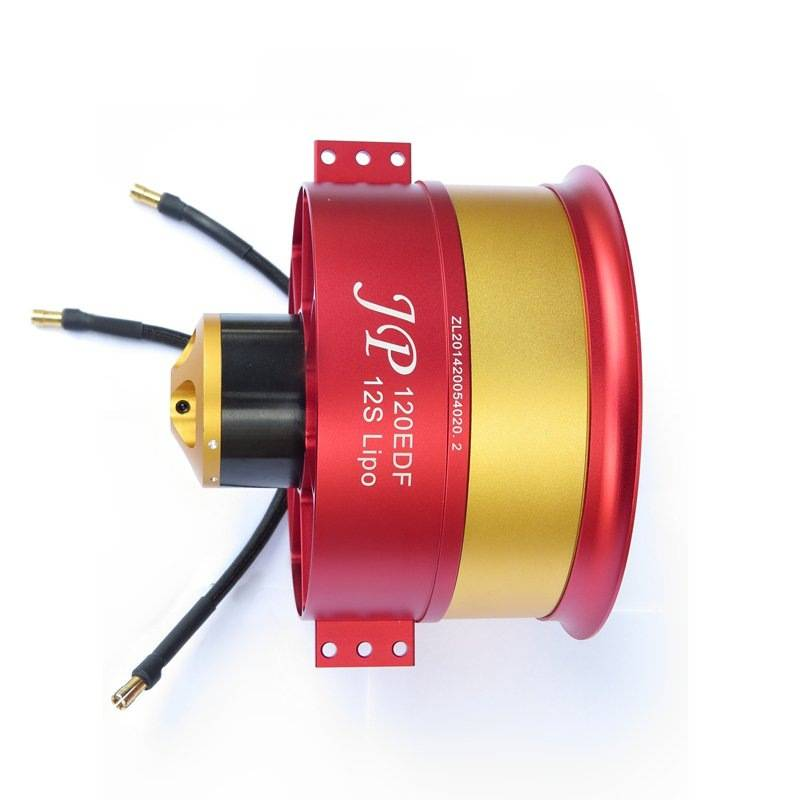

JP Hobby Ducted Fan 120mm 12-Blade CNC Metal EDF System with Motor

$559.00 USD

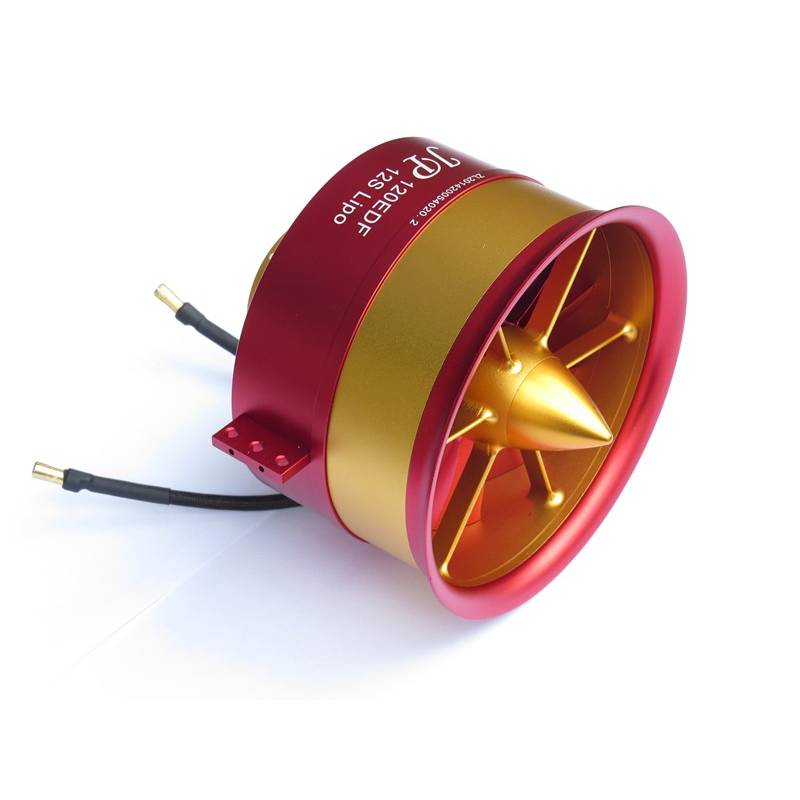

🛩️ JP Hobby 120mm EDF Ducted Fan Combo – CNC Metal Shroud + Motor

Available KV Versions: 631KV (15S), 673KV (14S), 760KV (12S), 840KV (10S), 510KV (18S)

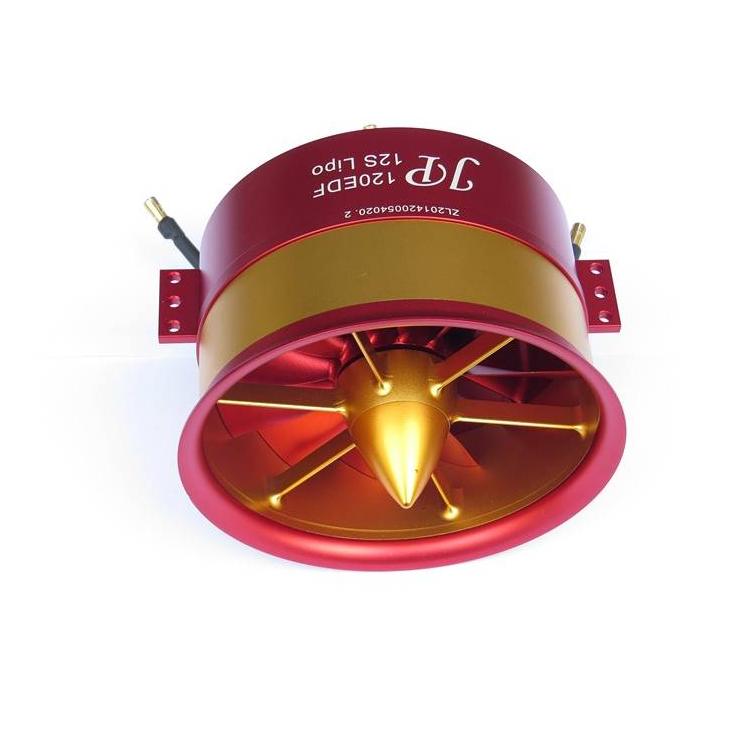

Rotor Type: 12-Blade Metal Rotor
Material: 100% CNC-Machined Aluminum Alloy
Motor Type: 12-Pole Outrunner Brushless

🔧 Key Features:

Full CNC Aluminum Construction: Shroud and rotor crafted from high-grade aluminum alloy for strength, precision, and heat dissipation.

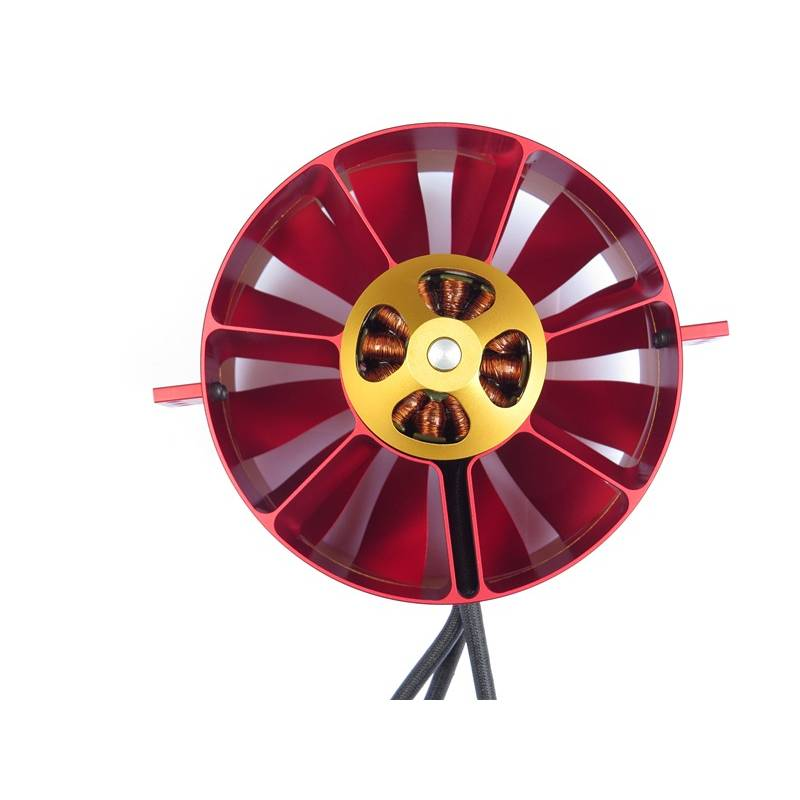

Integrated Cooling Design: Shroud acts as a heat sink to cool the motor, improving efficiency and extending lifespan.
Dynamic Balance: Each rotor is dynamically balanced and tested for 8+ hours to ensure stable, vibration-free operation.
Anti-Blade Ejection Design: Safer and more reliable than plastic or carbon shrouds.
Modular Compatibility: Can be reassembled with other motors without compromising dynamic balance.
Pre-Assembled: Fan unit and motor come factory-assembled and balanced.

Spec	Value

EDF Class

120mm

Inner/Outer Diameter

Ø120mm / Ø123mm

Rotor Diameter

120mm (12 blades, metal)

Motor Diameter

50mm

Motor Type

JP 5050 Series Outrunner

No. of Poles

12

Stators

8

Shaft Diameter

8mm

Rotation Direction

CCW (Classic Counter Clockwise)

Max RPM

82,000

Max Efficiency

90%

Weight (Combo)

550g – 710g

Connector Type

PK 5.5mm or 6mm Banana

ESC Timing

≤ 15°

Inlet Ring Diameter

136mm (removable)

Exit Air Diameter

120mm

⚠️ Usage Notes:

ESC Compatibility: Only use JP Hobby ESCs with these EDFs (12-pole optimized). Using non-JP ESCs voids the warranty.
ESC Rating: Choose ESC with at least 20% headroom above max current draw.
Battery Recommendation: Minimum 5000mAh, 40C LiPo for short bursts (3–4 minutes WOT).
Safety First: Always use a watt meter to check amp draw. If draw exceeds factory specs, reduce timing or throttle via ESC.
Warranty is void if used outside of recommended setup.

🔍 Version-Specific Performance Table:

KV / S	Voltage (V)	Current (A)	Thrust (kg)	Power (W)	ESC Recommendation	Battery Suggestion
840KV / 10S	37.0V	125A	6.2 kg	4625 W	150A HV	5000mAh 45C 10S
	39.0V	134A	6.6 kg	5226 W
	42.0V	141A	7.2 kg	5922 W
760KV / 12S	46.2V	123A	7.2 kg	5684 W	150A HV	5000mAh 40C 12S
	48.8V	132A	7.8 kg	6441 W
	50.4V	139A	8.1 kg	7017 W
673KV / 14S	56.5V	106A	8.4 kg	5989 W	150A HV	5000mAh 40C 14S
	59.2V	118A	8.9 kg	6985 W
	61.8V	128A	9.2 kg	7906 W
631KV / 15S	63.0V	101A	9.0 kg	6363 W	150A HV	5000mAh 40C 15S
	66.0V	113A	9.5 kg	7458 W
	68.3V	122A	9.9 kg	8333 W
510KV / 18S	72.0V	104A	9.4 kg	7488 W	150A HV	5000mAh 40C 18S
	75.6V	116A	10.3 kg	8769 W
	78.3V	123A	10.8 kg	9631 W	180A HV (recommended)

✅ Quick Tips:

ESC Margin: Always choose an ESC with at least 20% headroom over the max current.
Battery Sizing: Use LiPos sized for 1/15 – 1/20 of expected max amp draw for 3–4 minutes full throttle.
Use Watt Meter: To verify your actual amp draw before flight.
Dynamic Balance: All units are dynamically balanced at factory – no extra tuning needed.
