4Pcs/Lot FlashHobby Arthur Series A1204 2500KV 3100KV 5200KV 2-4S micro Brushless Motor For FPV Racing drone Mini Multirotor
4Pcs/Lot FlashHobby Arthur Series A1204 2500KV 3100KV 5200KV 2-4S micro Brushless Motor For FPV Racing drone Mini Multirotor
We have various models of motors available. For bulk purchases or other models of motors, please leave a message for us. Thank you
Item Name：A1204
Weight: 6g (including the cables)

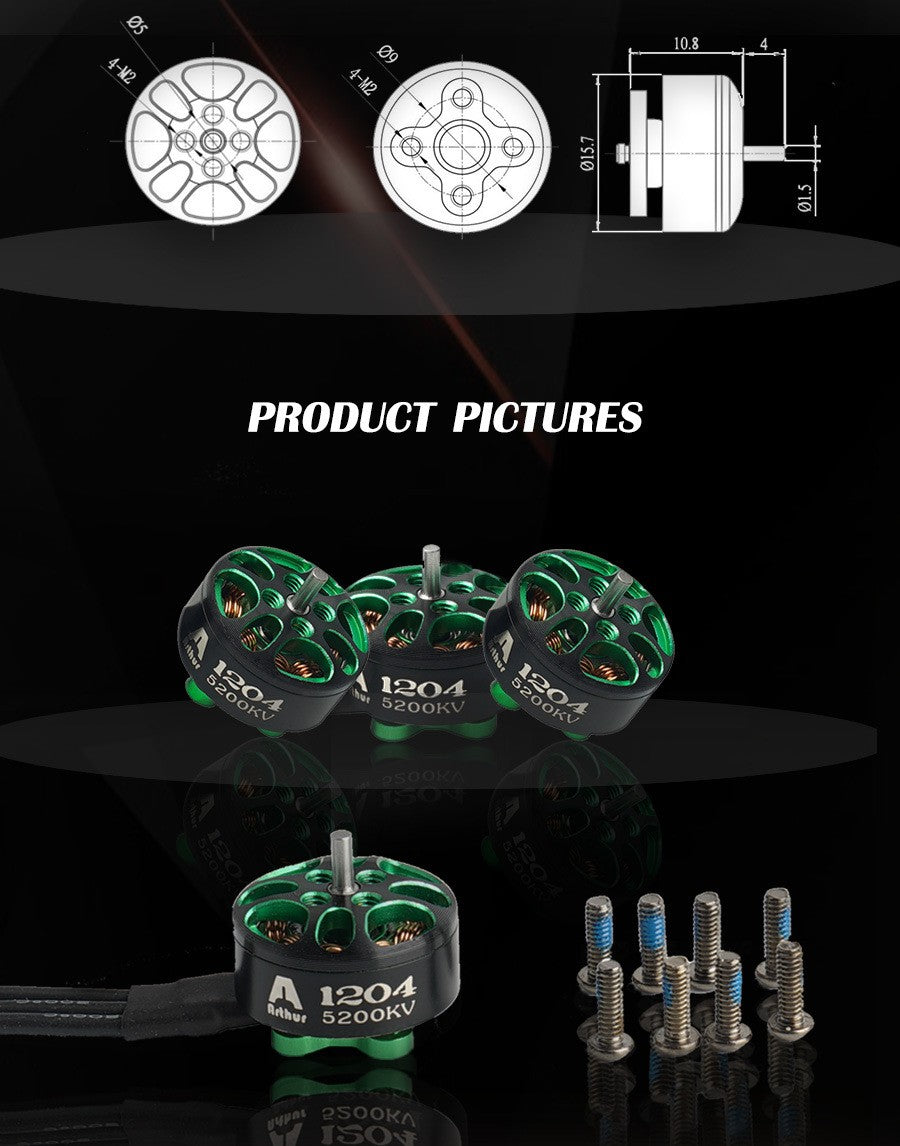

Motor Size: 15.7x10.8mm
Stator Diameter: 12mm
Stator Height:4mm
Shaft Diameter: 1.5mm
Motor Mount: 9*9mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
NSK Bearing
7075-T6 Aluminum bell
Multicolor color design
0.15mm Silicon steel sheet from Kawasaki, Japan
KV Value: 2500KV, 3100KV, 5200KV
Recommend: 2~3 inch prop application

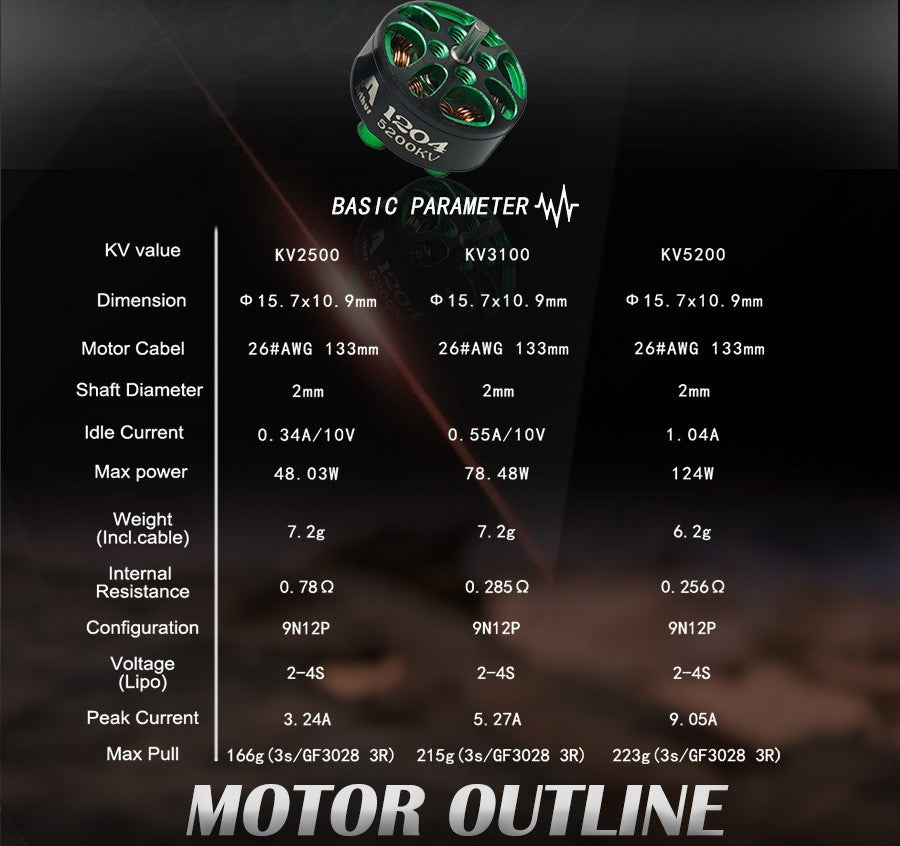

A1204-3100KV Motor Specification
Max pull：211g
Volts：DC7.4-15V(2-4S)
Suggested ESC: 10A~20A
Maximum Power：77W
Suggested Prop: 3 inch prop
A1204-5200KV Motor Specification
Max pull：223g
Volts：DC7.4-12V(2-3S)
Suggested ESC: 10A~20A
Maximum Power：109W
Suggested Prop: 3 inch prop
