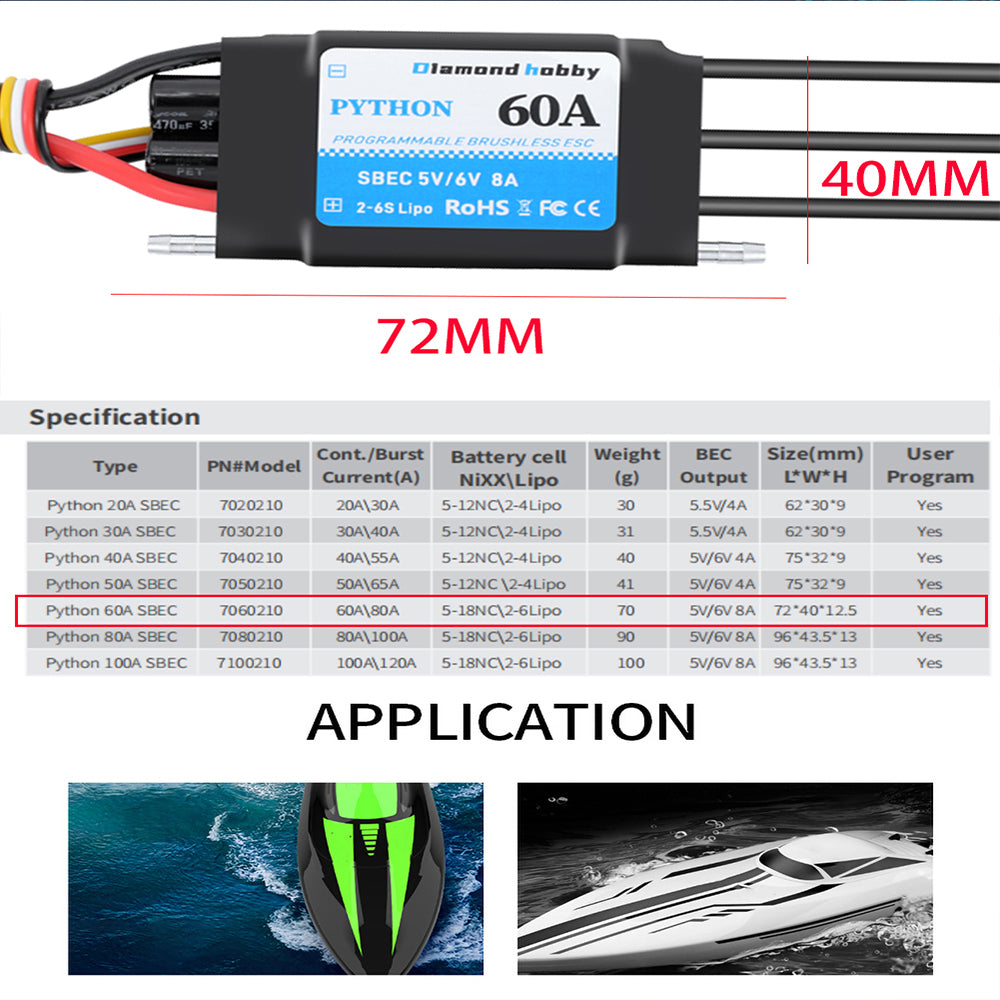

DH 60A Water-Cooled Bidirectional Waterproof Brushless ESC Electronic Governor With XT60 3.5mm Banana Joint, Suitable for Ship Model RC
DH 60A Water-Cooled Bidirectional Waterproof Brushless ESC Electronic Governor With XT60 3.5mm Banana Joint, Suitable for Ship Model RC
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
2. The ESC is waterproof and glued, and the flat water-cooling design ensures efficient heat dissipation. Super smooth start-up and accurate throttle linearity make the ESC suitable for all kinds of RC boat models.
3. The ESC has two running modes for different applications:“Forward Only” and “Forward and Backward”.Higher driving efficiency and more energy-saving.
4. Adjustable SBEC 5V/6V output voltage provides more powerful power to the servo. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss.
5. Support high RPM motors, and compatible with most motors in the market. Support programming via Phone App or LCD program card, easier and more convenient operation
Model: PYTHON 60A SBEC
Cont./Burst Current(A): 60A\80A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 72*40*12.5
Weight(g): 70
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
32-Bit Microprocessor
Faster processing, smoother throttle, and precise linearity
Dual Running Modes
Forward Only or Forward/Reverse for varied applications
Adjustable SBEC Output
5V/6V selectable, high-current BEC for powerful servos
Comprehensive Protections
Overheat, low-voltage cutoff, signal loss, phase loss, and startup protection
LCD Programmable
Easy setup with programming card (sold separately)
High-RPM Motor Support
Compatible with most brushless motors
Technical Specifications
| Model | Cont. / Burst | Battery | SBEC | Size (mm) | Weight |
|---|---|---|---|---|---|
| PYTHON 20A | 20A / 30A | 2-4S Lipo / 5-12NC | 5.5V / 4A | 62×30×9 | 30g |
| PYTHON 40A | 40A / 55A | 2-4S Lipo / 5-12NC | 5V/6V / 4A | 75×32×9 | 40g |
| PYTHON 60A | 60A / 80A | 2-6S Lipo / 5-18NC | 5V/6V / 8A | 72×40×12.5 | 70g |
| PYTHON 80A | 80A / 100A | 2-6S Lipo / 5-18NC | 5V/6V / 8A | 96×43.5×13 | 90g |
| PYTHON 100A | 100A / 120A | 2-6S Lipo / 5-18NC | 5V/6V / 8A | 96×43.5×13 | 100g |
| PYTHON 130A HV | 130A / 150A | 5-14S Lipo | No BEC | 90×50×20 | 300g |
