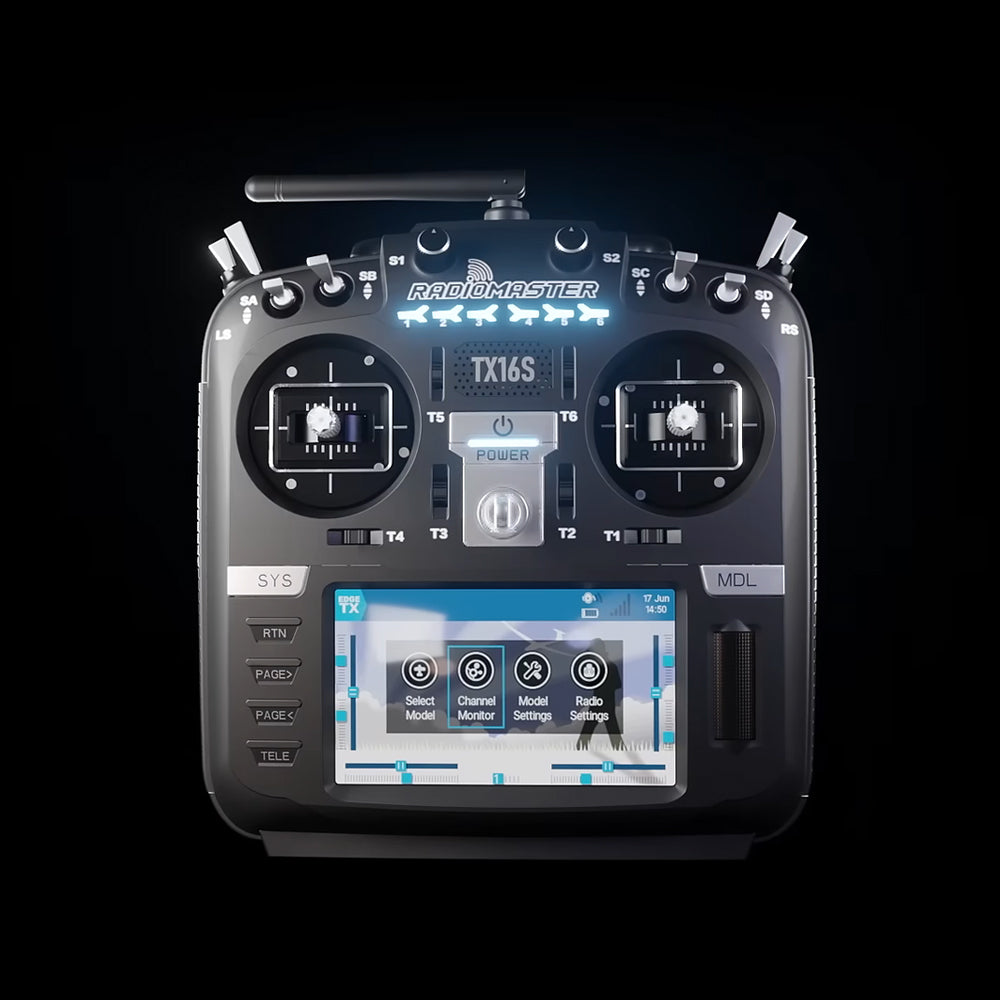

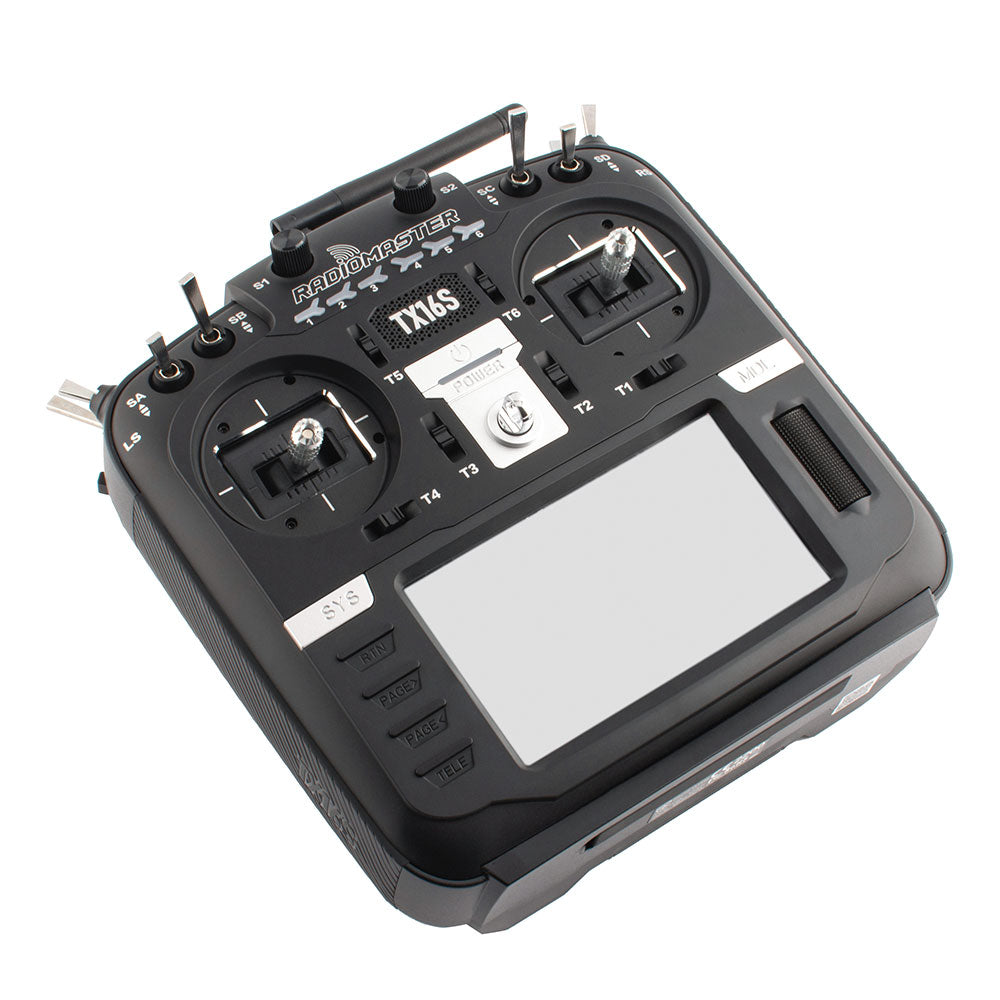

Radiomaster TX16S Mark II - 4.3" Touch, ELRS, AG01 Gimbal, EdgeTX

Key Features

• 🖥️ 4.3-Inch Touch Display
  480×272 TFT full-color touchscreen with intuitive EdgeTX interface

• ⚡ Fast USB-C Charging
  2.2A internal charging with reverse-polarity protection

• 🎮 Premium Gimbal Options
  Choose between upgraded V4.0 Hall sensors or premium AG01 CNC gimbals

• 📡 Built-in RF Options
  Select either 4-in-1 multiprotocol or ExpressLRS backpack edition

• 🔊 Enhanced Audio System
  Rear headphone jack and improved audio quality

• 🔧 Ergonomic Refinements
  Optional high/low rear grips, improved knobs, and smoother sliders

• 🔄 Modern Connectivity
  Standard 3.5mm trainer port and rear DIY expansion socket

Specification

• Item: TX16S Mark II
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

Support EdgeTX and OpenTX

EdgeTX is installed by default (Touch screen enabled).

• Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
