C-20T Professional Head Tracker

Head Tracking: Move your head, and the camera follows. It’s immersive, intuitive, and just plain cool.

🎯 Perfect For:

FPV Flying: Capture buttery-smooth aerial footage that’ll make your viewers feel like they’re in the cockpit.

Action Shots: From mountain biking to surfing, keep your footage steady even in the most intense moments.

Creative Filmmaking: Use head tracking to add dynamic, first-person perspectives to your videos.

Travel Vlogging: Lightweight and easy to carry, it’s your go-to for stable, cinematic travel footage.

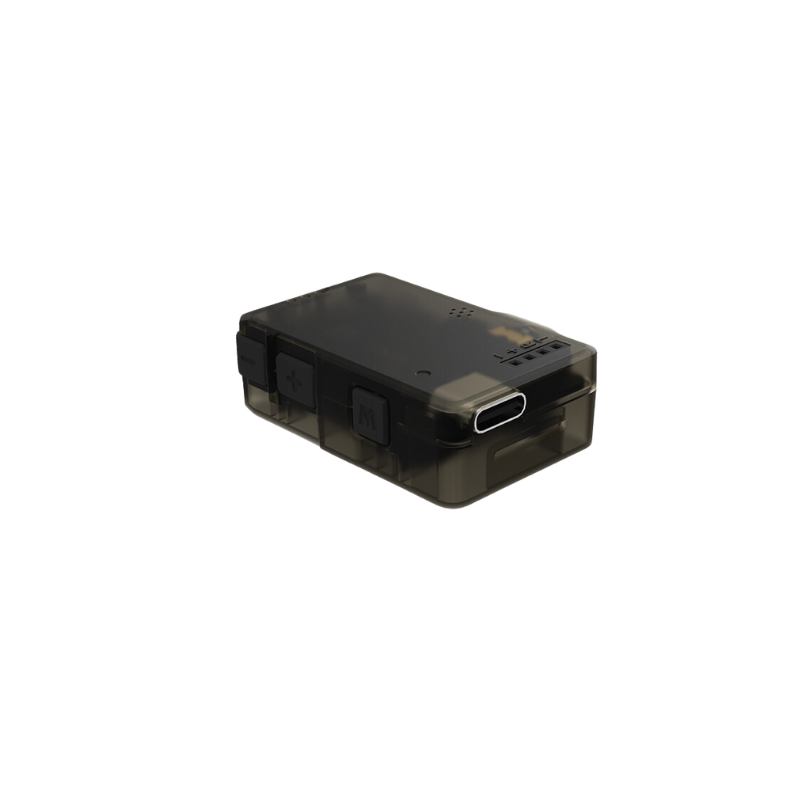

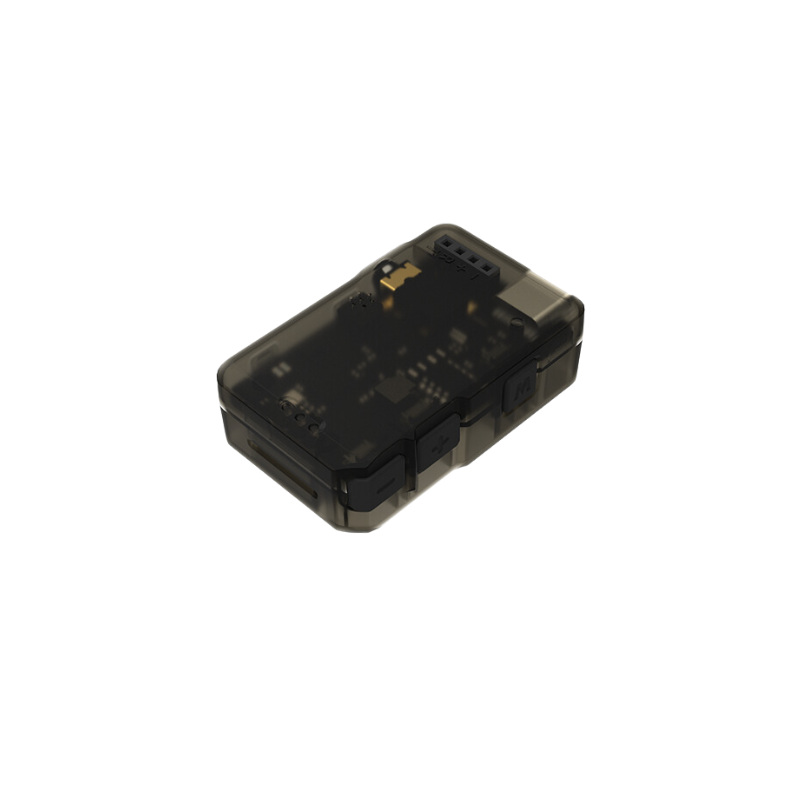

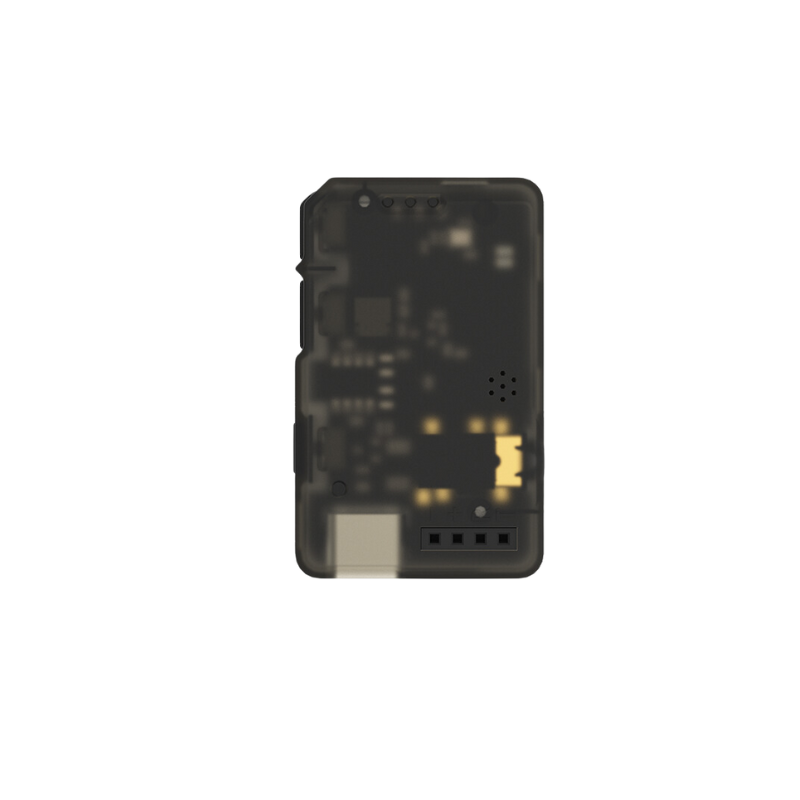

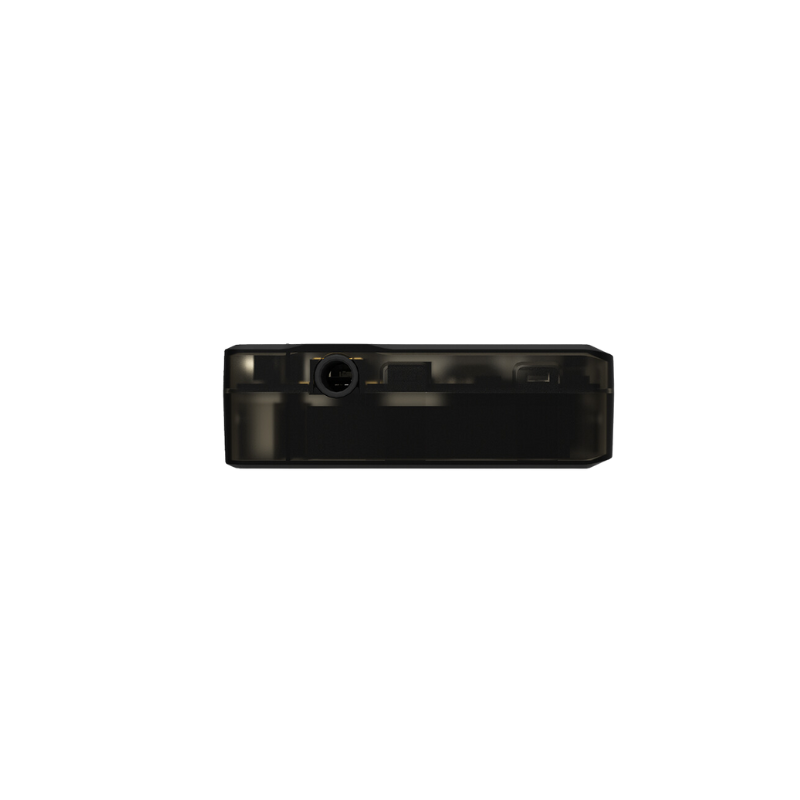

Headtracker

Dimensions 45 x 28.2 x 14.2mm

Weight 16g

Built-in Battery 1.11Wh (3.7V，300mAh)

Operating Time Approx. 3 hours (Measured with an ambient  temperature of 25° C, when installed a Headtracker  Datalink module）

Charging Type 5VDC 1A

The Headtracker lets you control motion with your head. When installed on FPV goggles, you can move your head to control the gimbal and aircraft, giving you an immersive first-person experience.

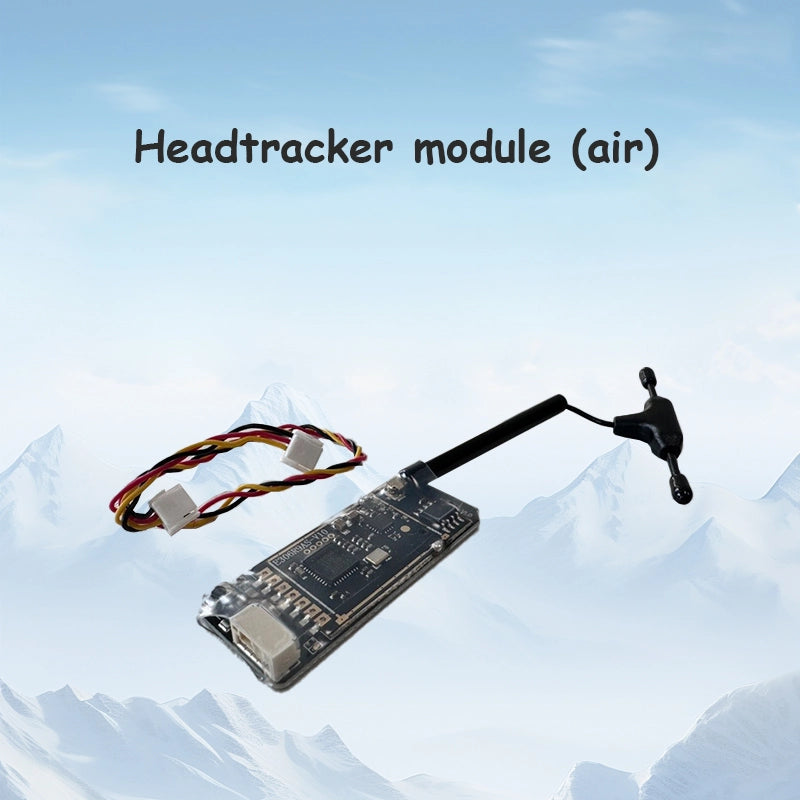

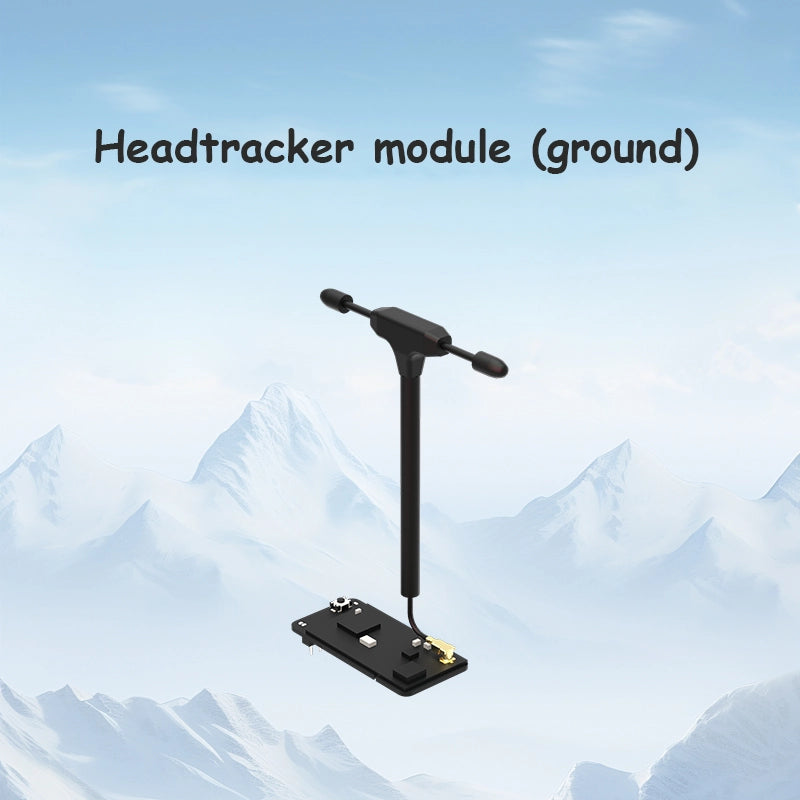

It supports PPM and UART output, so you can control the gimbal and aircraft remotely through an RC link or data link

The C-20T Specifications:

Product Name: C-20T
Dimensions: 50 x 46.5 x 53mm
Weight: 46g
Operating Voltage: 7 ~ 26 VDC
Power Consumption: 1.5W (Static) / 14W (Peak)
Mounting Options: Downward / Upward
Camera Compatibility: 19mm FPV cameras
Control Port: PWM / UART
Head Tracking Control: Supported
Angular Accuracy: ±0.005°
Controllable Range: Pitch: -105° to +145°, Yaw: ±165°
Max Controllable Speed: Pitch: ±1500°/s, Yaw: ±1500°/s

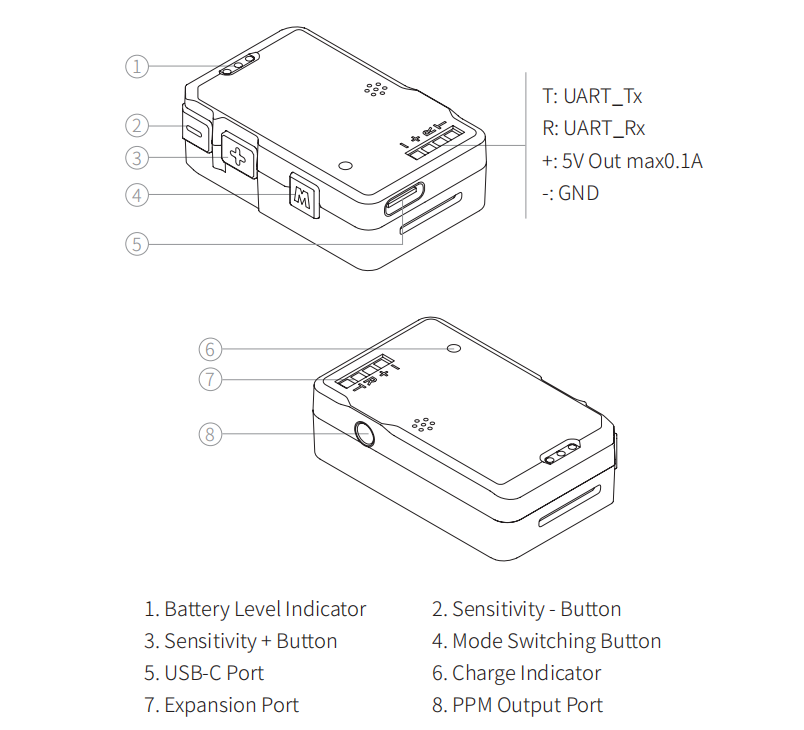

Headtracker install&use
