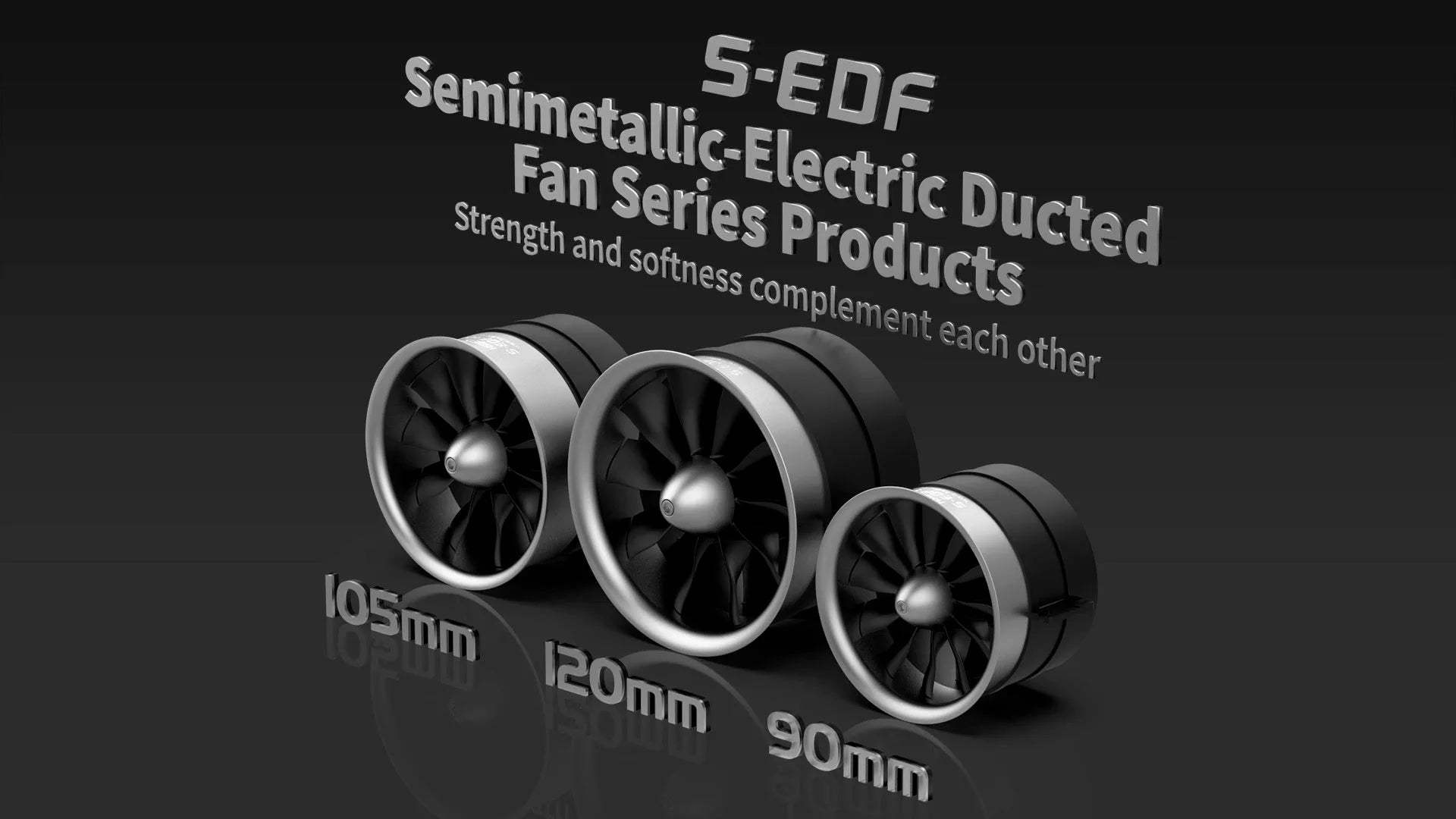

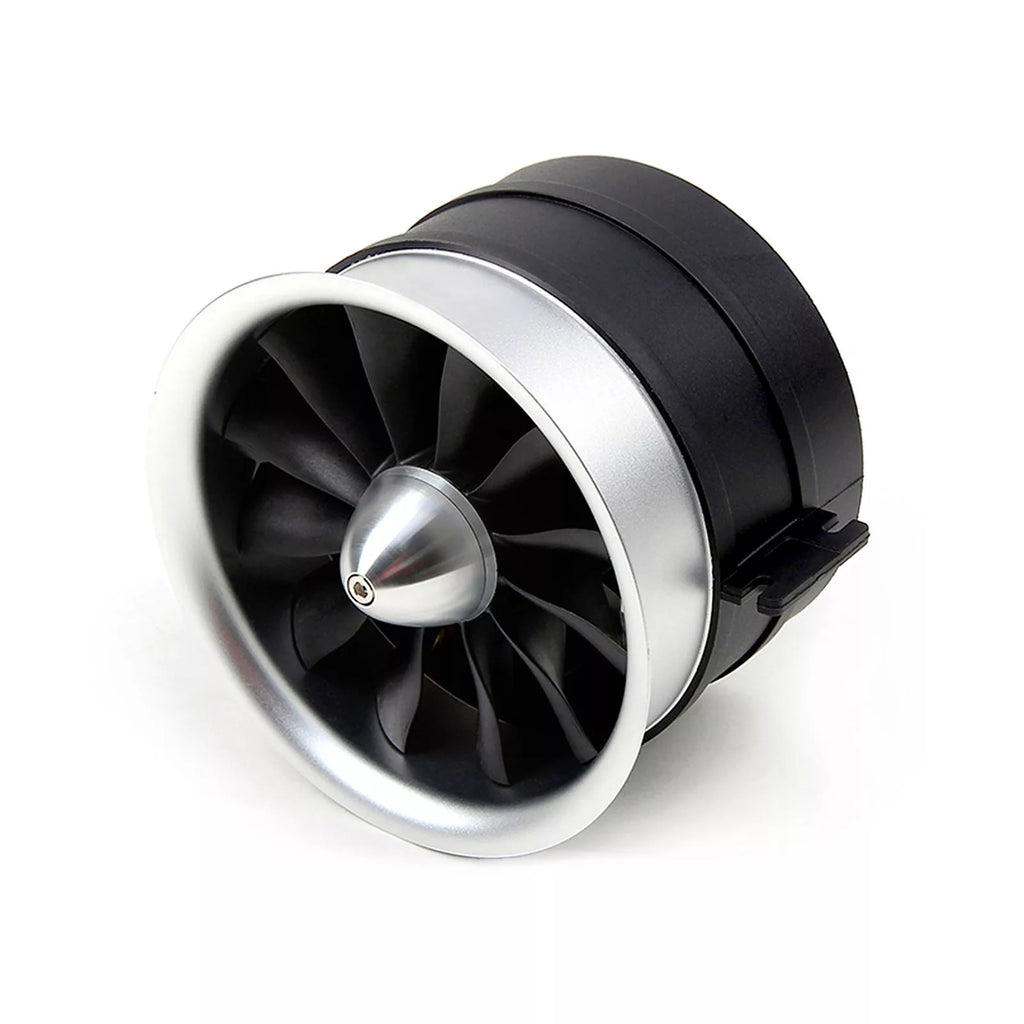

HSDJETS 105mm Ducted Fan with 150A ESC – Power Up Your RC Aircraft!

Boost your RC plane’s performance with the HSDJETS S-EDF 105mm ducted fan and Flycolor FlyDragon 150A ESC. This combo delivers strong thrust, smooth speed control, and long-lasting durability, perfect for both fixed-wing planes and helicopters.

Main Features:

  • 150A ESC: The Flycolor FlyDragon 150A ESC (5-12S HV OPTO) provides quick throttle response and smooth speed control, compatible with both planes and helicopters.

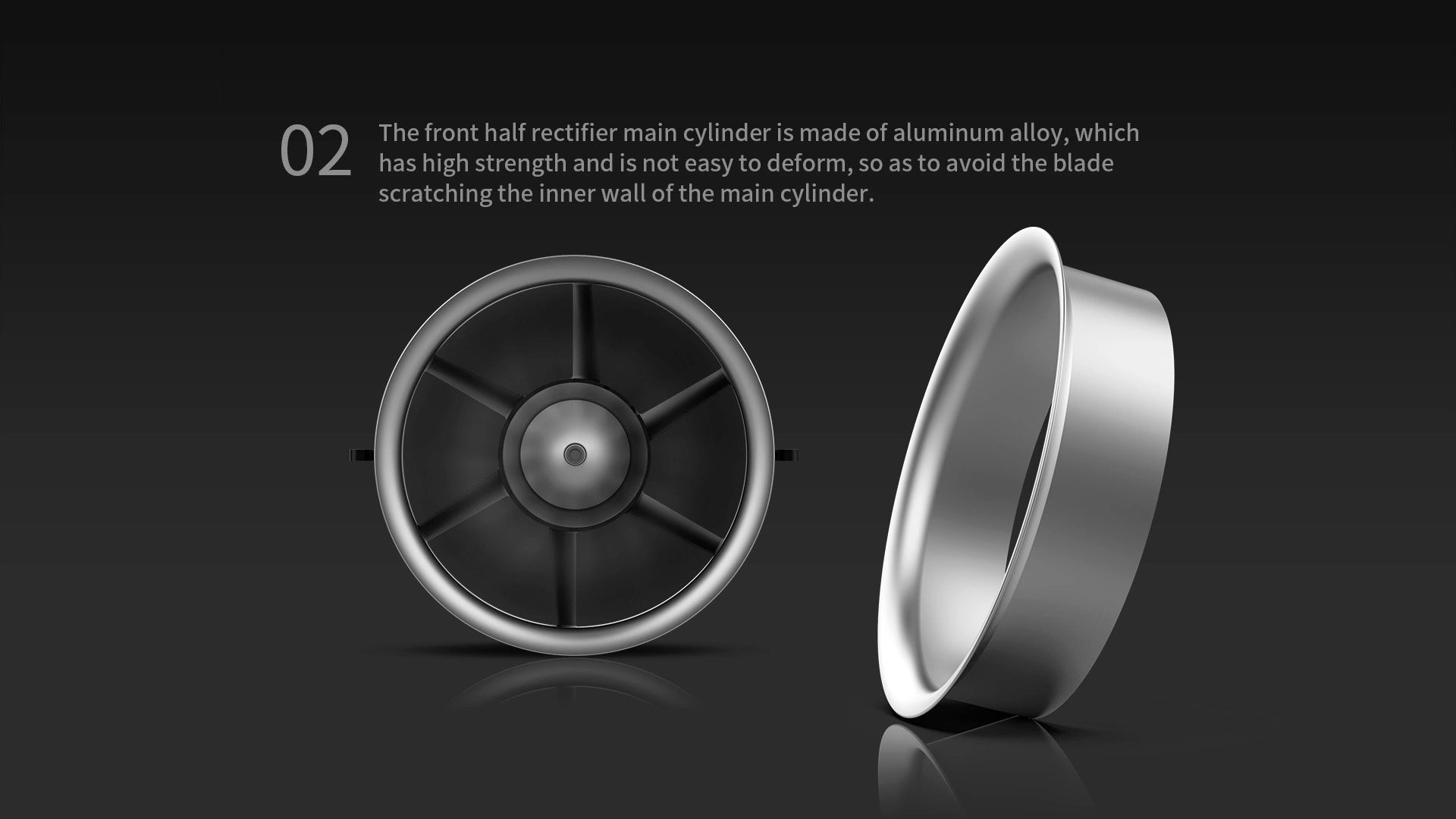

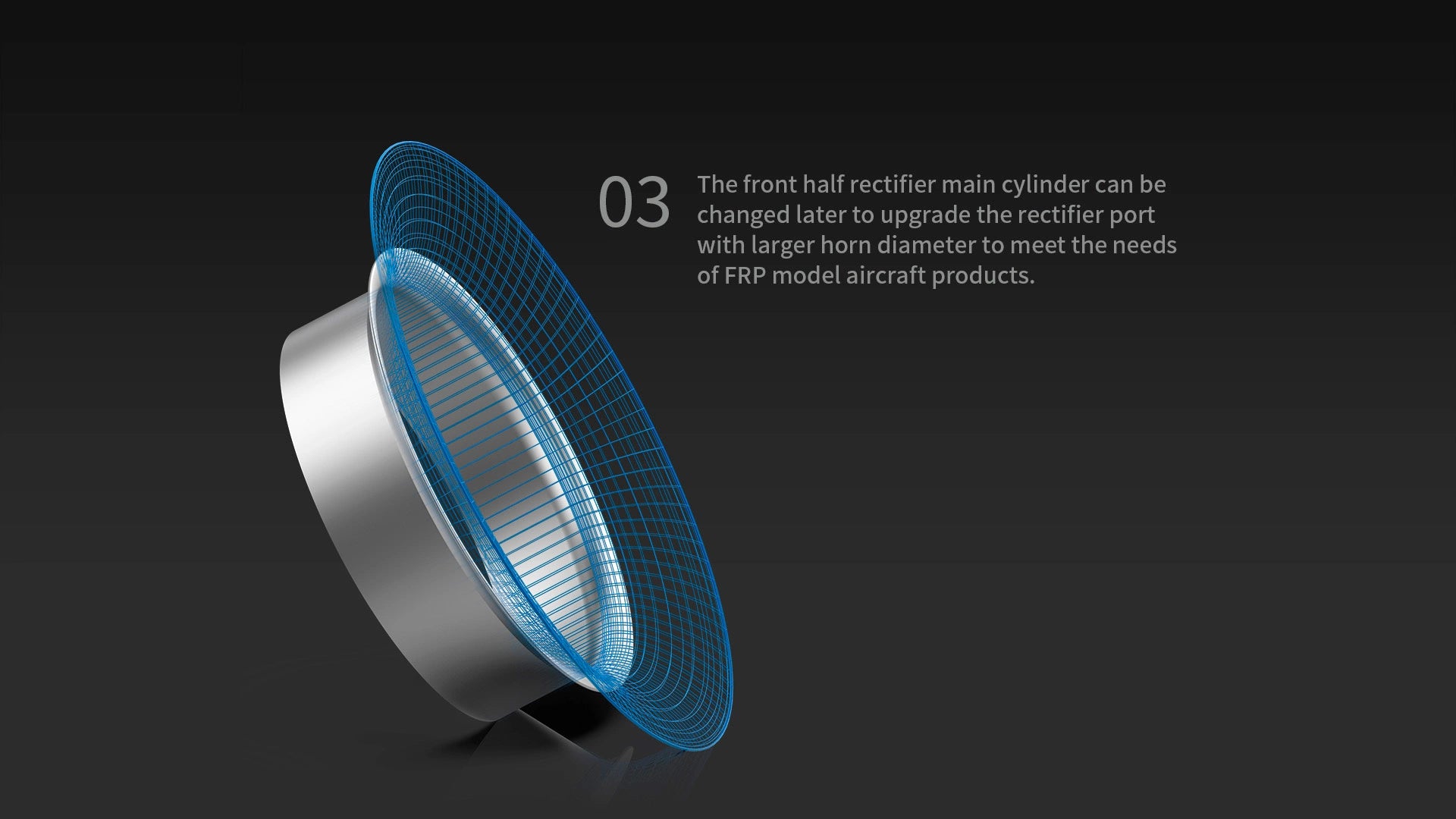

  • Strong Aluminum Cylinder: The front part of the fan is made from durable aluminum, preventing damage and keeping the fan blades safe. It can be upgraded for larger model aircraft.

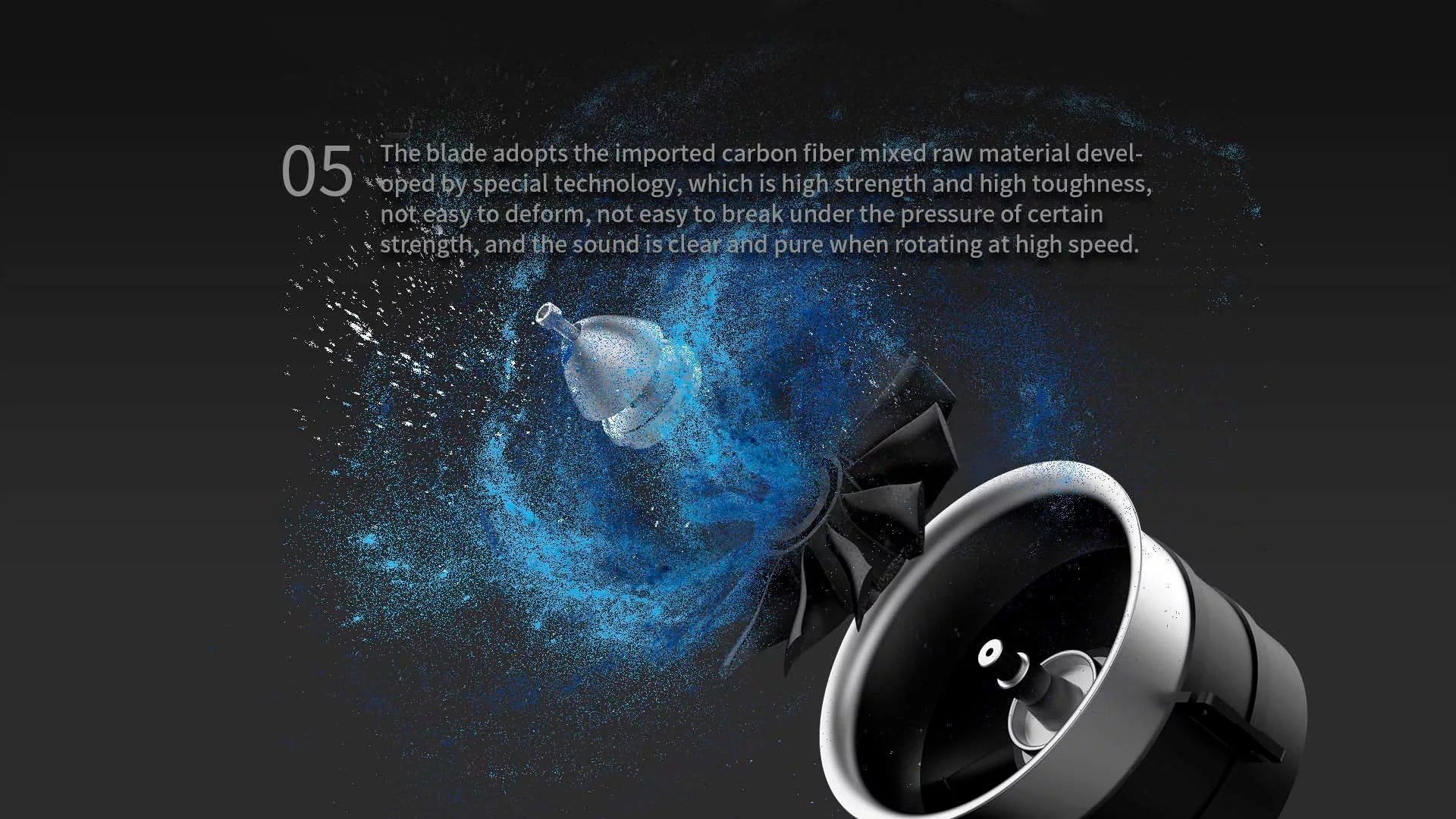

  • Efficient Blades: The fan blades are made from tough carbon fiber material, ensuring high efficiency and a clean sound during high-speed spins.

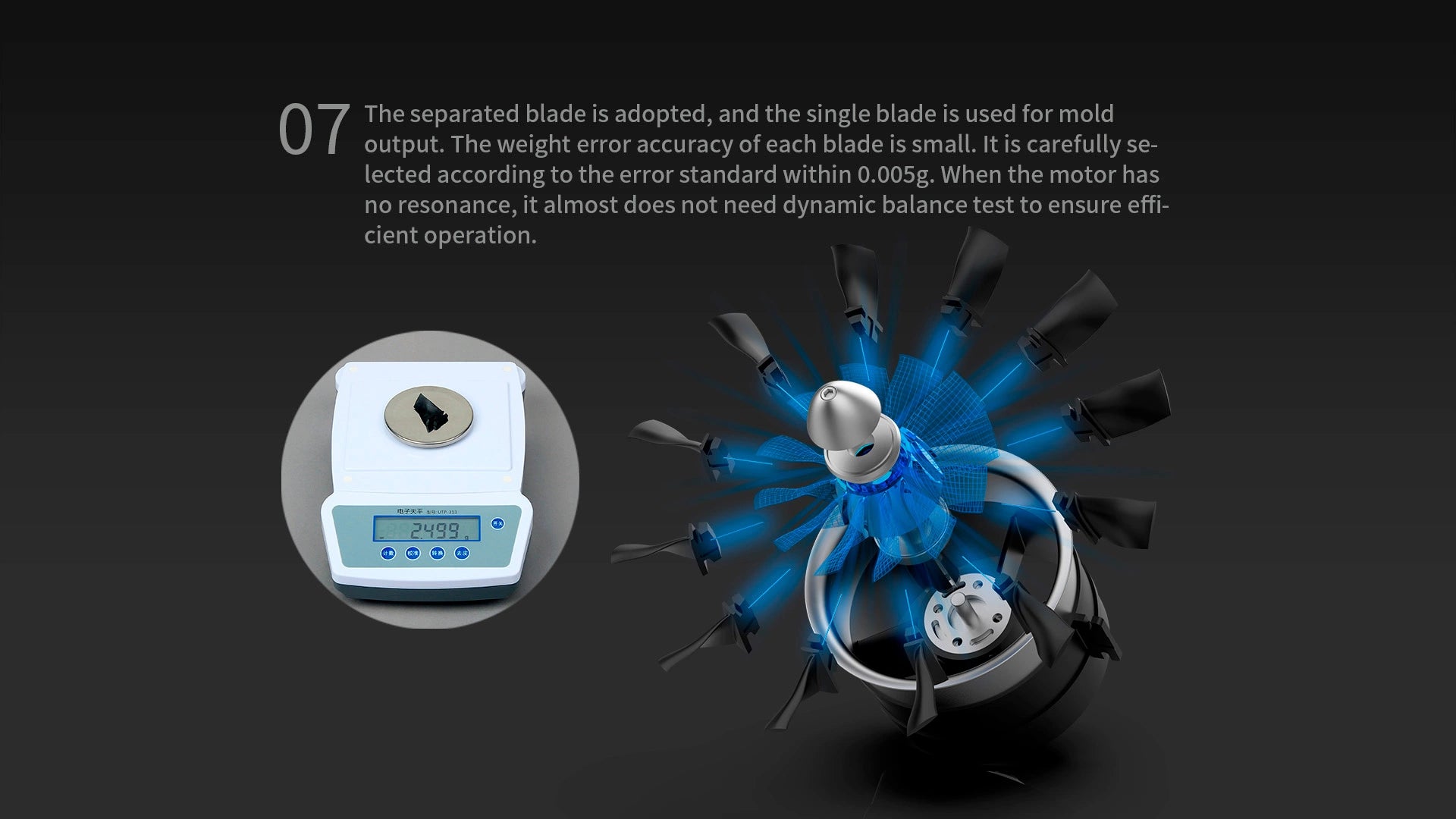

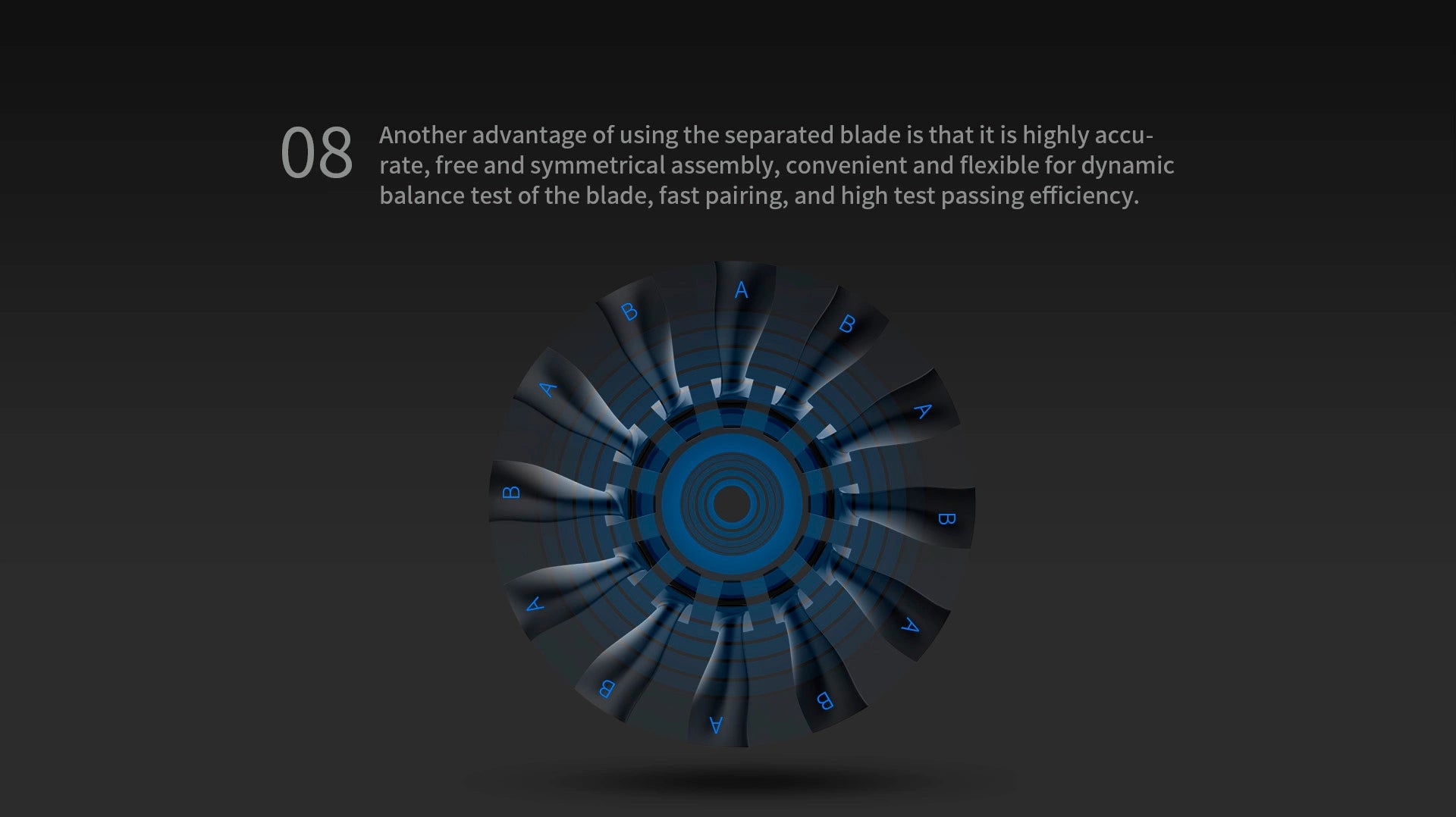

  • Precise Blades: Each blade is carefully balanced, making sure the fan runs smoothly and efficiently. The design allows for easy assembly and quick testing.

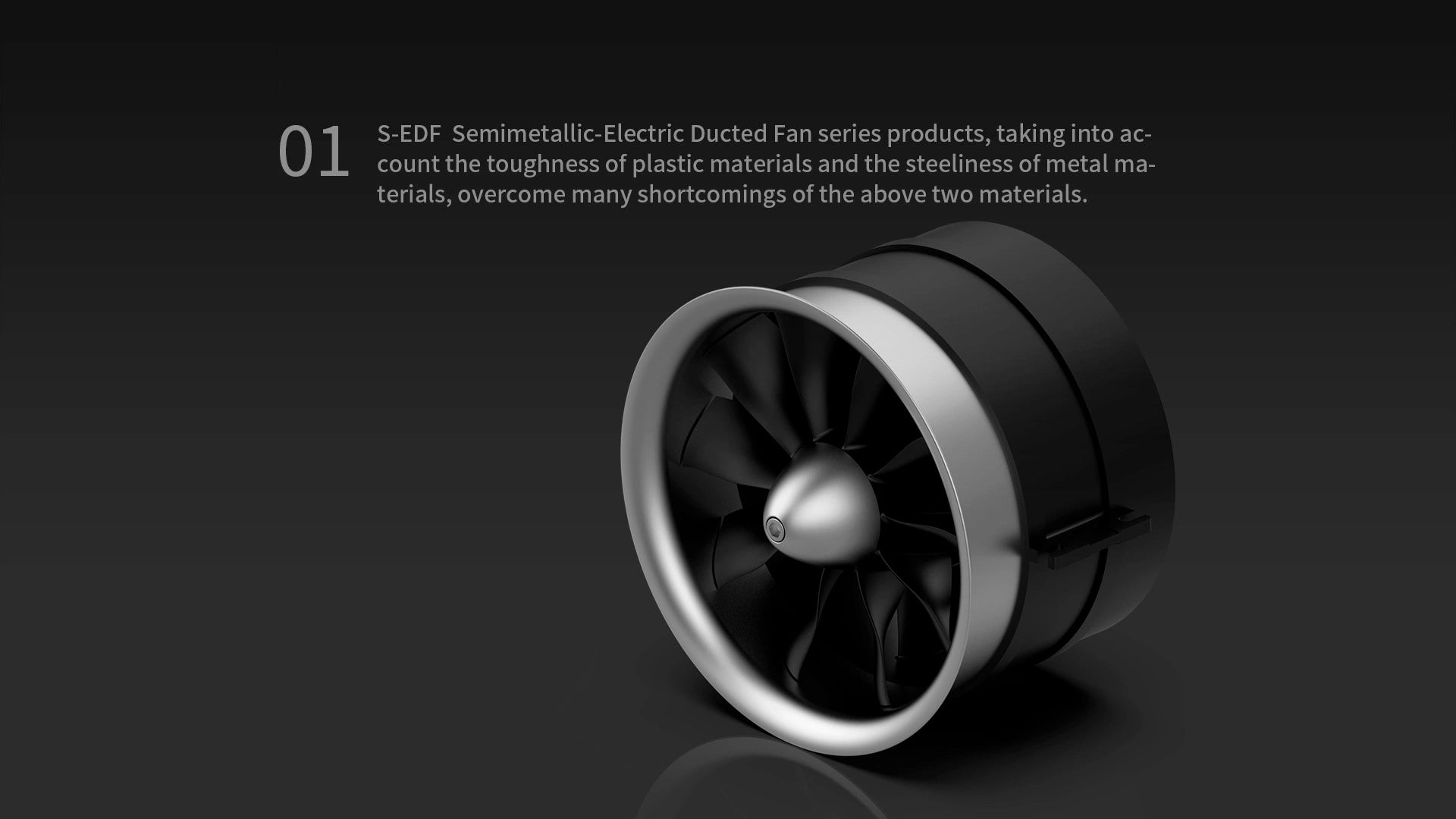

  • Mixed Material Construction: The back part of the fan uses a special mixed material for toughness and strength, reducing vibrations and ensuring stable flight.

Specifications:

Fan Size: 105mm

Motor Model: 4270, 750KV

Total Weight: 636g

Blade Count: 11

Connector: Banana 6.0

Recommended Battery: 6Sx2, 5200mAh, 60C

ESC Specifications:

  • Voltage: 5-12S
  • Continuous Current: 150A
  • Burst Current (10s): 170A
  • BEC: No
  • Weight: 203g
  • Size: 133*49*27 mm

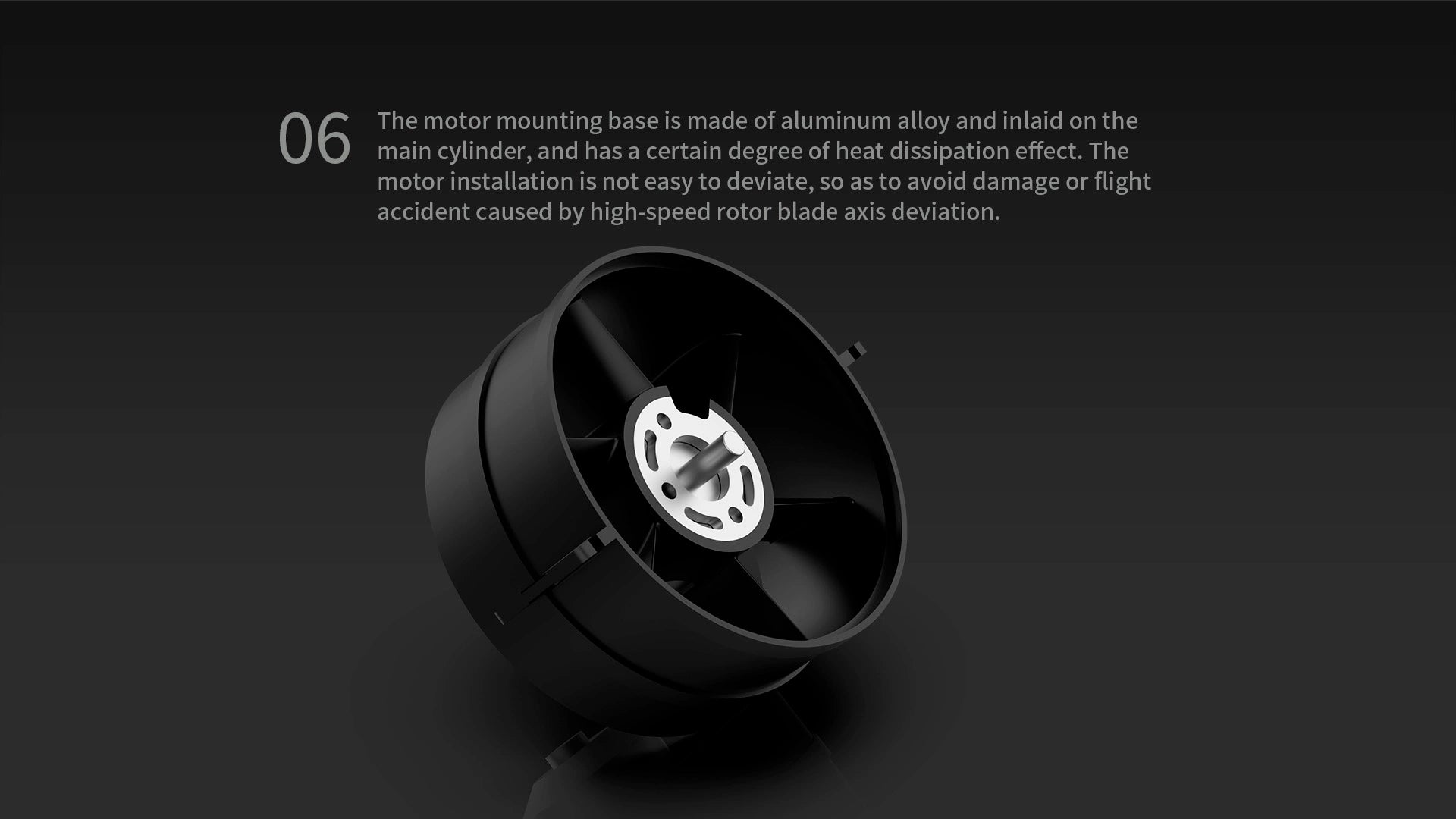

Motor Installation:

  • Shaft Diameter: 8mm
  • Shaft Length: 17mm
  • Mounting Hole Distance: 25mm
  • Mounting Hole Diameter: M4

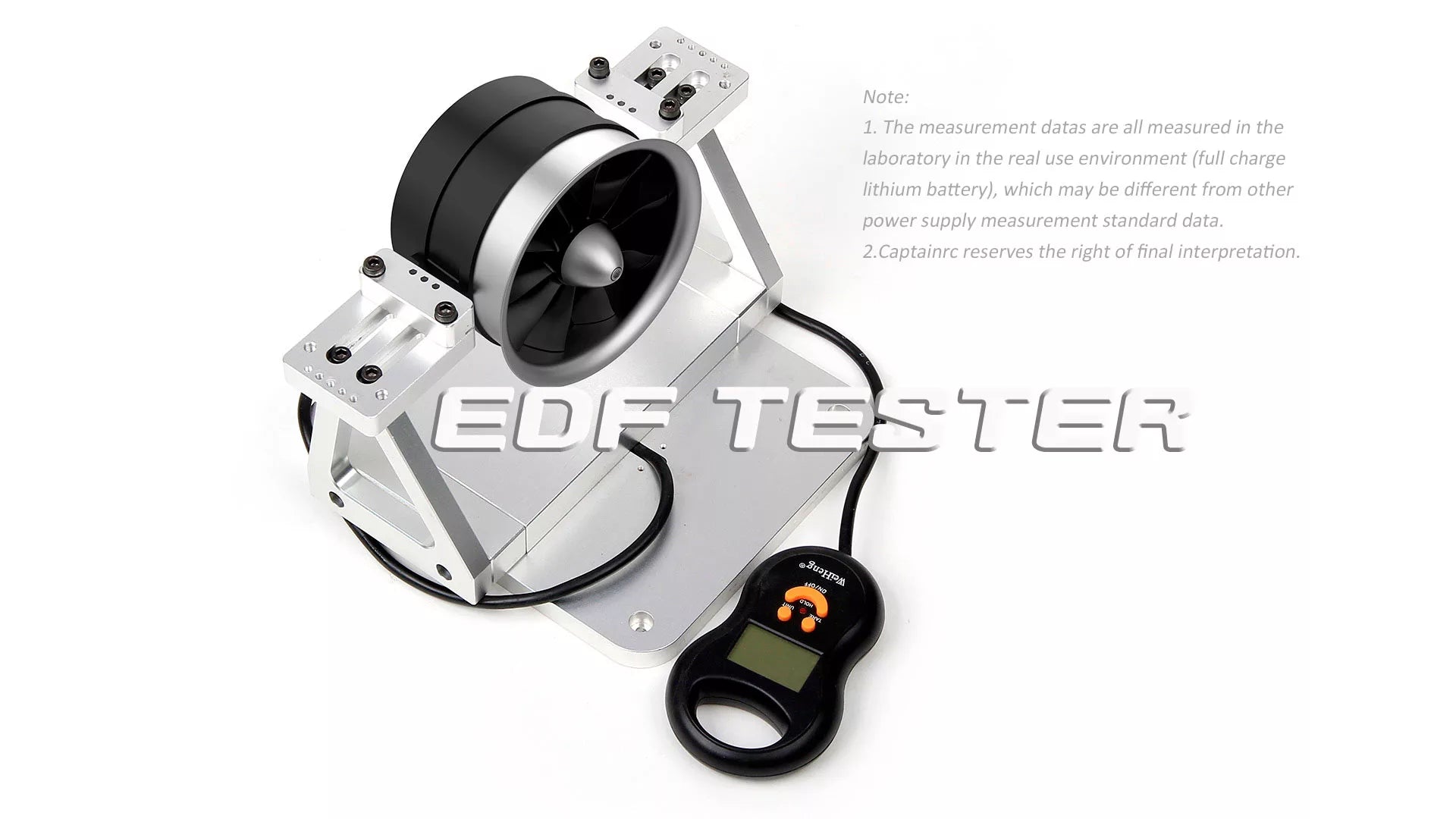

Performance:

  • Test Battery: 12S, 5200mAh, 60C Li-Po (fully charged)
  • Test Current: 118A
  • Maximum Thrust: 7.4kg

Package Includes:

  • 1 x 105mm EDF
  • 1 x 150A ESC

Get ready for powerful and smooth flights with the HSDJETS 105mm Ducted Fan and 150A ESC. Perfect for your next RC adventure!
