4PCS 2303 1750KV 2-6S Brushless Motor for FPV Free Type Drone DIY Parts
4PCS 2303 1750KV 2-6S Brushless Motor for FPV Free Type Drone DIY Parts
SKU:
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Attention: We have various models of motors available. For bulk purchases or other models of motors, please leave a message for us. Thank you

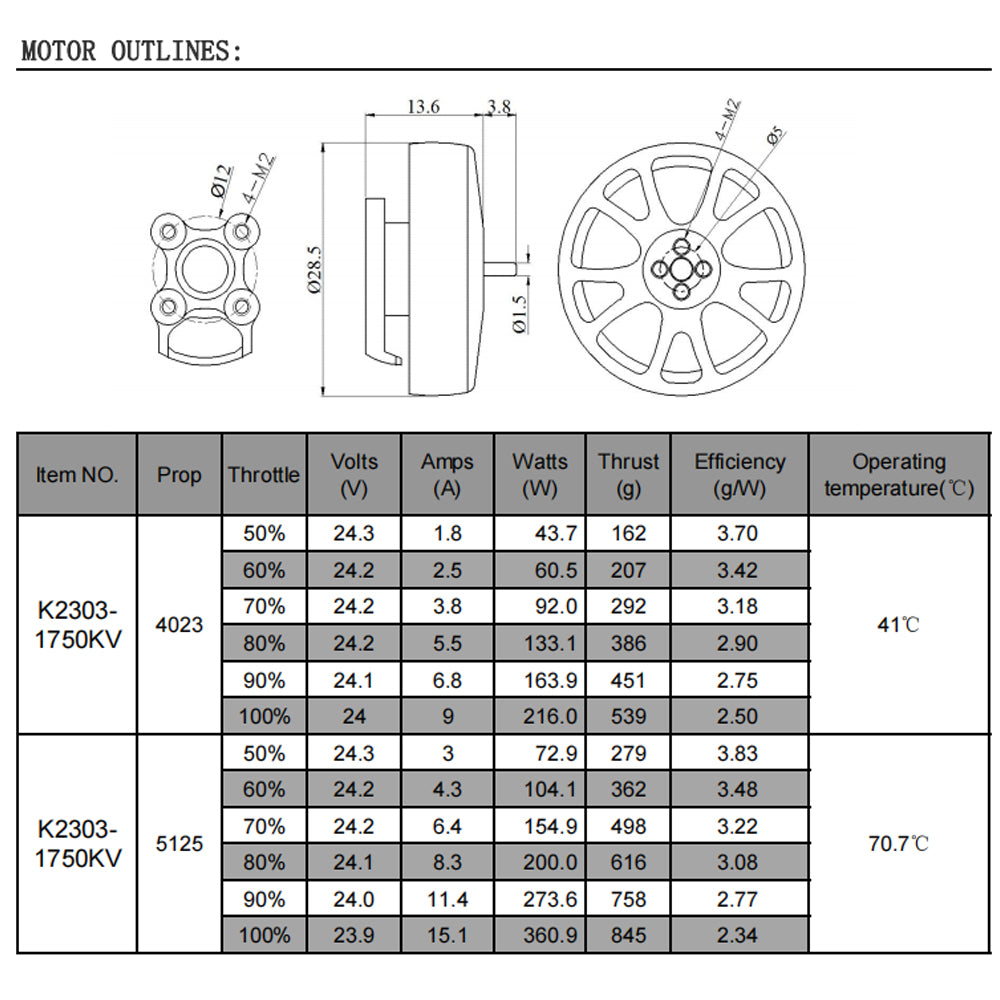

Flashhobby 2303 motor parameters;
Test KV: 1750

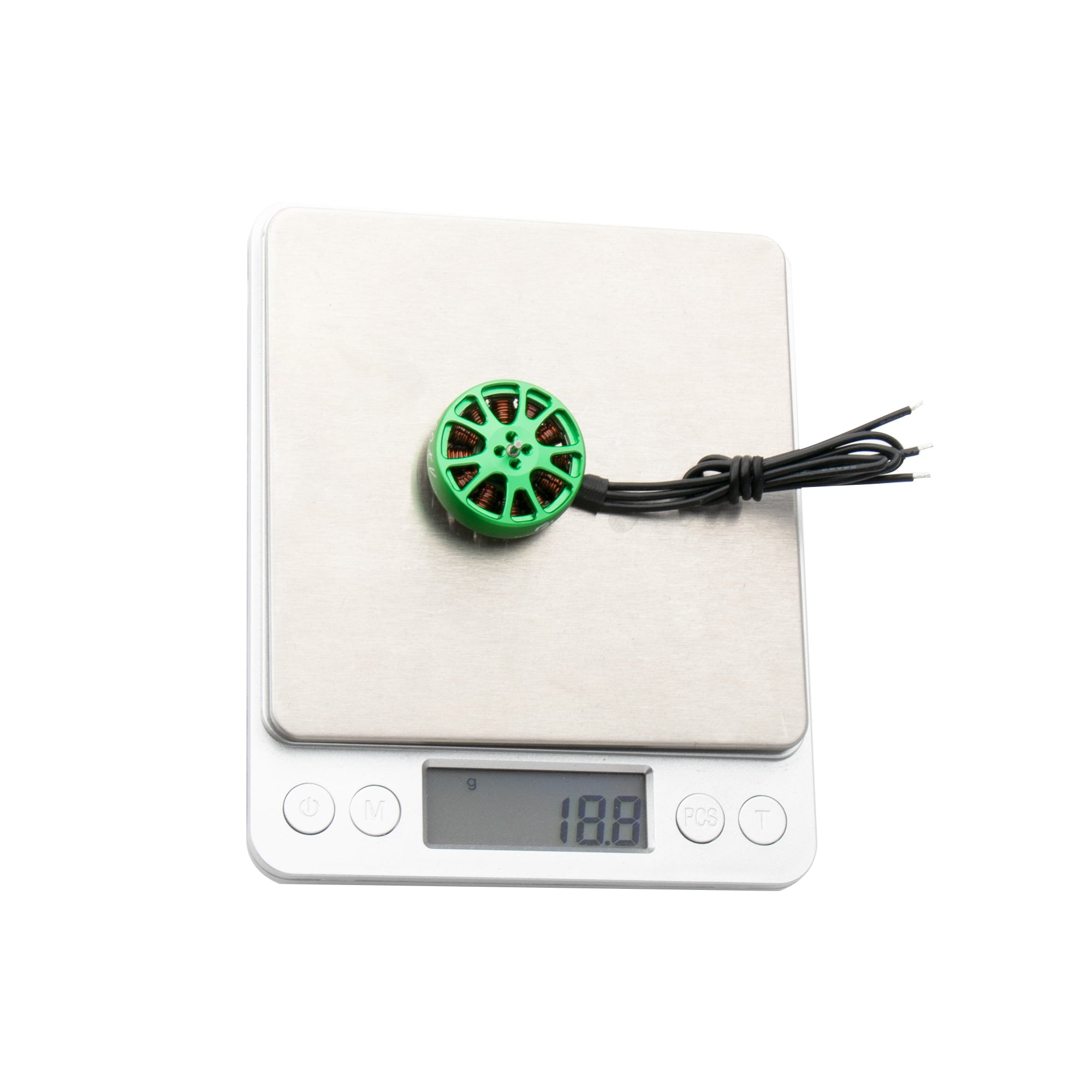

Weight (including line): 18.8g
Motor size: ф 28.5 x 13.6mm
Interphase internal resistance: 0.2150
Lead specification: 24 # AWG 150mm
Slot pole: 12N/14P
Axis diameter: 1.5mm
Working rated voltage (Lipo): 3-6S
No load current: 0.45A/10V
Maximum current (60S): 15.1A
Maximum power: 360W
Prop installation: 4-M2 * 5
Maximum tensile force: 845g (6S/5125)
