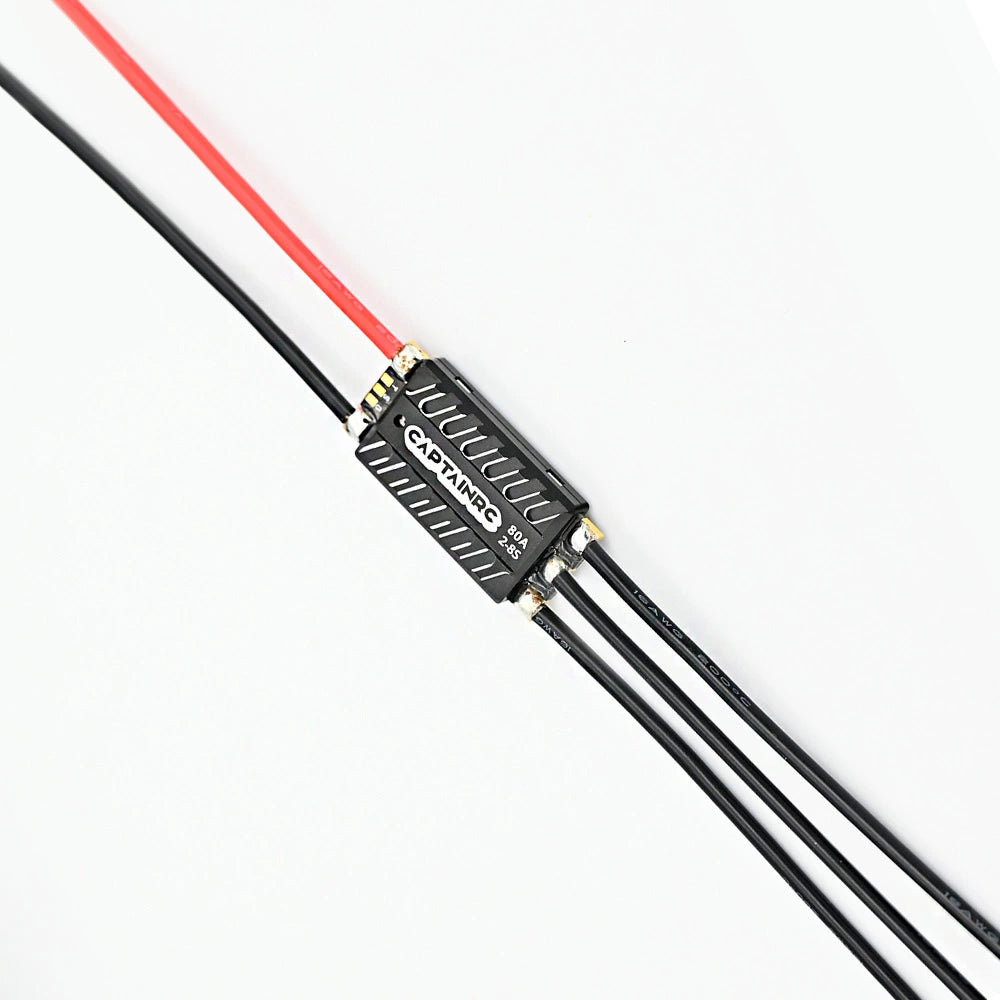

80A 2-8S Brushless ESC
High-power electronic speed controller for drones, RC planes & DIY builds
⚡ Key Features
✔ 80A Continuous – Reliable high-current handling
✔ 2-8S LiPo Support (8.4V-33.6V) – Versatile voltage range
✔ AM32 Open-Source Firmware – Customizable & smooth sine-wave control
✔ DShot600 / OneShot / PWM – Ultra-fast digital signal response
✔ Thermal & Overcurrent Protection – Prevents overheating damage
✔ STM32G071 MCU – High-performance motor control
-
Sinusoidal startup (smooth acceleration)
-
Stuck rotor protection (auto-shutdown upon blockage)
-
Current/temperature monitoring (hardware-dependent)
📊 Technical Specs
-
Input Voltage: 2-8S LiPo (8.4V-33.6V)
-

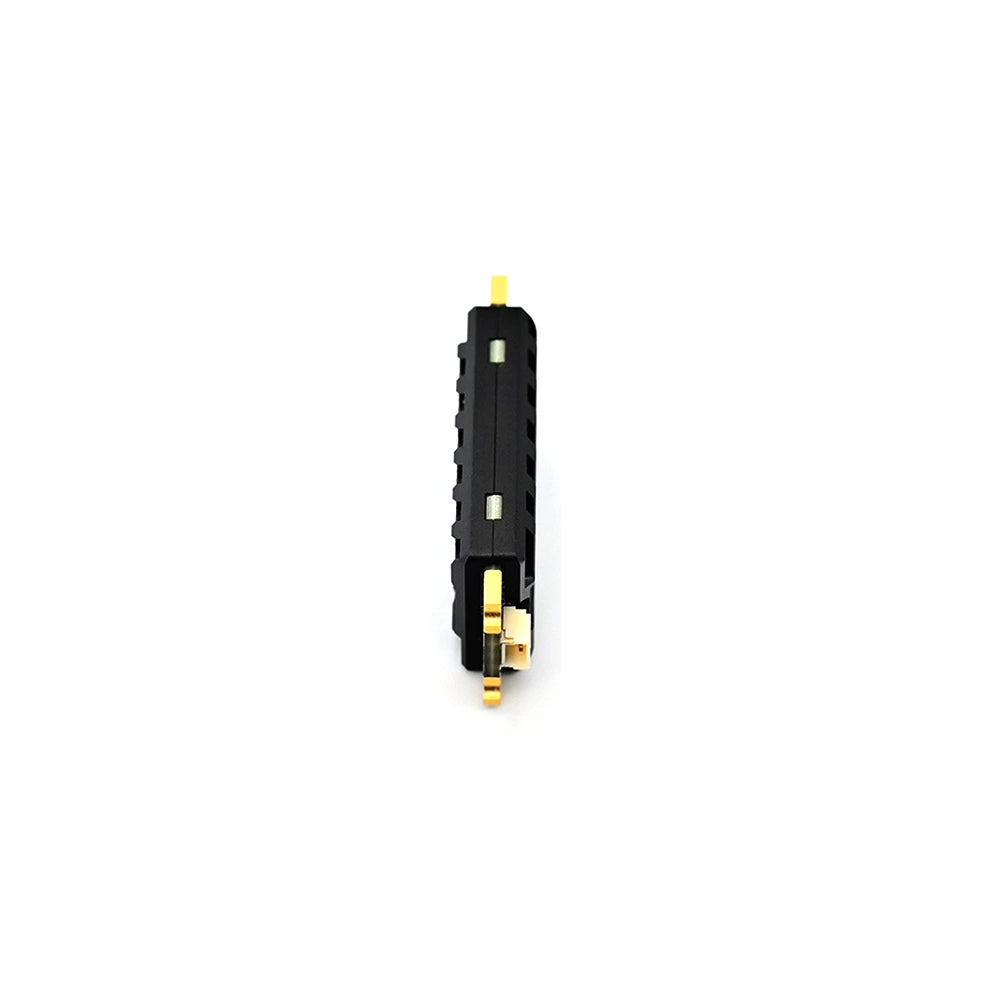

Dimensions: 42.5×20.5×8.5mm (fits 20×20 & 30×30 mounts)
-
BEC: OPTO
-
Weight: 25g (without wires)
🚀 Ideal For:
-
FPV Racing Drones
-
Long-Range Fixed-Wing
- Heavy-Lift Cinematic Drones
🔌 Hardware Installation
Wiring Connections
Signal Wires:
Power Wires:
-
ESC VBAT → FC VBAT
-
❌ Never connect to 5V port!
-
Current Sensor → FC current port
-
Telemetry (TX) → FC UART-RX
Mounting Tips
-
Install heat sinks properly
-
Keep 3cm+ away from motors
-
Fits 20×20mm & 30×30mm mounts
⚙️ Software Setup
AM32 Configurator
-
Connect FC to PC via USB
-
Power ESCs with battery
-
Open AM32 Configurator (Chrome/Edge)
-
Select COM port → Connect → Read
Recommended Settings:
| Setting |
Value |
Why? |
| Protocol |
DShot300 |
Most stable |
| PWM |
Enabled |
Smoother throttle |
| Timing |
22.5° |
More power |
| Protection |
ON |
Safety first |
| Startup |
Sinusoidal |
Smoother start |
💡 Tap "Save" (not "Save Config")!
🛠️ Troubleshooting
| Problem |
Fix |
| Motor won't start |
Verify signal wiring; calibrate throttle range; check motor direction. |
| Motor jitter/oscillation |
Disable bidirectional DShot; validate KV/pole settings; reduce PWM frequency. |
| ESC gets hot |
Check load (sustained current > rated); improve cooling or lower throttle curve. |
| Telemetry data loss |
Confirm TX/RX wiring; enable "ESC Sensor" in Betaflight. |
⚠️ Safety First!
- Always remove props when testing!
- Set voltage cutoff (3.3V/cell) to prevent battery damage.
- Do pre-flight checks
🔗 Learn More:
Technical Support Resources
AM32 Source Code: https://github.com/AM32-MultiRotor-ESC-firmwareCommunity
Forum: https://www.rcgroups.com/am32-esc-firmware-questions-answers-Flashing .
Tools: https://www.powerwriter.com/This manual applies to AM32 compatible hardware. Specifications subject to firmware updates.
Disclaimer: Incorrect operation may damage equipment. Follow safety guidelines strictly.
(Professional-grade ESC for high-performance applications. Follow safety guidelines.)
