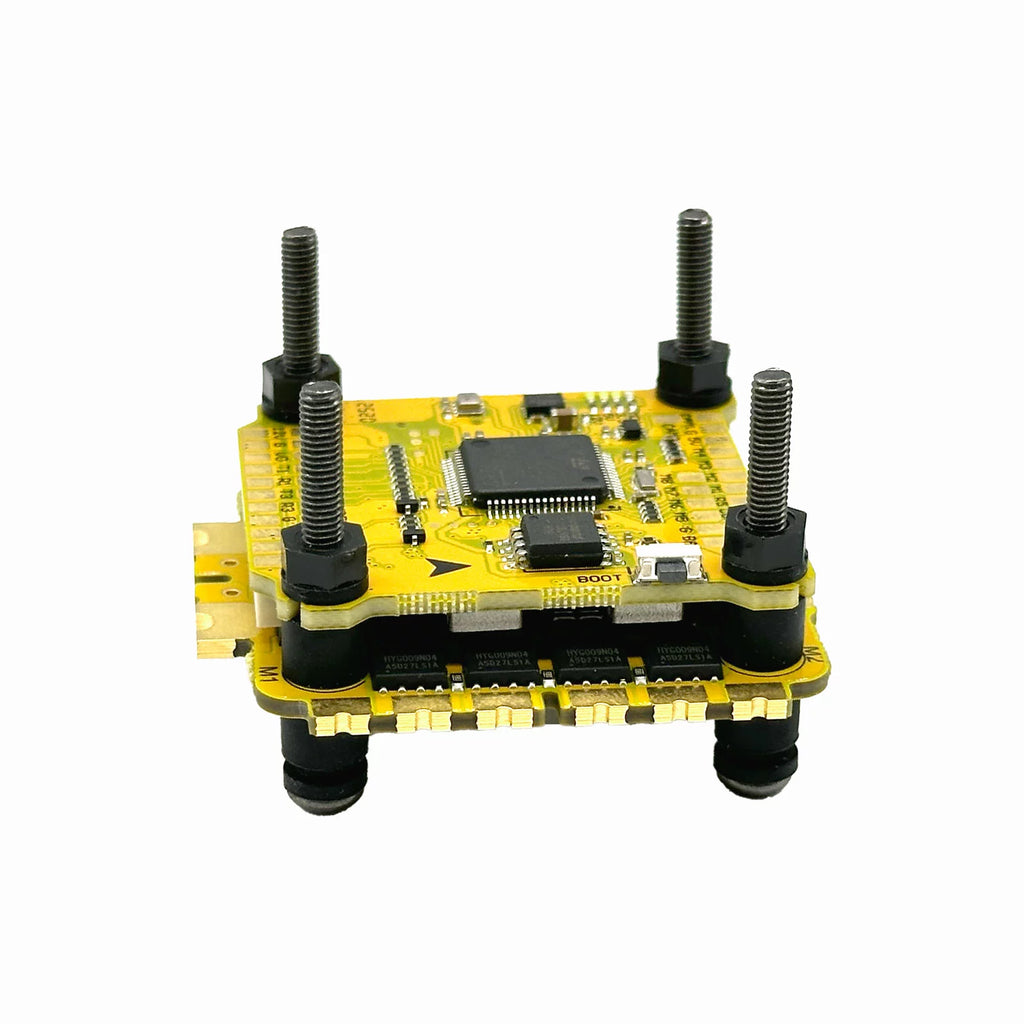

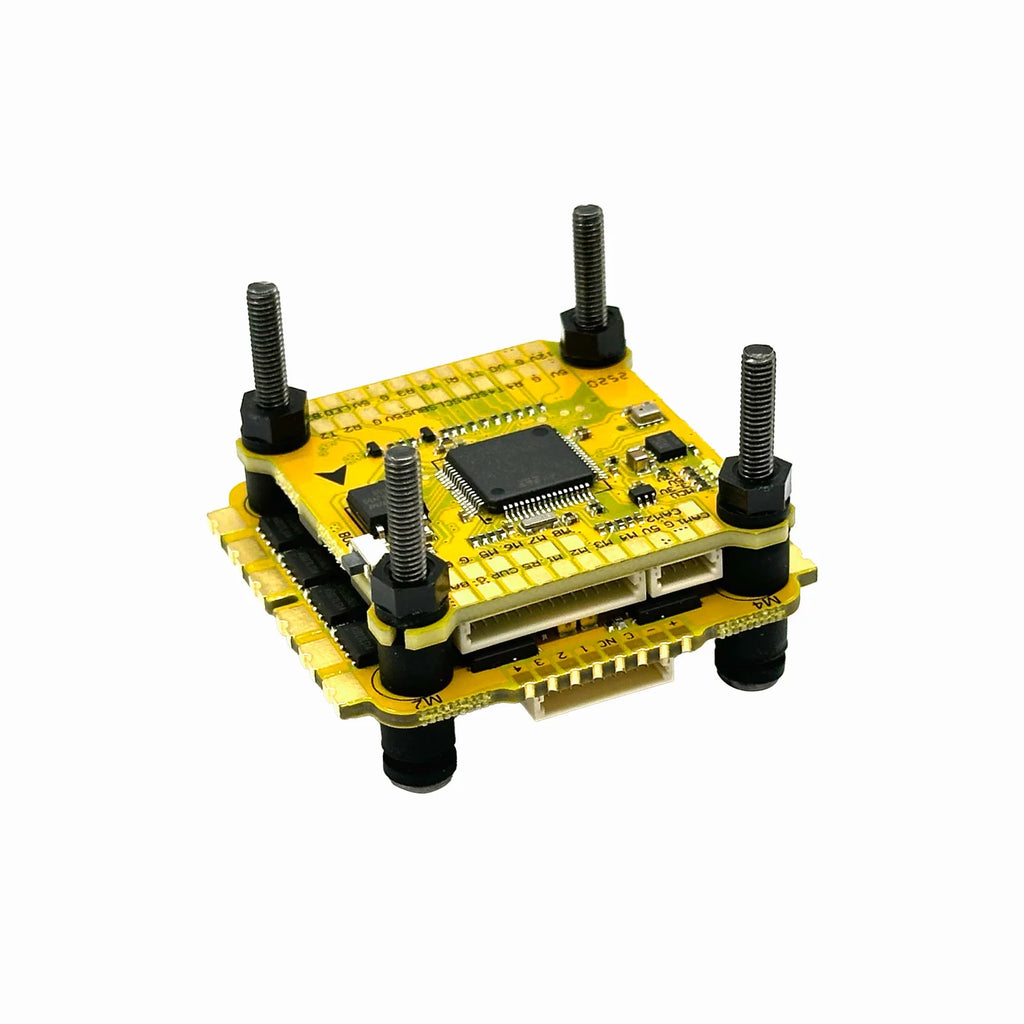

CaptainRC F405 55A/65A Stack – High-Performance Drone Flight Controller & ESC

$68.23 USD

In stock

F405 30.5x30.5 Flight Controller

Main Features:
✔ STM32F405 MCU
✔ ICM42688P Gyro/IMU
✔ 16MB Blackbox
✔ Type-C USB Port
✔ 3S-8S Lipo Input
✔ DJI Air Unit Support
✔ Dual Camera Inputs

Detailed Specs:

Power:

Input: 3S-8S Lipo
BEC Output: 5V output,the total current load is 3A;12V output,the total current load is 2.5A

Connections:

5x UART Ports:
UART1: VTX control
UART2: SBUS receiver
UART4: GPS
UART5: ESC telemetry
I2C (for compass)
LED & Buzzer pads

Other:

BetaFlight OSD (AT7456E chip)
Mounting: 30.5x30.5mm (4mm holes)
Size: 39x37 mm
Weight: 7g

BLS 4-in-1 ESC Series

Key Features:
✔ High-performance MOSFETs
✔ 30.5×30.5mm mounting (4mm holes)
✔ DSHOT300/600 protocol support
✔ Compact size: 44.5×43×6.3mm
✔ PC Online Configurator Supported

Model Comparison:

Specification	BLS 65A ESC	BLS 55A ESC
Input Voltage	3-8S LiPo	3-6S LiPo (3-8S selectable)
Continuous Current	65A×4 (260A total)	55A×4 (220A total)
Burst Current	75A (10sec)	65A (10sec)
Telemetry	No	No
Weight	13.5g	13.5g
