Flycolor 70A Waterproof Brushless ESC Electronic Speed Controller with 5.5V/5A BEC and XT60 3.5mm Banana Head Connector for Model Ship RC Boat
Flycolor 70A Waterproof Brushless ESC Electronic Speed Controller with 5.5V/5A BEC and XT60 3.5mm Banana Head Connector for Model Ship RC Boat
SKU:FC-Monster-70A
Couldn't load pickup availability
Electronic Speed Controller Features
FlyMonster-70A uses a powerful & high-performance MCU. Users can set functions as their demand and fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.
What can set the start mode? The throttle response is fast and has a very smooth speed control linearity. Compatible with scale boats & racing boats. The low-voltage protection threshold value can be set. Built-in switch BEC, large power load with servo, lower power dissipation.

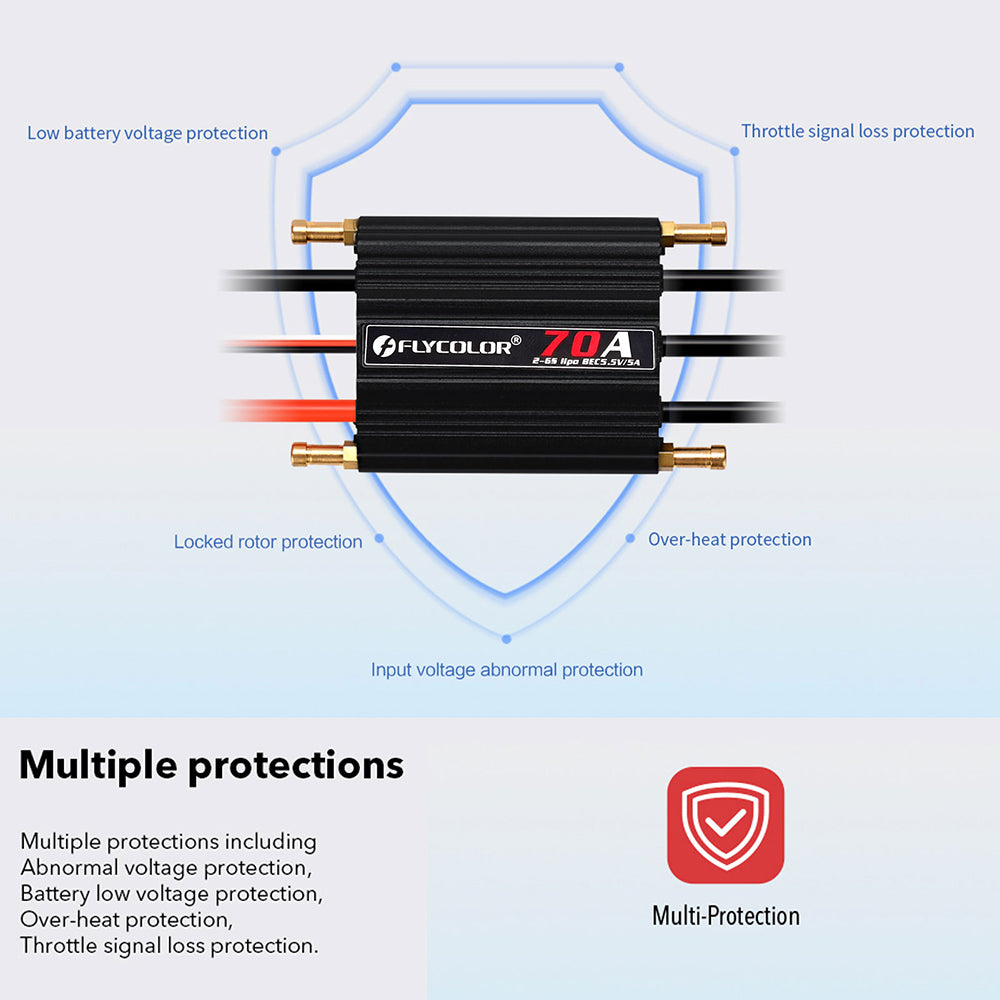

Waterproof design, Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-thermal protection and throttle signal loss protection, make the ESC more reliable.
High power safety performance: The motor will not start immediately wherever the throttle lever is.Cycle menu setting, simple operation. Support setting with program box and transmitter.
Over thermal protection: when ESC temperature is over 100 °C, the output power will automatically reduce. When it's below 80°C, the output power will return to normal.
RC ESC Parameters
Battery:2-6s
Con. Current:70A
Burst Current(10S):420A
BEC:5.5V/5A
Weight:101g

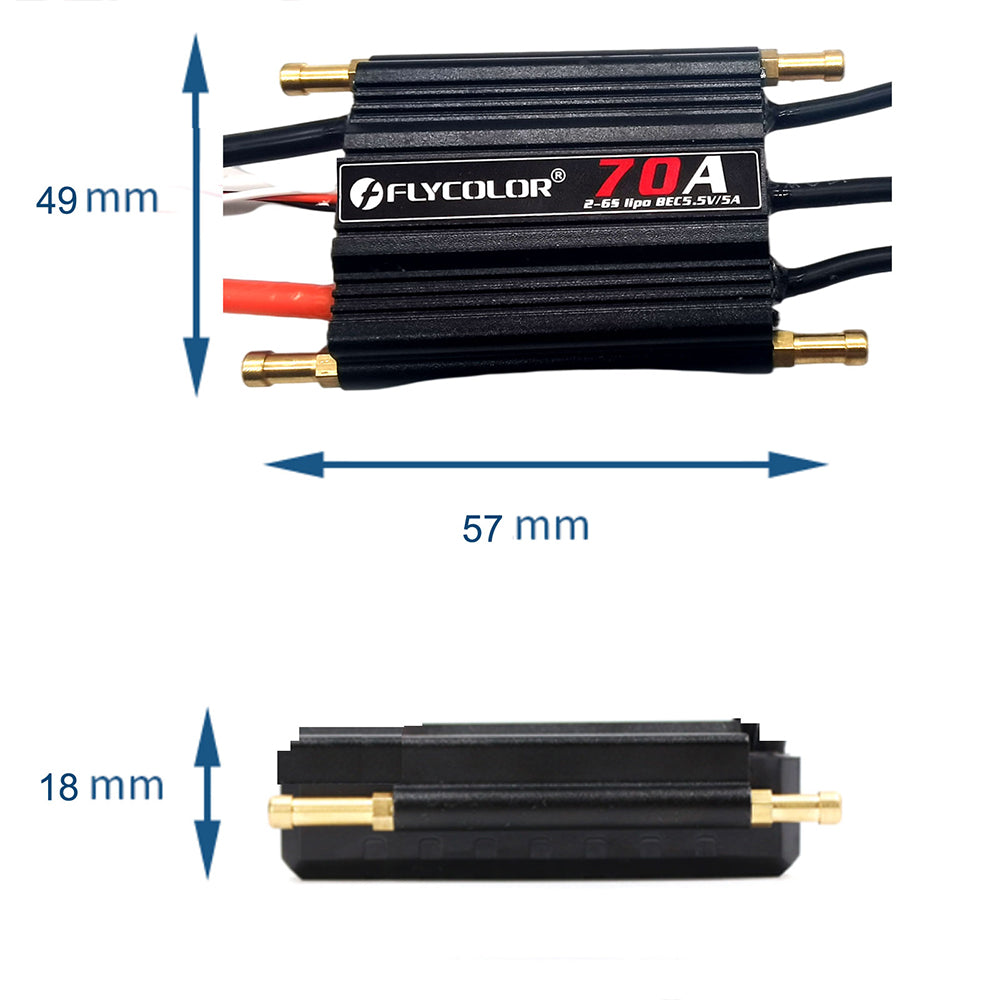

Size:57×49×18mm

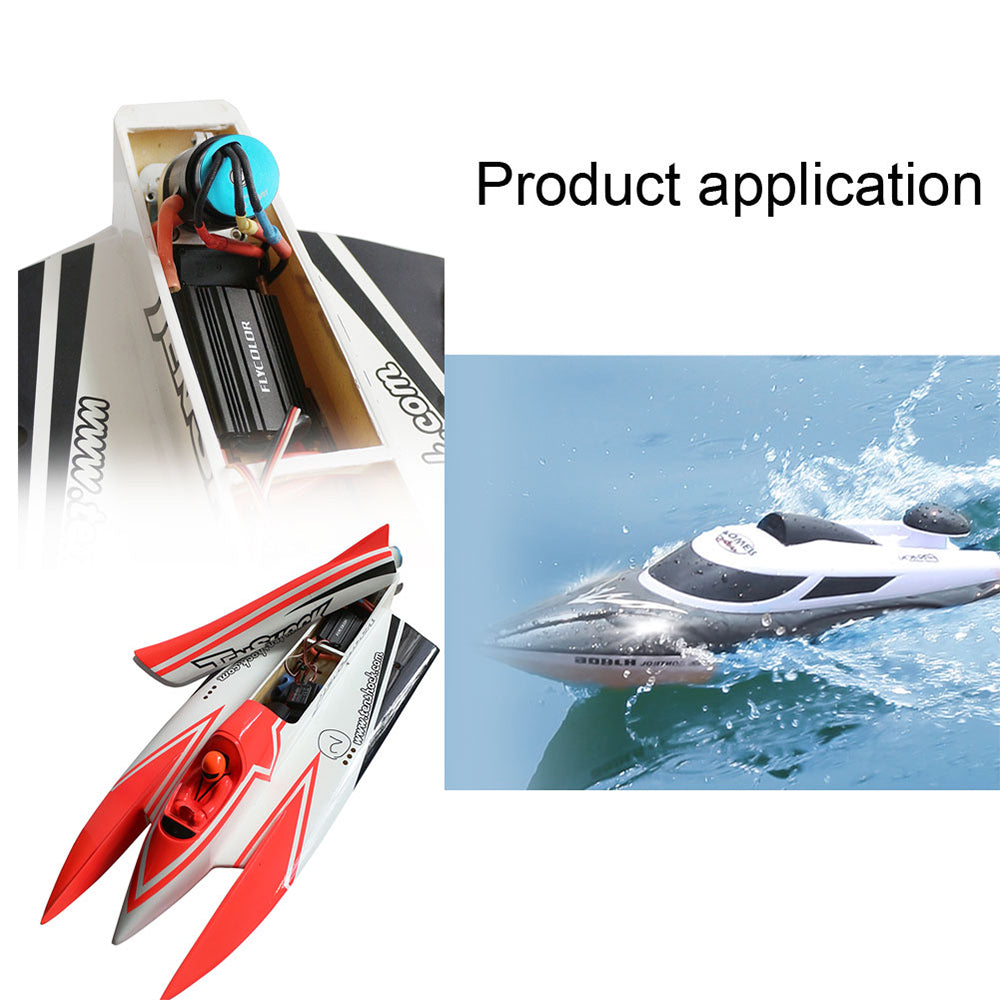

Typical Applications : Boat length<70cm
