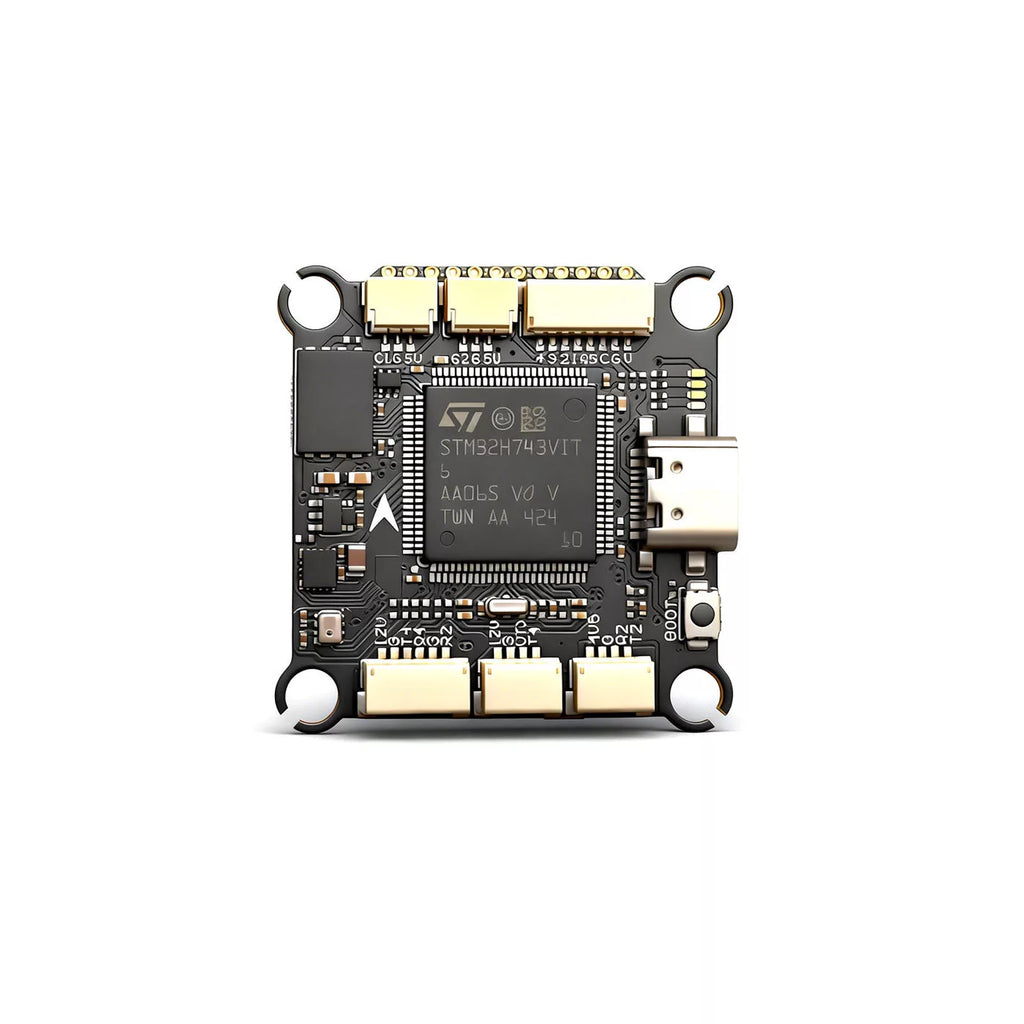

H743 Flight Controller STM32H743 3-8S Betaflight F7 DJI Air Unit FC
$48.20 USD
In stock

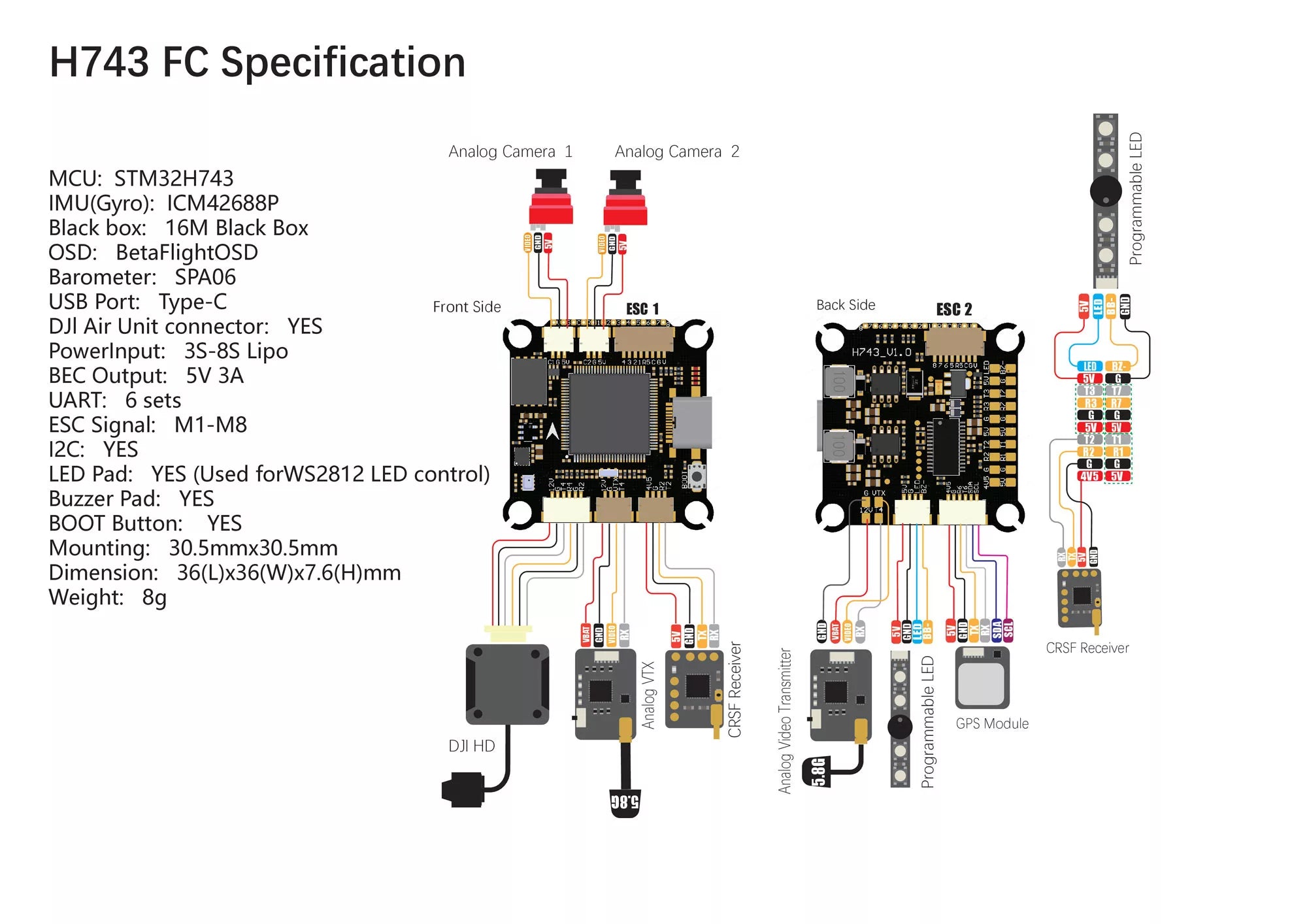

| Parameter |
Specification |
| MCU |
STM32H743 |
| IMU (Gyro) |
ICM42688P |
| Black Box |
16MB |
| OSD |
BetaFlight OSD |
| Barometer |
SPA06 |
| USB Port |
Type-C |
| DJI Air Unit Connector |
YES |
| Power Input |
3S-8S LiPo |
| BEC Output |
5V 3A |
| UART |
6 sets |
| ESC Signal |
M1-M8 |
| I2C |
YES |
| LED Pad |
YES (for WS2812 LED control) |
| Buzzer Pad |
YES |
| BOOT Button |
YES |
| Mounting |
30.5mm x 30.5mm |
| Dimension |
36(L) x 36(W) x 7.6(H) mm |
| Weight |
8g |
