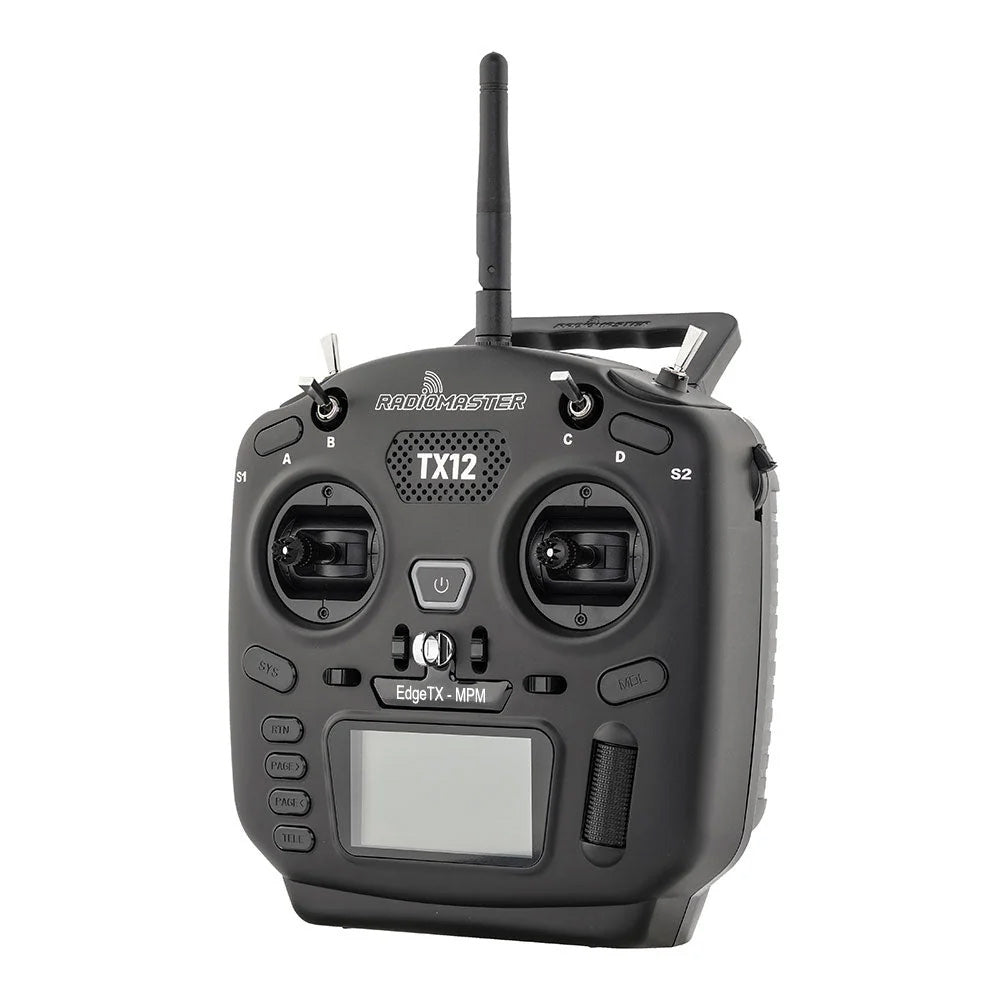

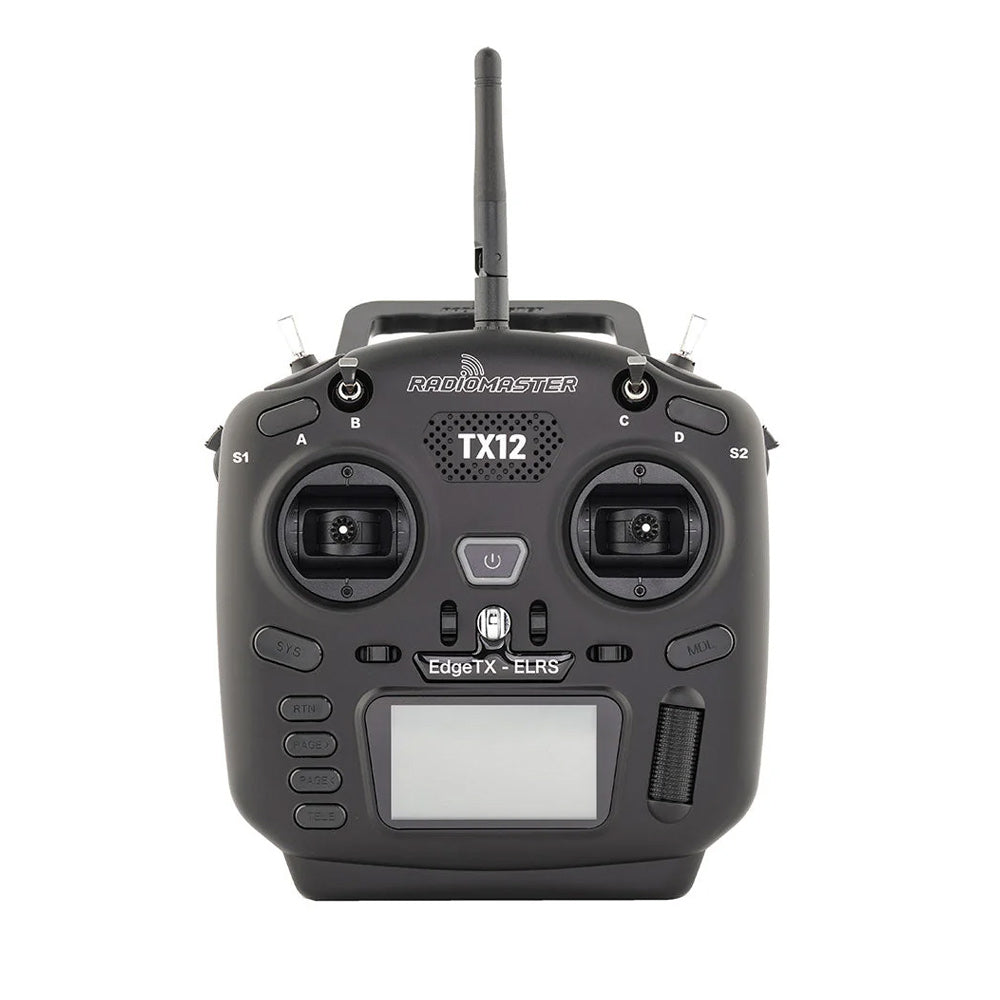

RadioMaster TX12 MKII ELRS CC2500 EdgeTX OpenTX 16CH Hall Gimbals Multi-Module Compatible Radio Control Transmitter
$89.00 USD
The Mighty, Mini TX12MKII radio has arrived!
Many years ago, RadioMaster set out to create the very best compact radio in its class. The TX12 has become the go-to product for pilots who seek a powerful, dependable, and endlessly upgradable open-source radio in a small form factor.
Working with the R/C community and open-source partners, RadioMaster proudly presents the TX12 MKII, a class-leading compact radio, with updated ergonomics, hardware, and software.
Features
Added ExpressLRS Backpack support
Updated main board design from STM32F207 to STM32F407
Improved USB-C QC 3.0 Charging
Precision hall-effect gimbals as standard
EdgeTX operating system installed from the factory

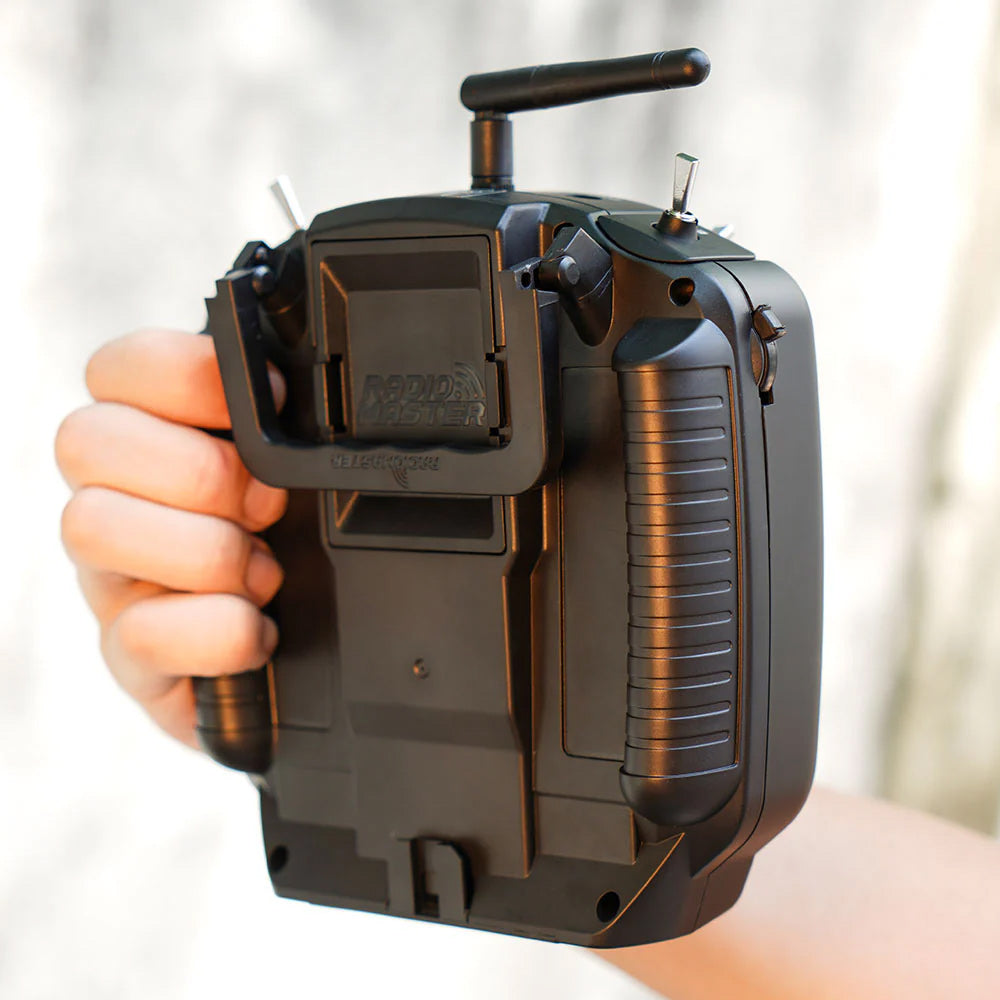

Updated rear case with comfortable grips

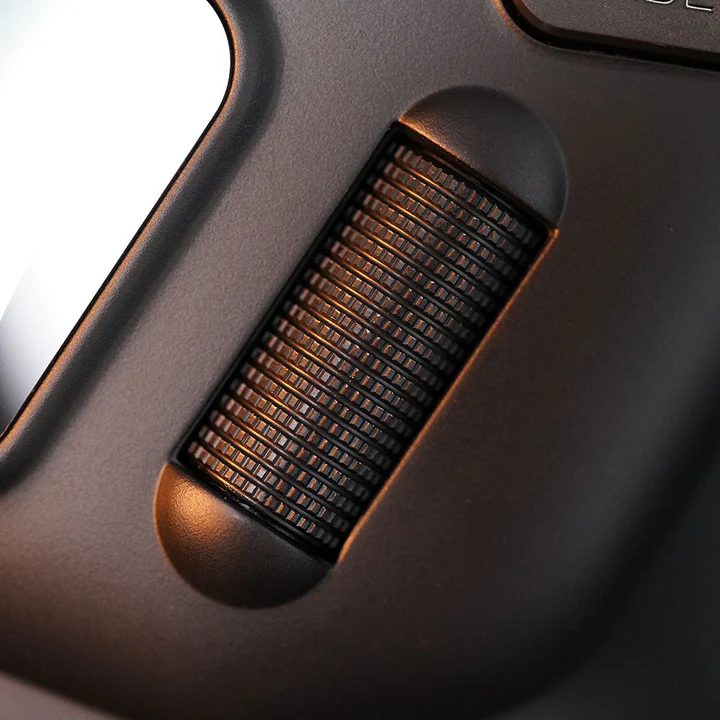

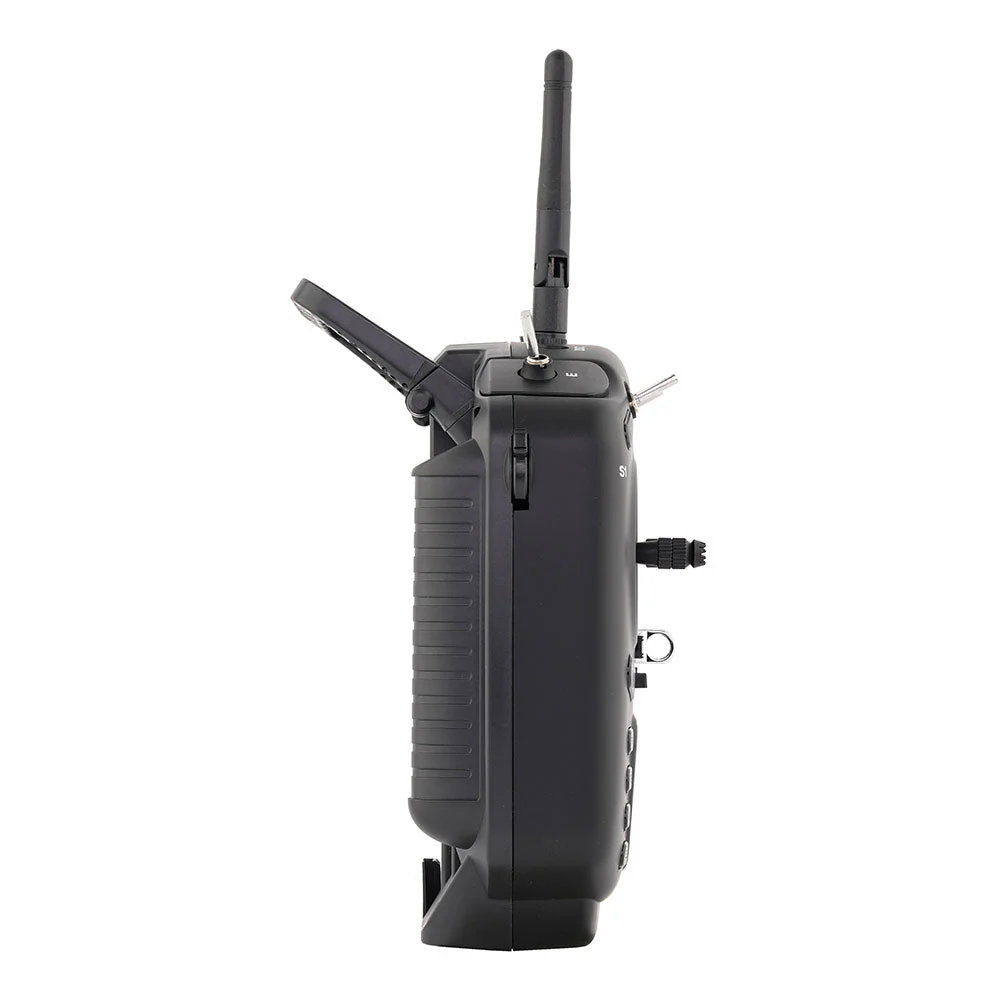

Improved S1 / S2 slider grip
SD Card included
Provide M1 and M2 modes
Specification
Item: TX12 Mark II Radio
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip: ExpressLRS (ELRS) / CC2500
Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included
EdgeTX Operating System
Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
Updated MCU STM32F407
We have upgraded the main processor from STM32F207 to STM32F407.
FCC Version and EU LBT Version are Available
Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.
Standard FCC Version
CC2500 (FCC) Version supports all CC2500 protocols
ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)
EU LBT Version
CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

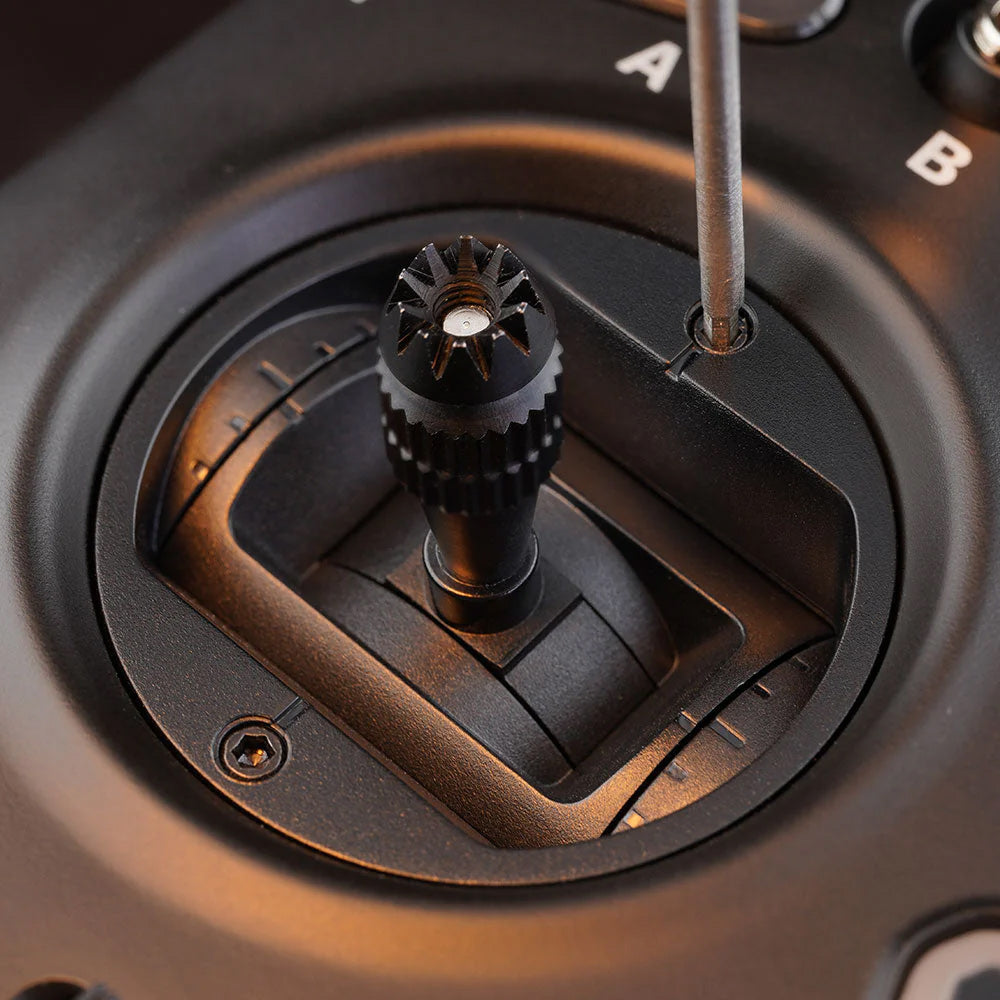

New Hall Gimbals
With Hall Gimbals, the same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability.
Support USB Simulator

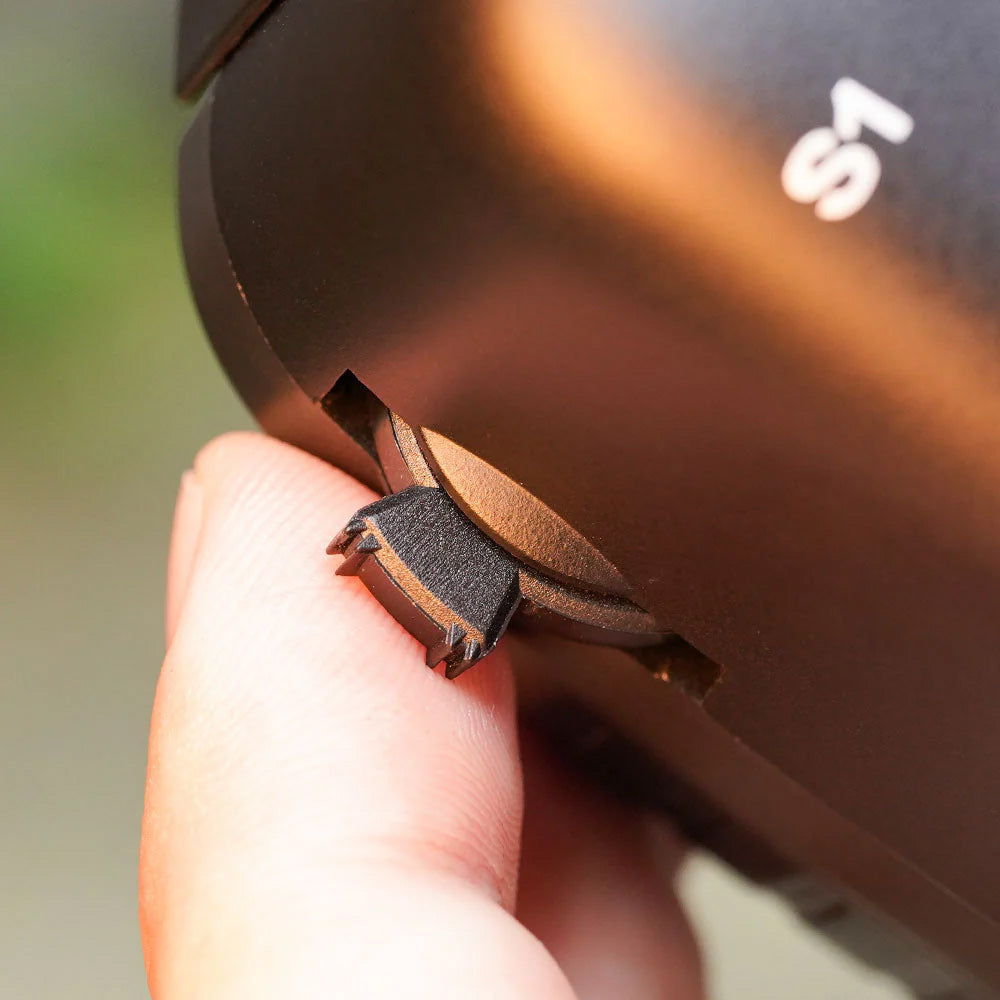

Improved USB-C QC 3.0 Charging
Big Battery Bay
Allows for dual 18650 or dual 21700 Li-ion cells, or 2S Lipo up to 74×60×22mm.
Expresslrs BLE JOYSTICK MODE
Allows for Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games. * ELRS version only.
