RUSHFPV 3.1G-3.9G XSPAN 10W VTX Transmitter Module
$59.99 USD
Sale price
$59.99 USD
Regular price
Shipping calculated at checkout.
⚡ RUSHFPV · 10W
3.1–3.9GHz Video Transmitter
Long-Range Video Power in a Compact 38g Package
⚡
10W Max Output
40dBm for extreme range
📡
40 Channels
3.1–3.9GHz wideband
⚖️
Only 38g
With efficient heatsink
🎯
Digital PLL
Closed‑loop precision
🔄
IRC Tramp
FC‑ready control
🔌
7–30V Input
Wide voltage range
📋 General Characteristics
| Parameter | Specification |
|---|---|
| Frequency Band | 3170–3950 MHz |
| Channels | 40 |
| Modulation | FM |
| Frequency Control | PLL |
| Frequency Stability | ±100kHz (Typ.) |
| S/N (For +3MHz) | >70dBc |
| Antenna Port | SMA 50Ω |
| Video Input Level | 1V±0.2Vp-p |
| Operating Temp | -20°C to +60°C |
| Control Protocol | IRC Tramp |
| Power Supply | DC 7–30V |
📊 RF Power Levels
| Value | Power Level | Typical Output |
|---|---|---|
| 0 | PIT Mode | <-45dBm |
| 1 | 25mW | 14dBm ±0.5 |
| 2 | 200mW | 23dBm ±0.5 |
| 3 | 2W | 33dBm ±0.5 |
| 4 | 10W | 40dBm ±0.5 |
✨ Product Highlights
🔬 Production aging + power calibration
🔧 USB config & firmware (custom order)
🌀 Integrated power amplifier

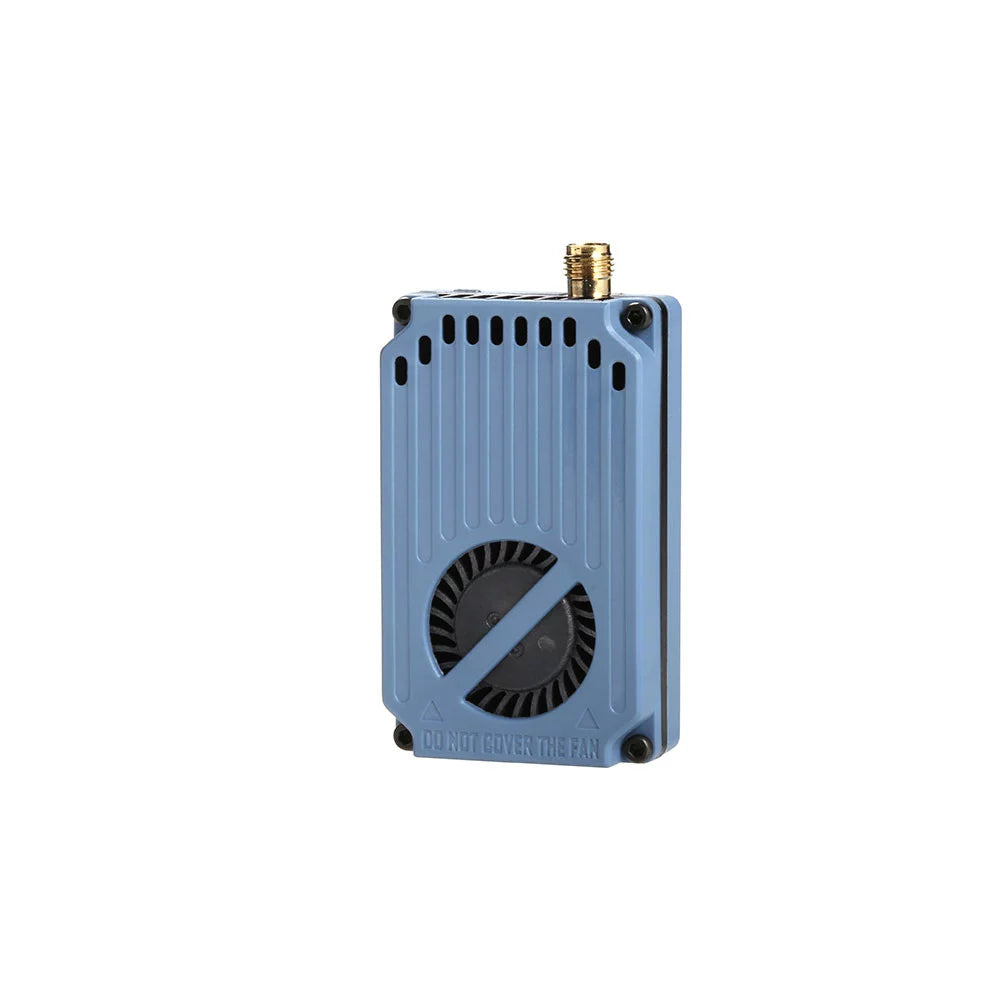

🌡️ Compact heatsink for 10W stability
📐 Product Dimensions
⚡ Size：16mm × 33mm × 55mm（ SMA interface）

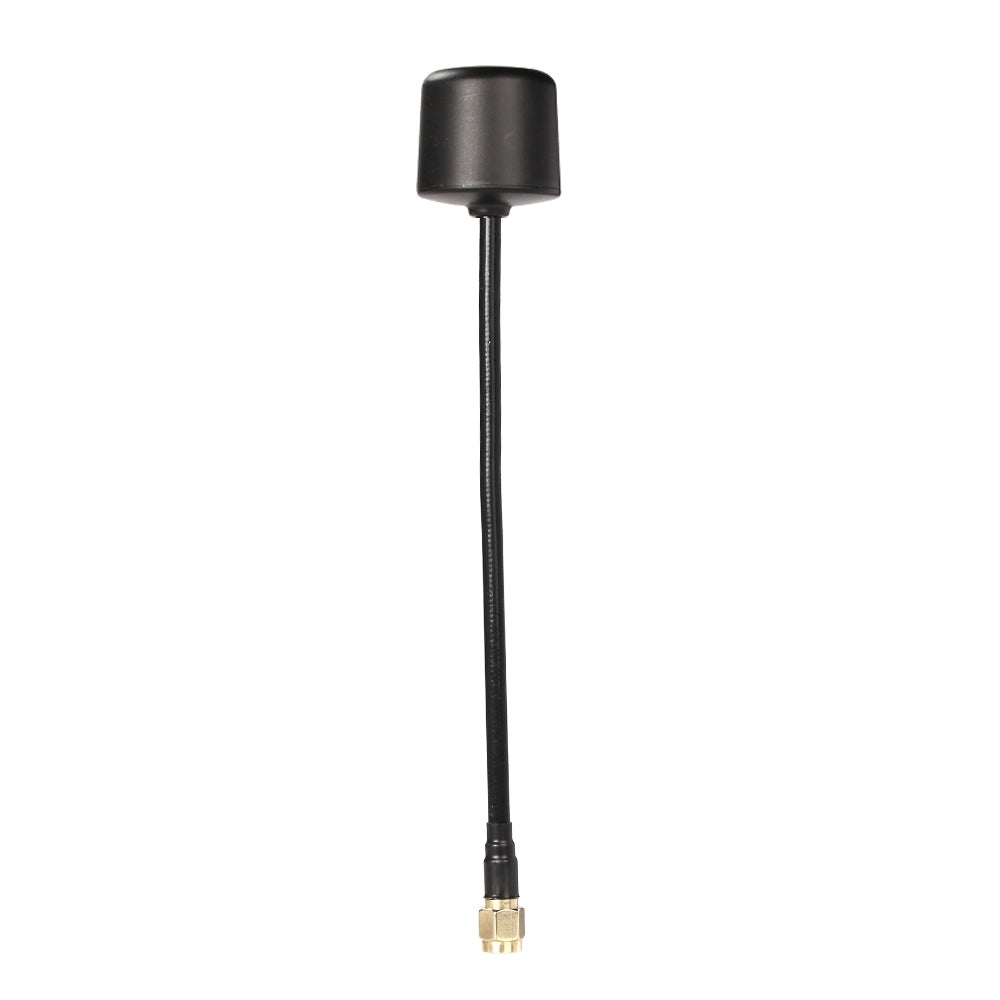

📡 Antenna Specifications
| Parameter | Specification |
|---|---|
| Polarization | RHCP |
| Gain | 2 dBi |
| Bandwidth | 3100–4100 MHz |
| V.S.W.R | <1.5 |
| Radiation Pattern | Omni-directional |
| Cable | RG402-SMA Male |
| Size | 29 × 36 mm |
🚁 Applications
• Long‑range FPV fixed‑wing & multirotor
• Commercial drone video transmission
• Industrial inspection & surveillance
• Search & rescue operations
• Broadcast & live event coverage

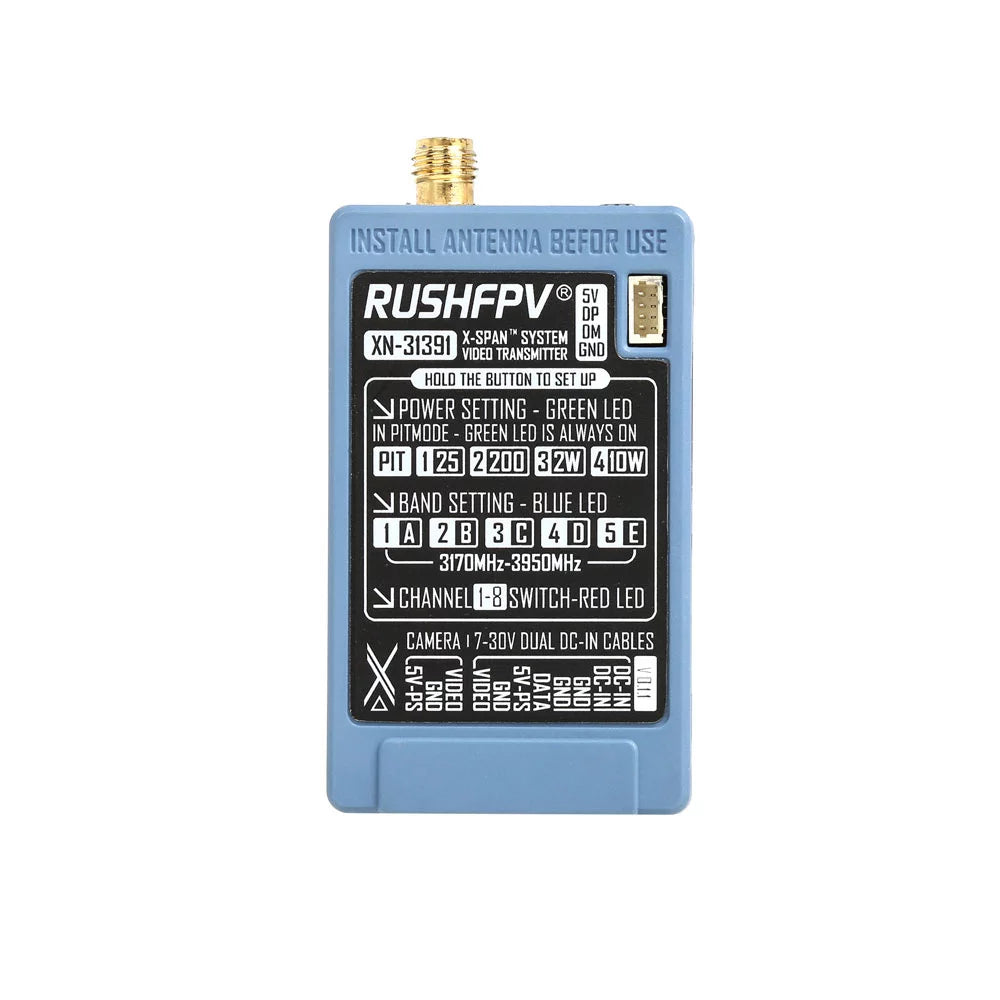

🎛️ Control Interface – Single Button RGB
Blue = Band Red = Channel Green = Power
Long Press → enter setting Short Press → adjust
💡 Green always ON = PIT Mode | Connect DATA pin for IRC Tramp via FC
✨ Product Highlights
🔬 Production aging + power calibration
🔧 USB config & firmware (custom order)
🌀 Integrated power amplifier
🌡️ Compact heatsink for 10W stability
🚁 Applications
• Long‑range FPV fixed‑wing & multirotor
• Commercial drone video transmission
• Industrial inspection & surveillance
• Search & rescue operations
• Broadcast & live event coverage

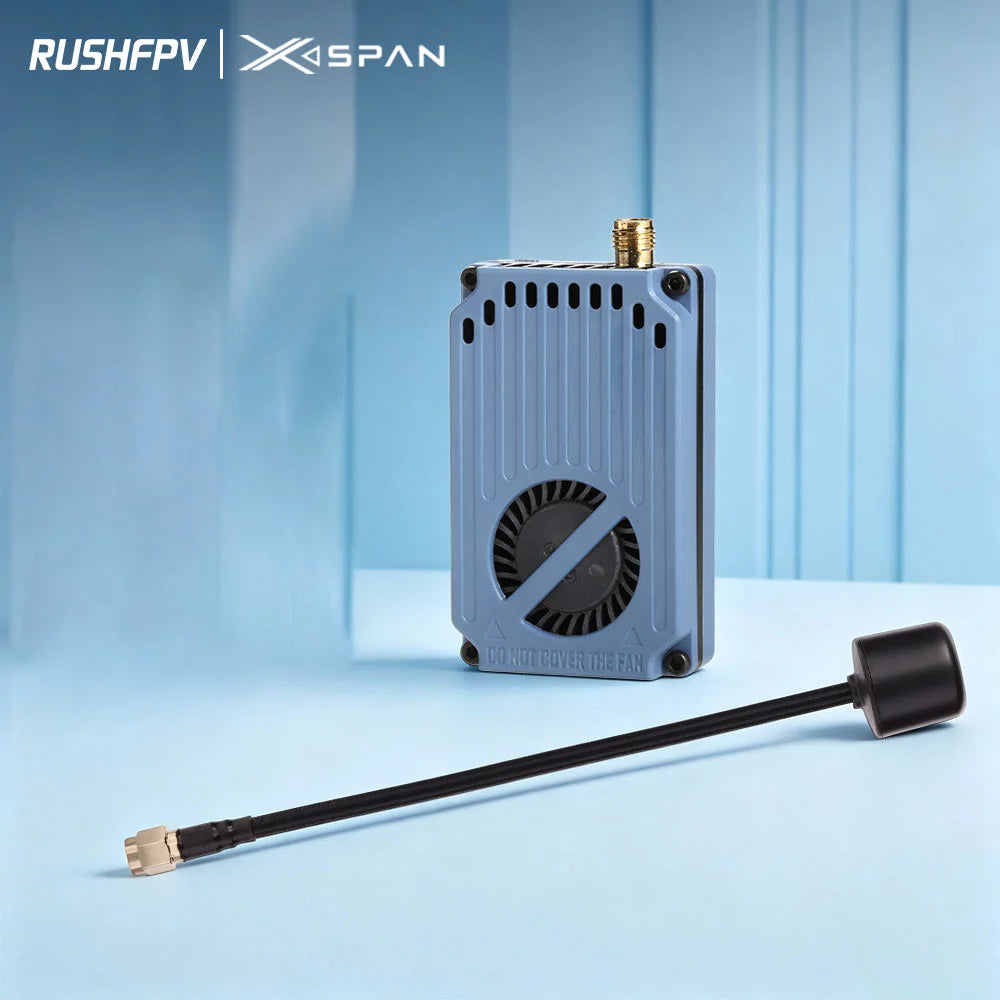

📦 Package Includes
- 1 × RUSHFPV 3.1‑3.9GHz 10W VTX
- 1 × Circularly Polarized Wideband Antenna (SMA)
