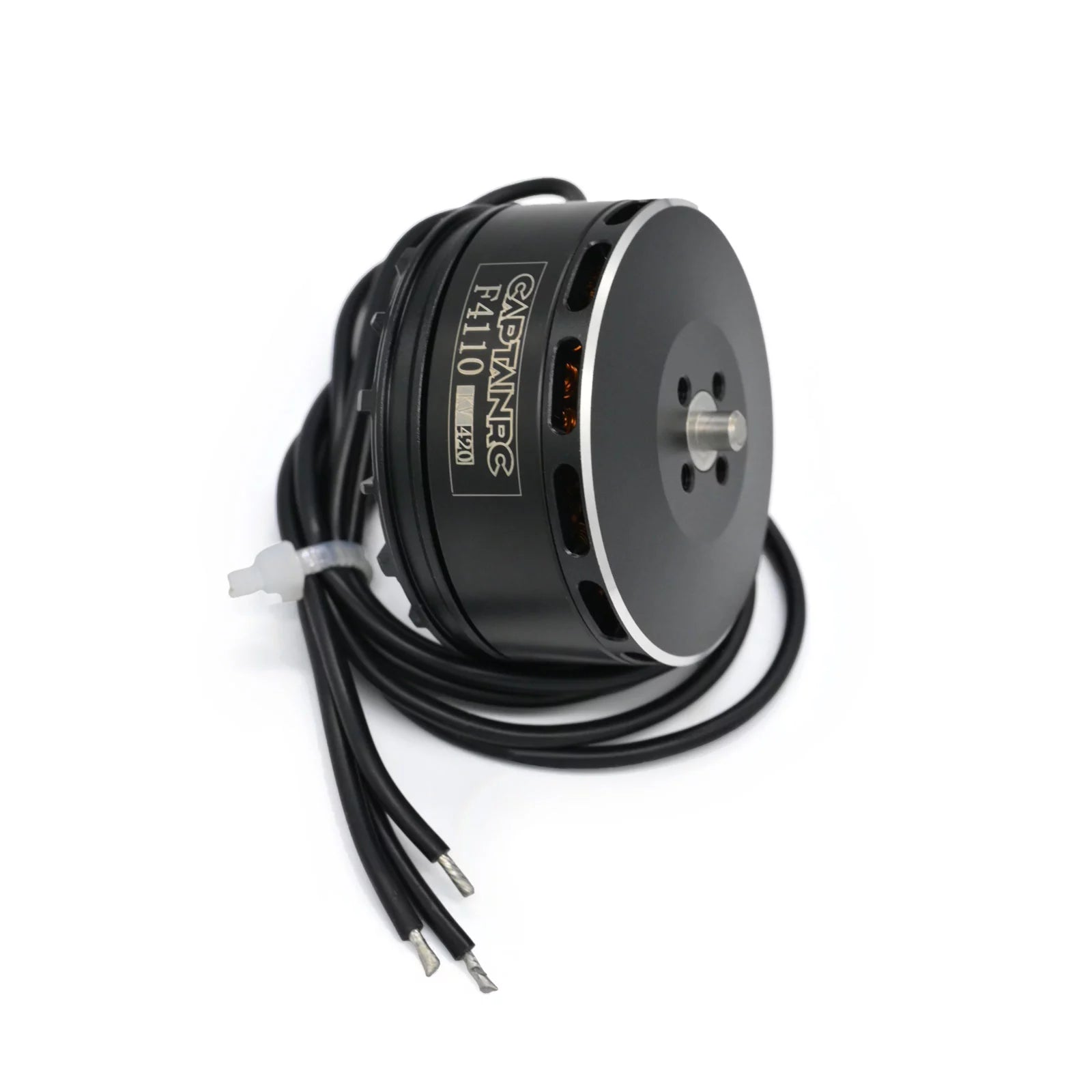

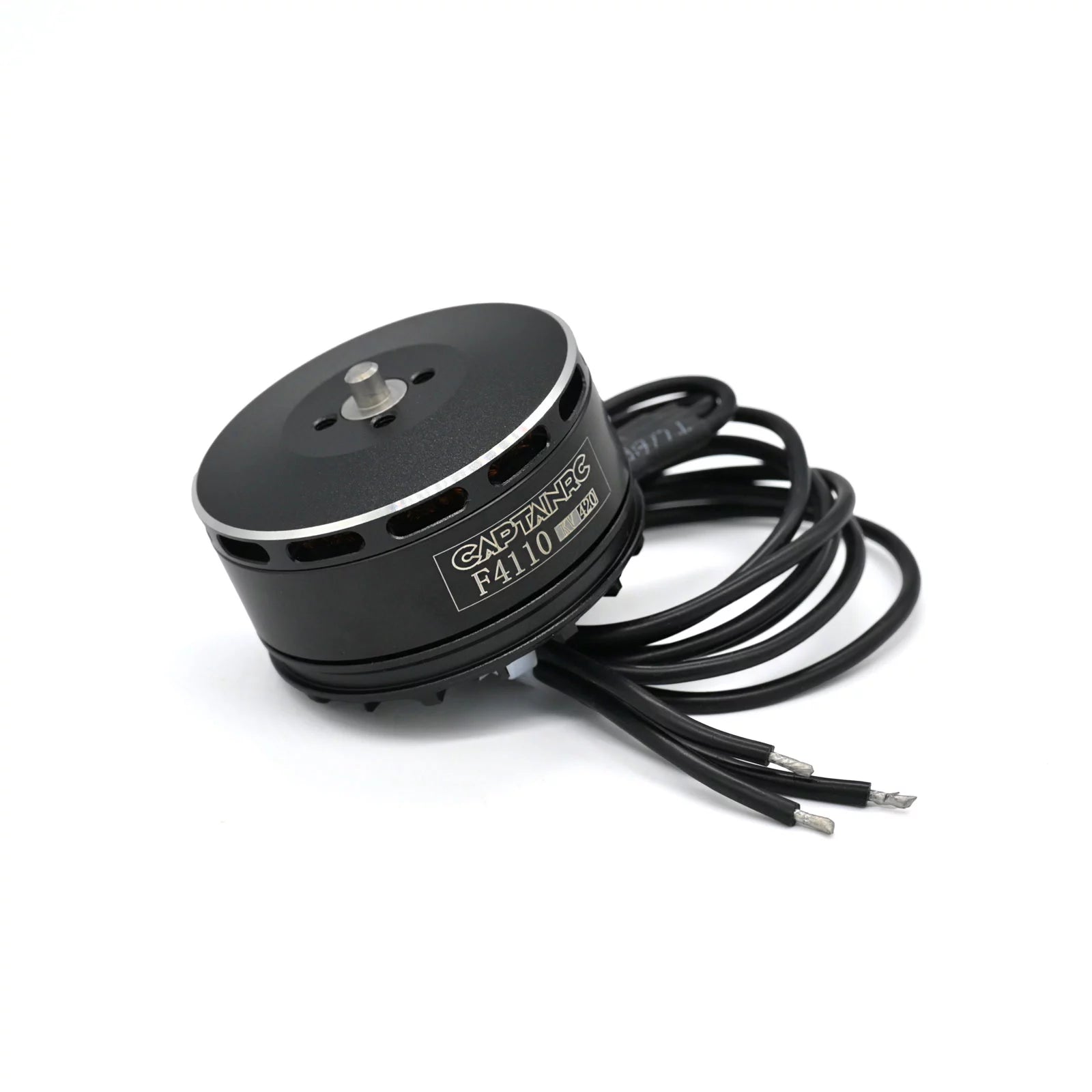

Captainrc F4110 420KV Brushless Motor - 662W Max, 3240g Thrust for 4-6S

Key Features

• 🚀 High-Thrust Performance
  3240g maximum thrust for powerful lift capacity

• 🔋 4-6S Voltage Compatibility
  Versatile power range from 4S to 6S LiPo batteries

• ⚙️ Precision Engineering
  24N28P design with 0.09Ω phase resistance for optimal efficiency

• 🏗️ Robust Construction
  Durable build quality weighing 135g for reliable operation

• 🎯 Wide Propeller Compatibility
  Supports 13-16 inch propellers for various applications

Technical Specifications

• KV Rating: 420KV

• Stator Size: Ø40.6 × 10mm

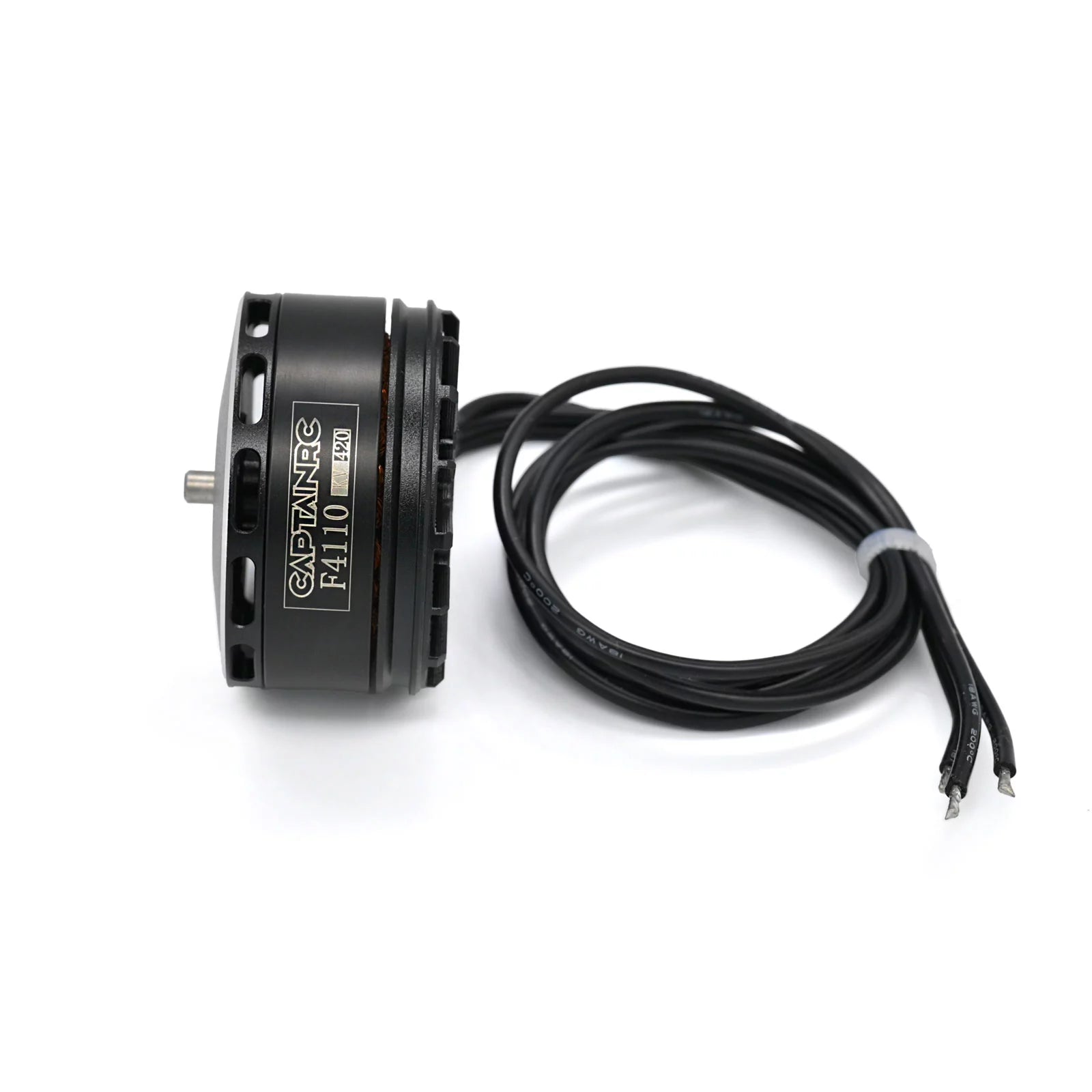

• Motor Dimensions: Ø46.6 × 27.2mm

• Max Power: 662W

• Max Current: 27.6A (180-second duration)

• No-load Current: 1.1A @ 10V

• Weight: 135g

• Poles: 24N28P

• Phase Resistance: 0.09Ω

Recommended Setup

• Battery: 4-6S LiPo

• ESC: 40A minimum

• Propellers: 13×4.4, 14×4.8, 15×5, 16×5.4

• Applications: Heavy-lift drones, mapping platforms, large FPV

Performance Data

• Maximum Thrust: 3240g

• Continuous Power: 662W

• Efficiency: Optimized for professional aerial applications

• Thermal Management: Designed for sustained operation

Why Choose 4110 420KV?

✅ Professional Grade – Trusted by commercial drone operators
✅ High Efficiency – Low resistance design maximizes flight time
✅ Proven Reliability – T-Motor quality and durability
✅ Versatile Application – Suitable for various multirotor sizes
✅ Optimal Power-to-Weight – 135g weight with 662W output

Package Includes

• 1 × T-Motor 4110 420KV Brushless Motor

• Mounting hardware

• Propellers and ESC not included
