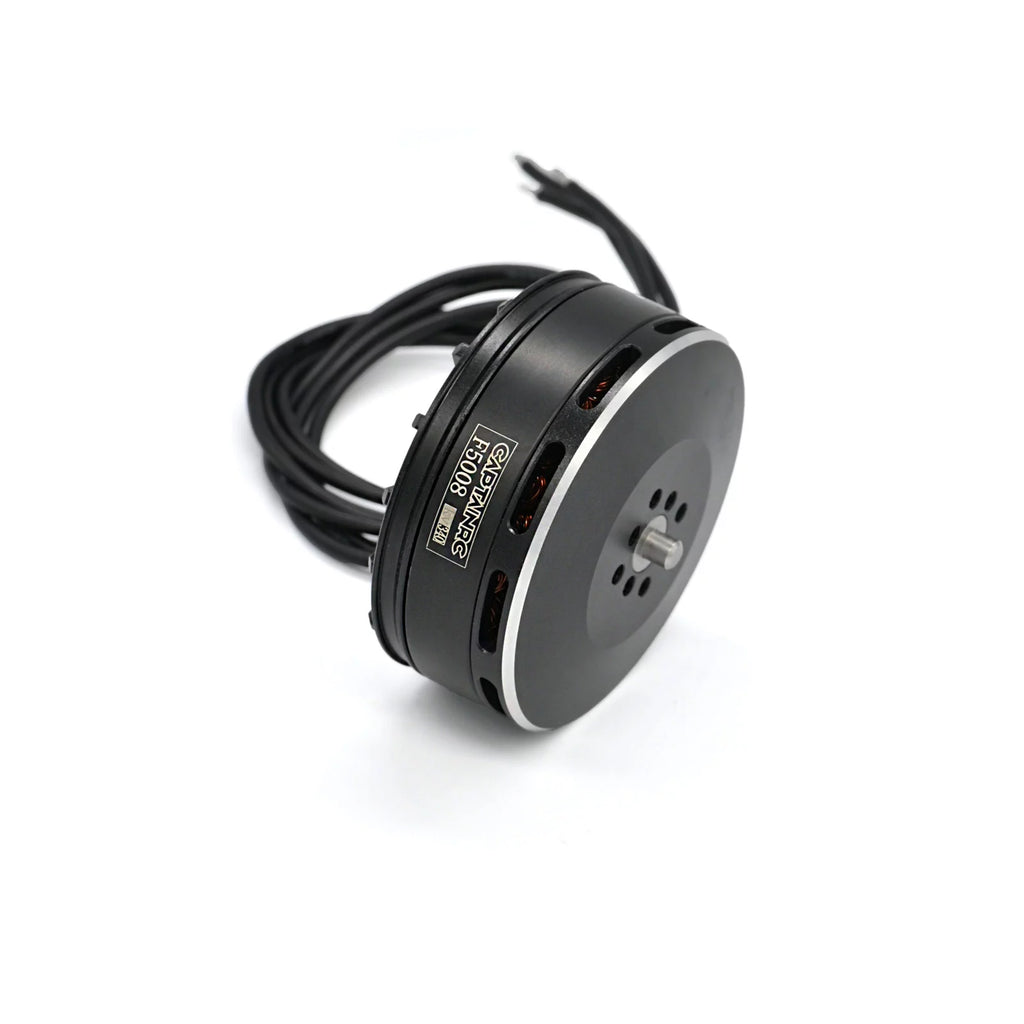

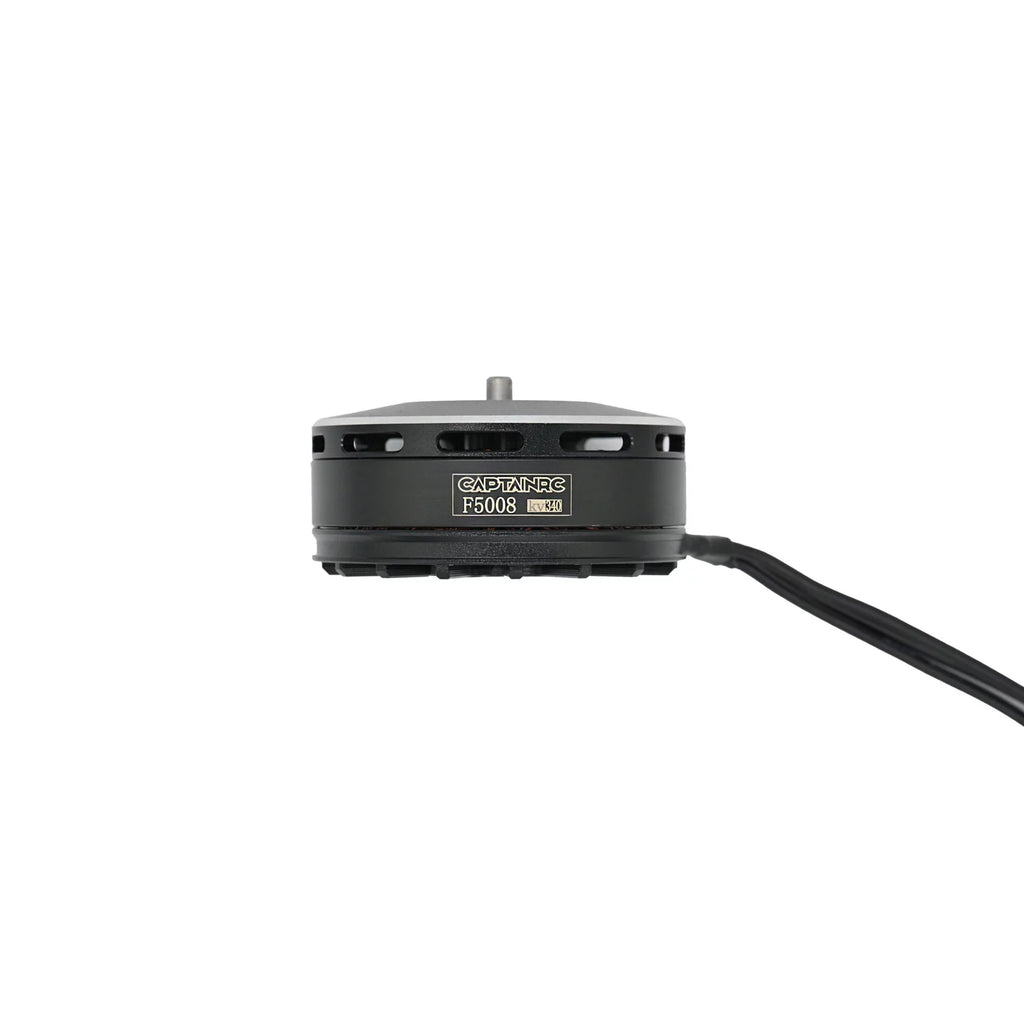

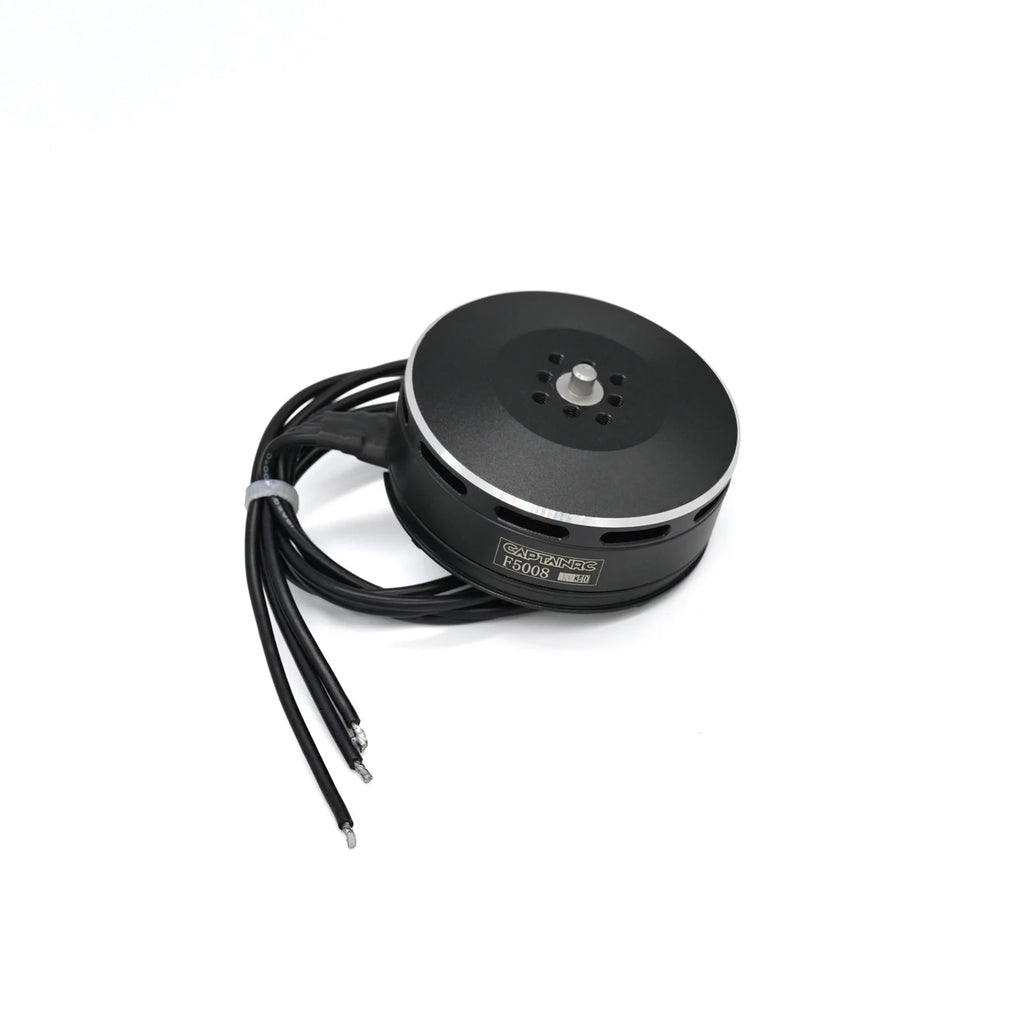

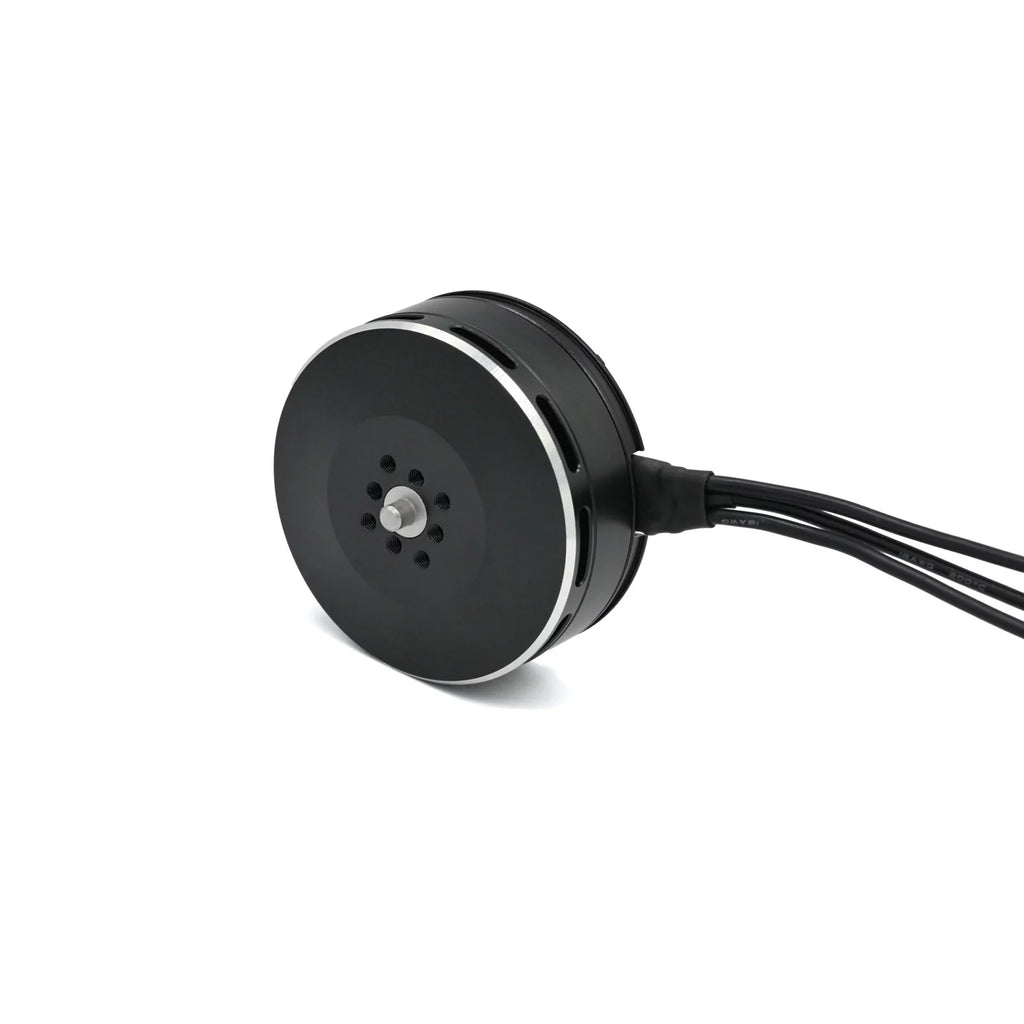

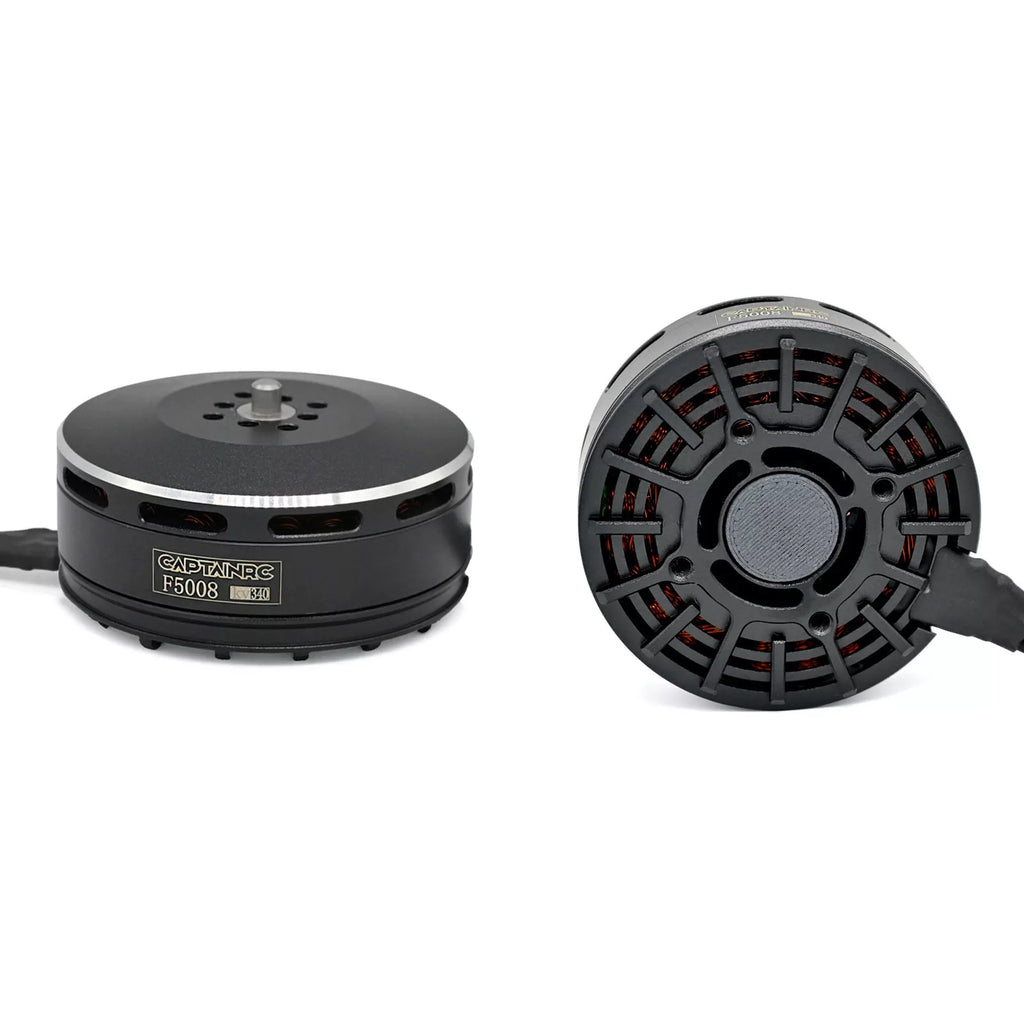

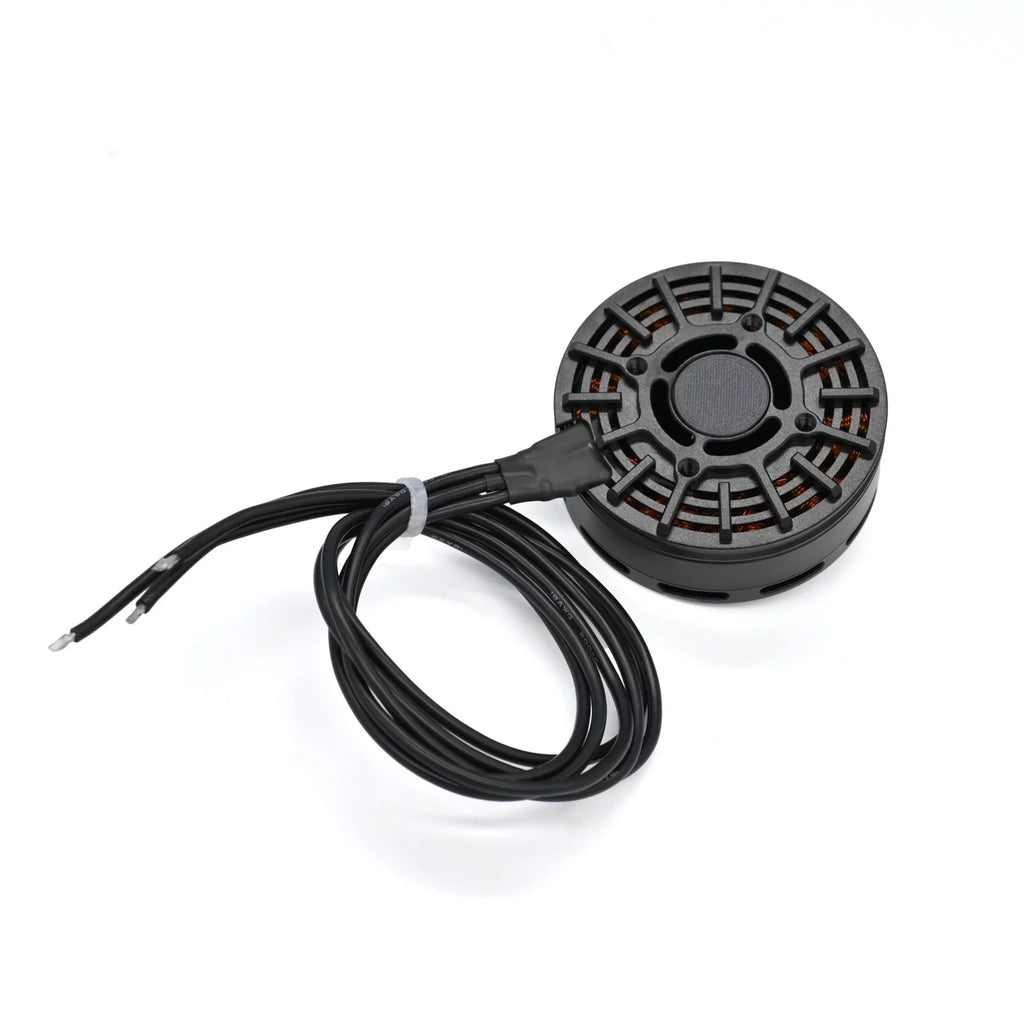

FPV-Motor 5008 340KV Brushless Motor - 532W Max, 3420g Thrust for 4-6S

Key Features

• 🏗️ Large Stator Design
  50mm stator diameter provides superior torque for large propellers

• ⚡ Ultra-High Efficiency
  0.06Ω phase resistance maximizes power conversion and flight time

• 🚀 Massive Thrust Output
  3420g maximum thrust for heavy payload applications

• 🔋 Optimized Voltage Range
  4-6S compatibility with 24A continuous current rating

• 🎯 Large Propeller Optimization
  Specifically designed for 17-18 inch propellers

Technical Specifications

• KV Rating: 340KV

• Stator Size: Ø50 × 8mm

• Motor Dimensions: Ø56 × 25.8mm

• Max Power: 532W

• Max Current: 24A (180-second duration)

• No-load Current: 1.1A @ 10V

• Weight: 159g

• Poles: 24N28P

• Phase Resistance: 0.06Ω

Recommended Setup

• Battery: 4-6S LiPo

• ESC: 60A minimum

• Propellers: 17×5.8, 18×6.1, 18×5.7

• Applications: Heavy-lift drones, agricultural spraying, industrial inspection platforms

Performance Advantages

• Higher Thrust Efficiency – More thrust per watt compared to similar class motors

• Excellent Thermal Management – Sustained performance under heavy loads

• Smooth Operation – Precision balancing for minimal vibration

• Long Service Life – Robust construction for commercial applications

Why Choose 5008 340KV?

✅ Superior Torque – Large stator design handles big propellers with ease
✅ Energy Efficient – Lower KV and resistance extend battery life
✅ Professional Grade – Built for demanding commercial operations
✅ Optimal Power-to-Weight – 159g weight with 3420g thrust capability
✅ Proven Reliability – T-Motor quality trusted by professionals worldwide

Package Includes

• 1 × T-Motor 5008 340KV Brushless Motor

• Mounting hardware

• Propellers and ESC not included
