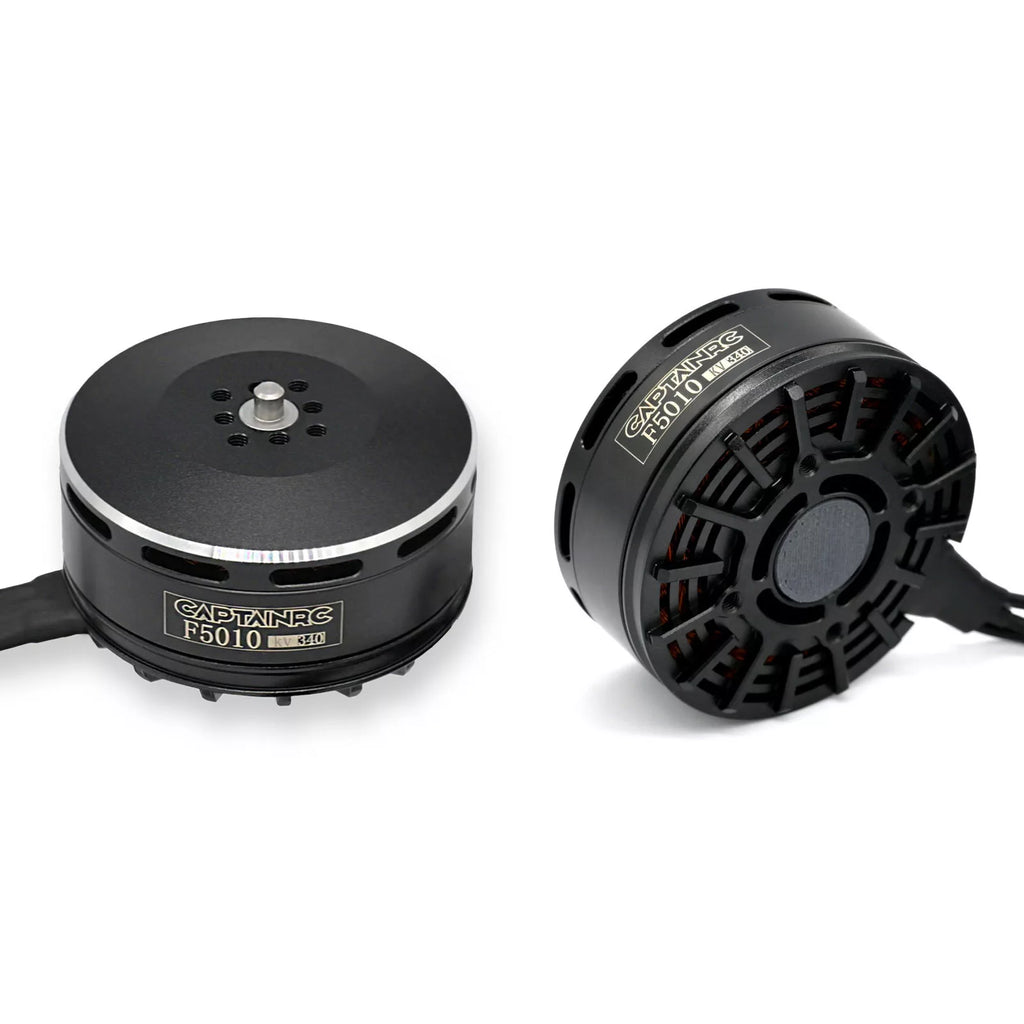

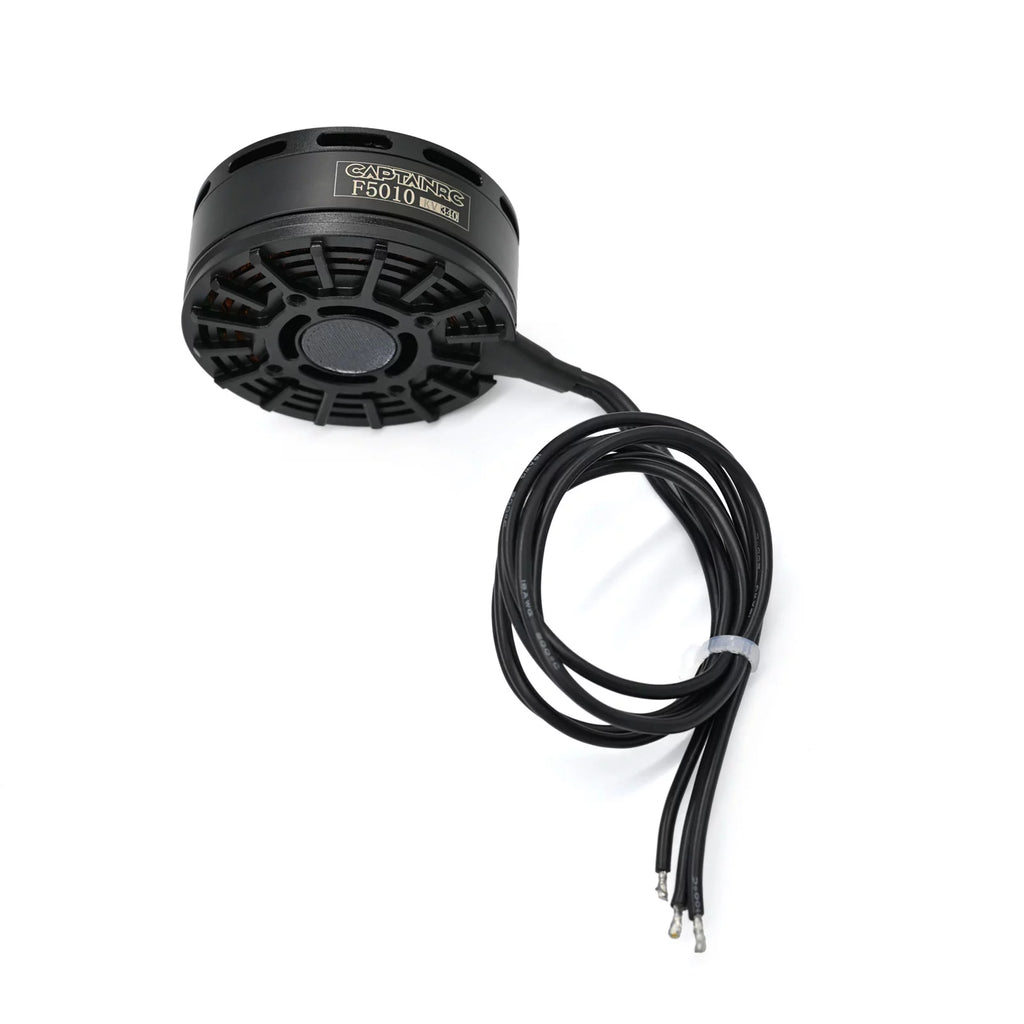

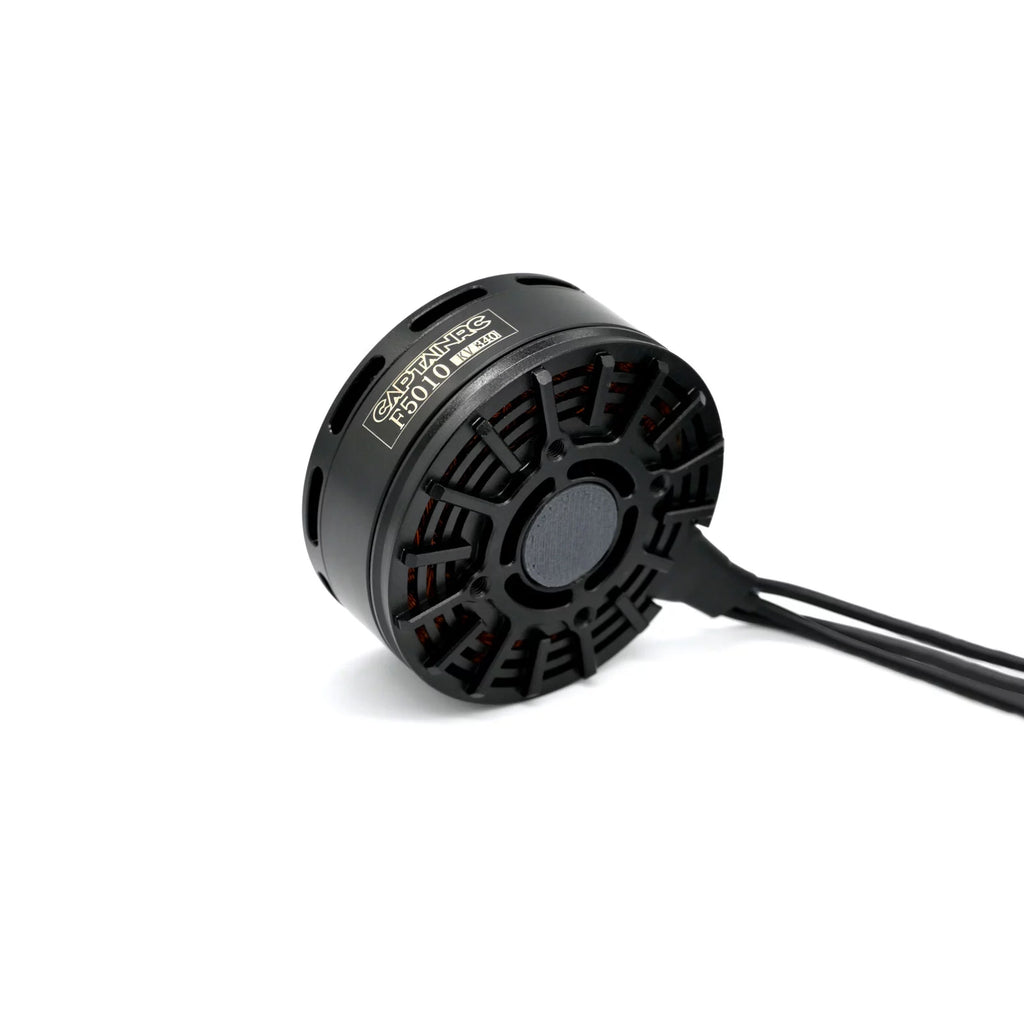

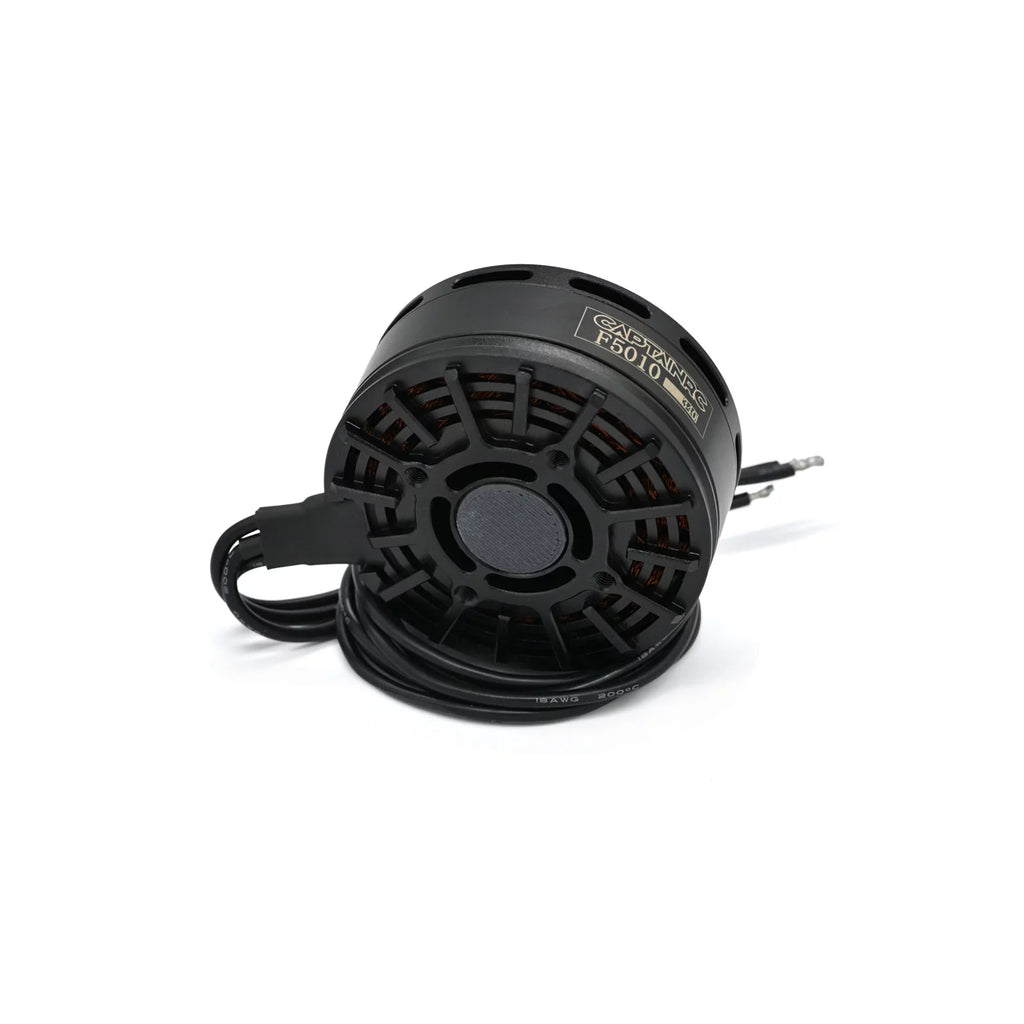

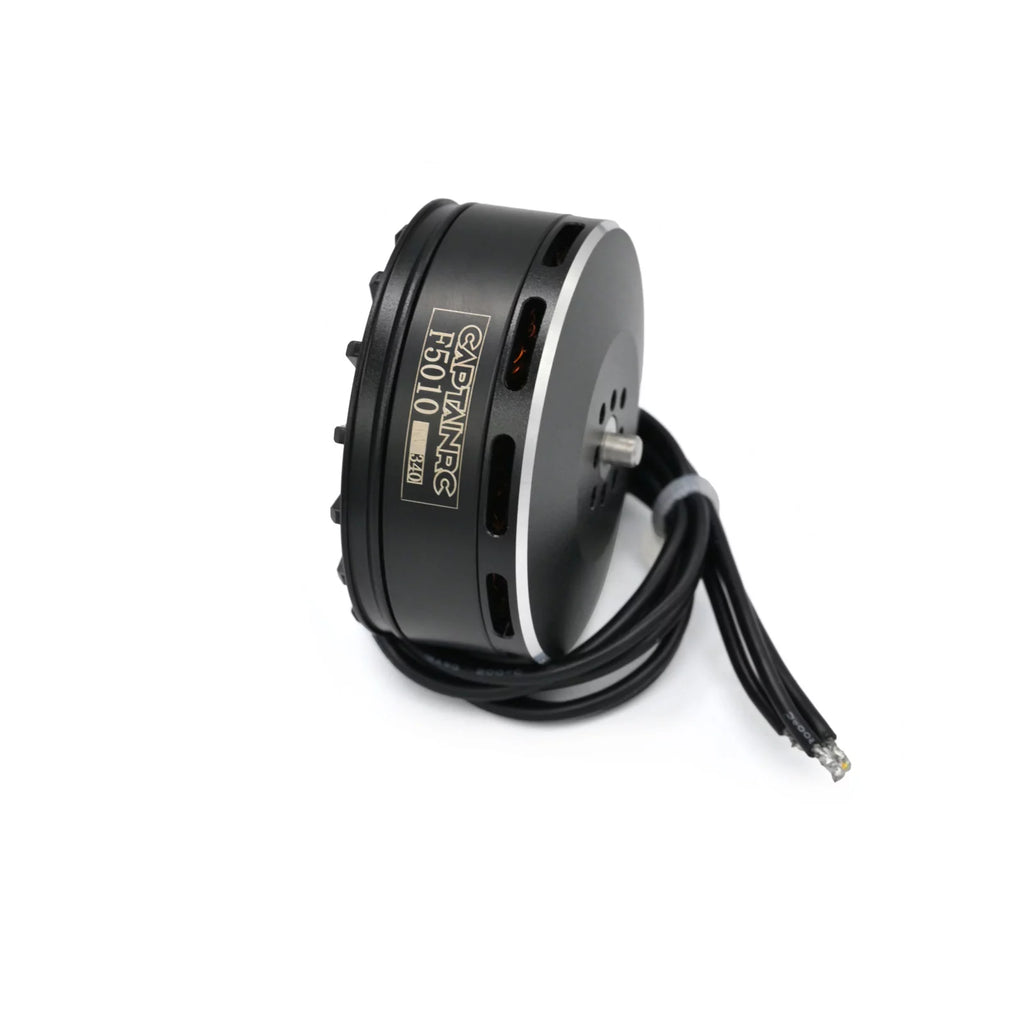

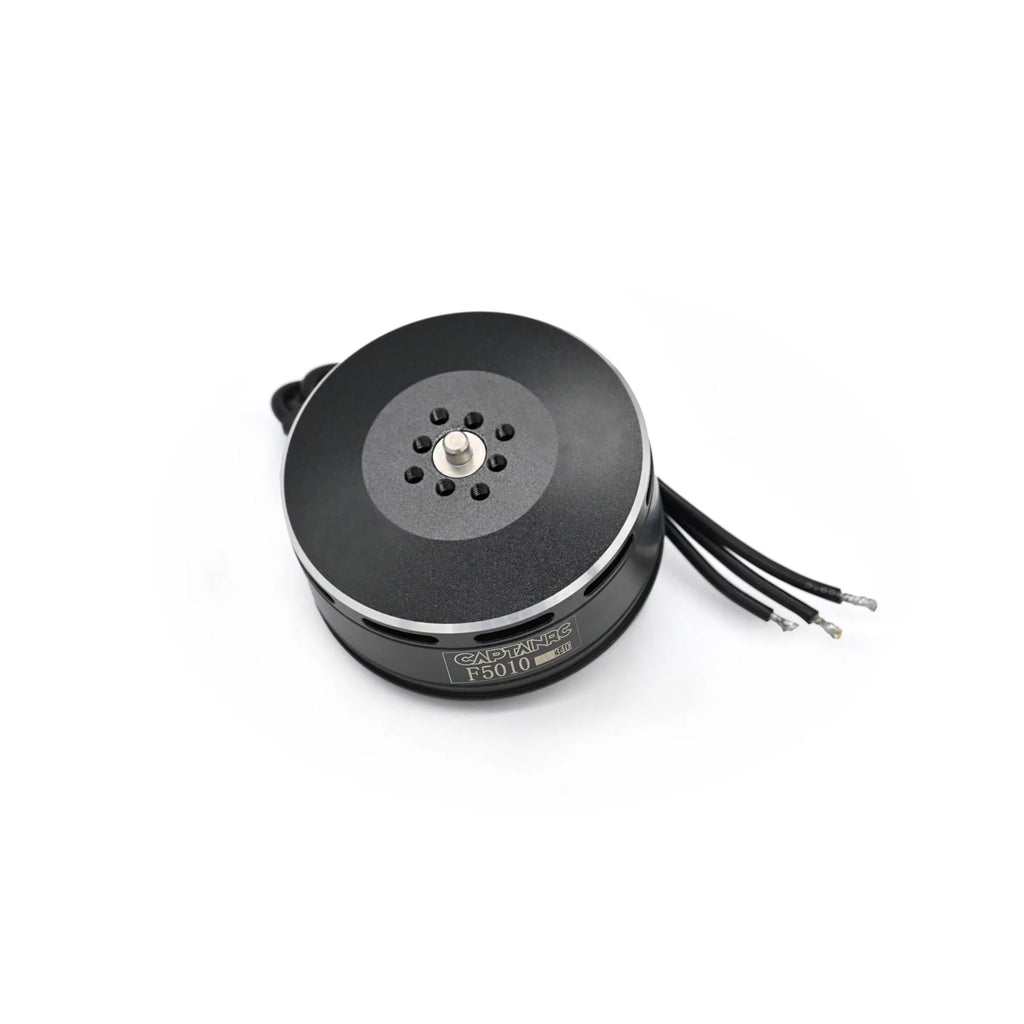

FPV-Motor 5010 340KV Brushless Motor - 737W Max, 4190g Thrust for 4-6S

Key Features

• 🏗️ Industrial-Grade Power
  737W maximum power and 4190g thrust for heavy payload operations

• 🔧 Enhanced Stator Design
  Ø50×10mm stator provides exceptional torque for large 20-22 inch propellers

• ⚡ Optimized Efficiency
  0.07Ω phase resistance and 340KV rating ensure maximum flight time

• 🛡️ Robust Construction
  178g weight with reinforced structure for continuous commercial use

• 🎯 Large Propeller Specialist
  Specifically engineered for 20×6, 20×8, and 22×7 propellers

Technical Specifications

• KV Rating: 340KV

• Stator Size: Ø50 × 10mm

• Motor Dimensions: Ø56 × 27.8mm

• Max Power: 737W

• Max Current: 33.2A (180-second duration)

• No-load Current: 1.0A @ 10V

• Weight: 178g

• Poles: 24N28P

• Phase Resistance: 0.07Ω

Recommended Setup

• Battery: 4-6S LiPo

• ESC: 60A minimum (recommended 80A for full performance)

• Propellers: 20×6, 20×8, 22×7

• Applications: Agricultural spraying drones, heavy-lift cargo, industrial inspection, cinematography platforms

Performance Advantages

• Massive Thrust Capacity – 4190g per motor enables significant payload capabilities

• Superior Thermal Management – Sustained performance under continuous heavy loads

• Professional Reliability – Built for commercial-grade operations and long service life

• Optimal Efficiency Curve – Maximum thrust per watt in typical operating range

Why Choose 5010 340KV?

✅ Industry-Leading Power – 737W output for the most demanding applications
✅ Proven Commercial Performance – Trusted by agricultural and industrial operators
✅ Large Propeller Optimization – Specifically designed for 20-22 inch propellers
✅ Robust Construction – Engineered for continuous commercial operation
✅ T-Motor Quality – Industry standard for reliability and performance

Package Includes

• 1 × T-Motor 5010 340KV Brushless Motor

• Mounting hardware

• Propellers and ESC not included
