$139.99 USD

Type ELRS/FCC

颜色Gray

In stock

🚀 Blazing-Fast Performance
STM32 H7 processor enables ultra-smooth EdgeTX control and rapid script execution.
📡 Dual-Band ELRS
Built-in LR1121 transceiver supports 2.4GHz and 900MHz for long-range, low-latency control.
🖼️ Vivid 3.5" IPS Touchscreen
480×320 resolution, 262k colors, and 600 nits brightness for clear visibility in sunlight.
🎮 Hall Effect Gimbals
V5.0 Hall sensor gimbals with six vibrant color options for precise control.
🔋 Smart Battery Management
Compatible with 2S LiPo, 18650, or 21700 batteries (not included).
🔄 Interchangeable Shoulder Switches
Customize with momentary or latching switches to match your flying style.
🌀 Advanced Cooling System
Low-noise fan and aluminum heat sink keep your radio cool during extended use.

Want a premium upgrade? Check out the TX15 MAX.

Step into the future. TX15: The Future Is Here, One Step Ahead.

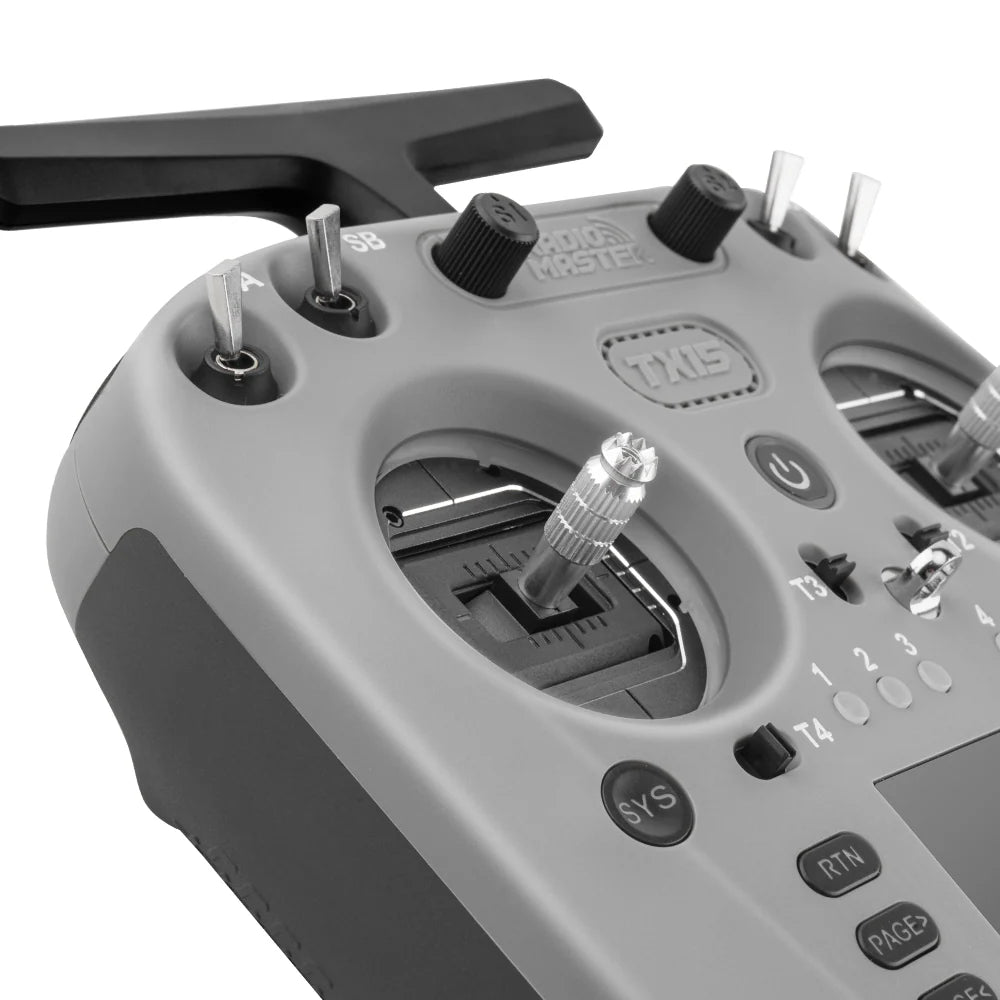

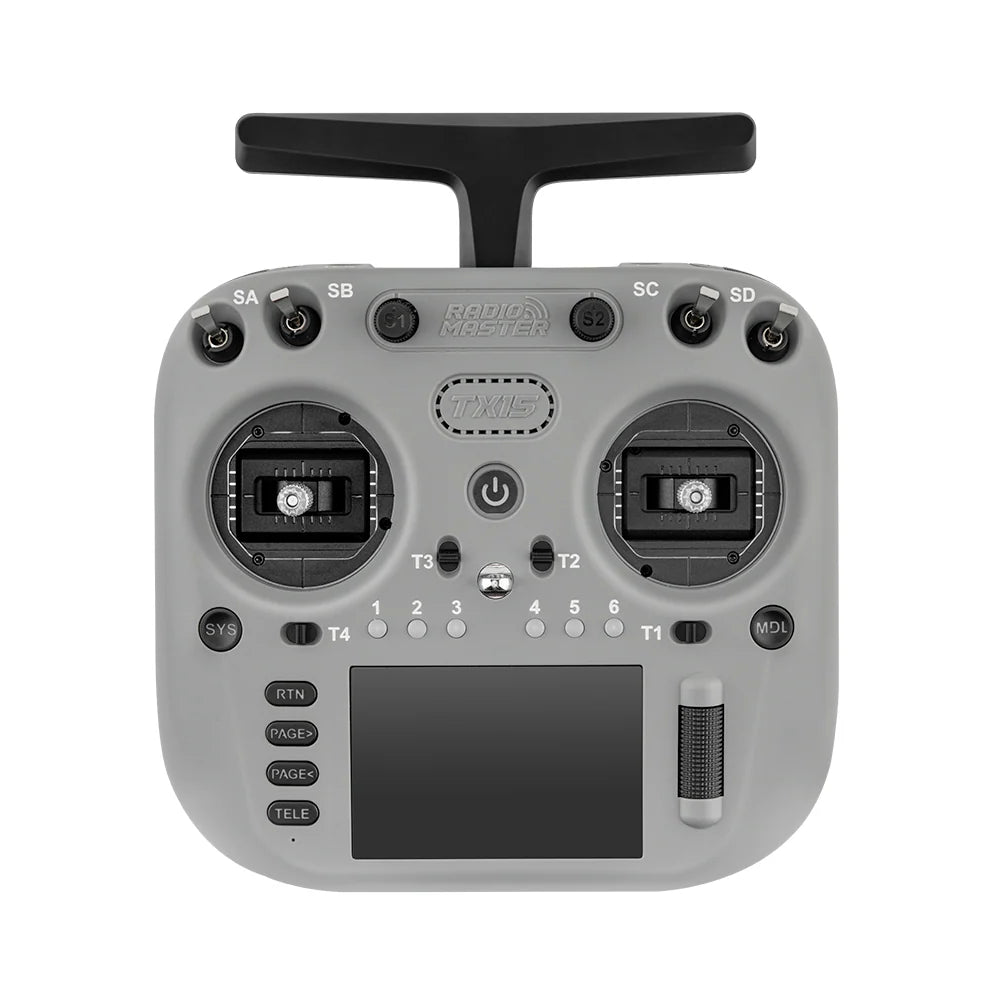

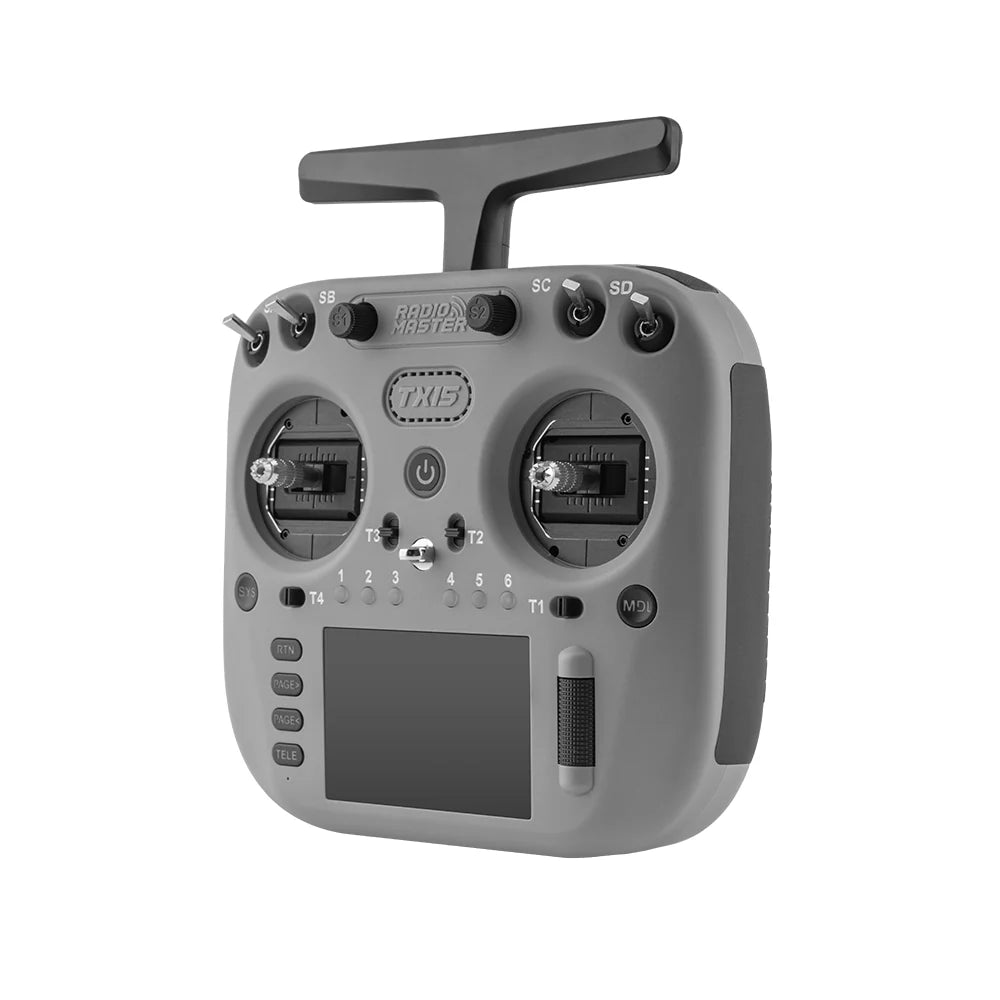

TX15 Radio Controller (ELRS / M2)

Launch Video

Features

Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
Precision Gimbals: V5.0 Hall sensor gimbals
Built-in ExpressLRS: 2.4GHz / Sub-G 900MHz ExpressLRS integration for reliable and long-range control.
Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
Powerful, Efficient Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

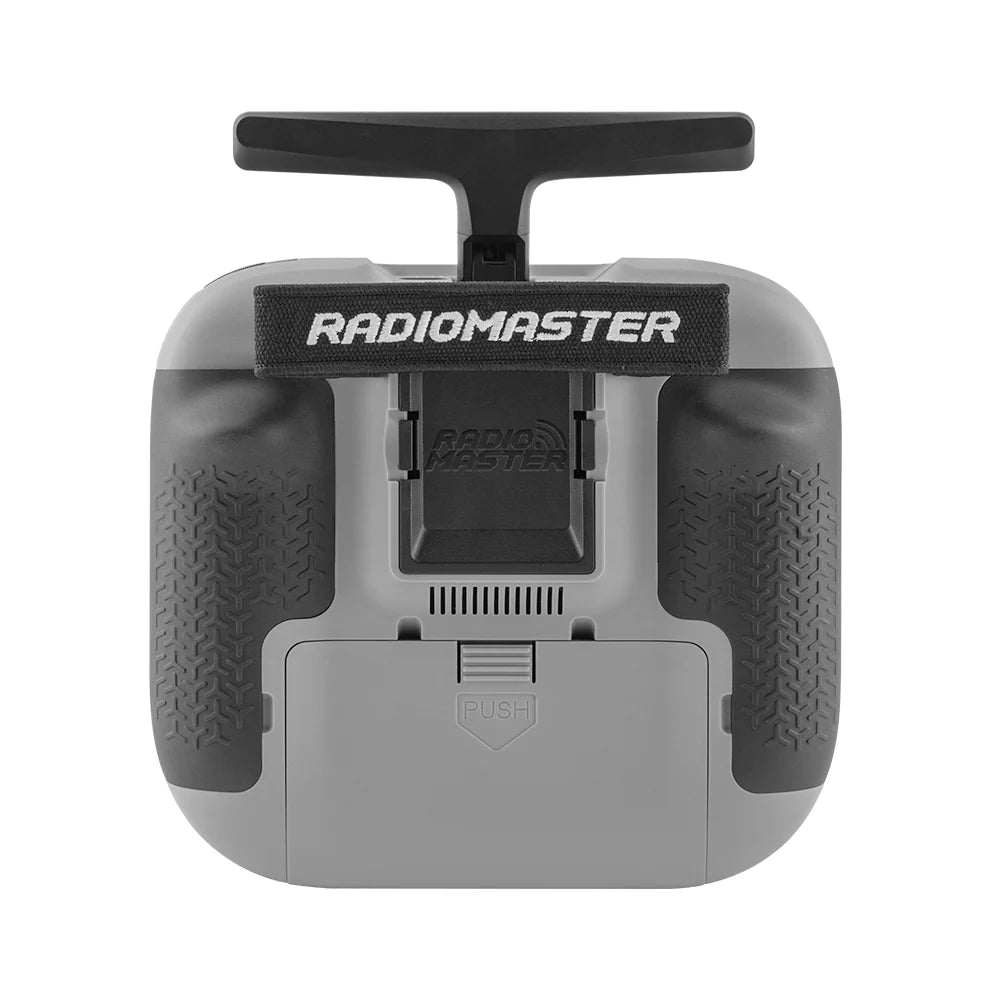

Foldable Antenna: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Interchangeable Shoulder Switches: Customize your controls to match your flying style.

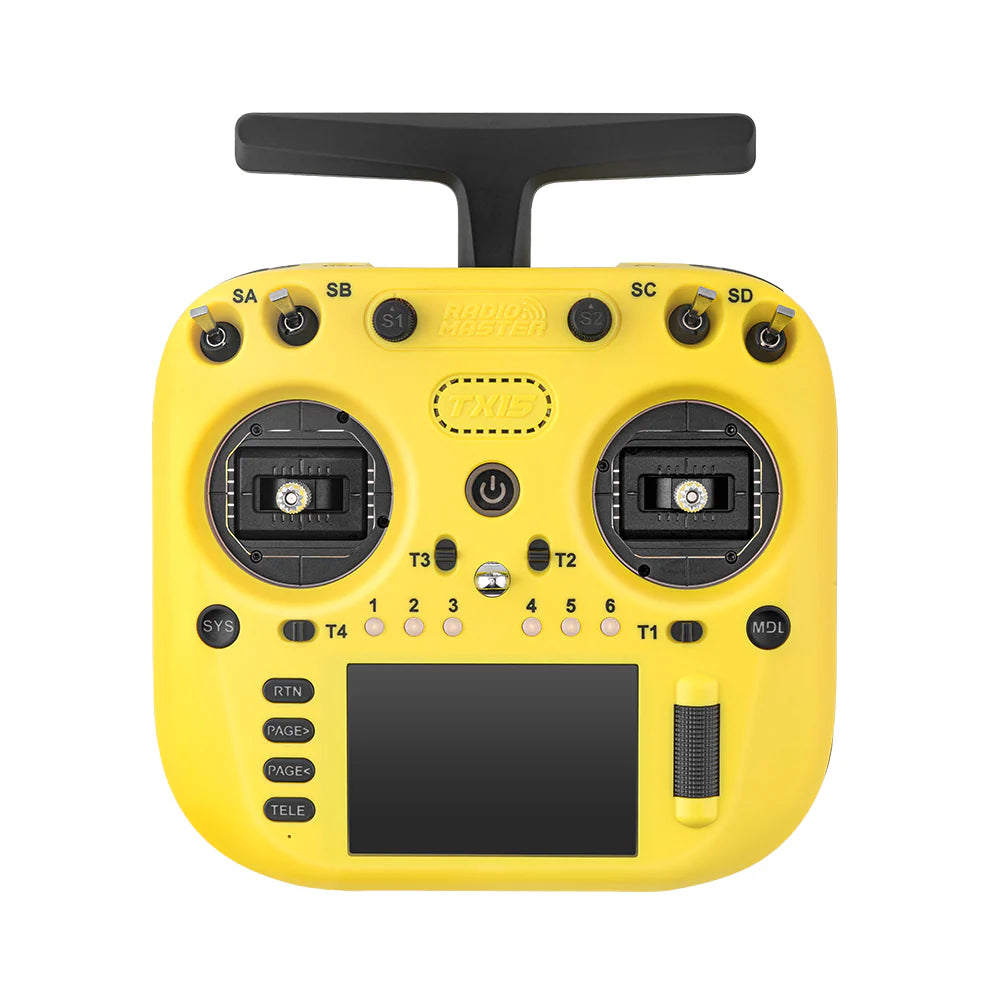

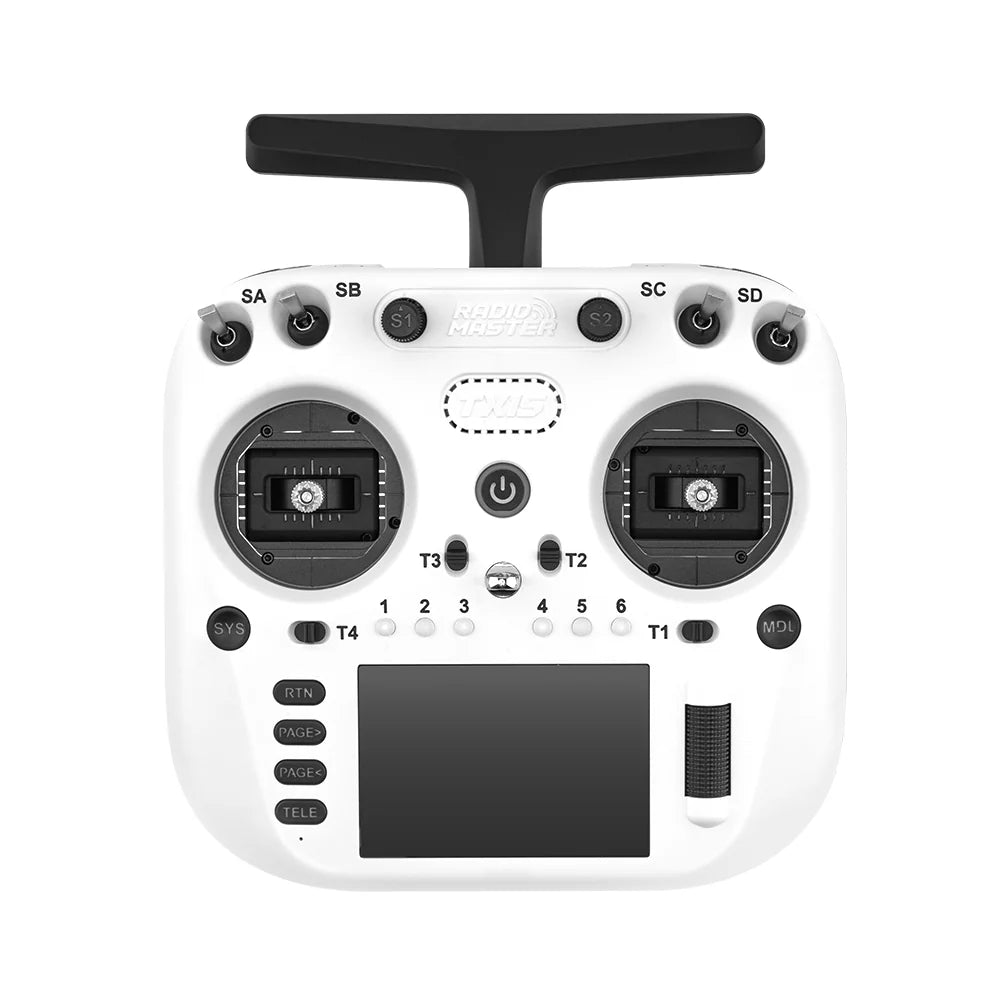

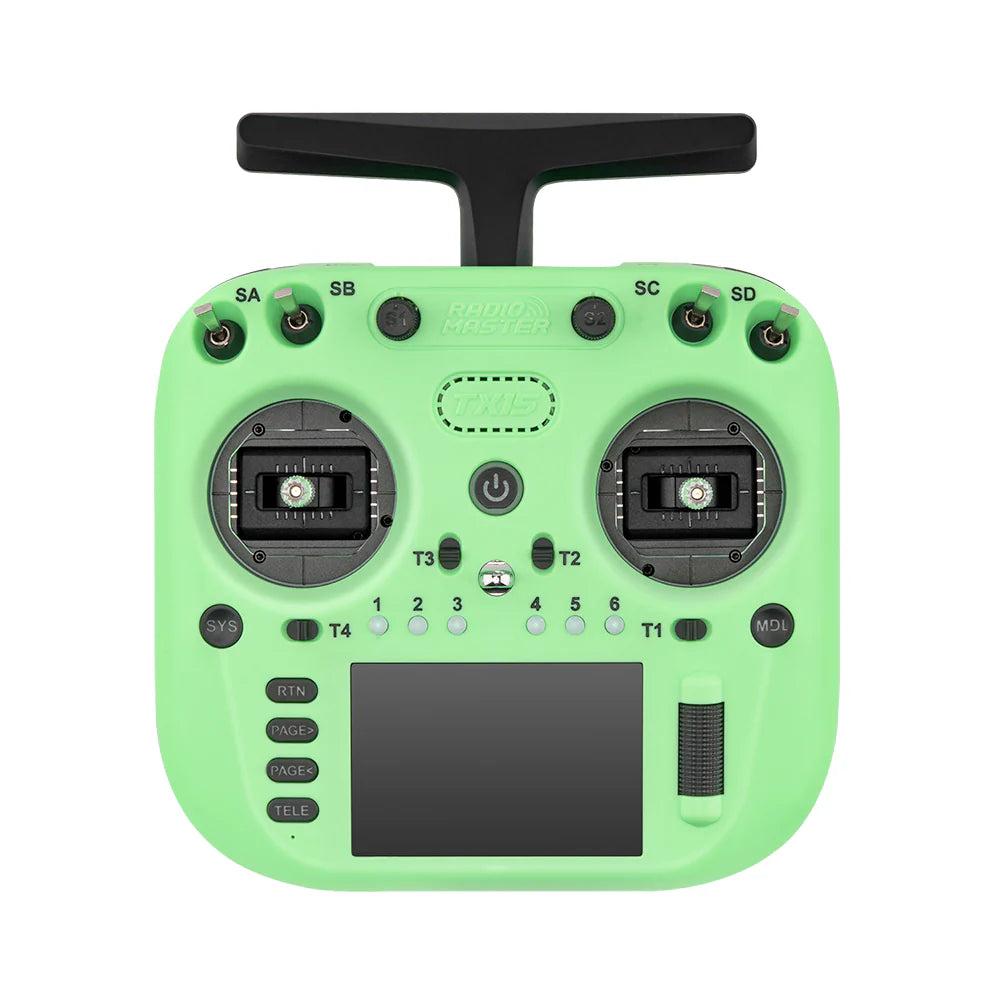

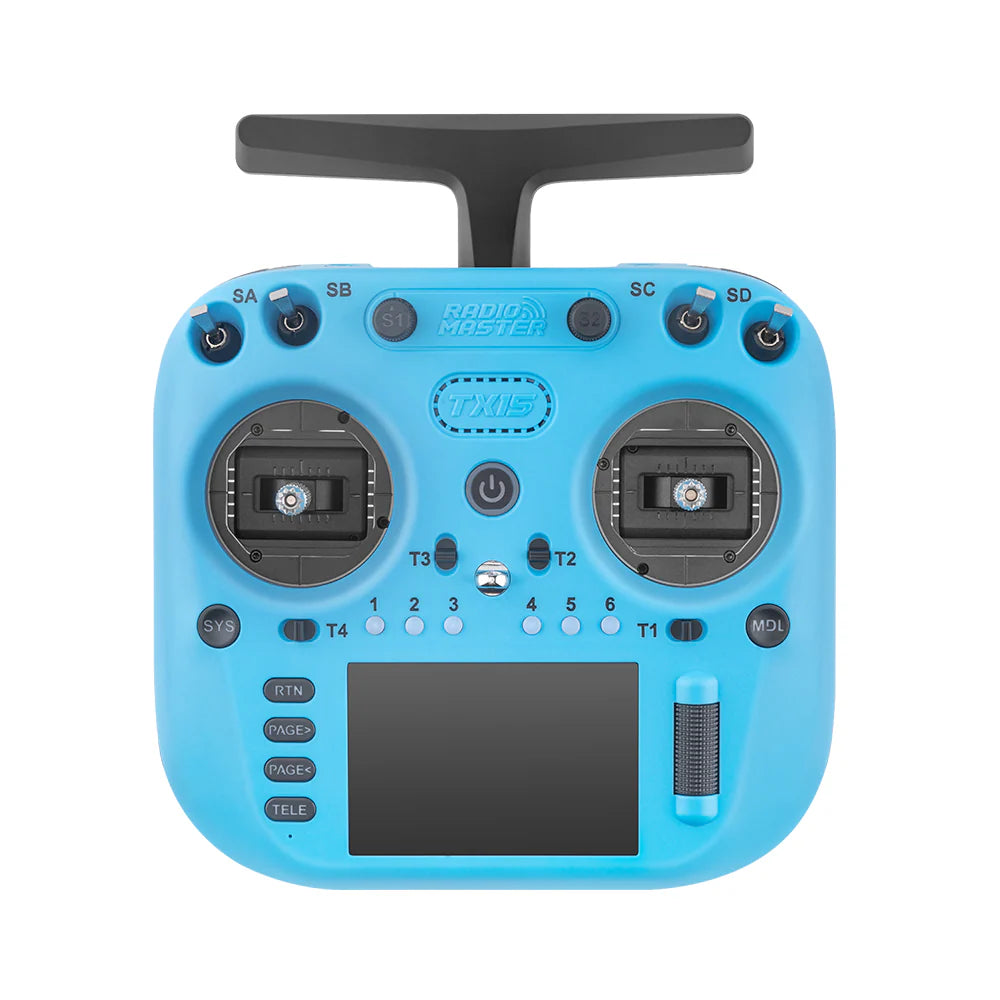

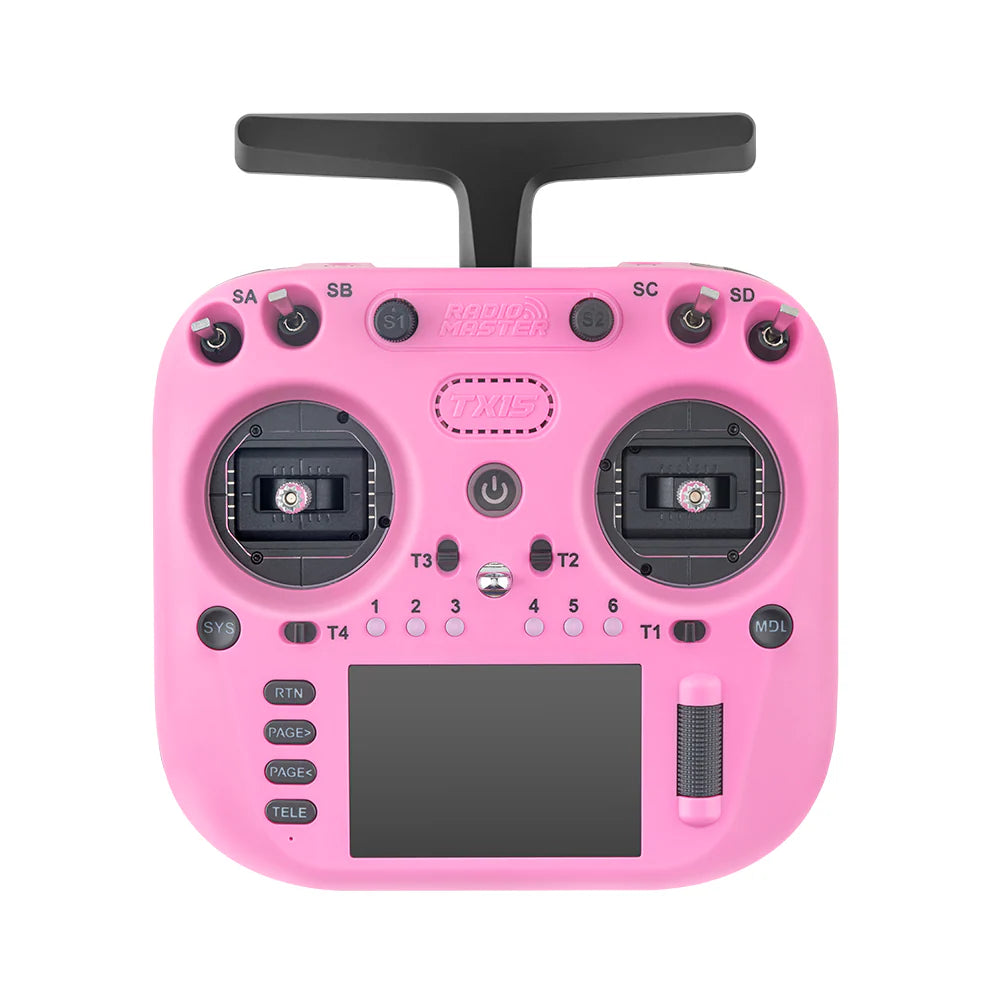

Optional colors: Iron Grey / Frost White / Iceberg Blue / Mint Mist / Lemon Twist Yellow / Hot Pink

Item: TX15 Radio Controller
Size: 178*168*81mm
Weight: 605g (without battery)
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Gyro: Yes (ICM-42607-C)
MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 - 8.4V DC
Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent)
Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

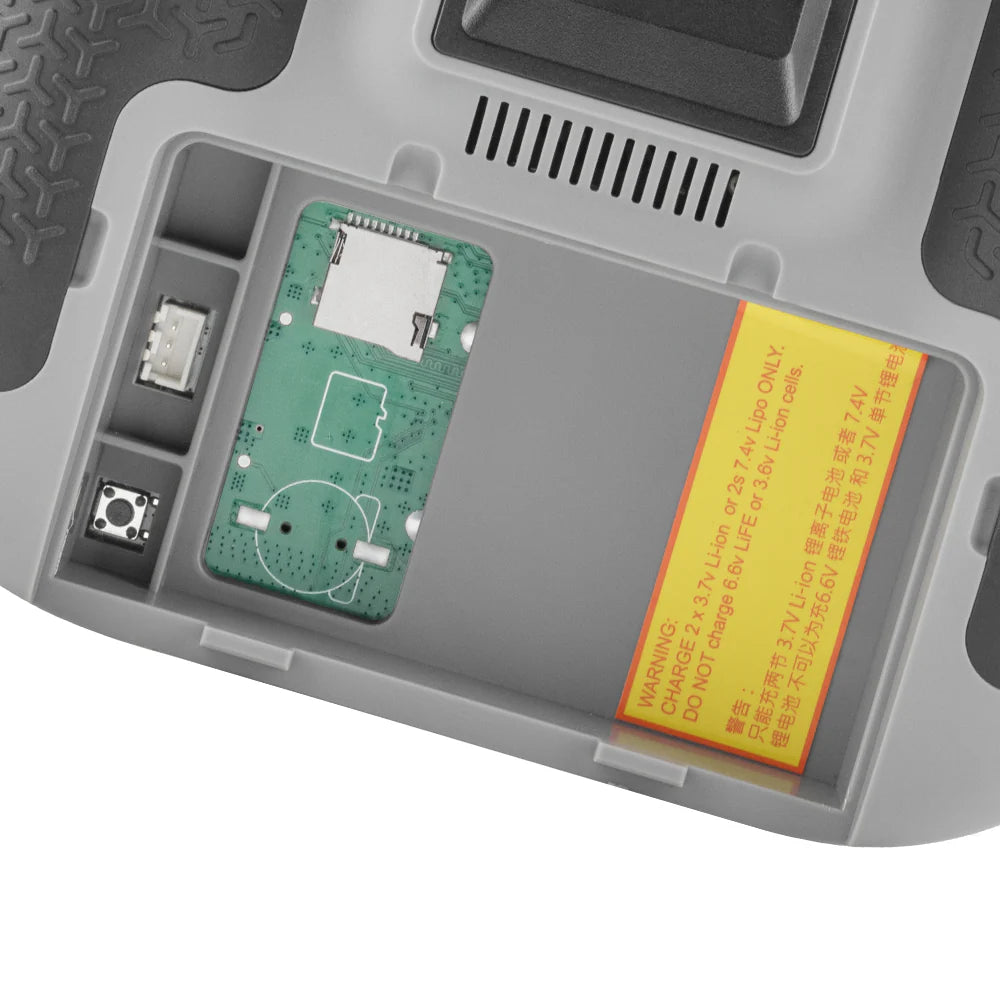

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: V5.0 Hall sensor gimbals (standard)
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules
